Note: Archival product

STEKO Extrusion

Ref No: A18018
STEKO Extrusion
STEKO Extrusion
STEKO Extrusion
STEKO Extrusion
  • For installation on the steps
  • Non-slip elements
Surface mounted
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
  • For installation on the steps
  • Non-slip elements
Application
  • - warning lighting and anti-slip protection on the steps
Mounting
  • - to a step, using properly selected screws
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

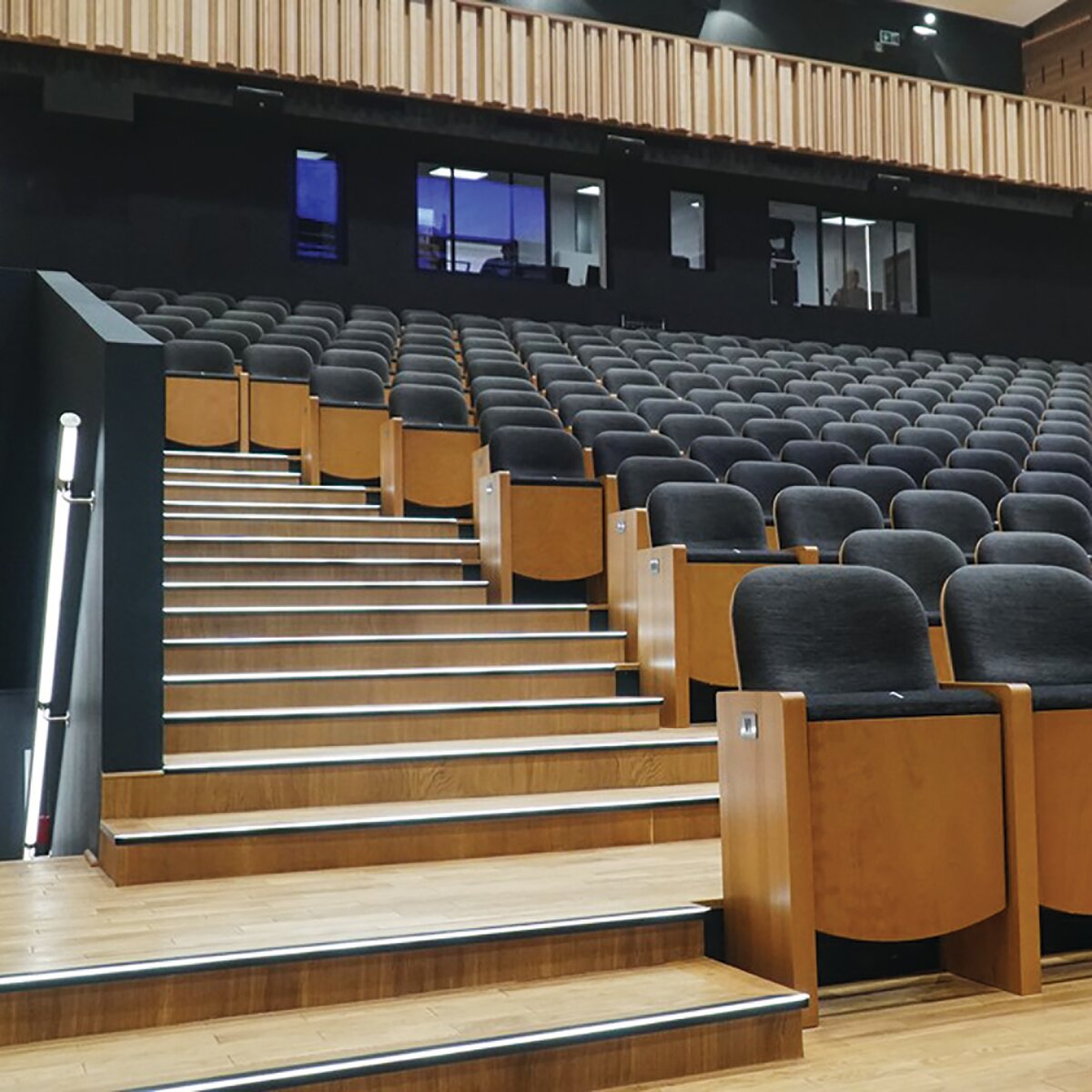

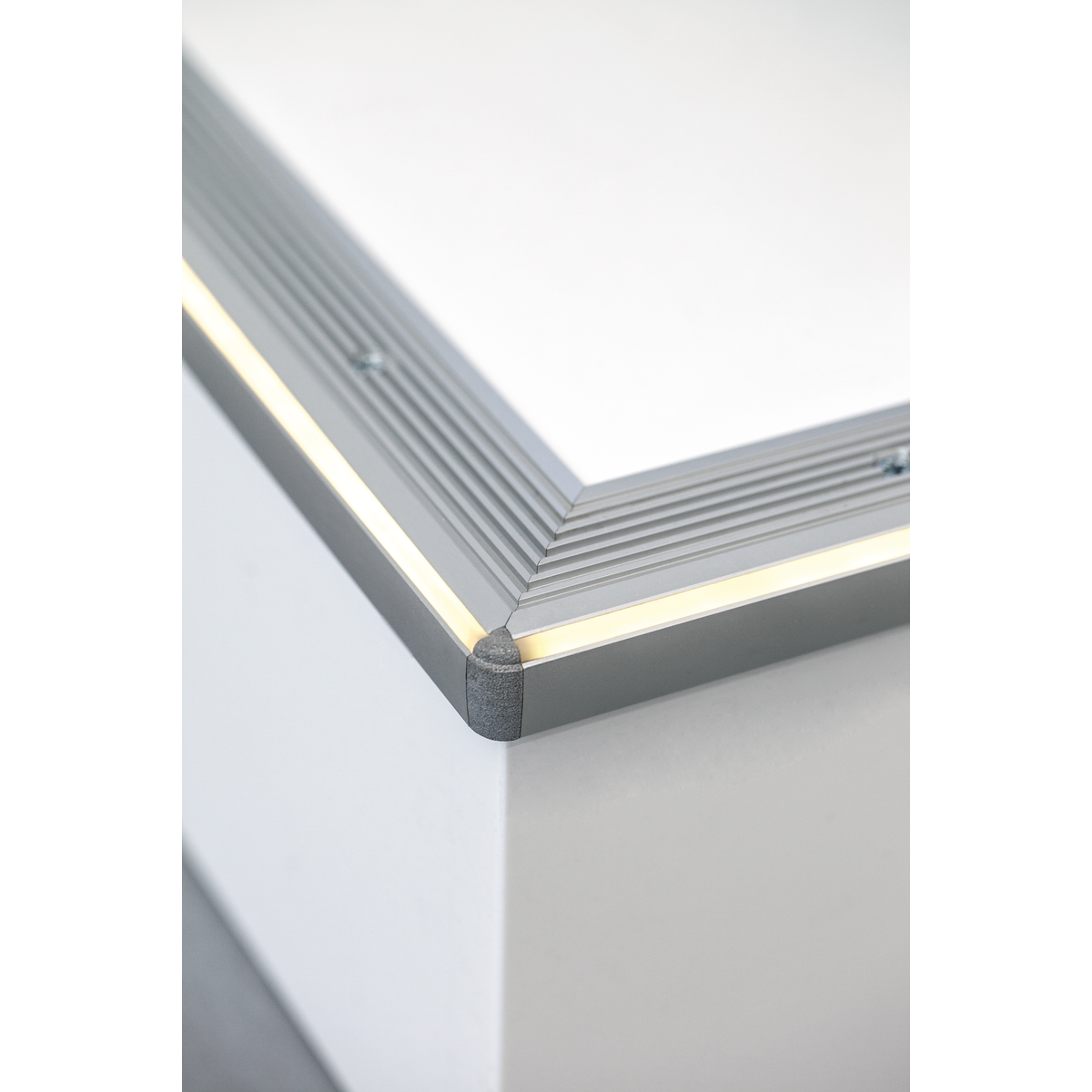

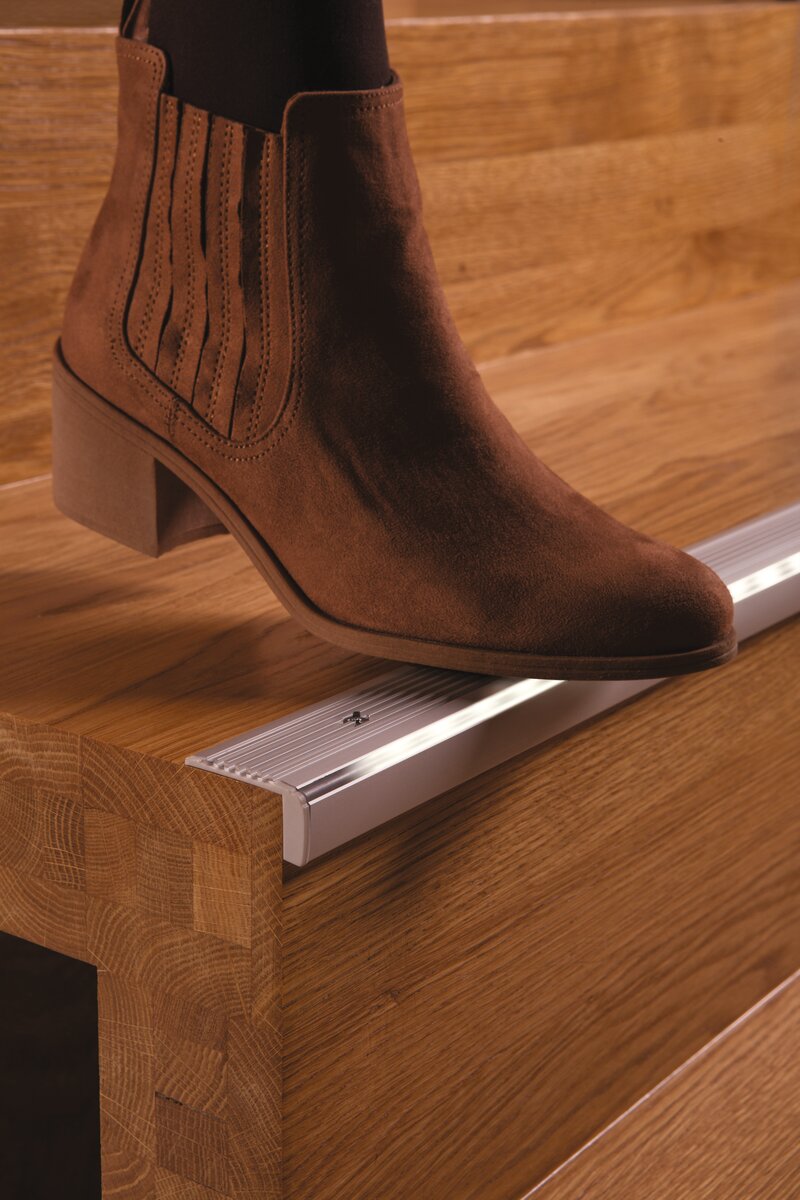

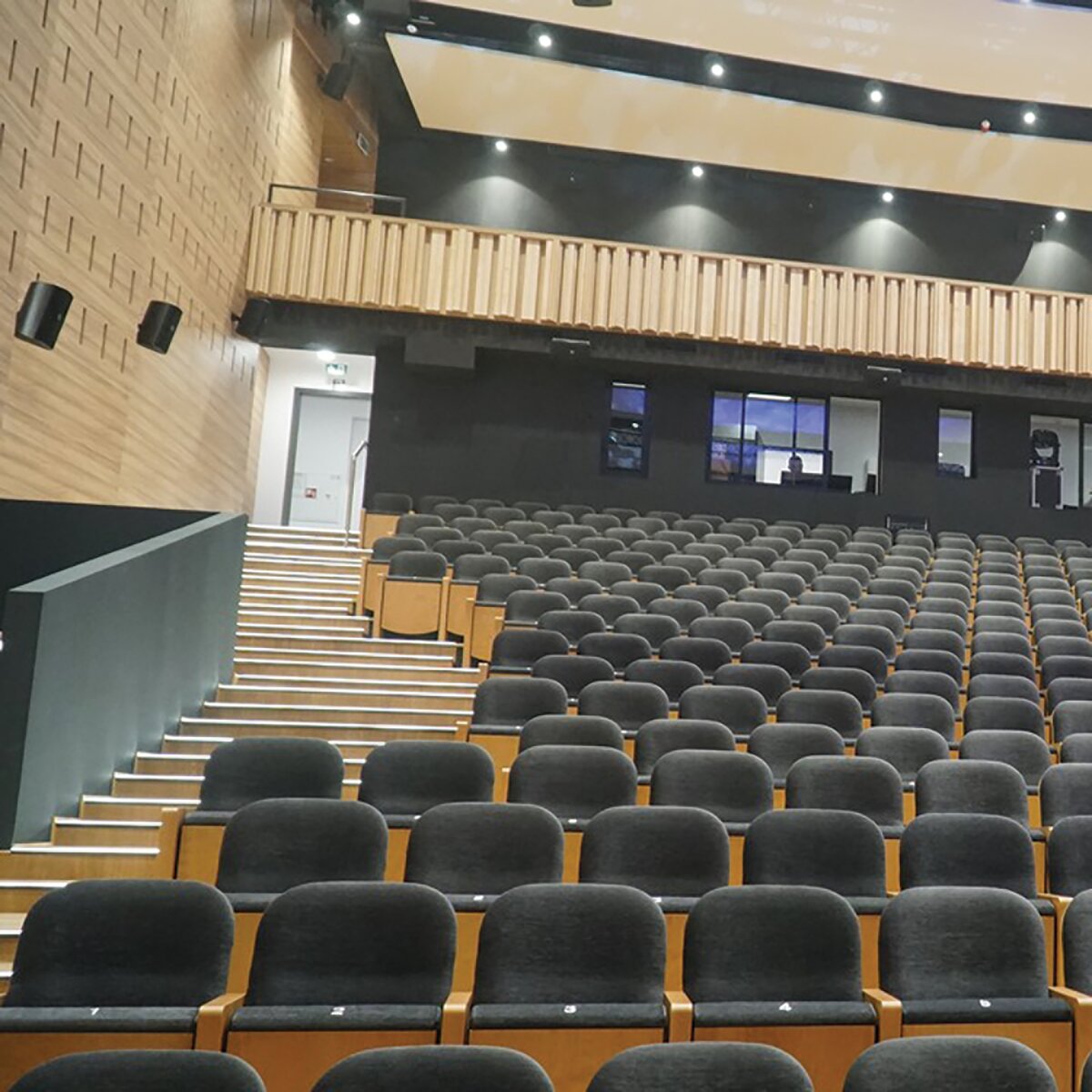

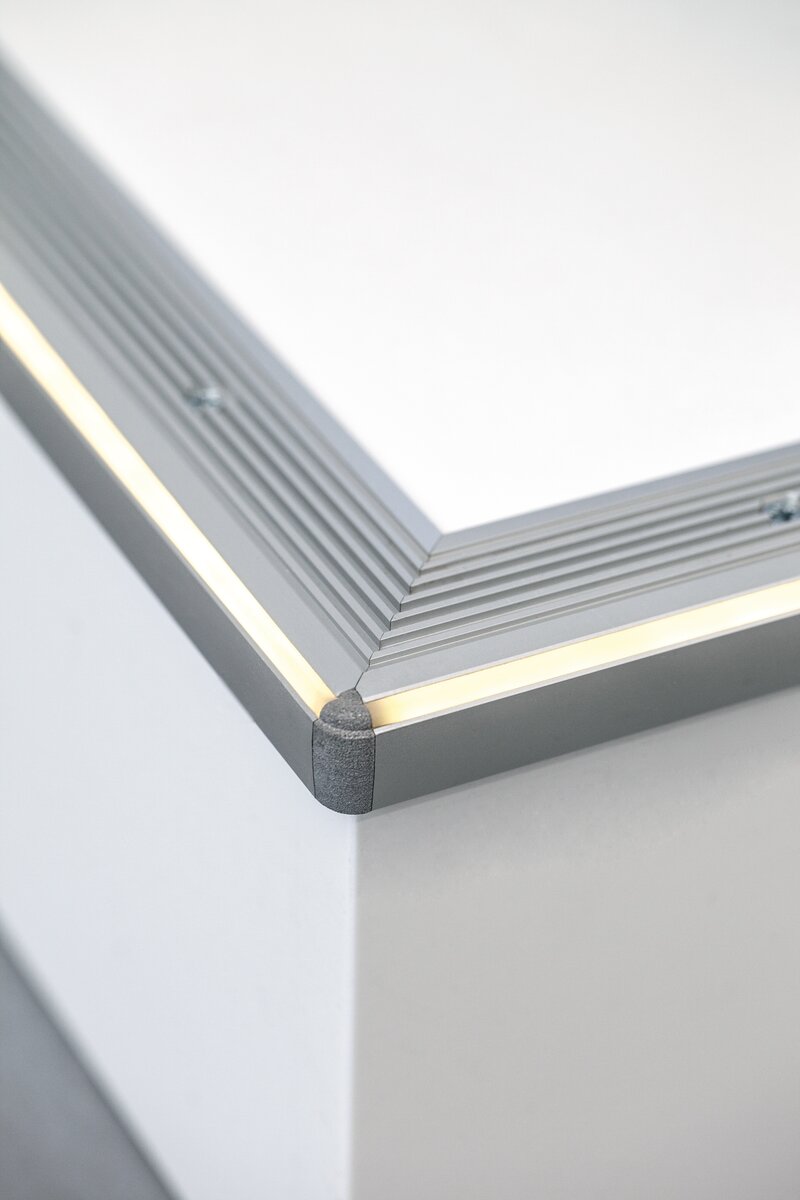

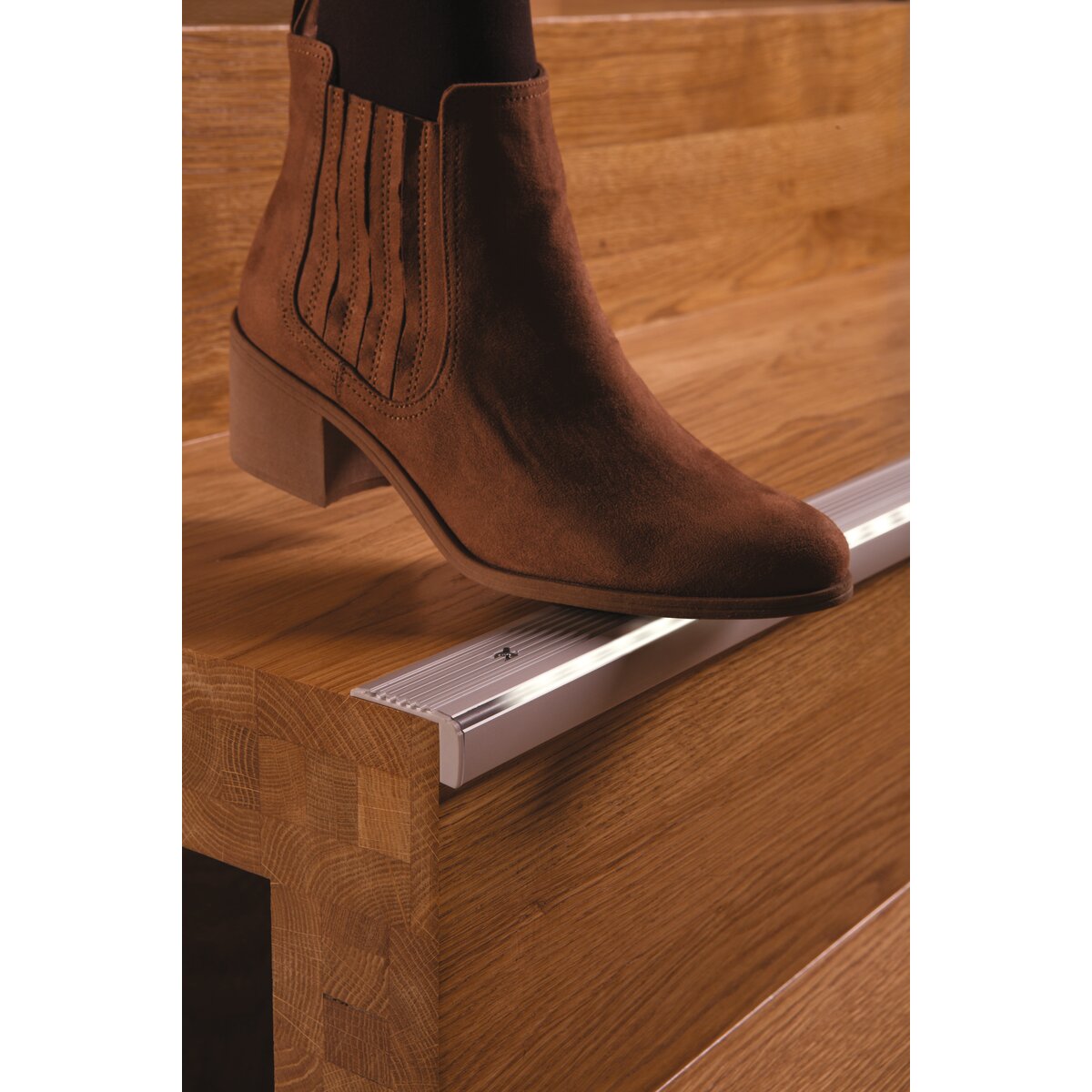

Usage examples

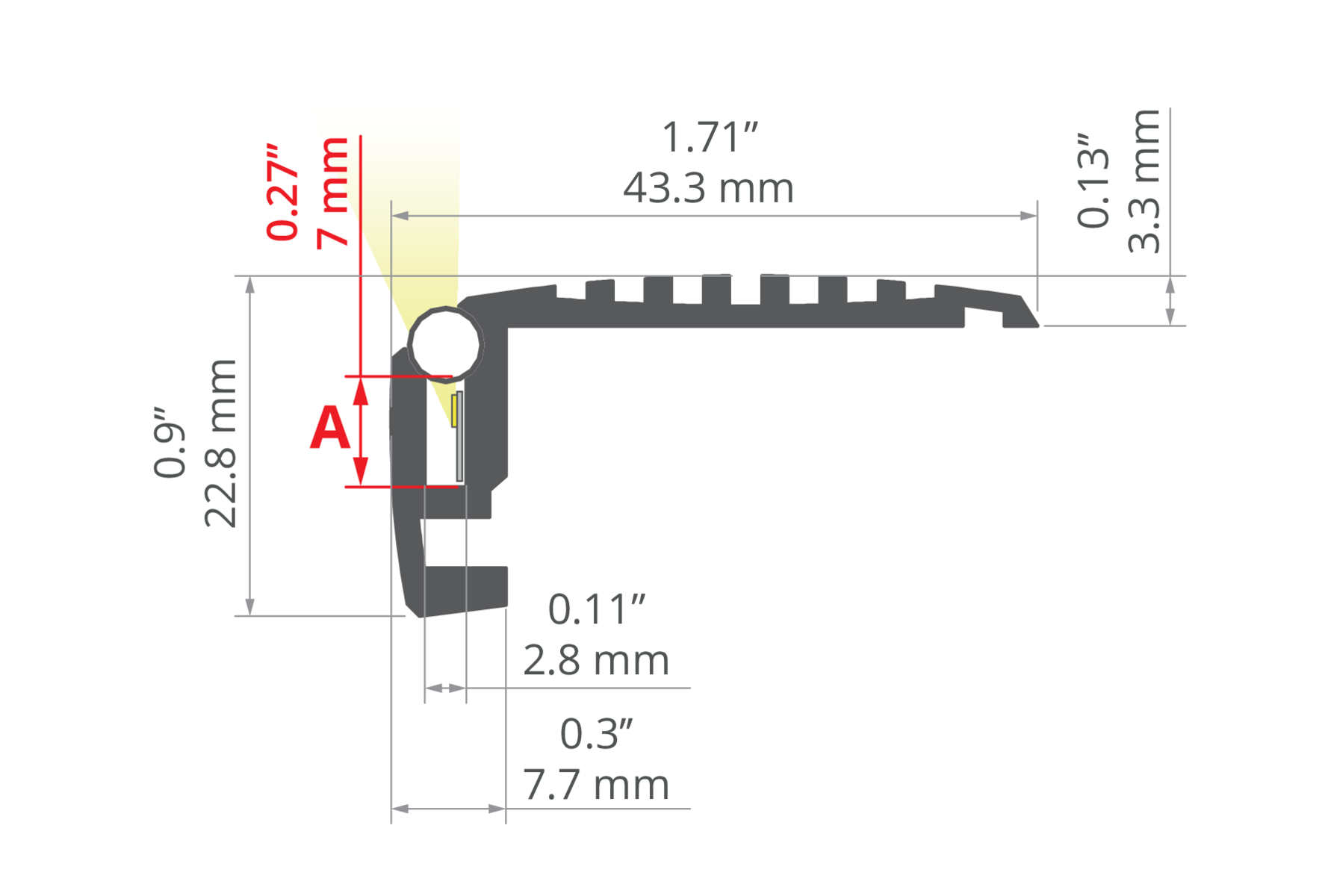

Technical drawing
STEKO Extrusion aluminum Technical drawing - A18018
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear
Max power of a single KLUŚ LED strip
1.5 W/ft
Width
1.7" (43.3 mm)
Height
0.9" (22.8 mm)
LED gluing width A
0.3" (7 mm)
Wire out back of extrusion
Yes
Building type
Commercial, Entertainment/ Arts, Hotel / Restaurant
Facility zone
stairs / hallways, media rooms / av
similar profiles
Surface mounted
STEKO-PLUS
Ref No: A06888
Step
STEP
Ref No: A18042
Surface mounted
STEPUS
Ref No: A18038
Related products
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SE-1210-24 LED tape, 109-119 lm/ft, IP20,
20 - 1.5 W/ft
2700K
3000K
- Side emitting
K-SE27-1210-24
K-SE30-1210-24
No results found for the selected filters.
Product name Material Color Ref No
Gland 6x1,2
C24517C07
No results found for the selected filters.
