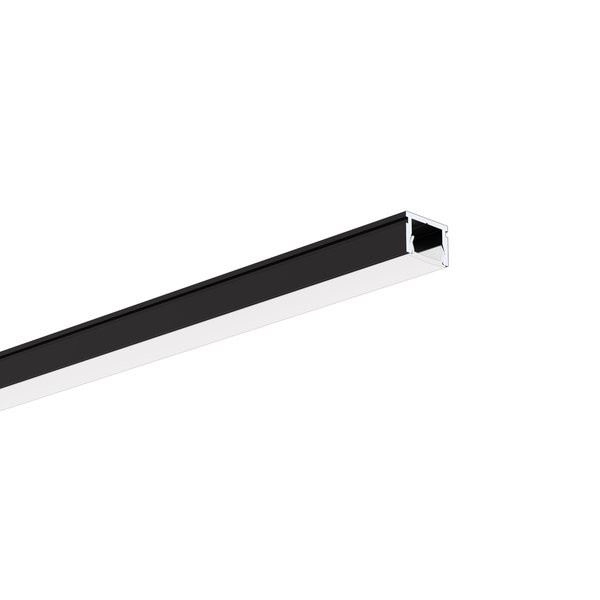

PIKO Extrusion (A08288) | KlusDesign.com

Compare

Compared

Possibility of installing sealed 5K series LED strips
Minimum width and height
Small bending radius

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Possibility of installing sealed 5K series LED strips
Minimum width and height
Small bending radius

Application

- furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

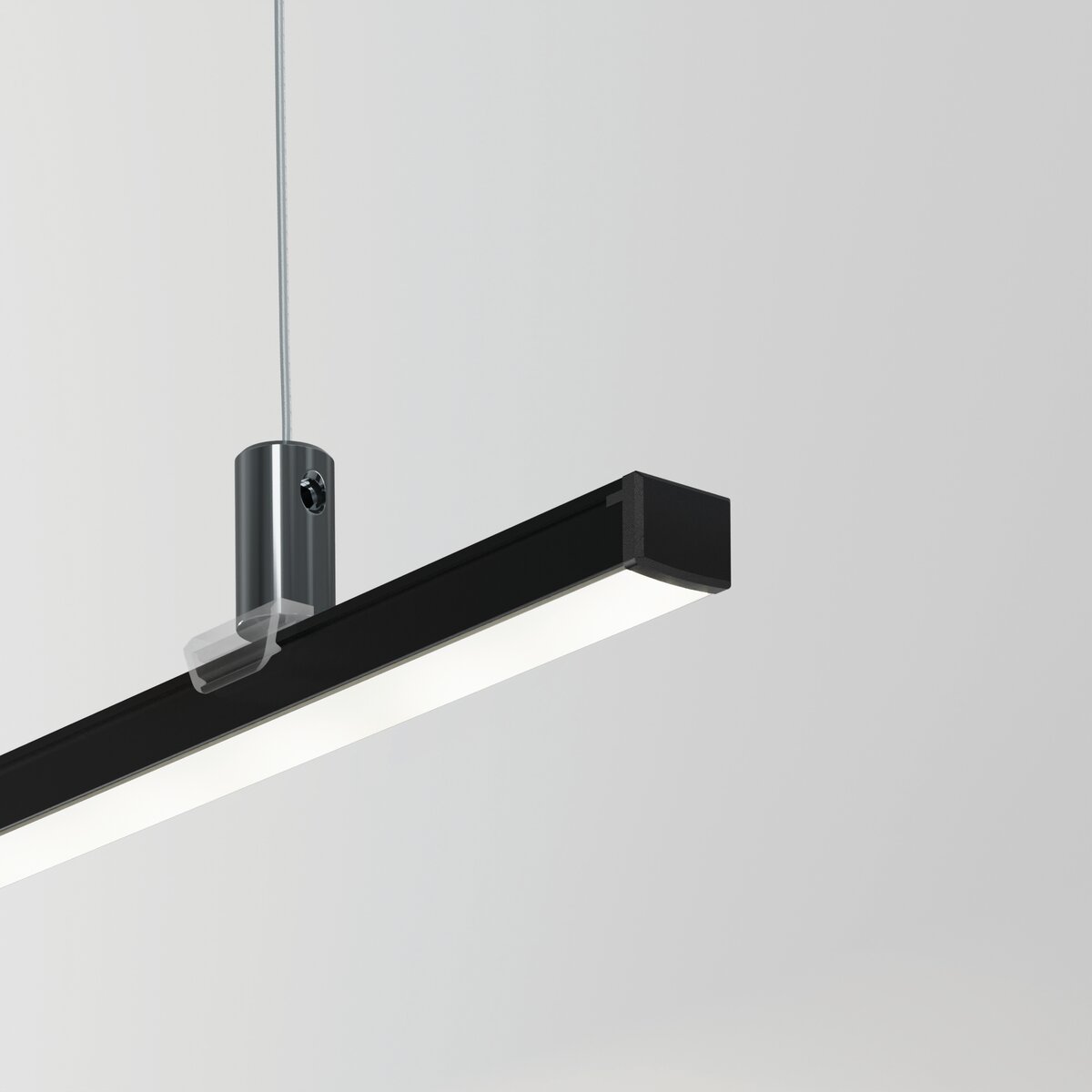

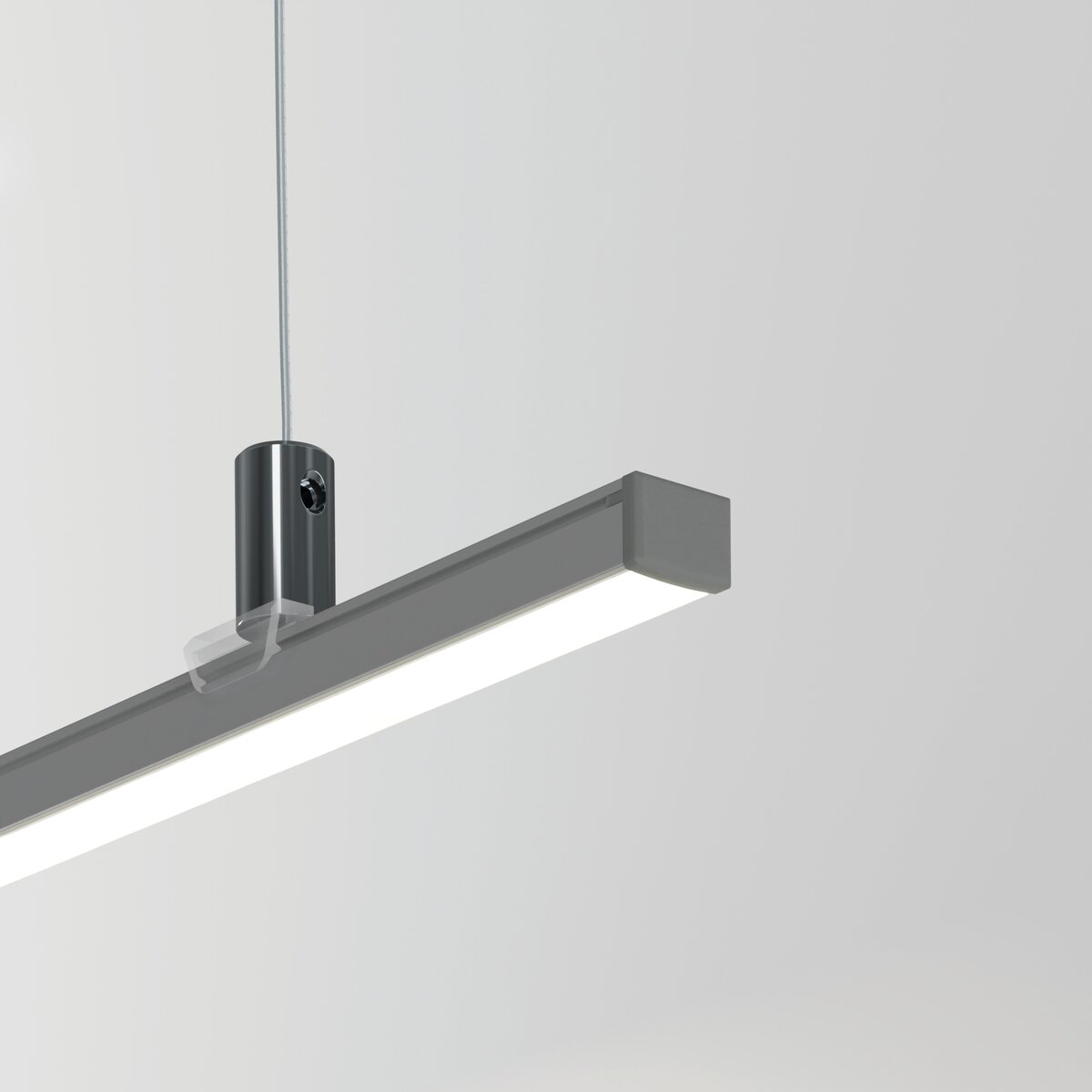

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

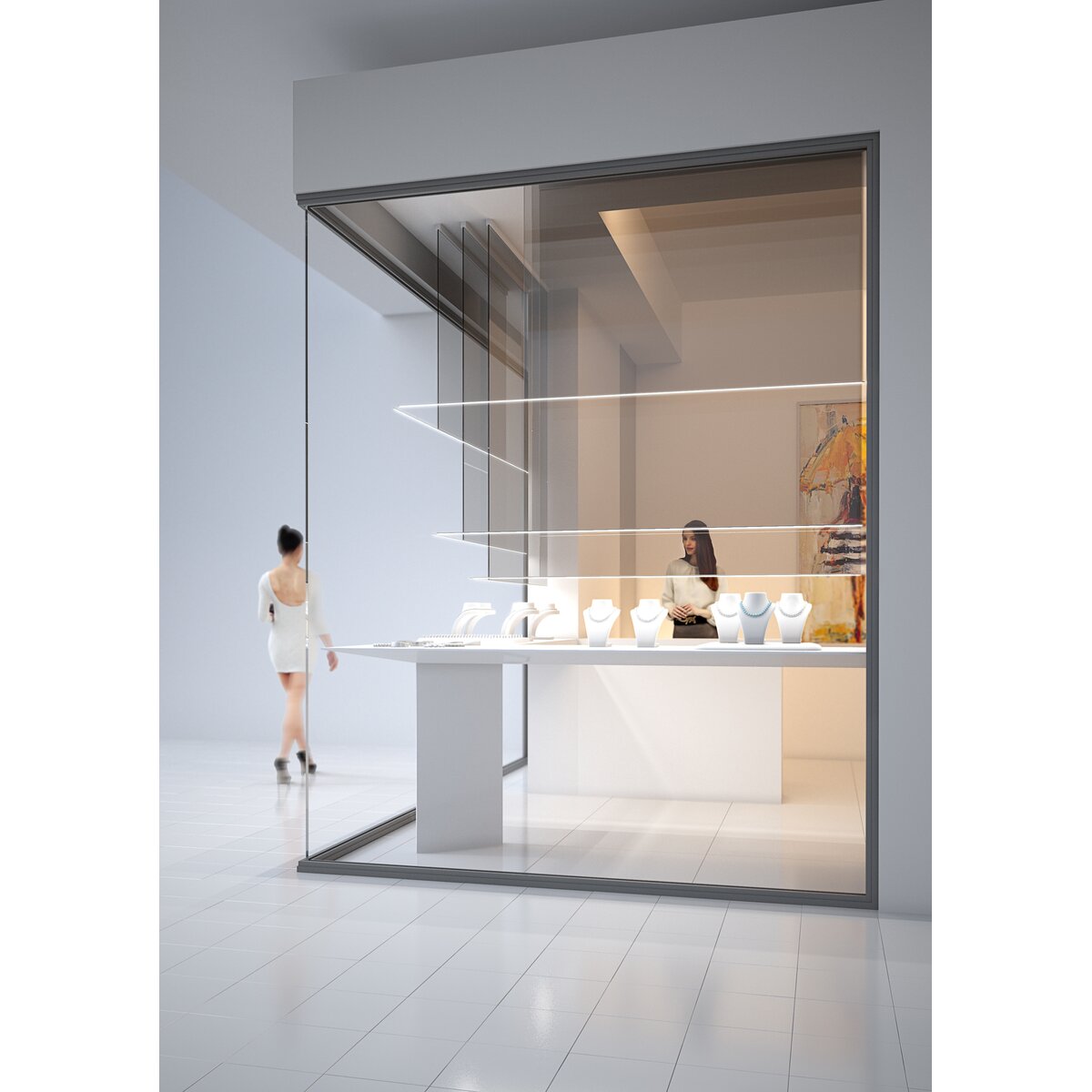

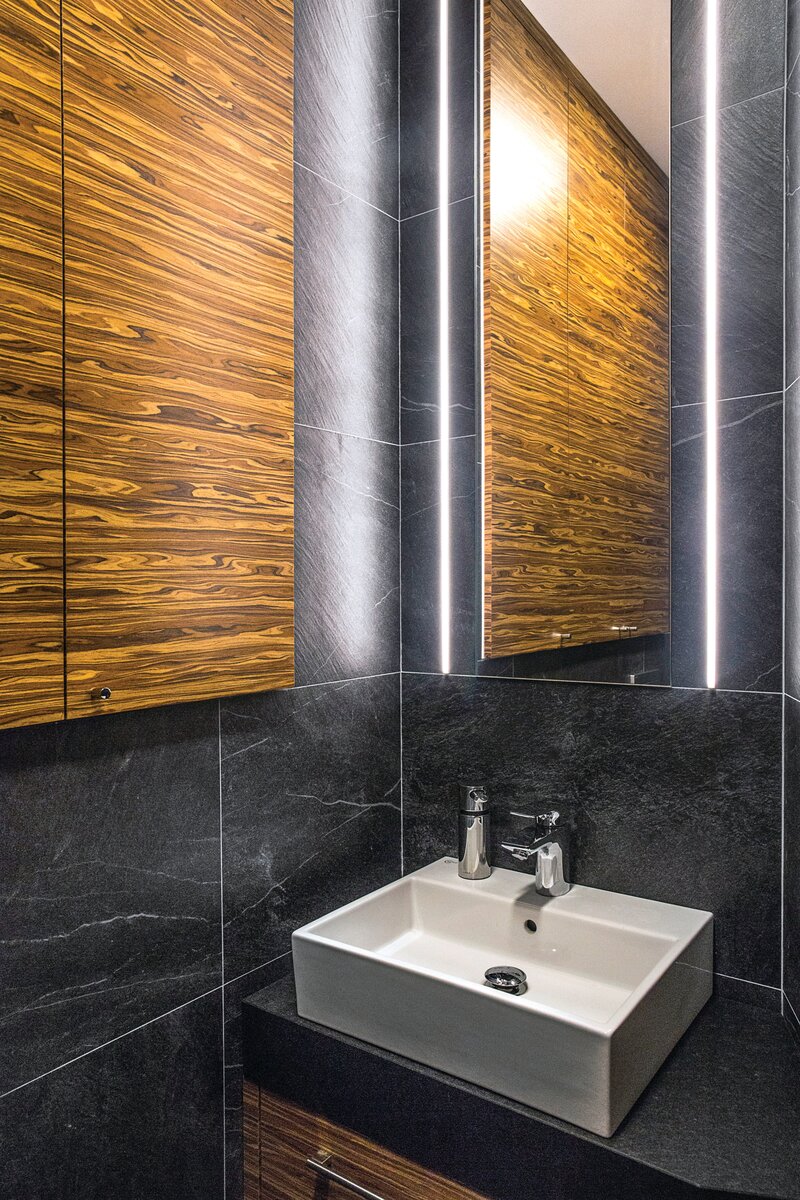

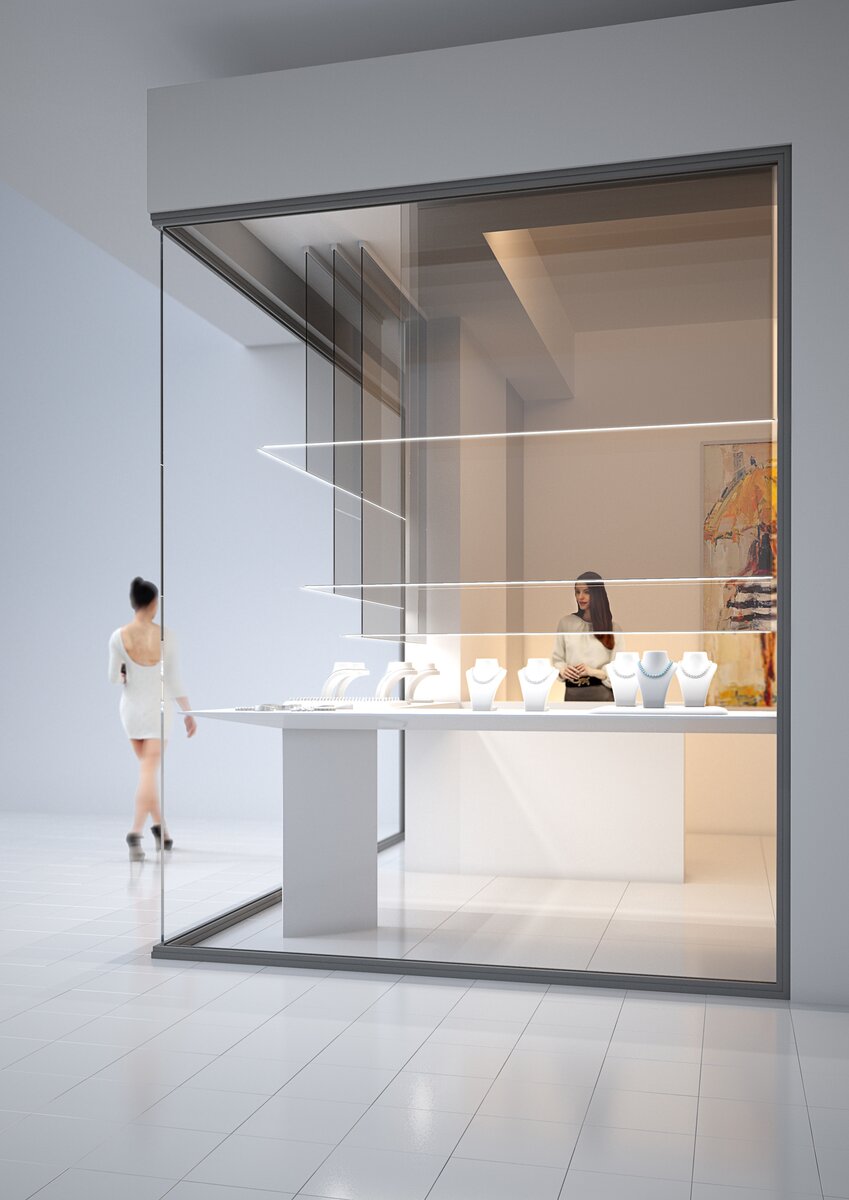

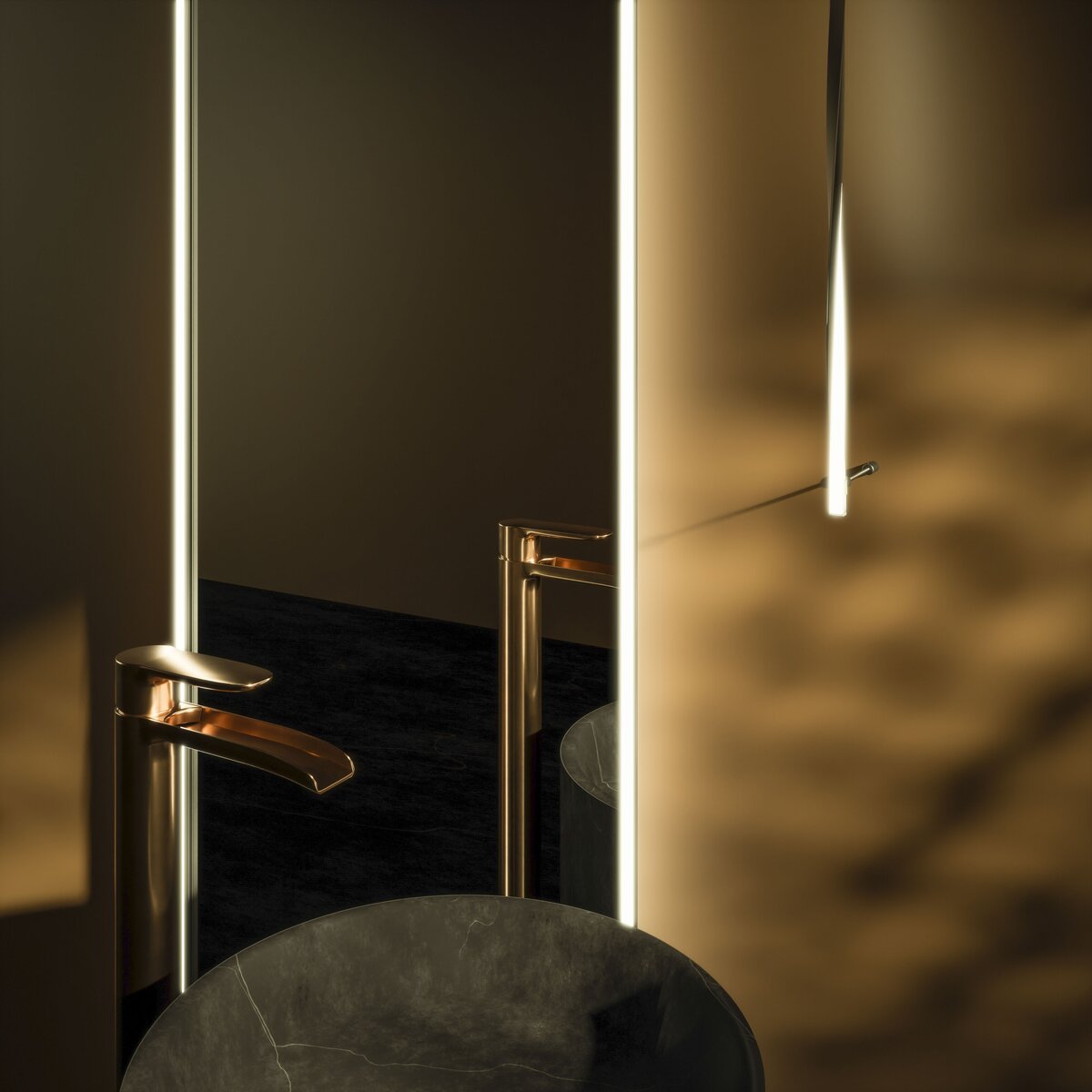

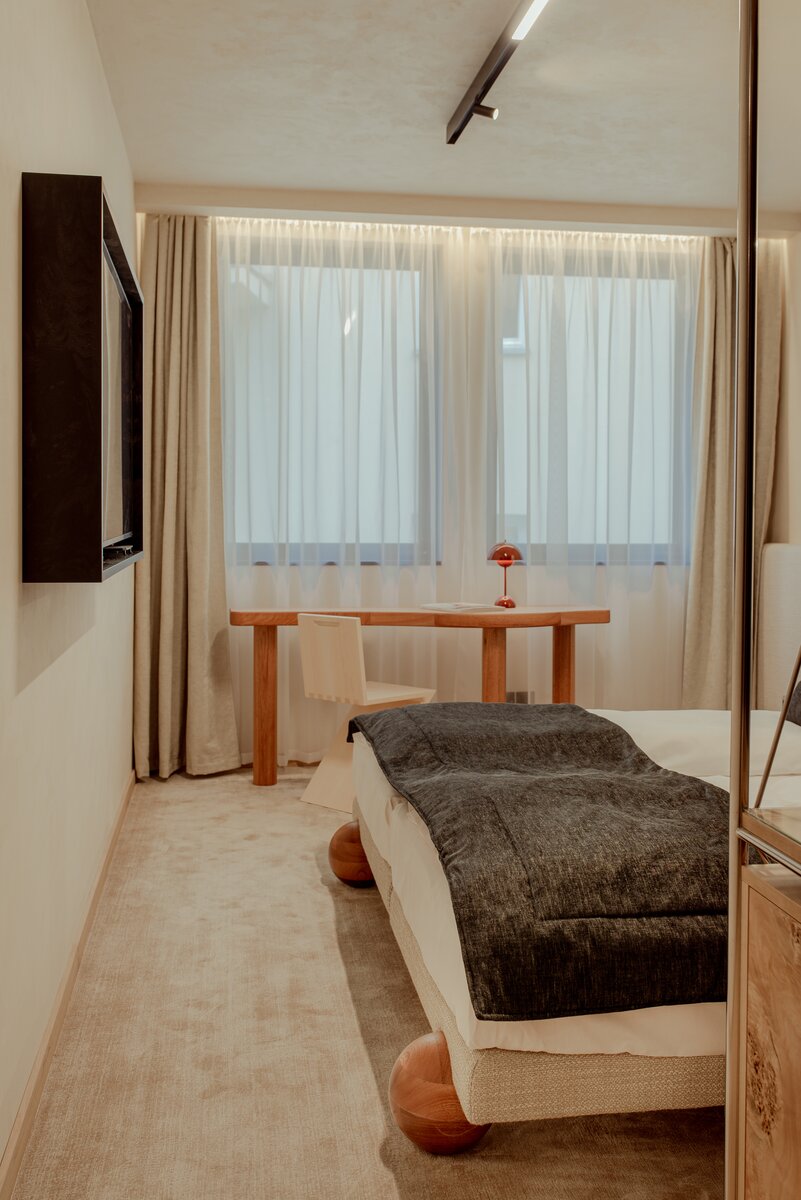

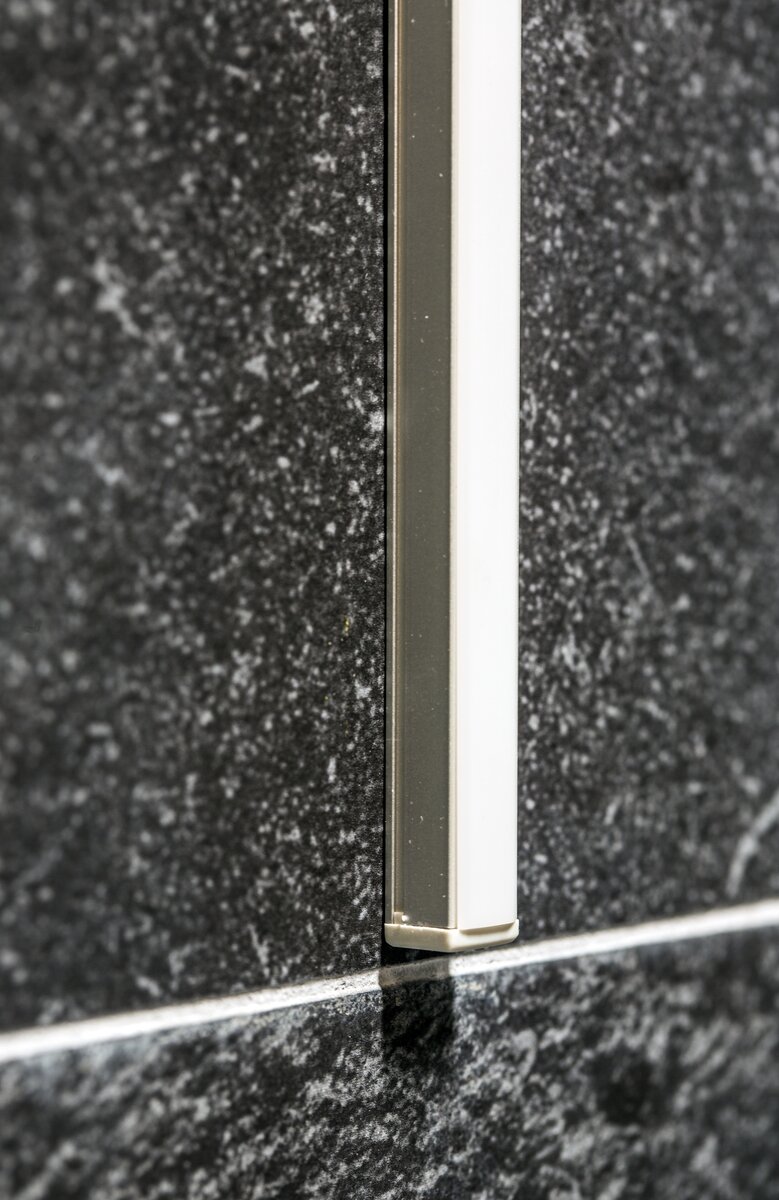

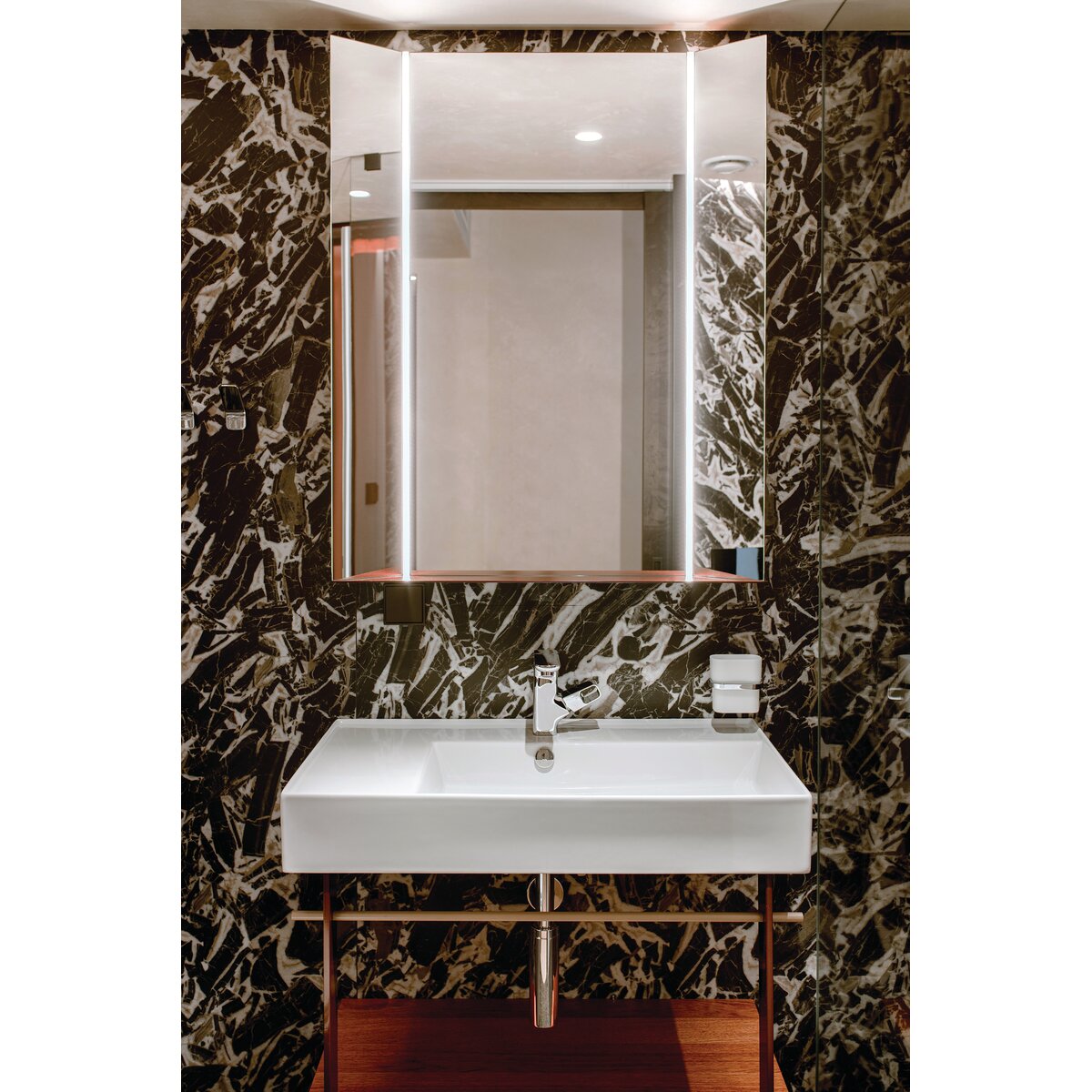

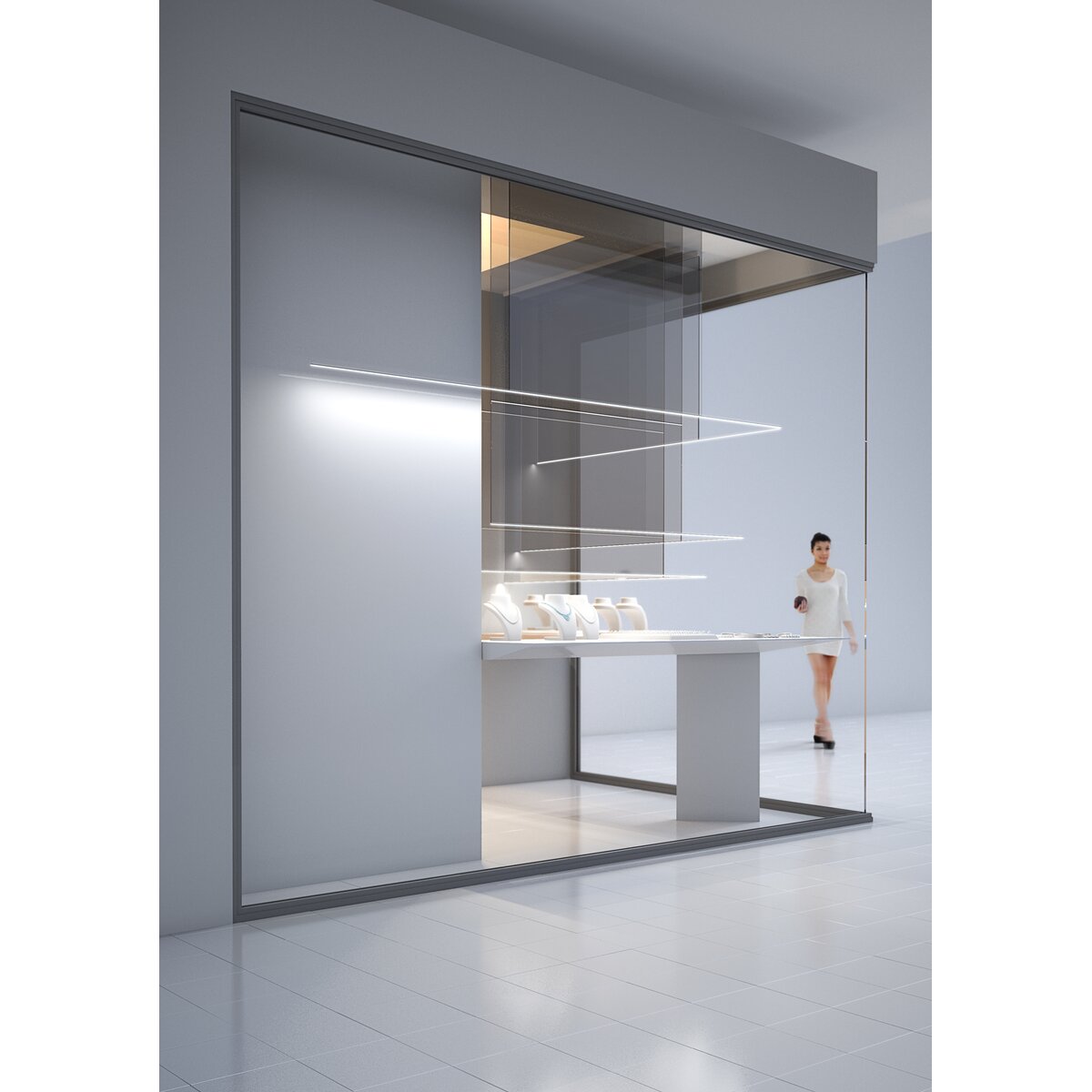

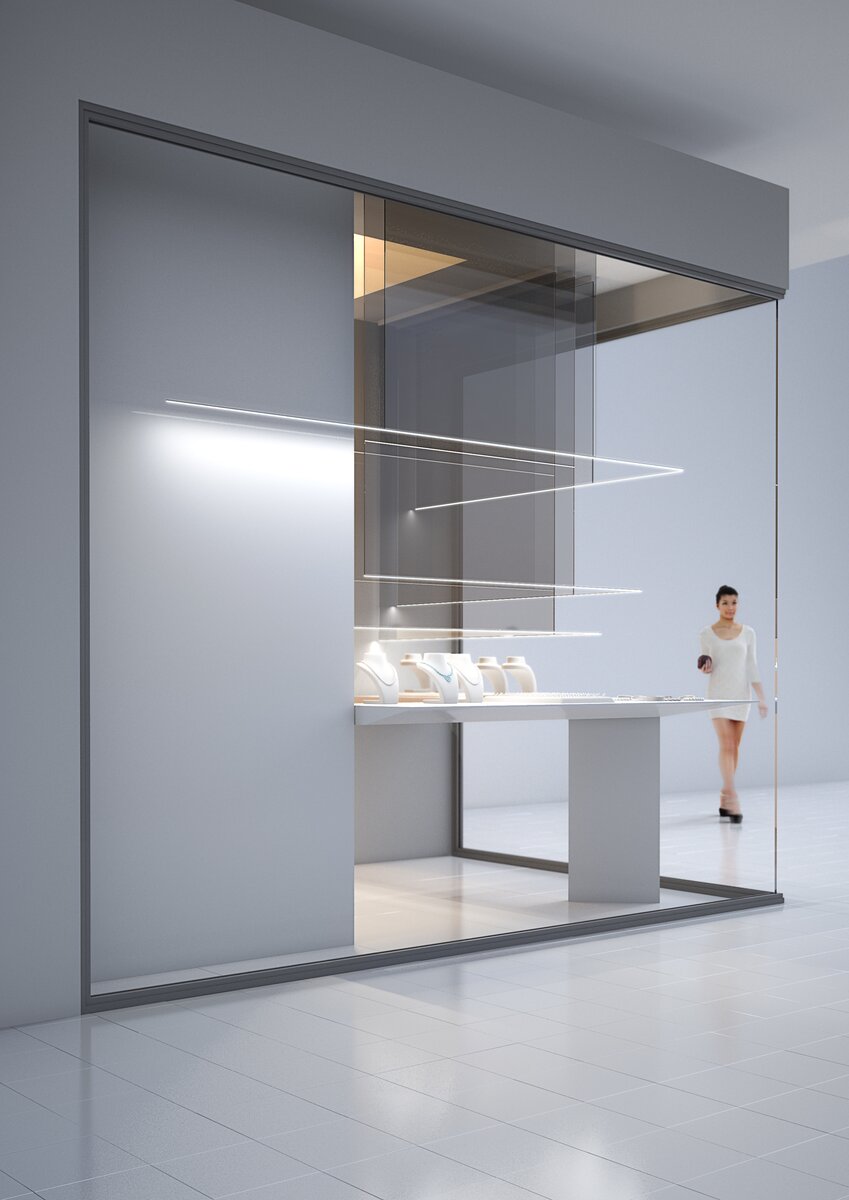

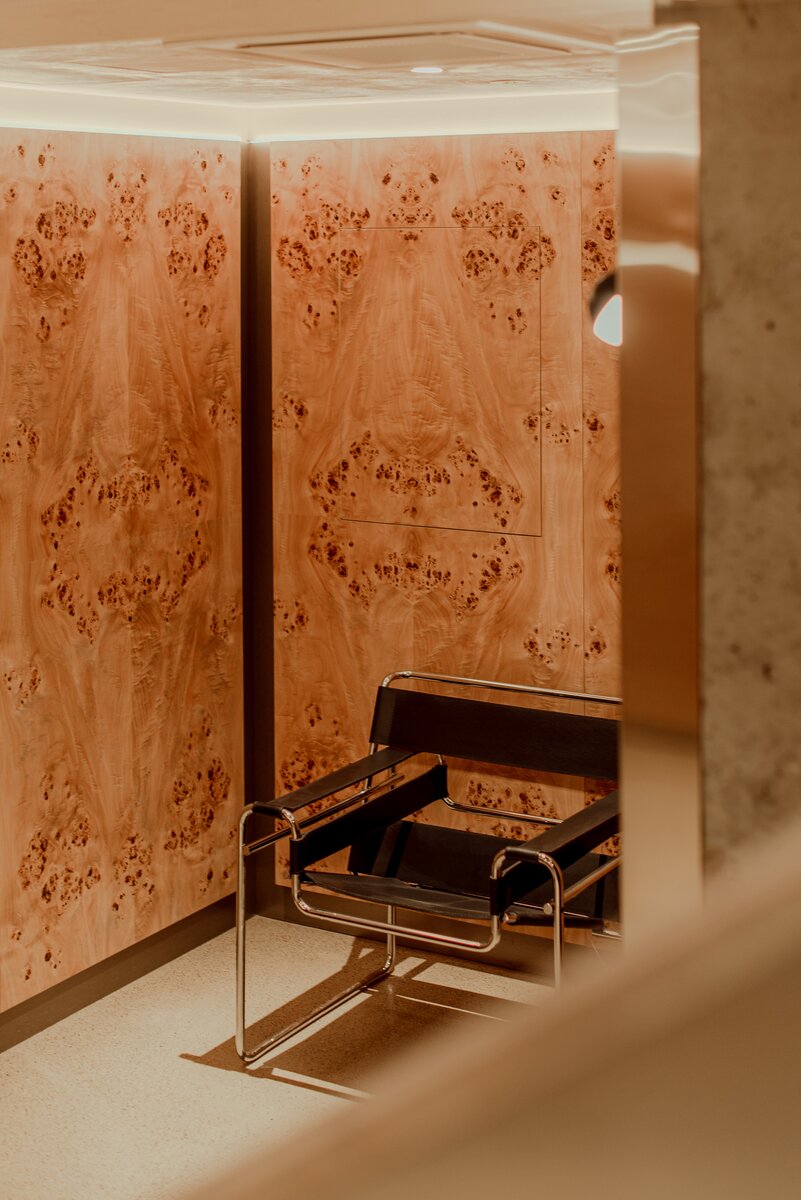

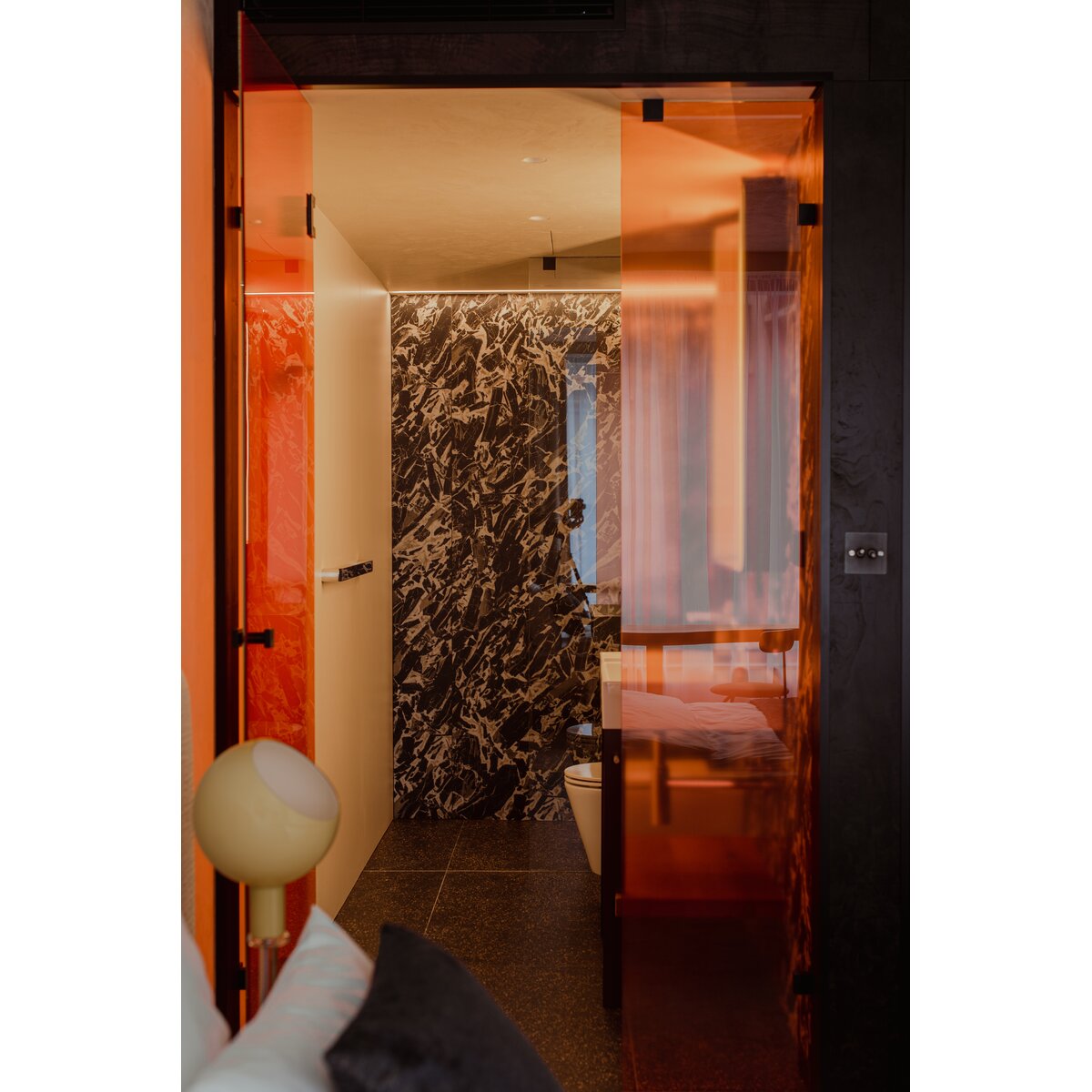

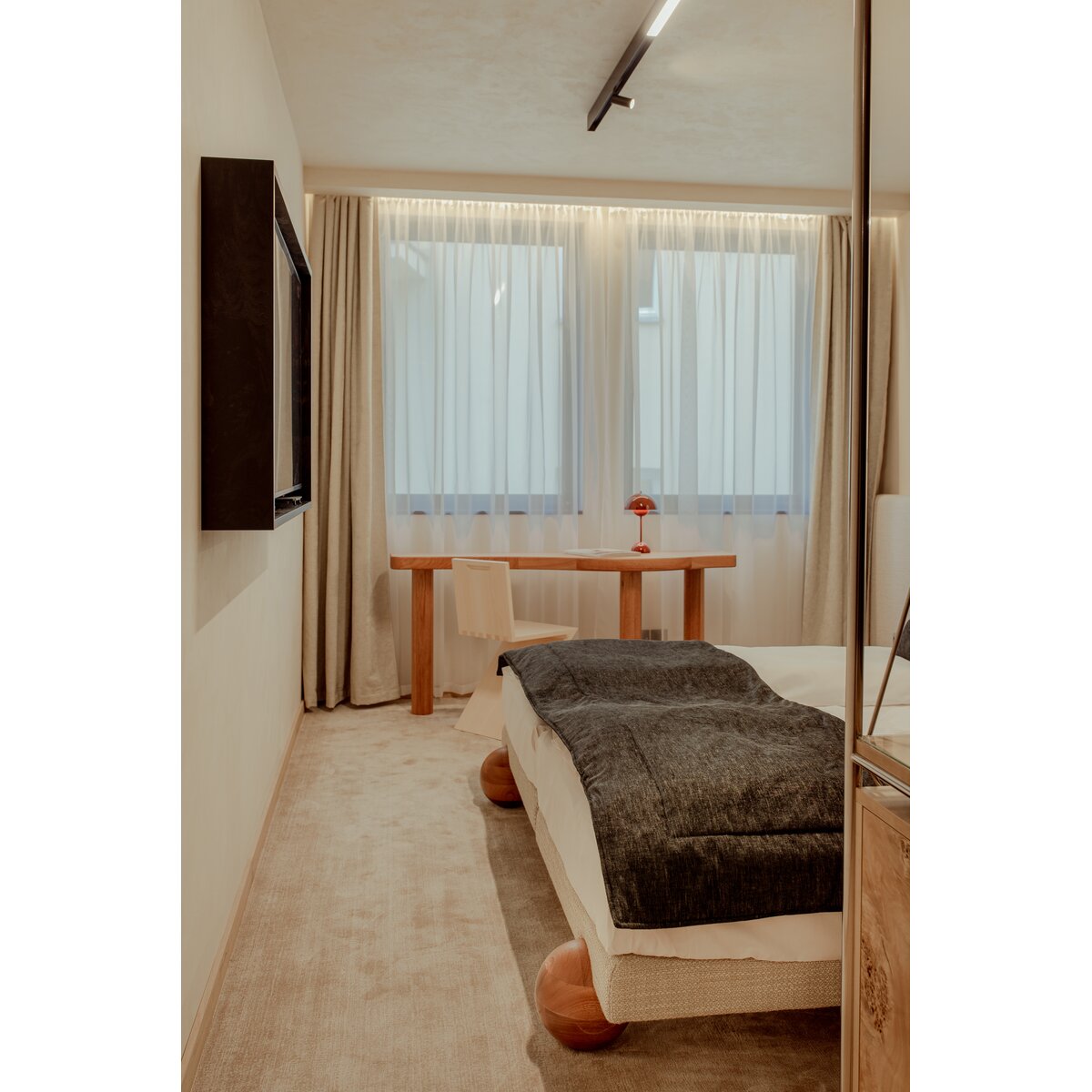

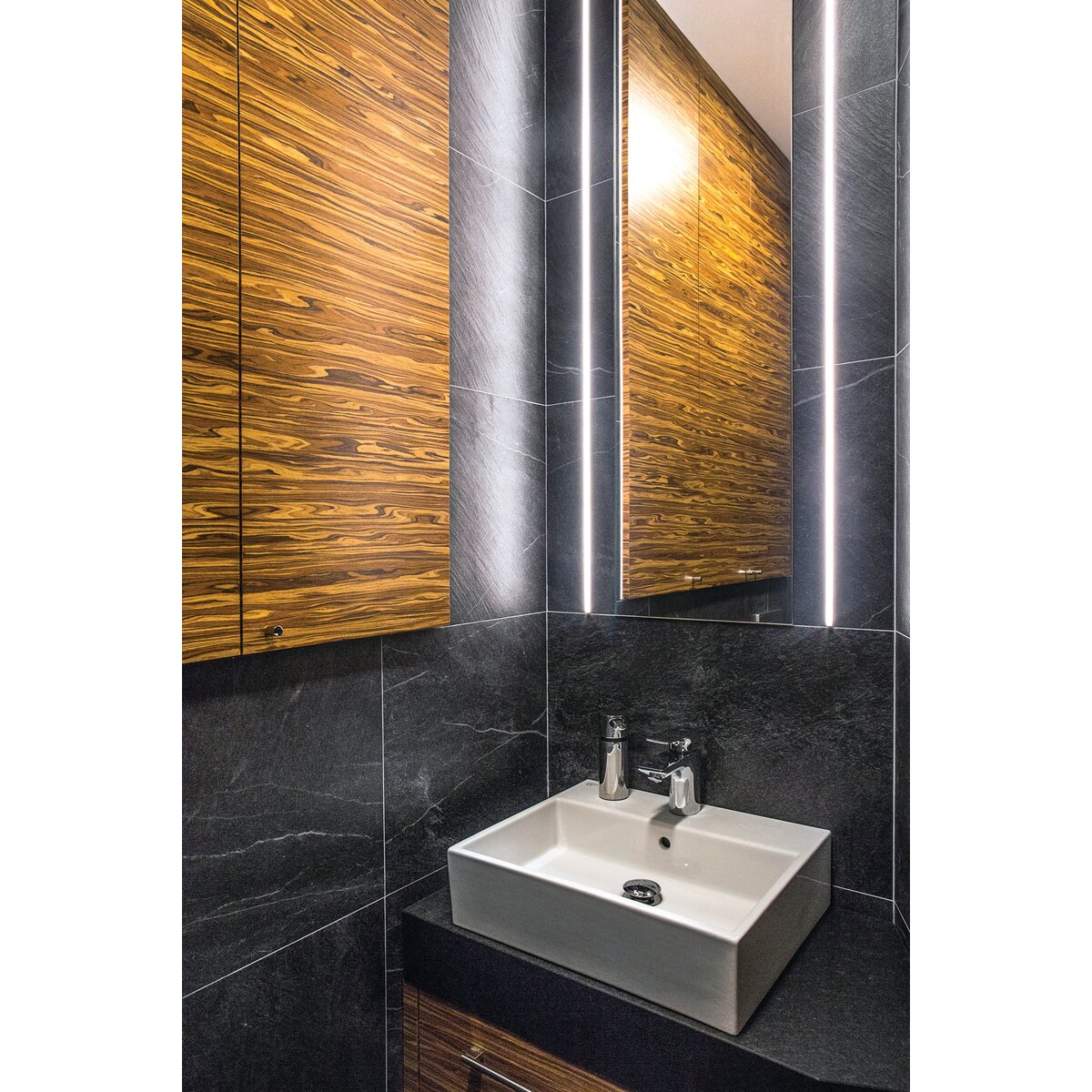

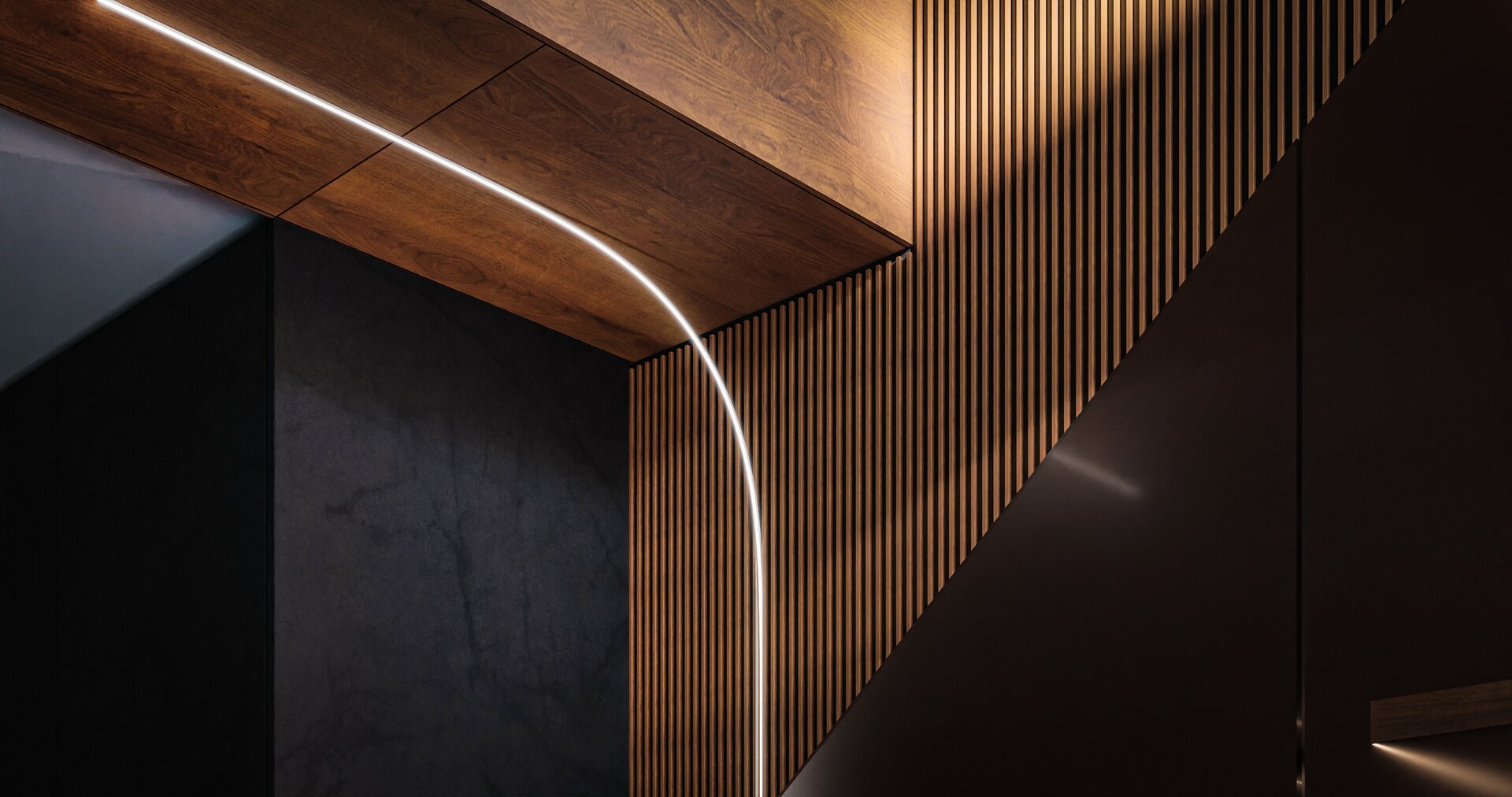

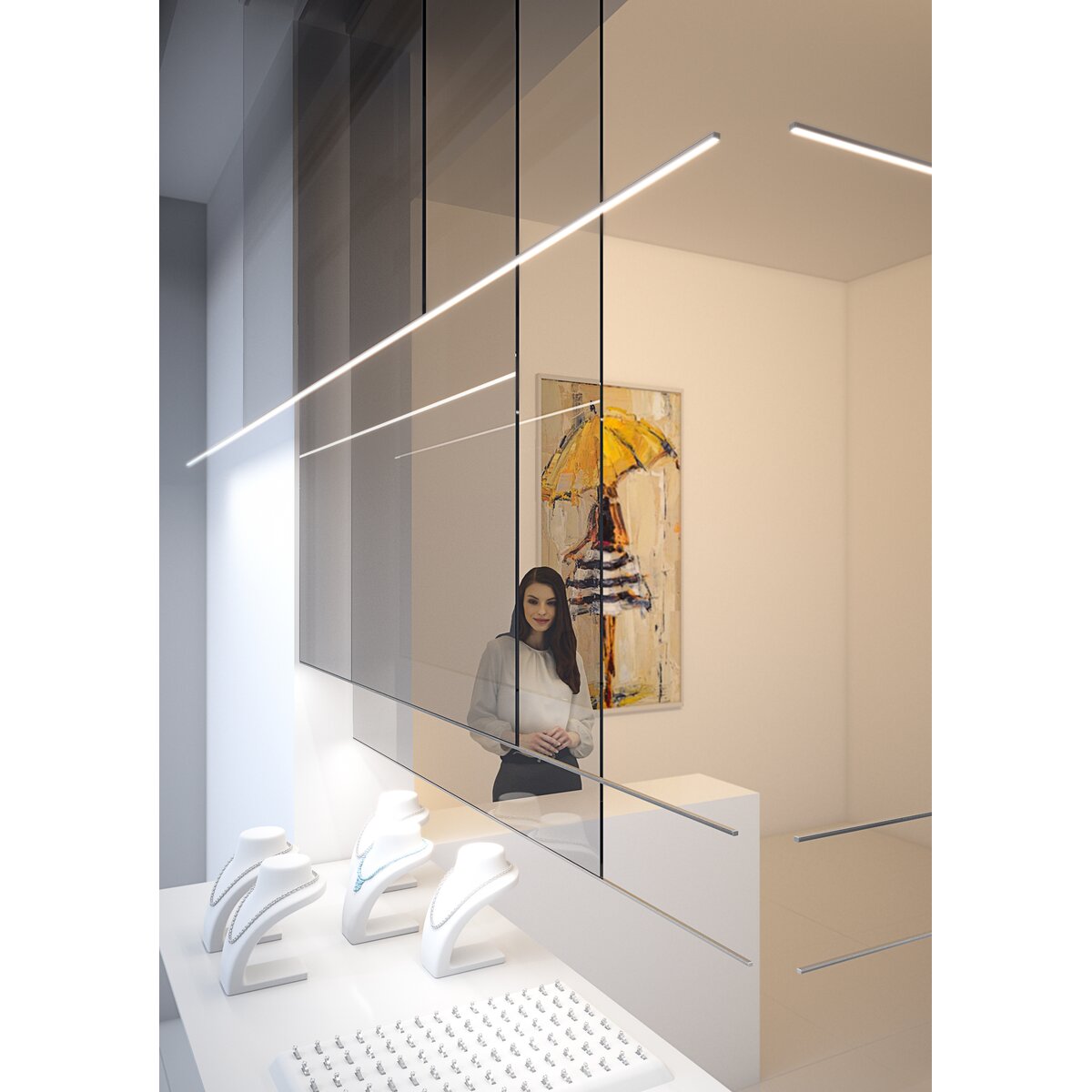

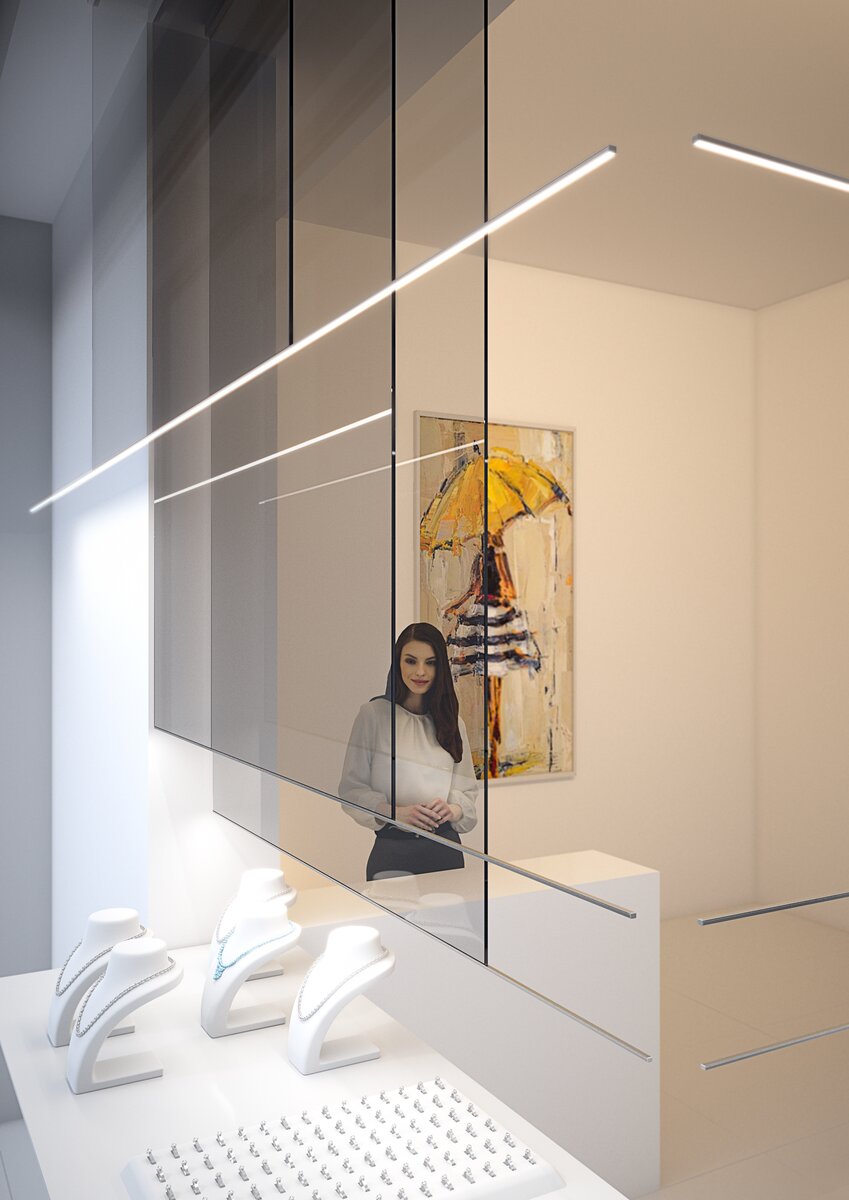

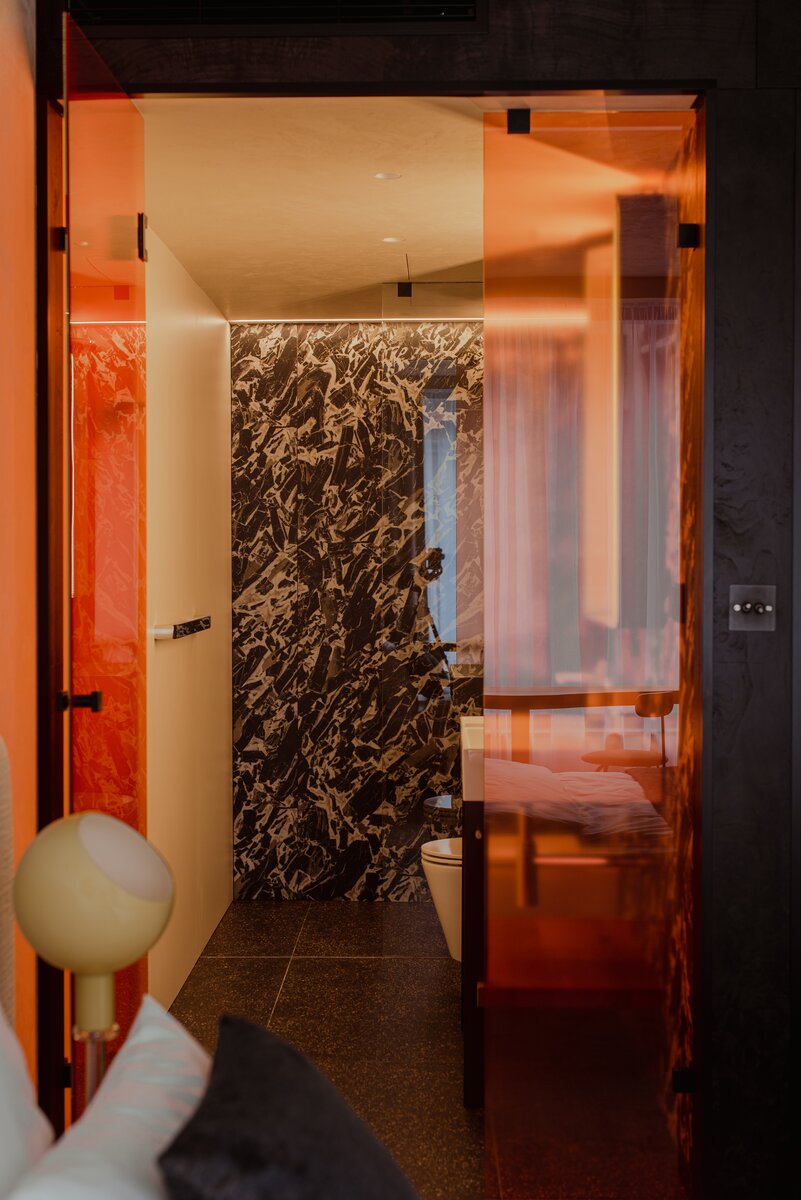

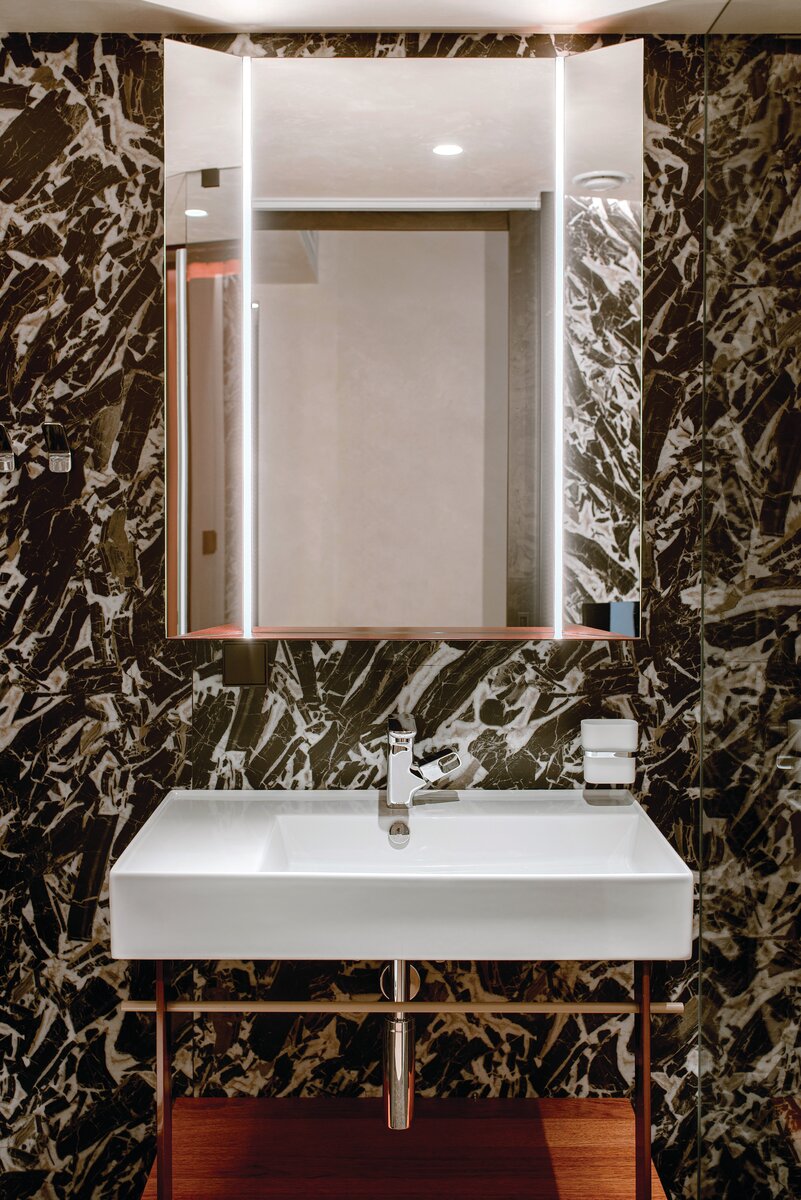

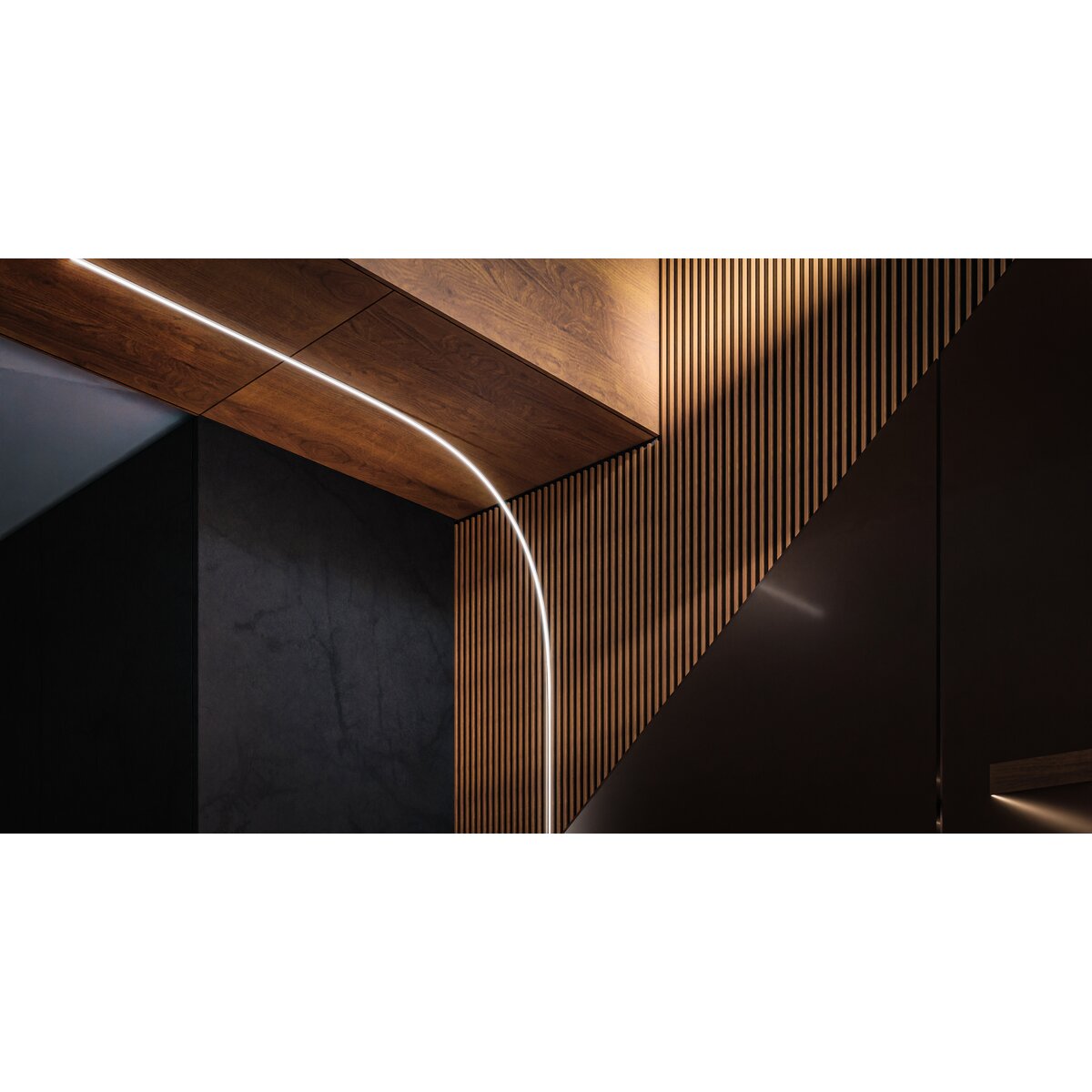

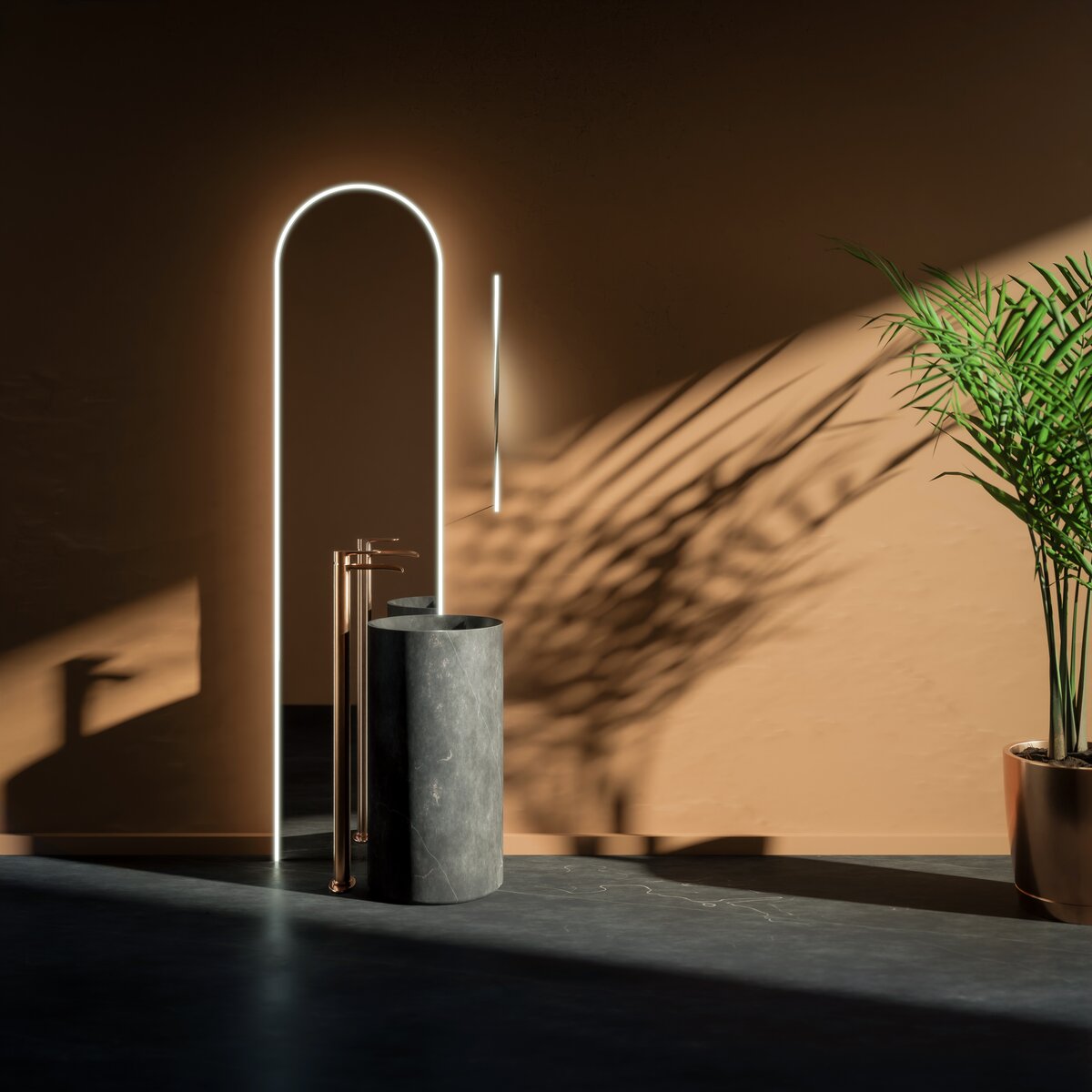

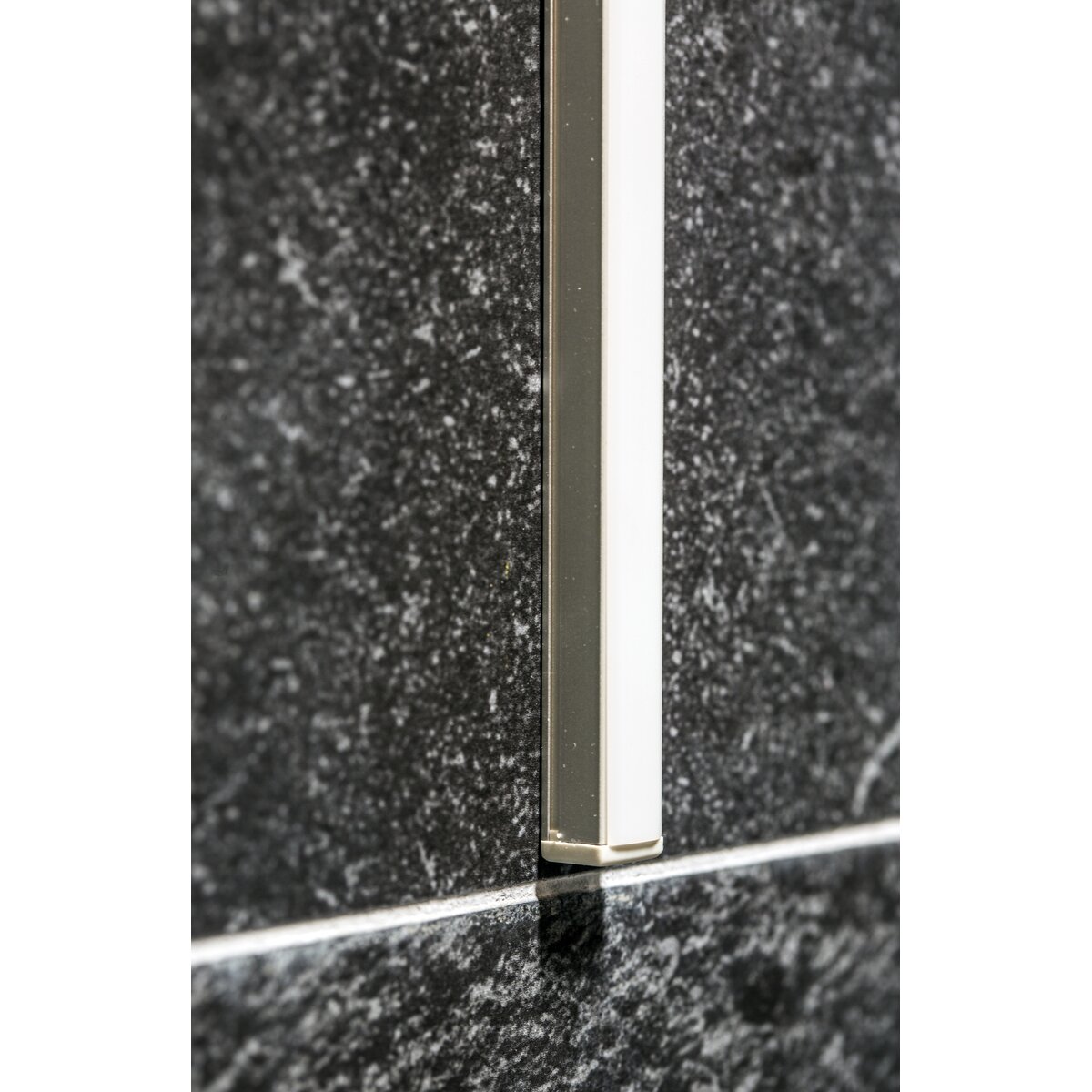

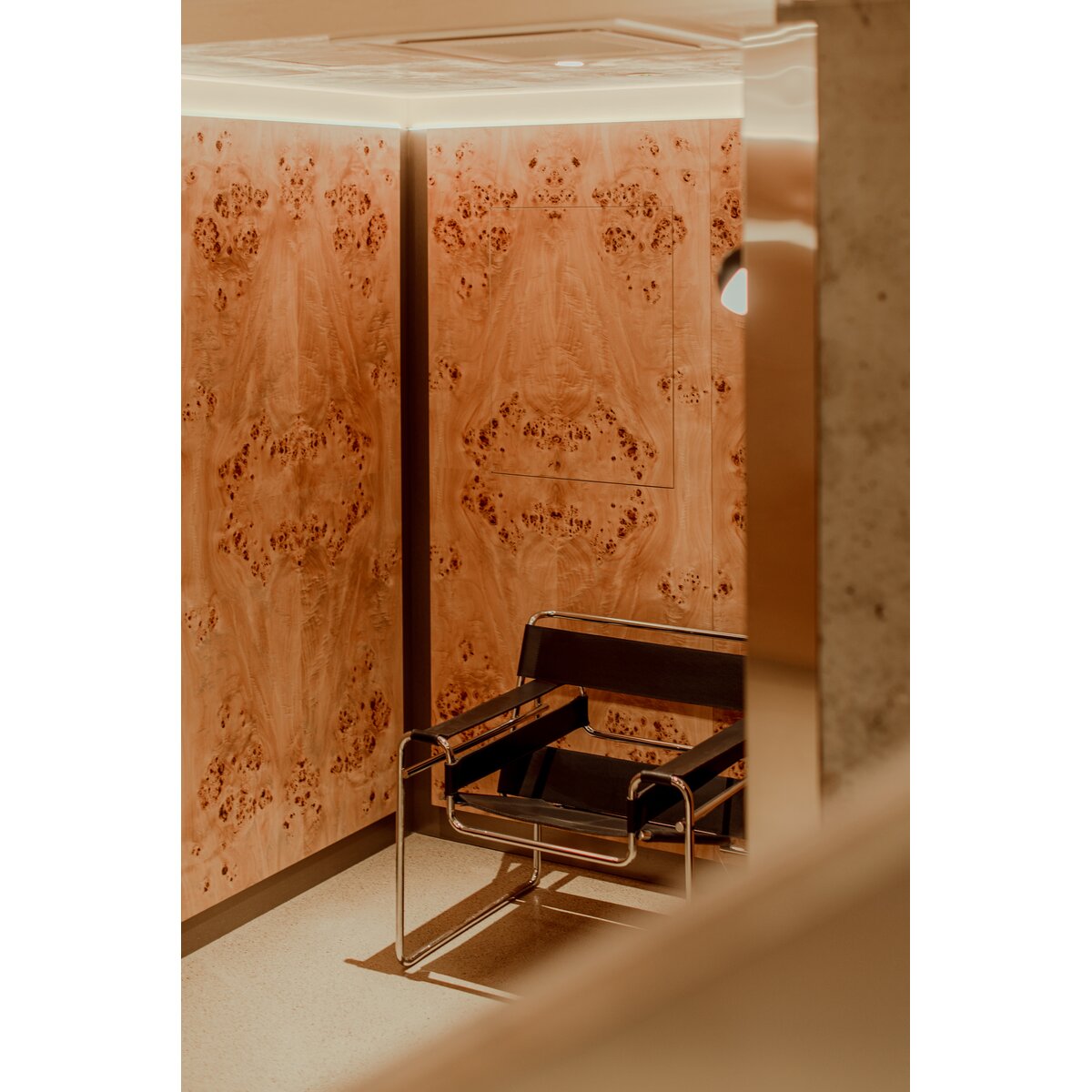

Usage examples

Description
download

Application

- furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

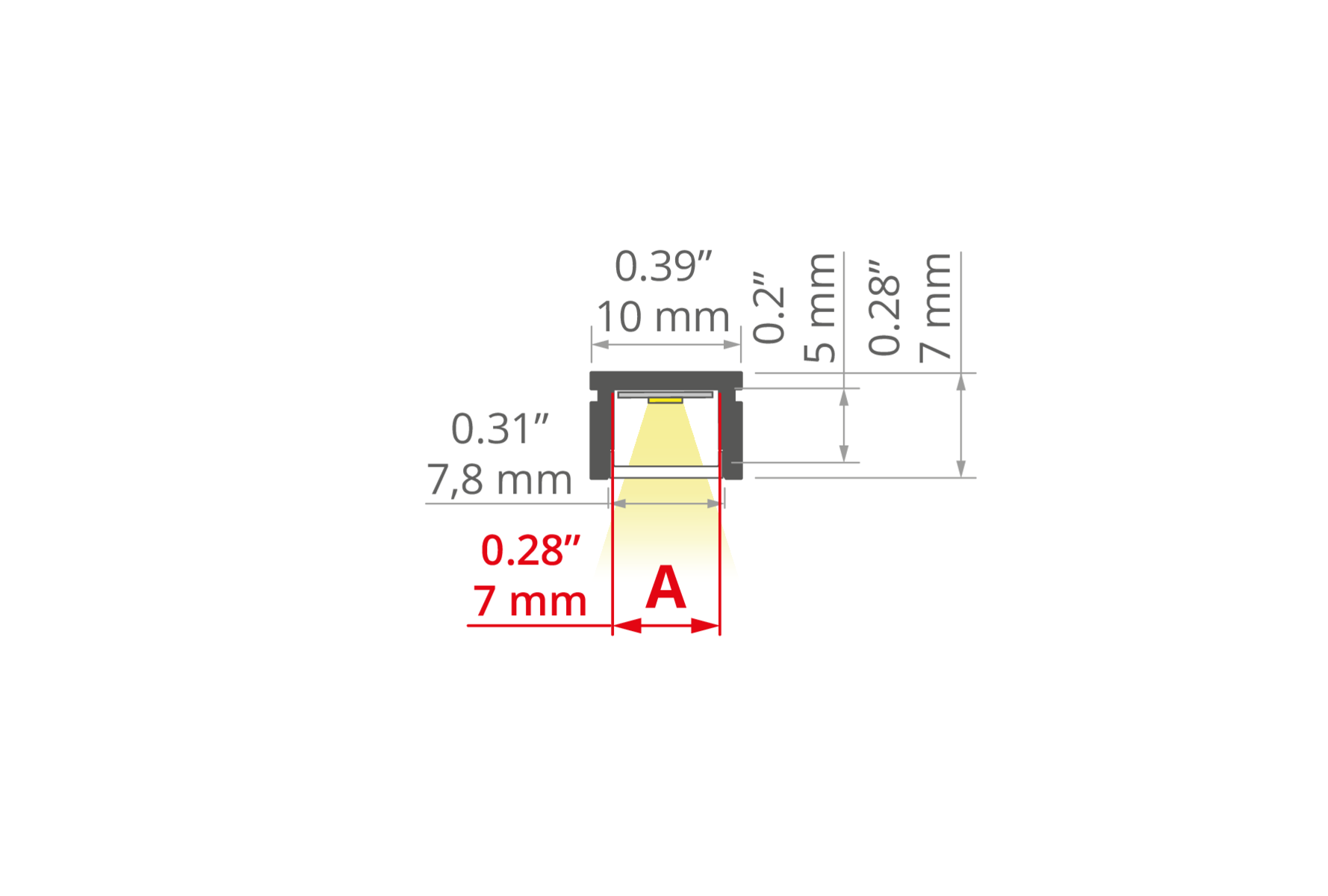

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

2.9 W/ft

Width

0.4" (10 mm)

Height

0.3" (7 mm)

LED gluing width A

0.3" (7 mm)

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Closet Rated

Yes

Possibility of twisting

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

150 mm

Outward

150 mm

Building type

Retail, Entertainment/ Arts, Hotel / Restaurant

Facility zone

under-cabinet / furniture, bathroom, kitchen, office, exhibition / tradeshow / display, decorative, fitness / spa, media rooms / av

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A08288A_1 A08288A_2
black anodized	78.9" (2005 mm)	A08288A07_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	BENCO-7 Cover frosted	PIKO-7 Cover satin
CRI 90+	K-SHD-0960-24	(1)	(1)
Bendable tape	K-BT-0910-24	(1)	(1)
Adjustable White / Dim to Warm	K-30/18-1440-010-24	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
PIKO-7 Cover	PMMA	- For indoor and outdoor applications - perfectly diffusing - UV resistant - Thin line of light	43 % 17 %	satin black	B17001S B17001B
BENCO-7 Cover	silicon	- indoor use - perfect for bent extrusions	53 %	frosted	B17069F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- ideal for use with black covers - high LED density	K-SHD22-0960-24 K-SHD25-0960-24 K-SHD27-0960-24 K-SHD30-0960-24 K-SHD35-0960-24 K-SHD40-0960-24 K-SHD50-0960-24
KWP-5KSHD-0960-24 LED tape	65	silicon sleeve	2.9 W/ft	2700K 3000K 3500K 4000K 5000K	- easy snap-in installation - high LED density - ideal for use with black covers	KWP-5KSHD27-0960-24 KWP-5KSHD30-0960-24 KWP-5KSHD35-0960-24 KWP-5KSHD40-0960-24 KWP-5KSHD50-0960-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,	20	-	4.8 W/ft	RGB	- RGB	K-RGB-1560-24_

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1440-010-24 LED tape, 1800K, 234 lm/ft, 4.4 W/ft, IP20	20	-	4.4 W/ft	1800K	- Dim to Warm 1800K-3000K	K-30/18-1440-010-24

LED tapes
Bendable tape

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,	20	-	2.8 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-BT27-0910-24 K-BT30-0910-24 K-BT35-0910-24 K-BT40-0910-24 K-BT50-0910-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
PIKO End cap	ABS	gray	C24202C02

LED extrusions
Mounting tracks

Product name	Key features	Material	Color	Ref No
TEPIKO Extrusion		aluminum		A18046

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
K-10 Mounting bracket	- Transparent – aesthetic installation of minimalist linear fixtures	PC	transparent	C24340C00

Accessories
Suspension accessories
Canopies

Product name	Key features	Material	Color	Ref No
Fi-60mm Canopy	- Convenient cable length adjustment, in the ZM system	steel	gray white black	C24540L01 C24540L10 C24540L07

Accessories
Suspension accessories
Conductive fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
FI-8-LIN-MR Fastener	- Power supply cable - mounting in thin walls (from 1mm)		silver black	C28172N00 C28172L07

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
K-10-PP Fastener	- Cross mounting	stainless steel, PC	silver	C28235N00

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6x1,2			C24517C07
