PDS-NK Extrusion (A01588) | KlusDesign.com

Compare

Compared

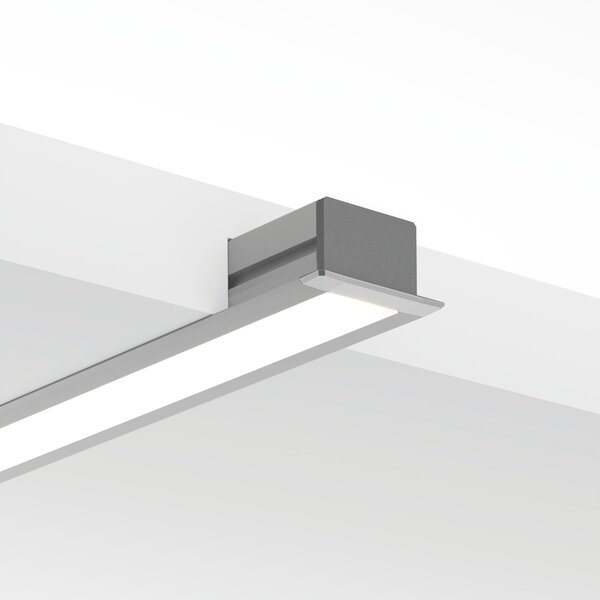

Possibility of mounting sealed LED strips of the 8K series
Invisible groove edge
Small bending radius
Wide range of accessories

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

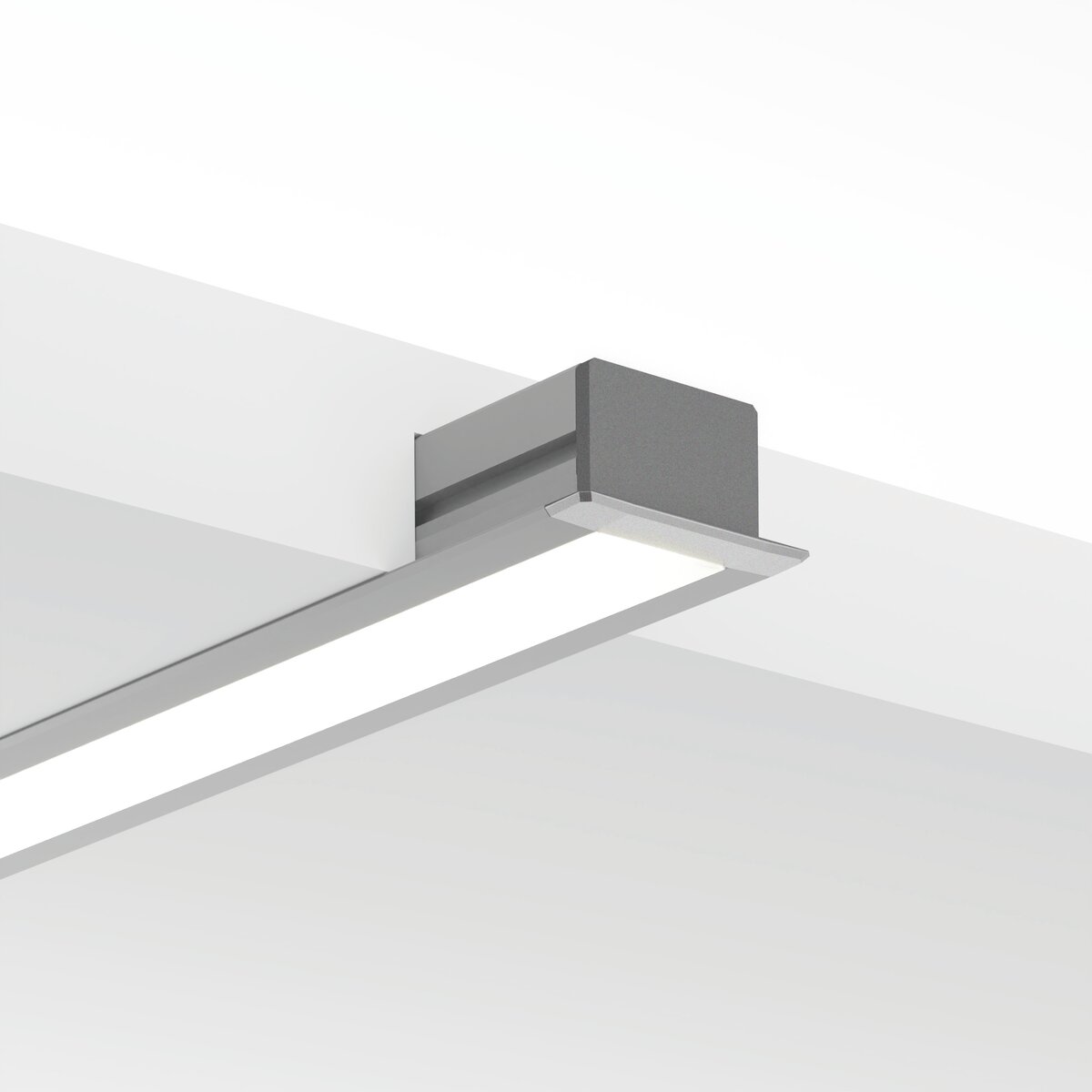

Description

Possibility of mounting sealed LED strips of the 8K series
Invisible groove edge
Small bending radius
Wide range of accessories

Application

- furniture, main and decorative lighting

Mounting

- recessed, with mounting adhesive or double-sided adhesive tape

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

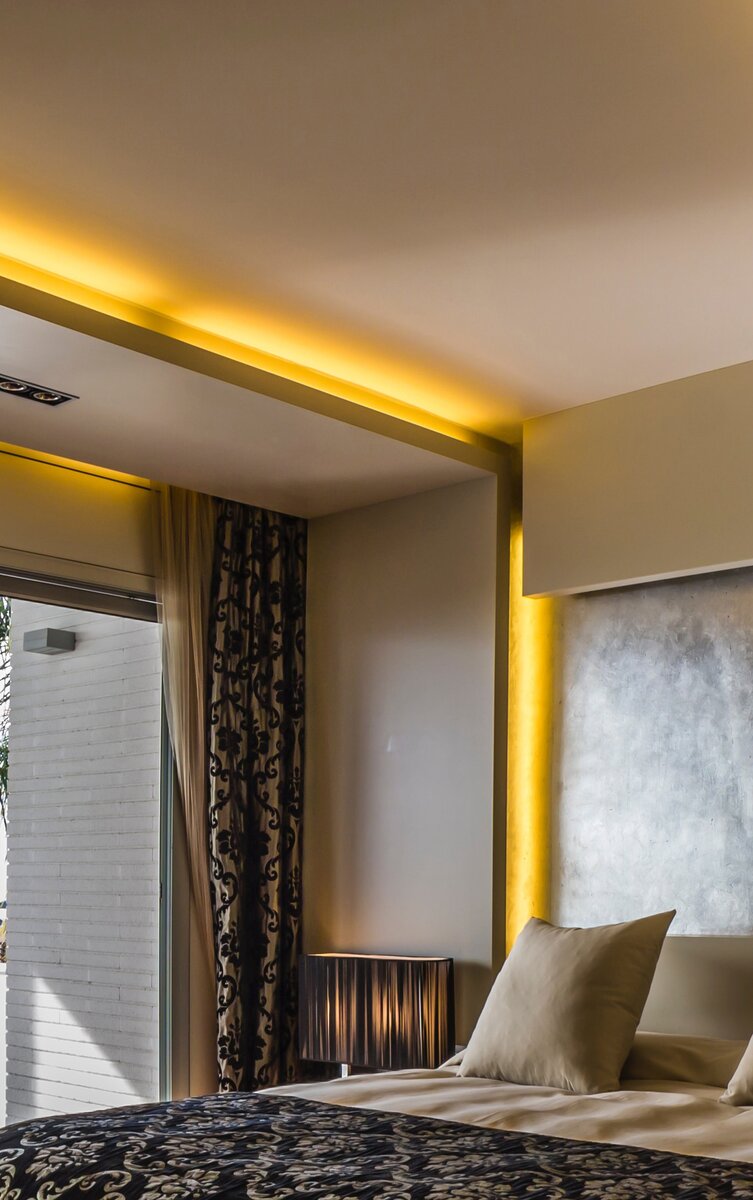

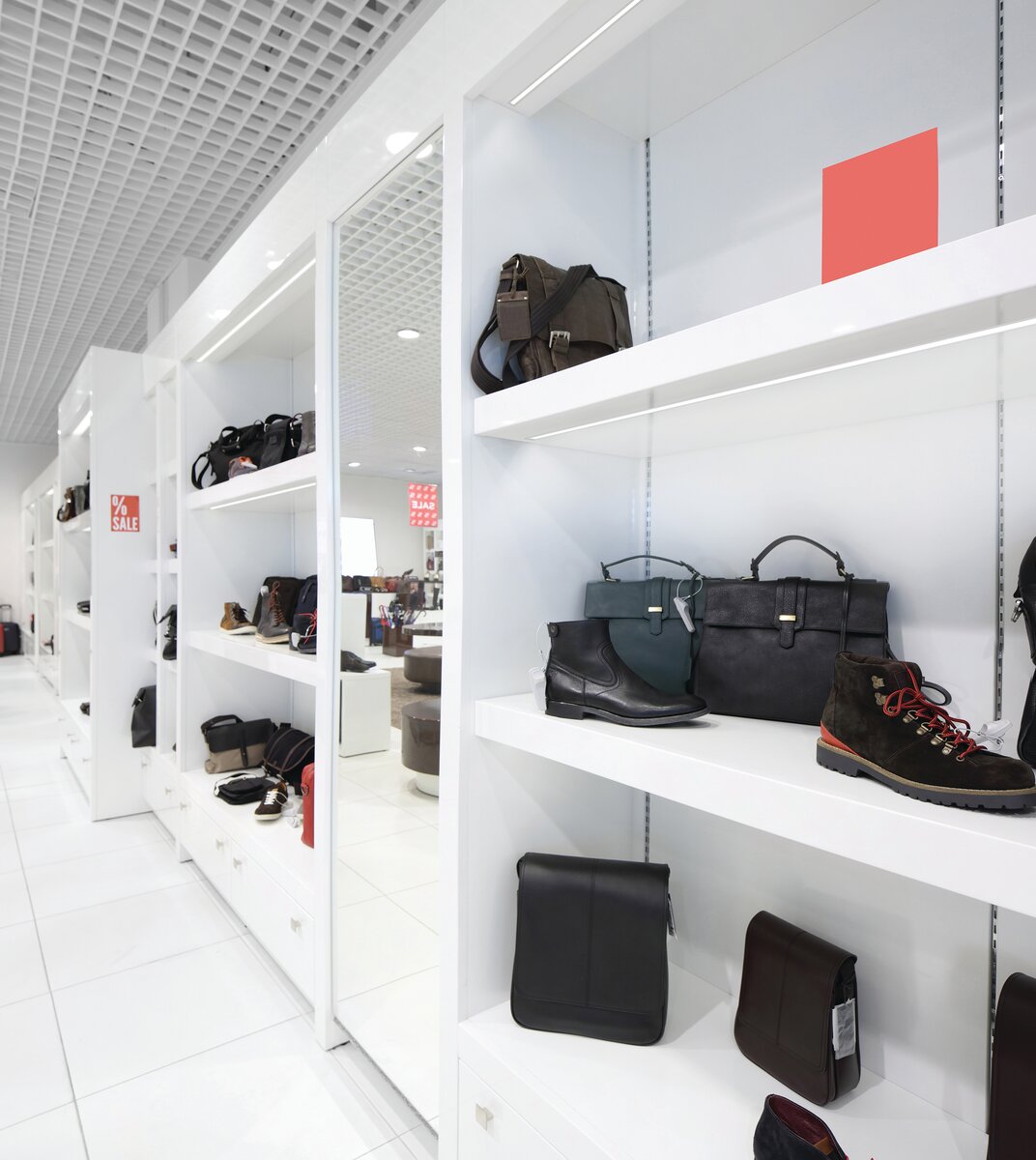

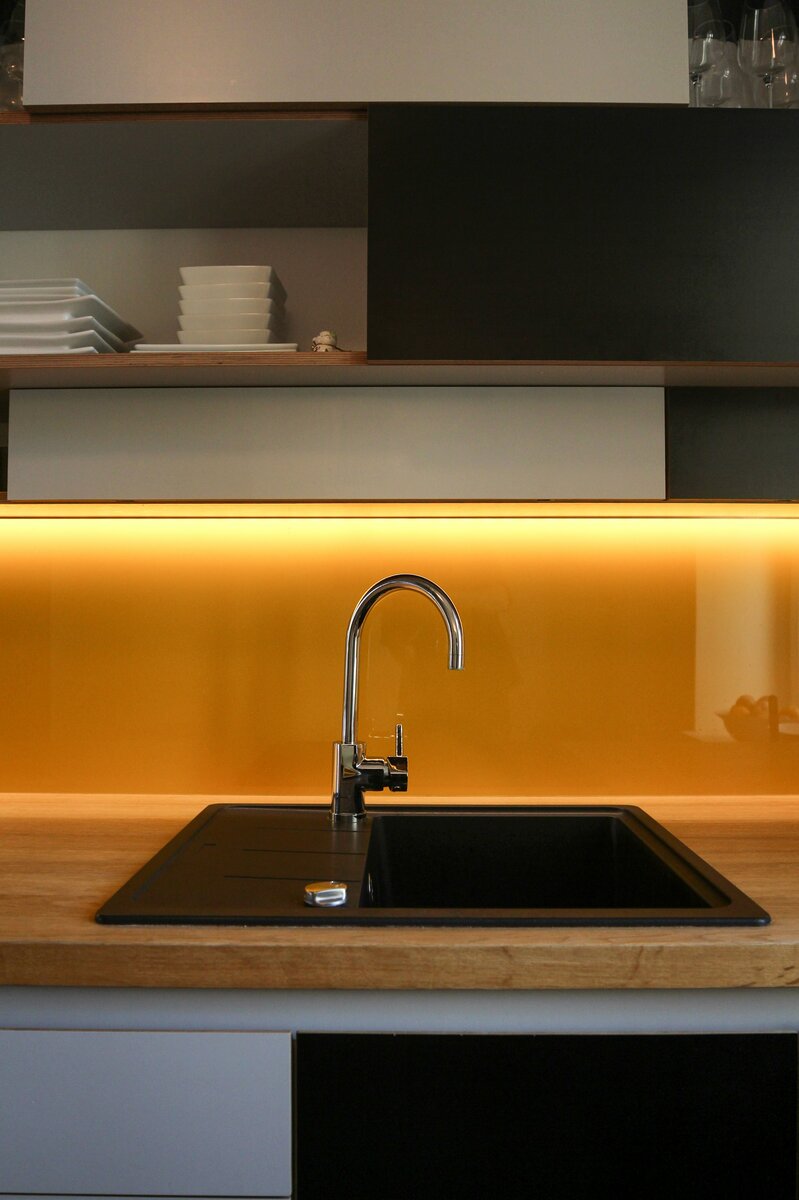

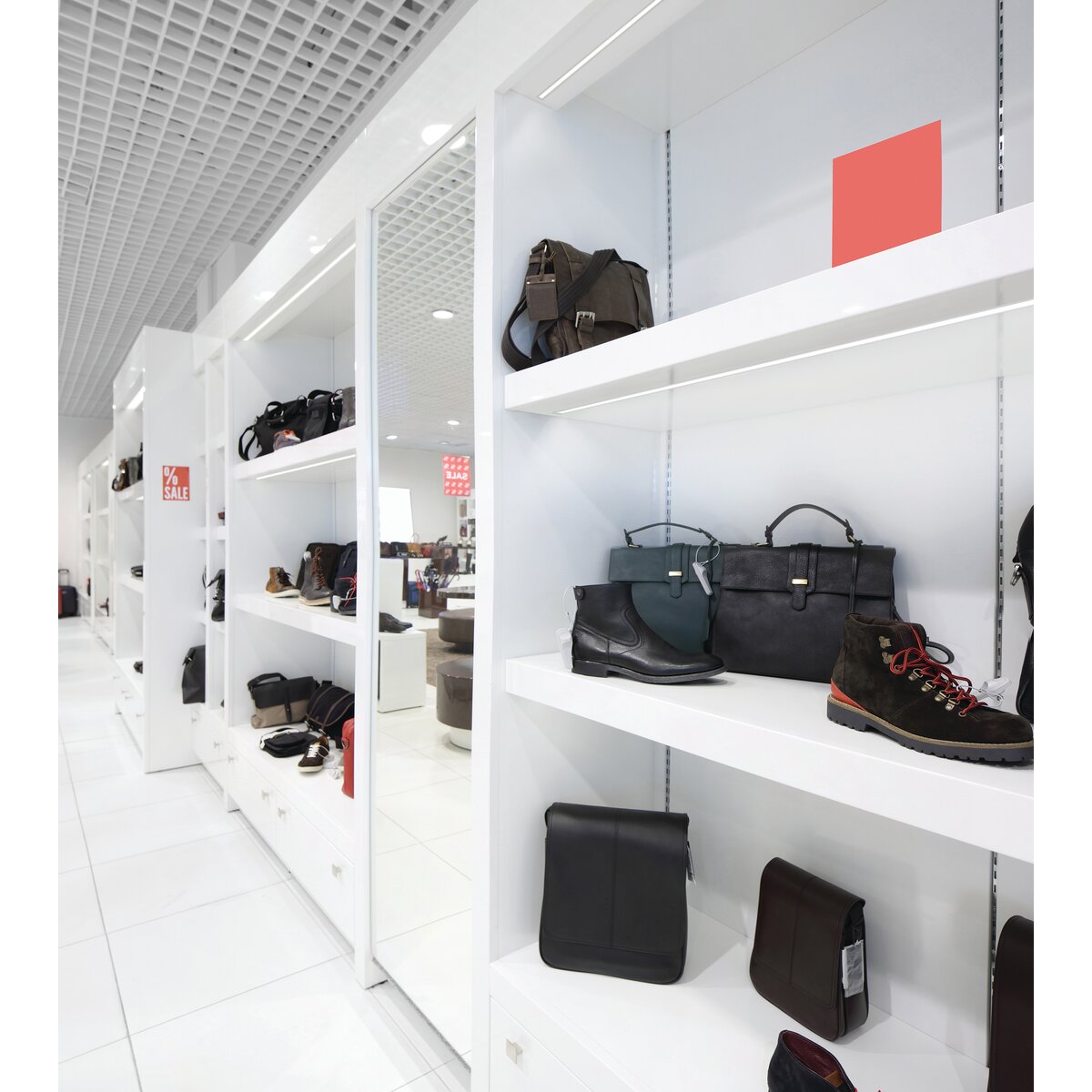

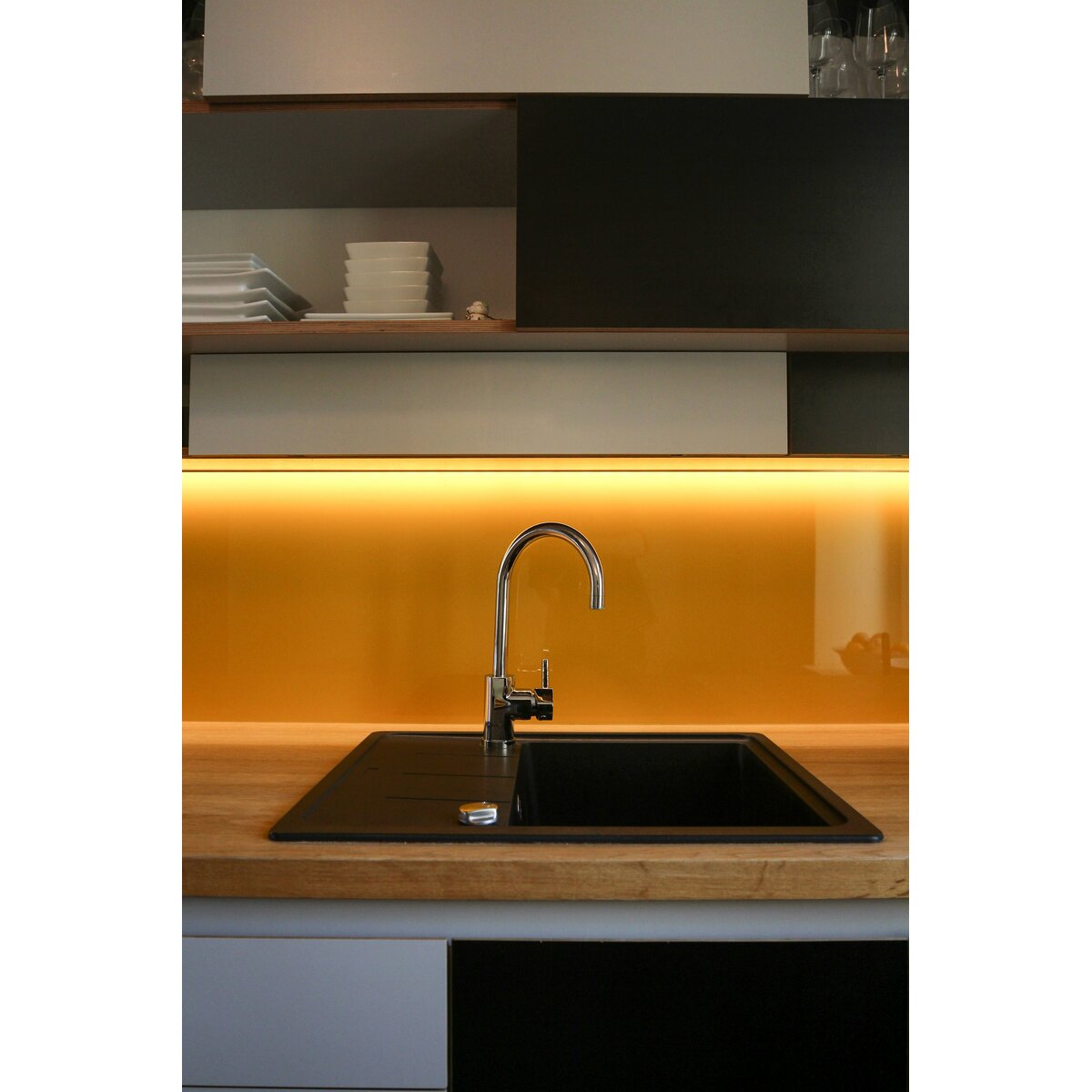

Usage examples

Description
download

Application

- furniture, main and decorative lighting

Mounting

- recessed, with mounting adhesive or double-sided adhesive tape

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

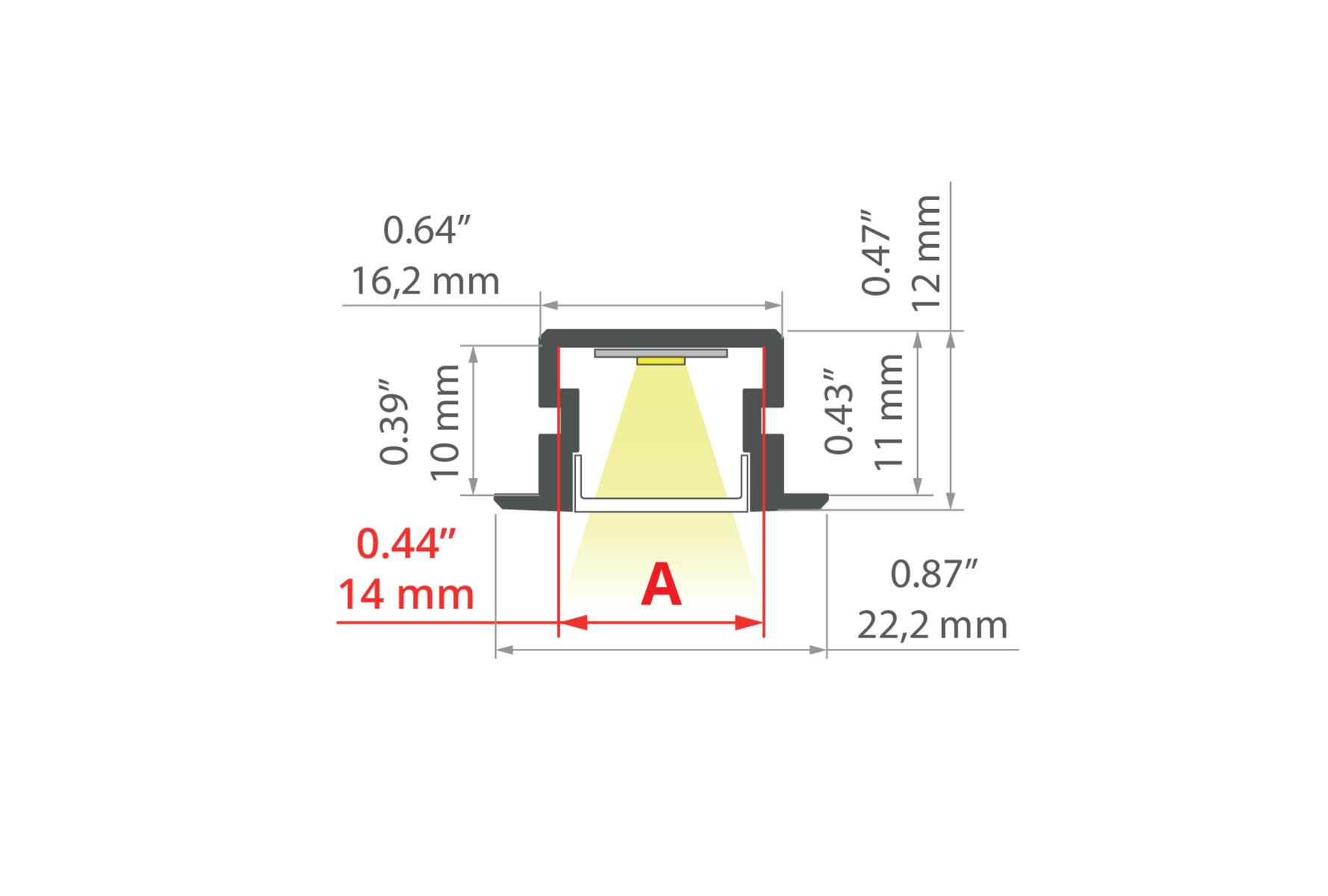

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, polygonal, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.9" (22.2 mm)

Height

0.5" (12 mm)

LED gluing width A

0.6" (14 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Closet Rated

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

150 mm

Outward

250 mm

Building type

Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor

Facility zone

office, kitchen, bathroom, cove / perimeter, fascade lighting, stairs / hallways, under-cabinet / furniture, outdoor spaces, media rooms / av

Color	Length	Ref No

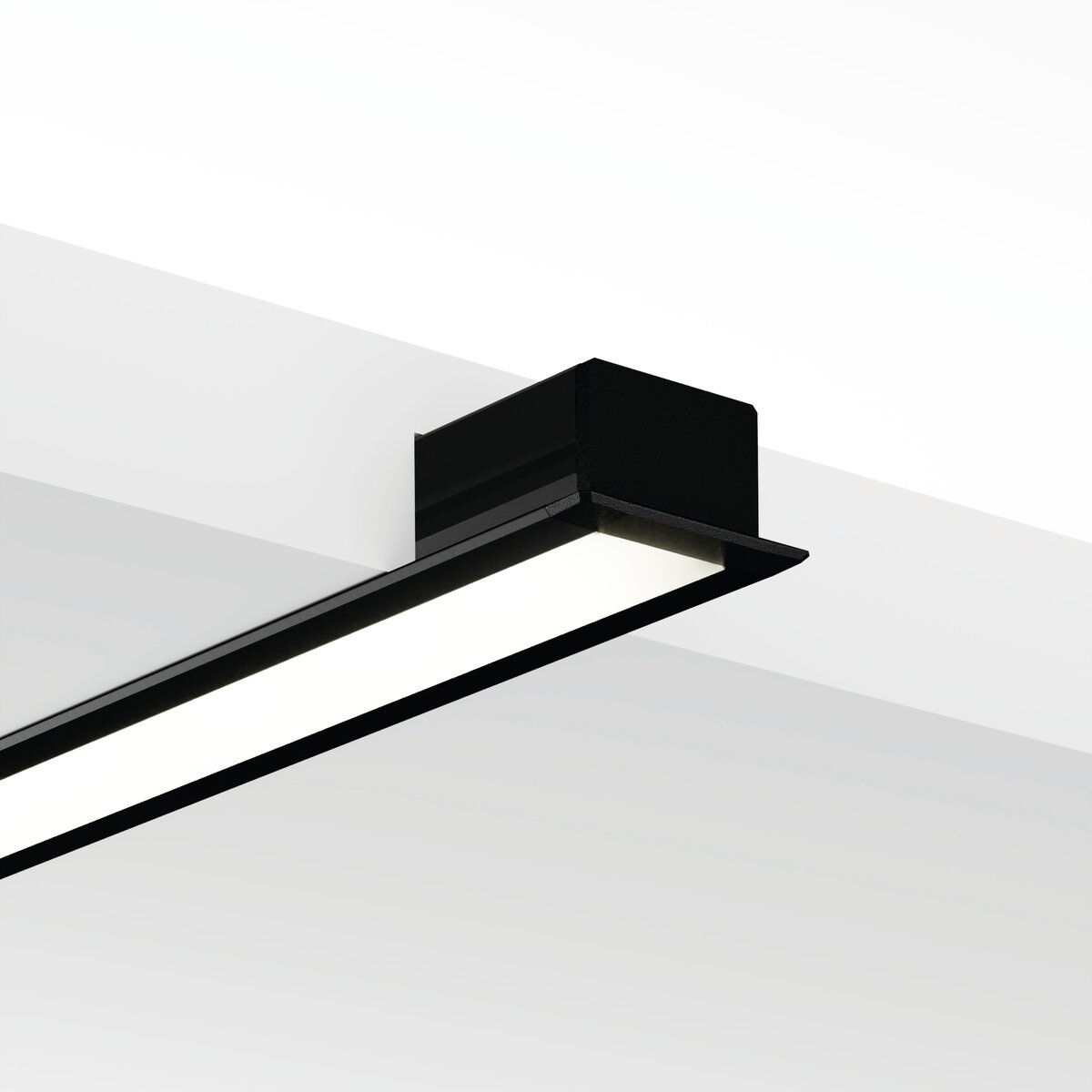

silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A01588A_1 A01588A_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm)	A01588A07_1 A01588A07_2

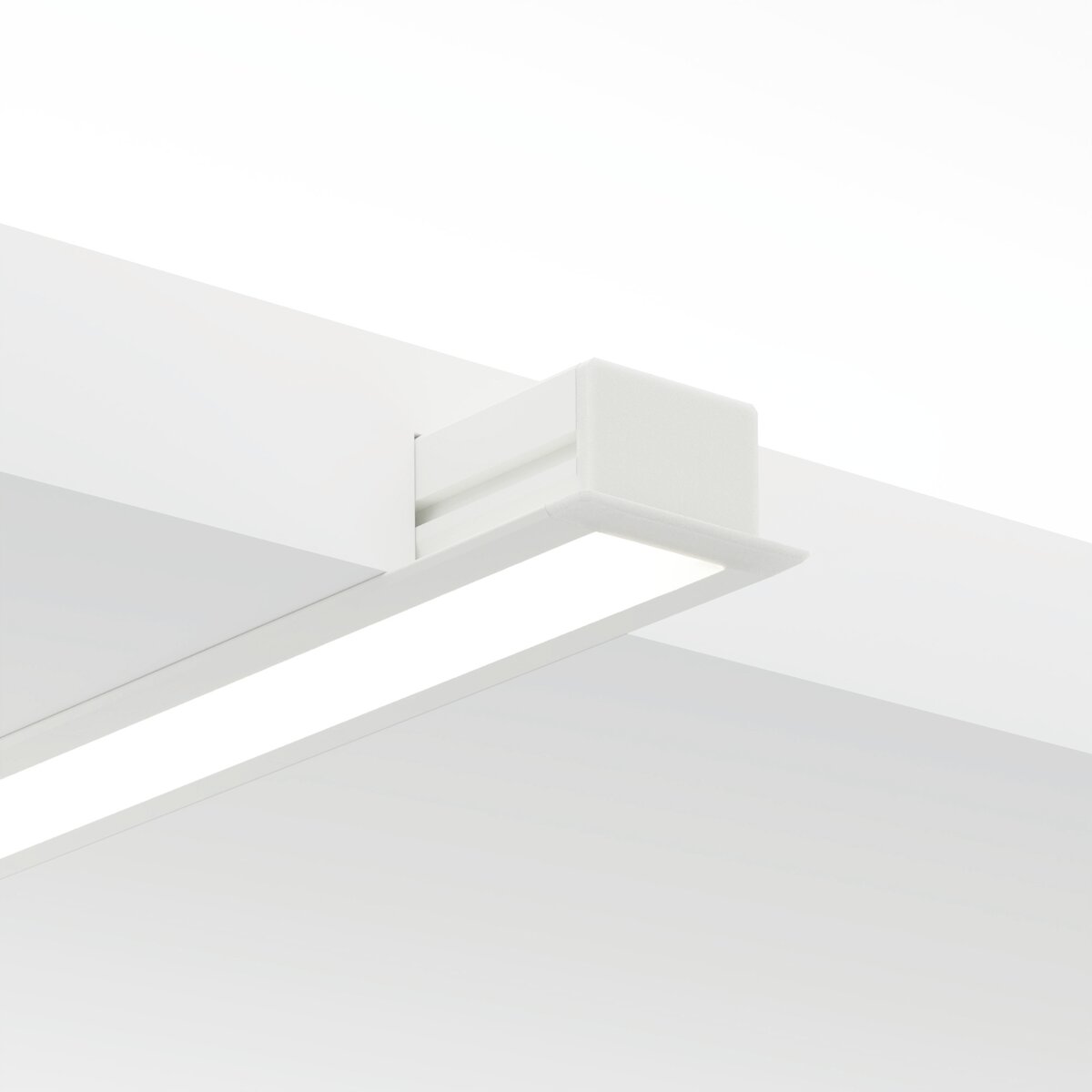

white lacquered	78.9" (2005 mm)	A01588L10OD_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-11 Cover satin	HS-11 Cover frosted	KA-11R Cover frosted	LIGER-11 Cover black
High Efficacy	K-HEHD-0480-24	(1)	(1)	(1)
	K-HEHD-0960-24	(1)	(1)	(1)
	K-HEHD-1440-24	(1)	(1)	(1)
	K-HEHD-1920-24	(1)	(1)	(1)
	K-HEHD-0320-24	(1)	(1)	(1)
CRI 95+	K-CRHD-1820-24	(1)	(1)	(1)	(1)
CRI 95+	K-CRHD-1910-24	(1)	(1)	(1)	(1)
CRI 90+	K-2400-24	(1)	(1)	(1)
Bendable tape	K-BT-0910-24	(1)	(1)	(1)	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(1)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(1)	(1)	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(1)	(1)	(1)	(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(1)	(1)	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
LENSO-11 30°DEG Focusing cover	PC	- indoor use - focusing	80 %	semi-transparent	B17112T
Cover -11 BENCO	silicon	- For indoor and outdoor applications - UV resistant	50 %	frosted	B17215F
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20	20	-	3.7 W/ft	RGB 2700K	- RGB+Tunable White	K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

LED tapes
Bendable tape

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,	20	-	2.2 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-VBT27-0720-24 K-VBT30-0720-24 K-VBT35-0720-24 K-VBT40-0720-24 K-VBT50-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,	20	-	2.8 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-BT27-0910-24 K-BT30-0910-24 K-BT35-0910-24 K-BT40-0910-24 K-BT50-0910-24

Accessories
End caps
End caps with holes

Product name	Material	Color	Ref No
PDS-NK-OTW	ABS	gray white black	C24338C02TW C24338C10TW C24338C07TW

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
PDS-NK End cap	ABS	gray white black	C24338C02 C24338C10 C24338C07

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
Switch MICRO 96W IP20	20	- push button switch - factory pre-soldered wires	1576

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 19x1,6			C24519C07
Gland 6x1,2			C24517C07
Gland M8x1			C42265N00
Adapter LENSO	PC	transparent	E62146
Gland 8x1,6			C42290C07
