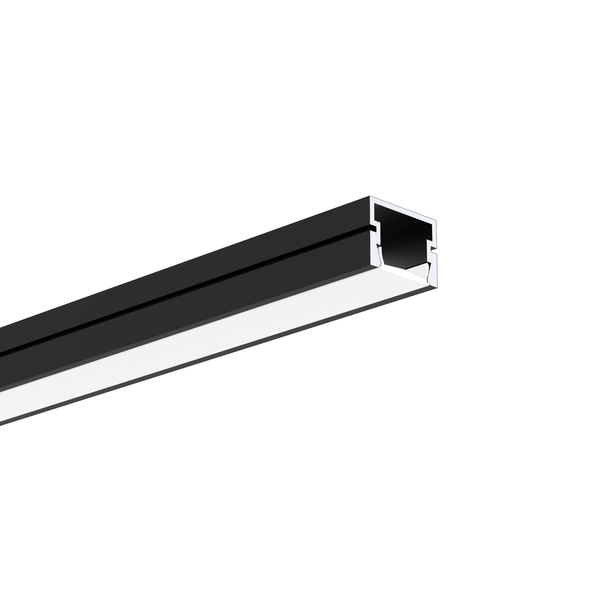

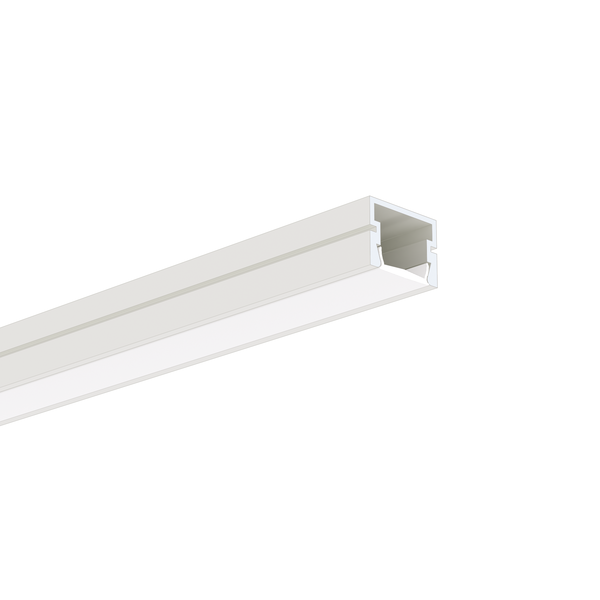

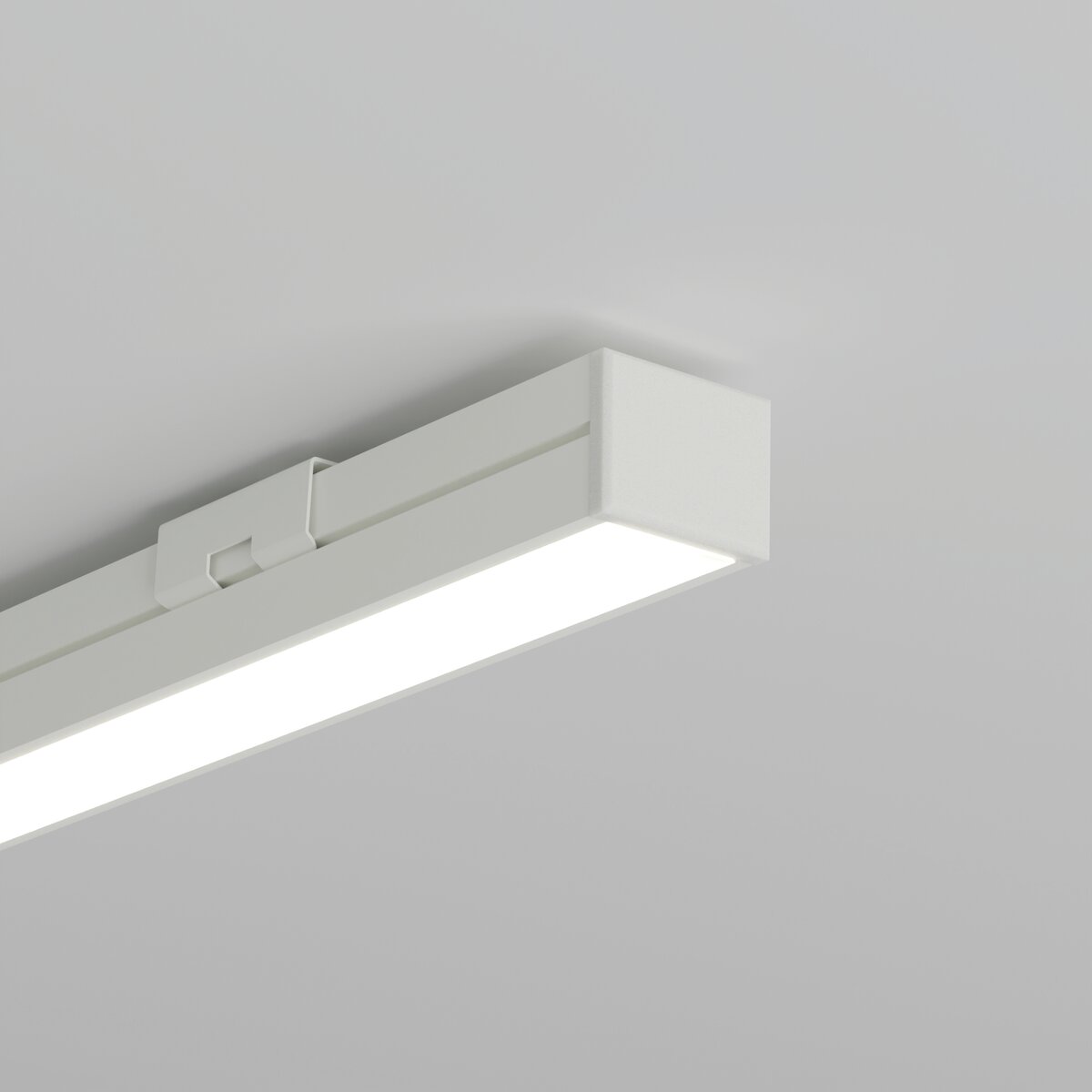

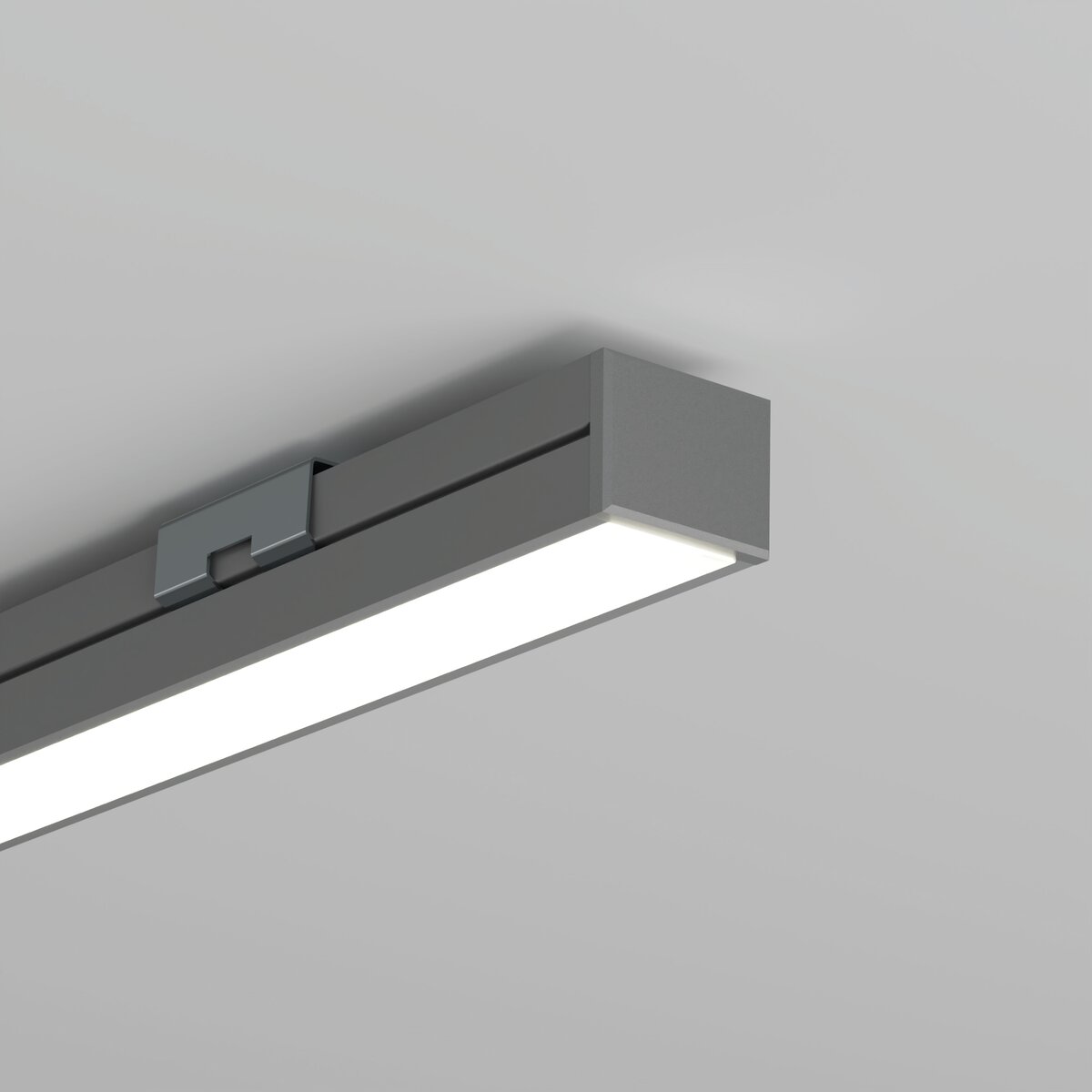

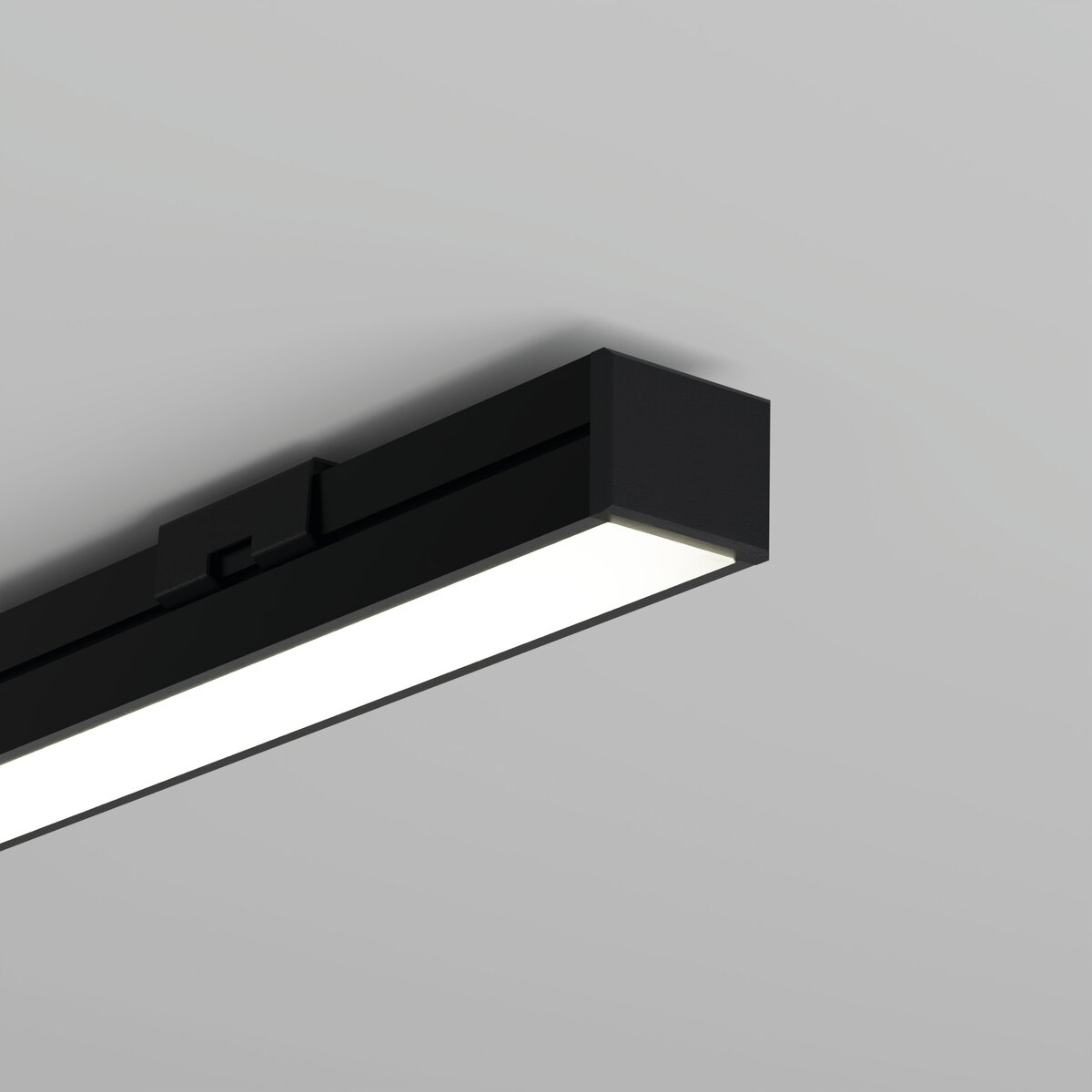

PDS-4-PLUS Extrusion (A01263)

Compare

Compared

Possibility of mounting sealed LED strips of the 8K series
Small bending radius
Possibility of bending in the light plane

With the possibility of sealing up to IP20

With the possibility of sealing up to IP67

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Possibility of mounting sealed LED strips of the 8K series
Small bending radius
Possibility of bending in the light plane

Application

- main, functional, furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover length equal to the extrusion length only with the use of a dedicated PDS-4-PLUS end cap
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

download

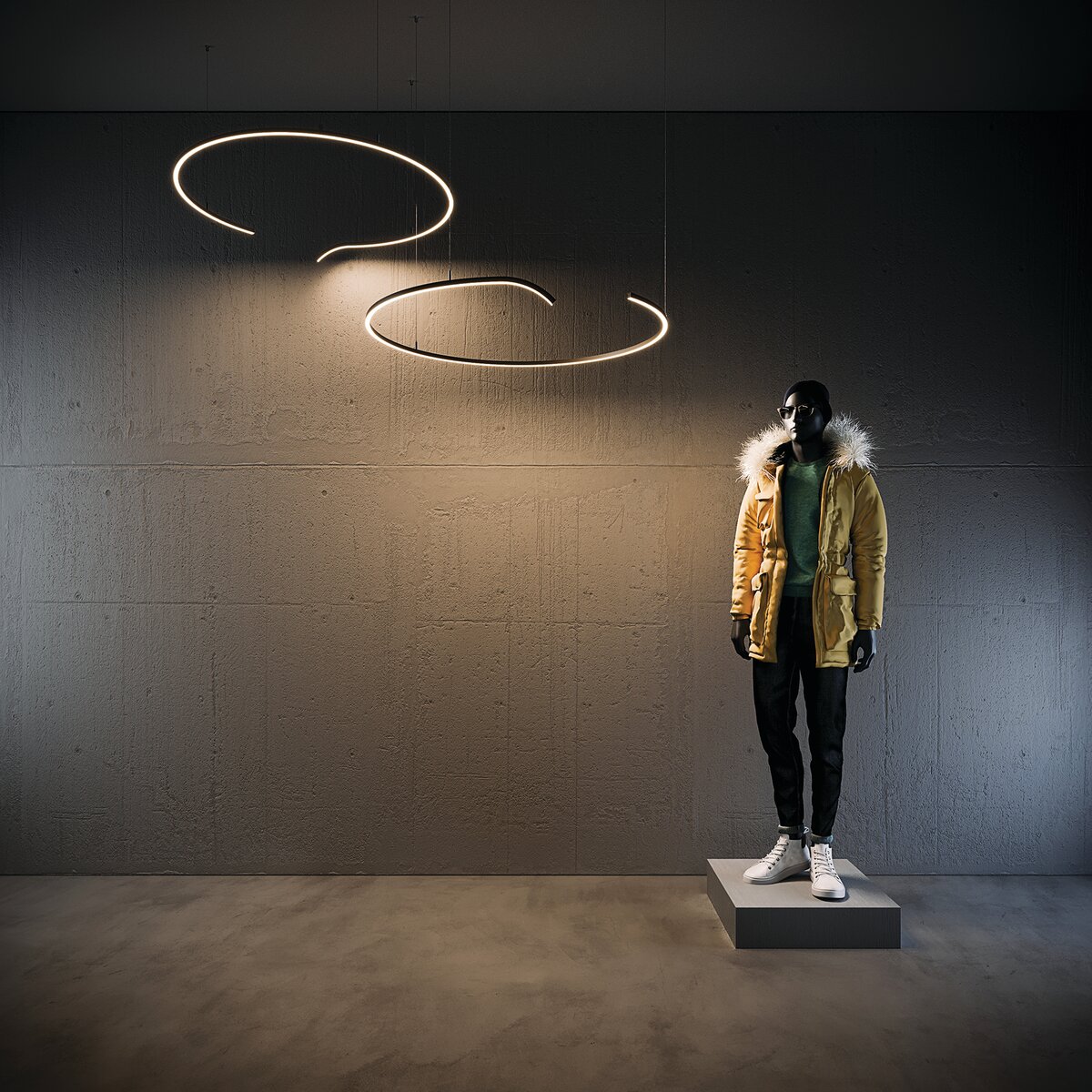

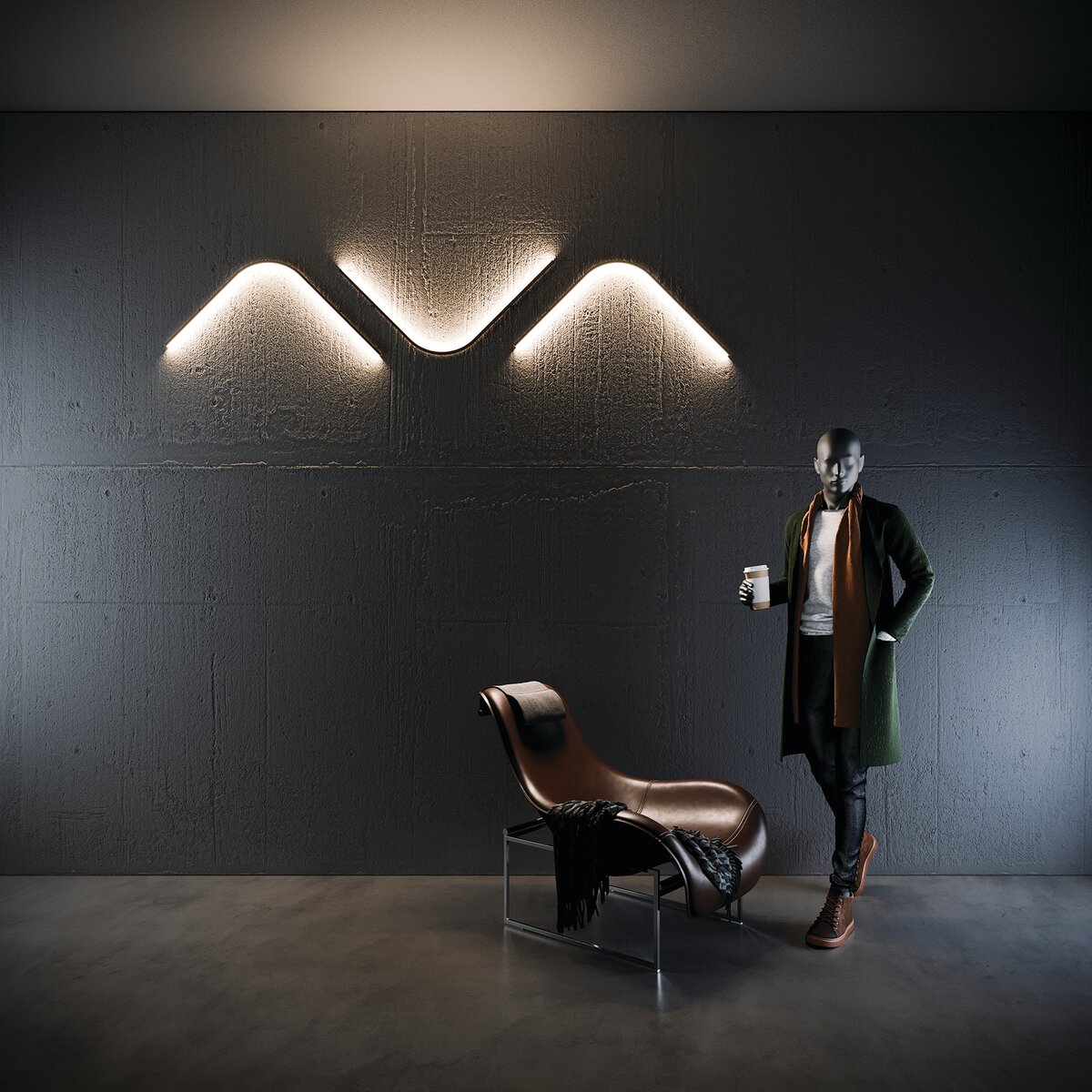

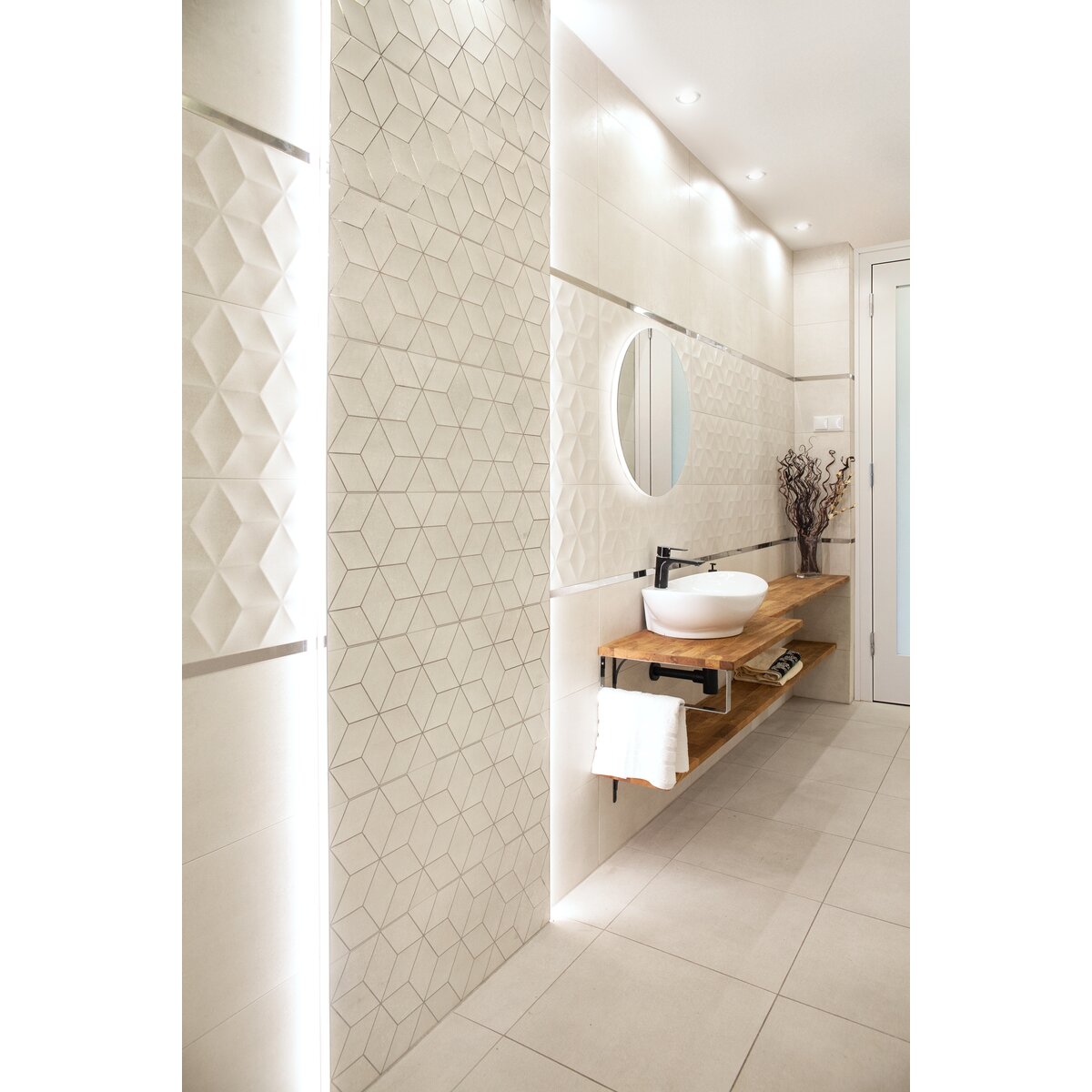

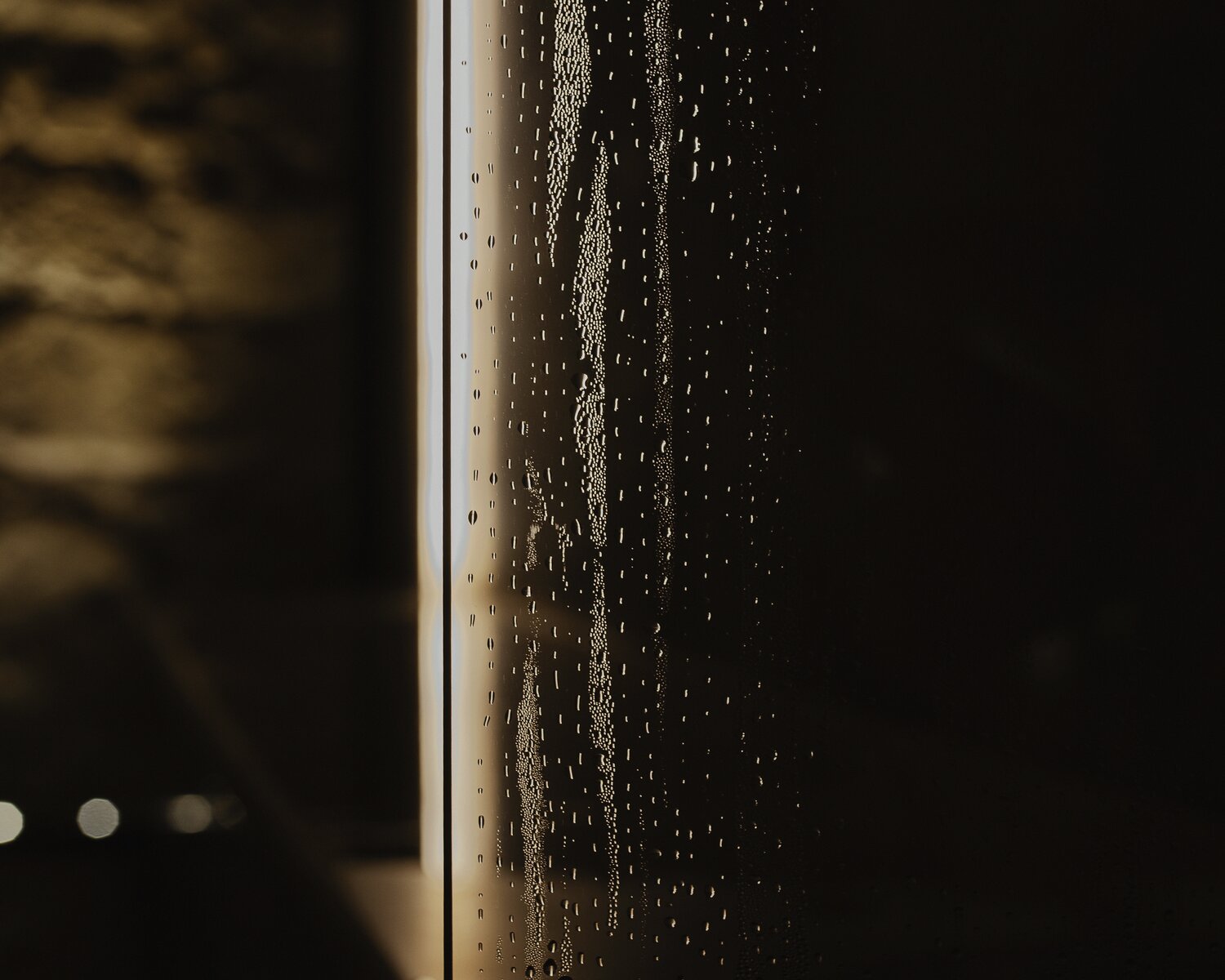

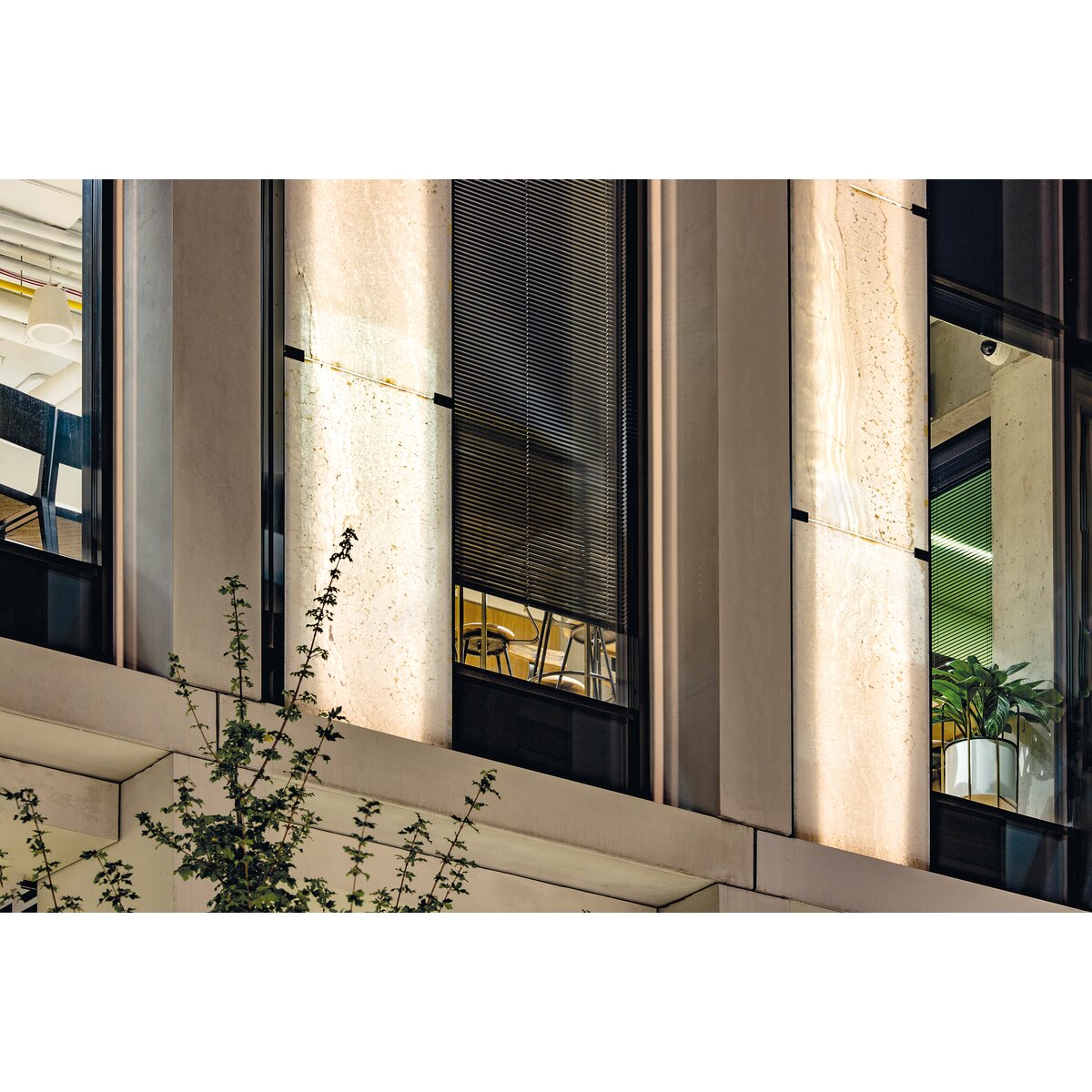

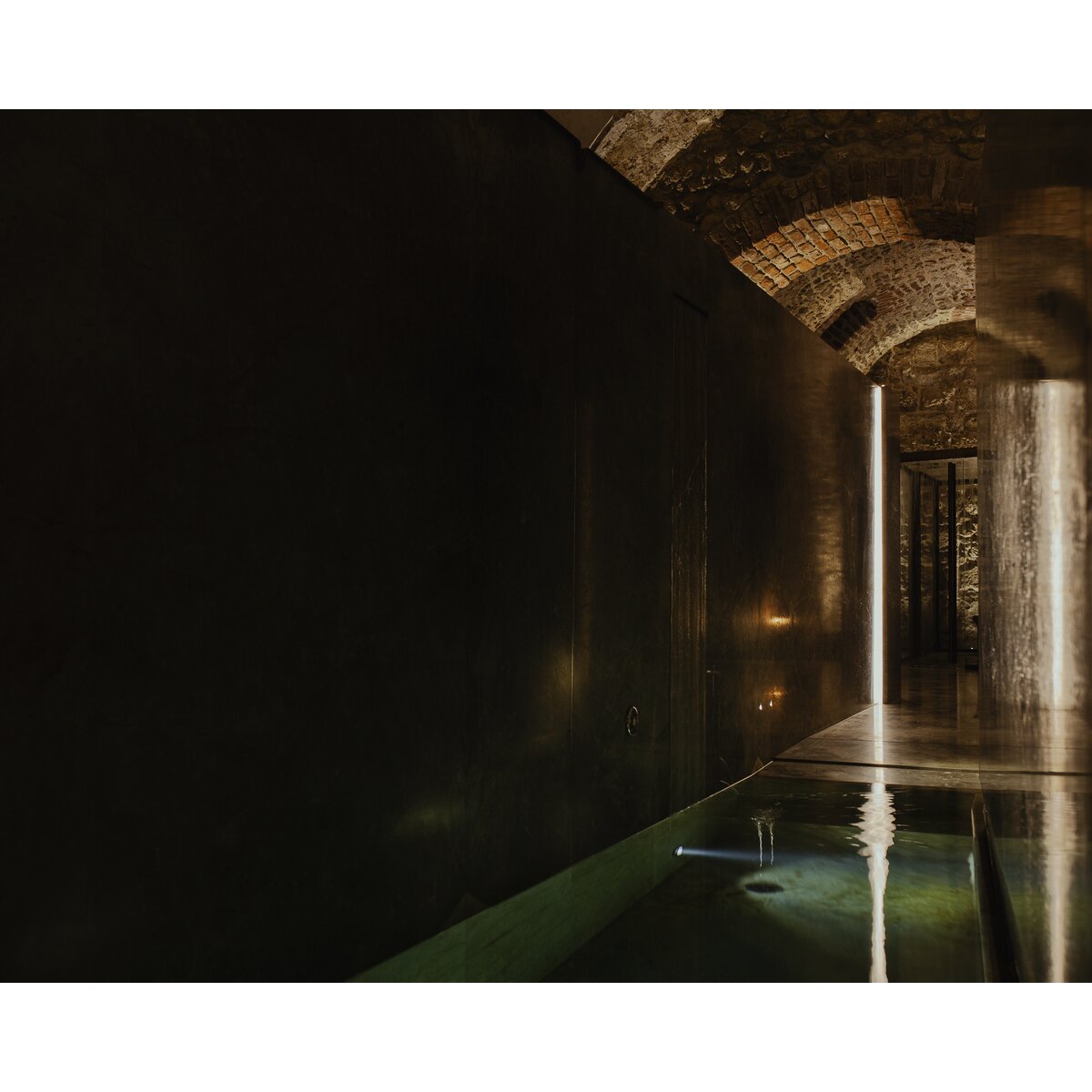

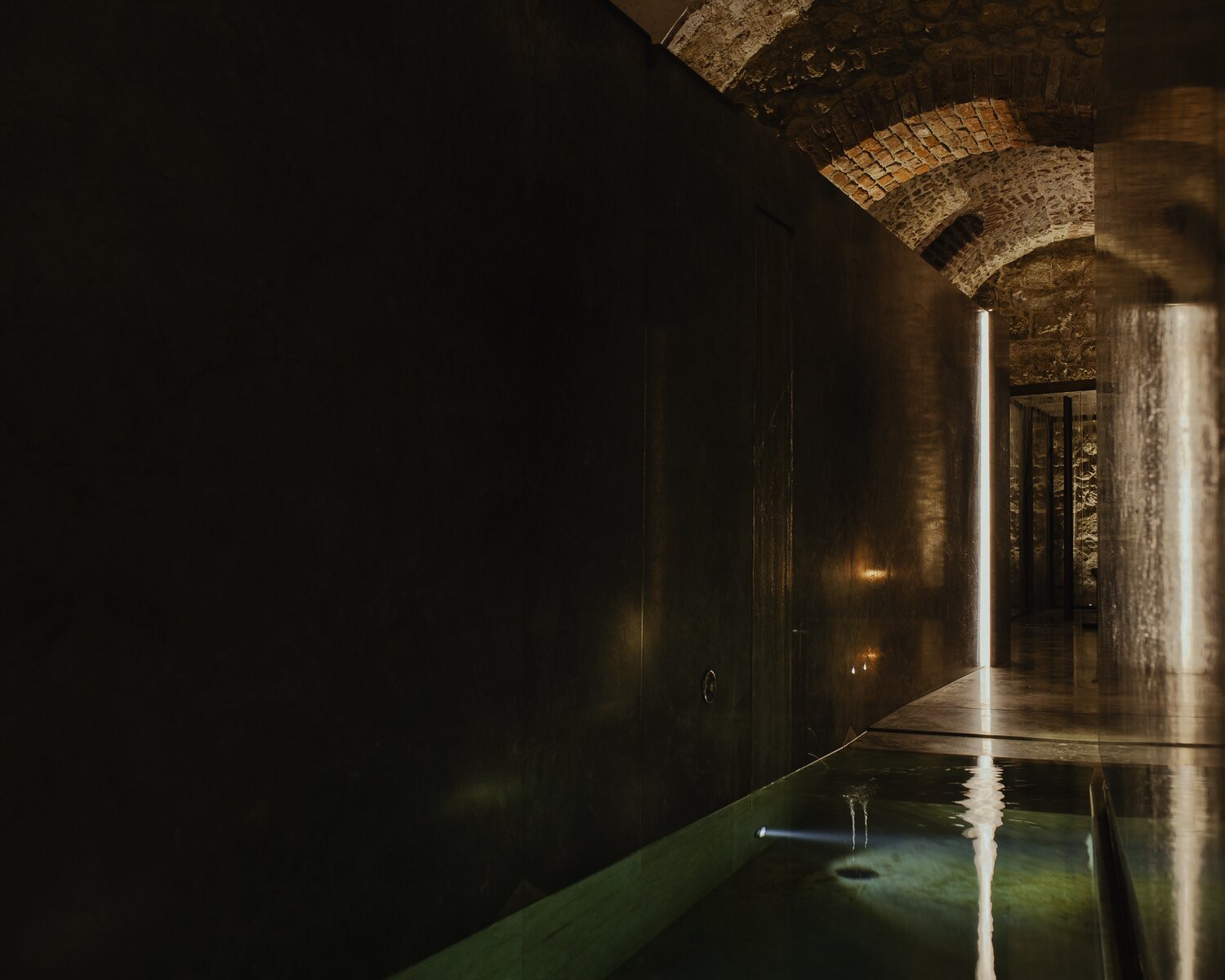

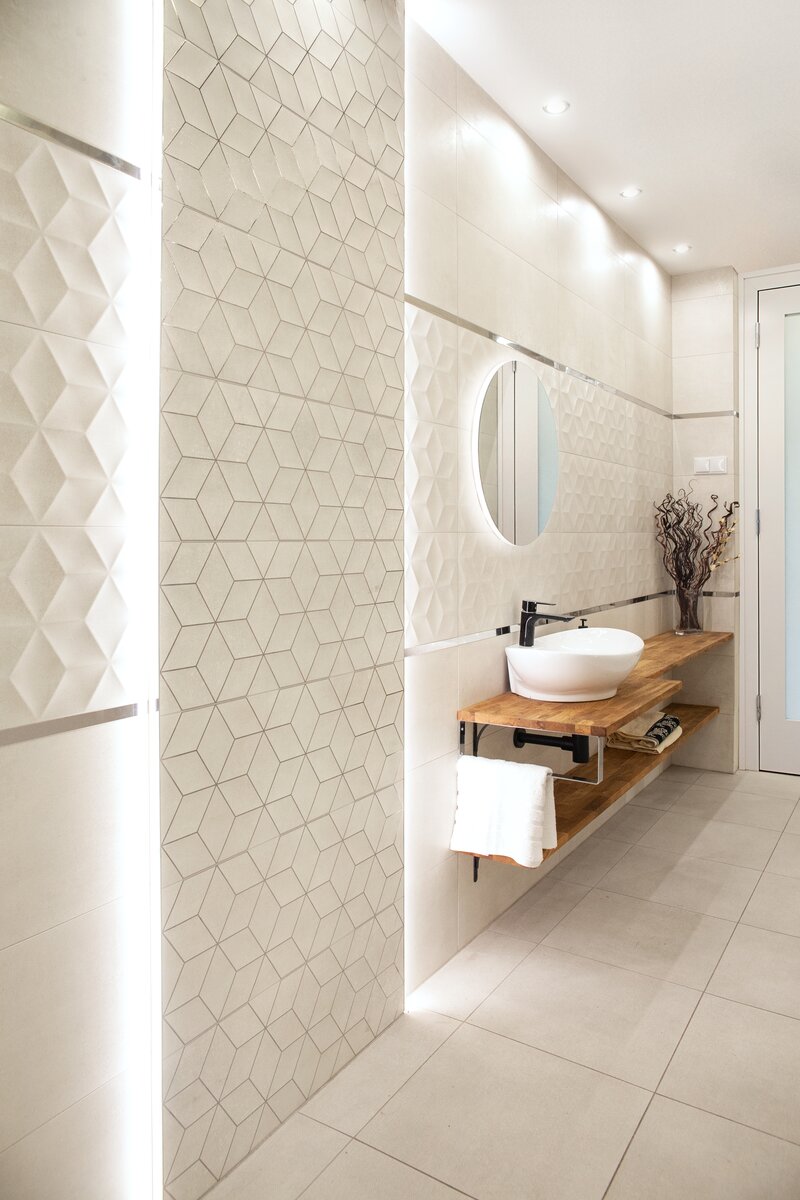

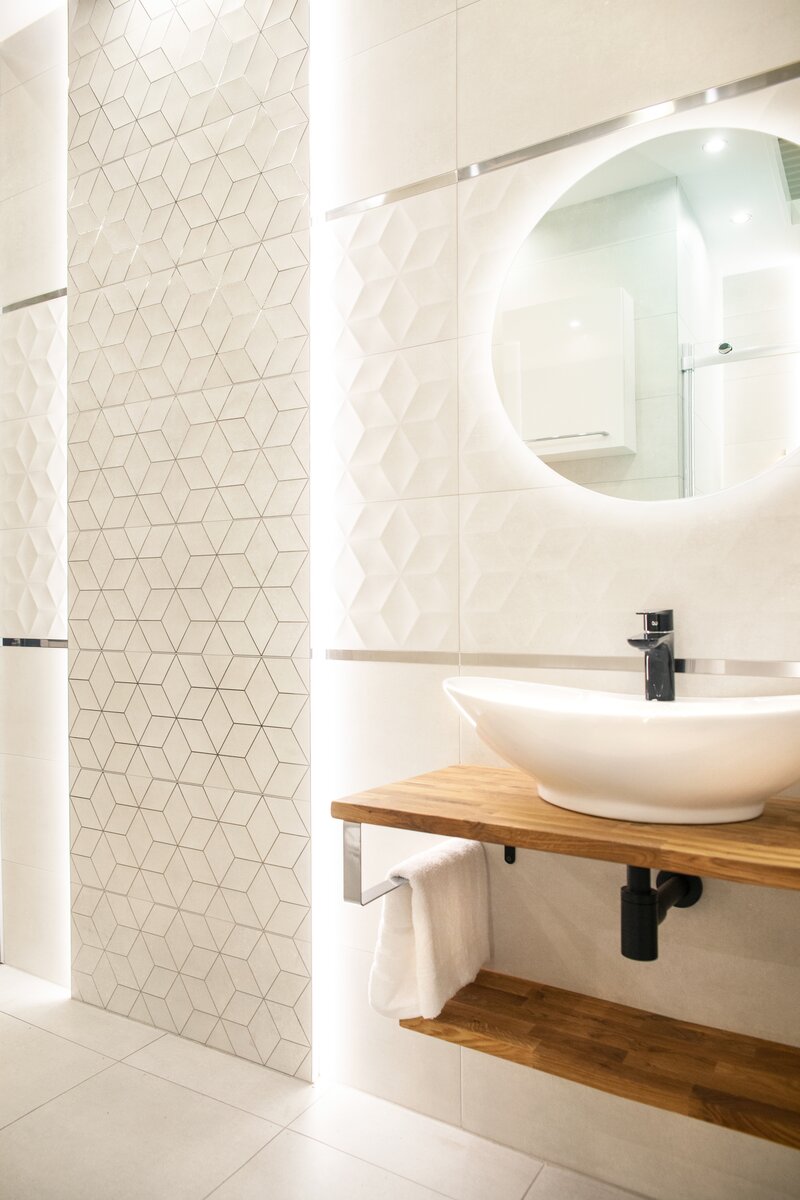

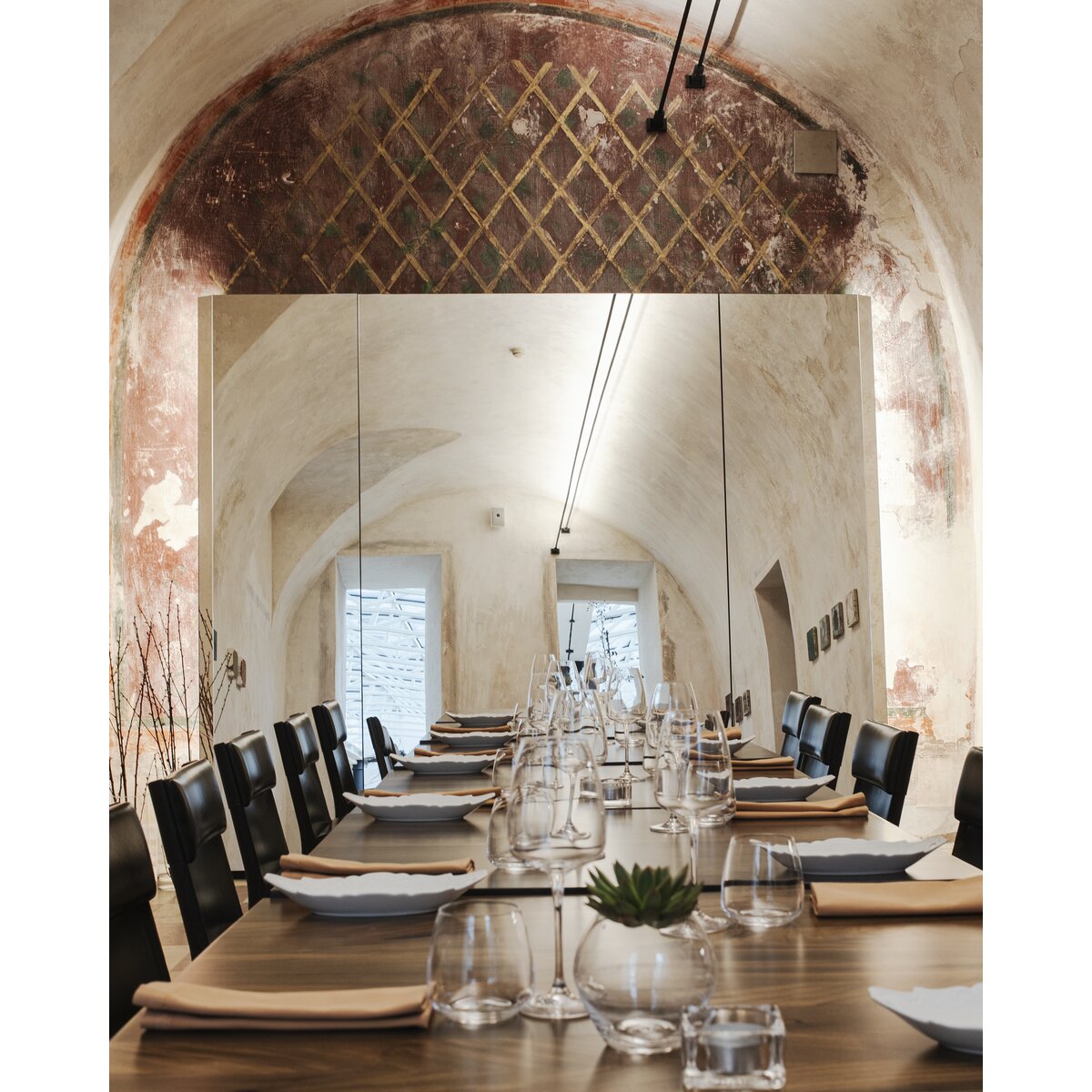

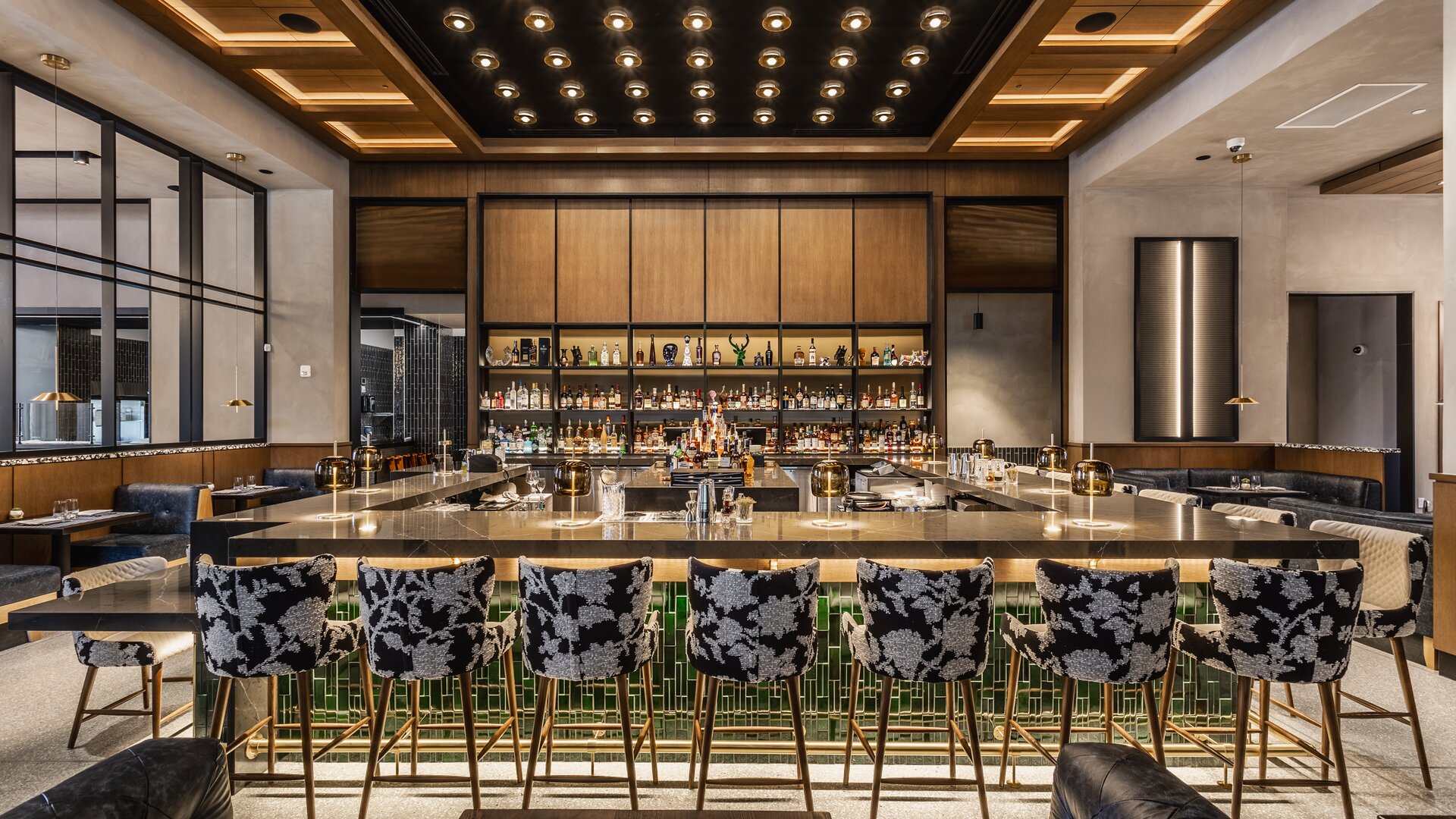

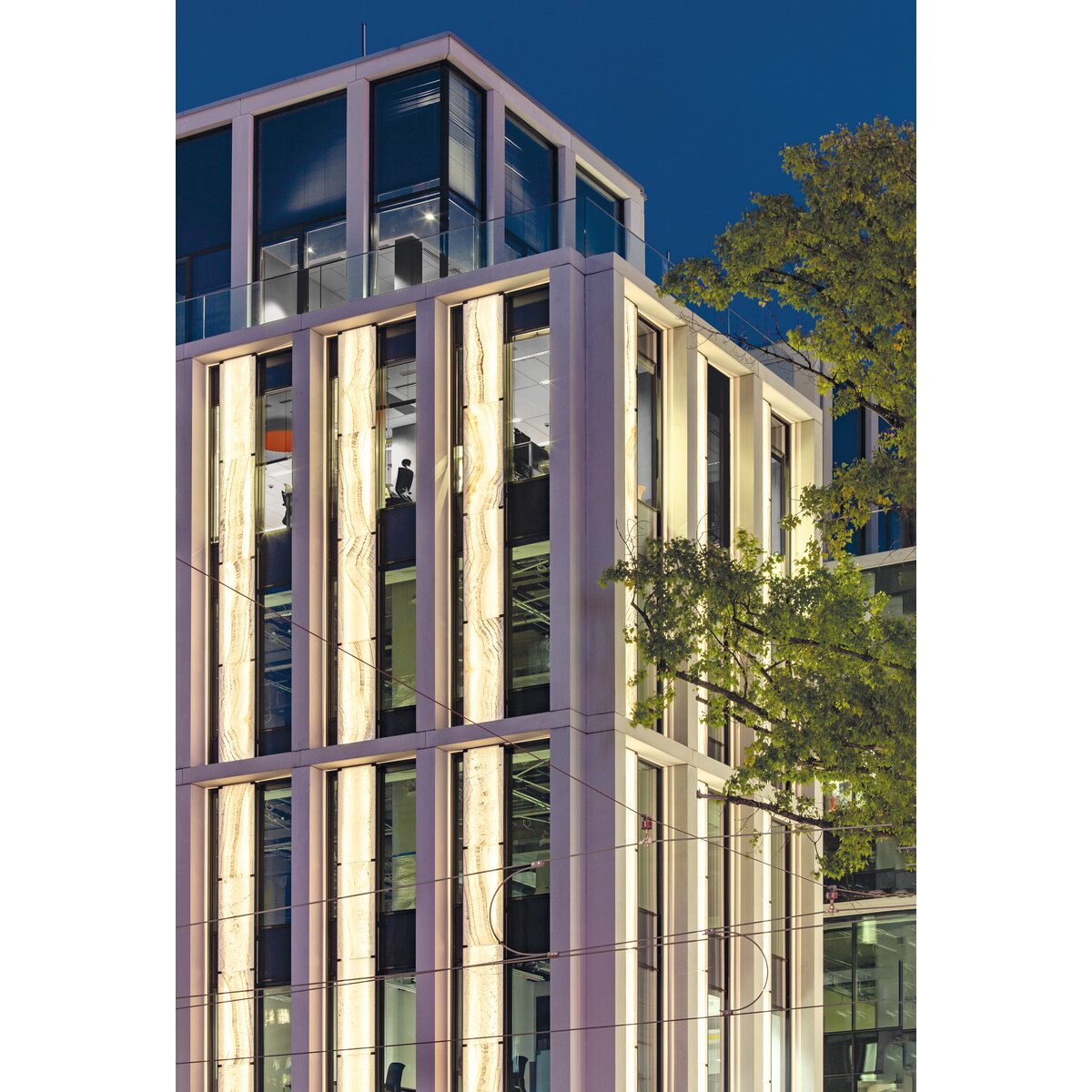

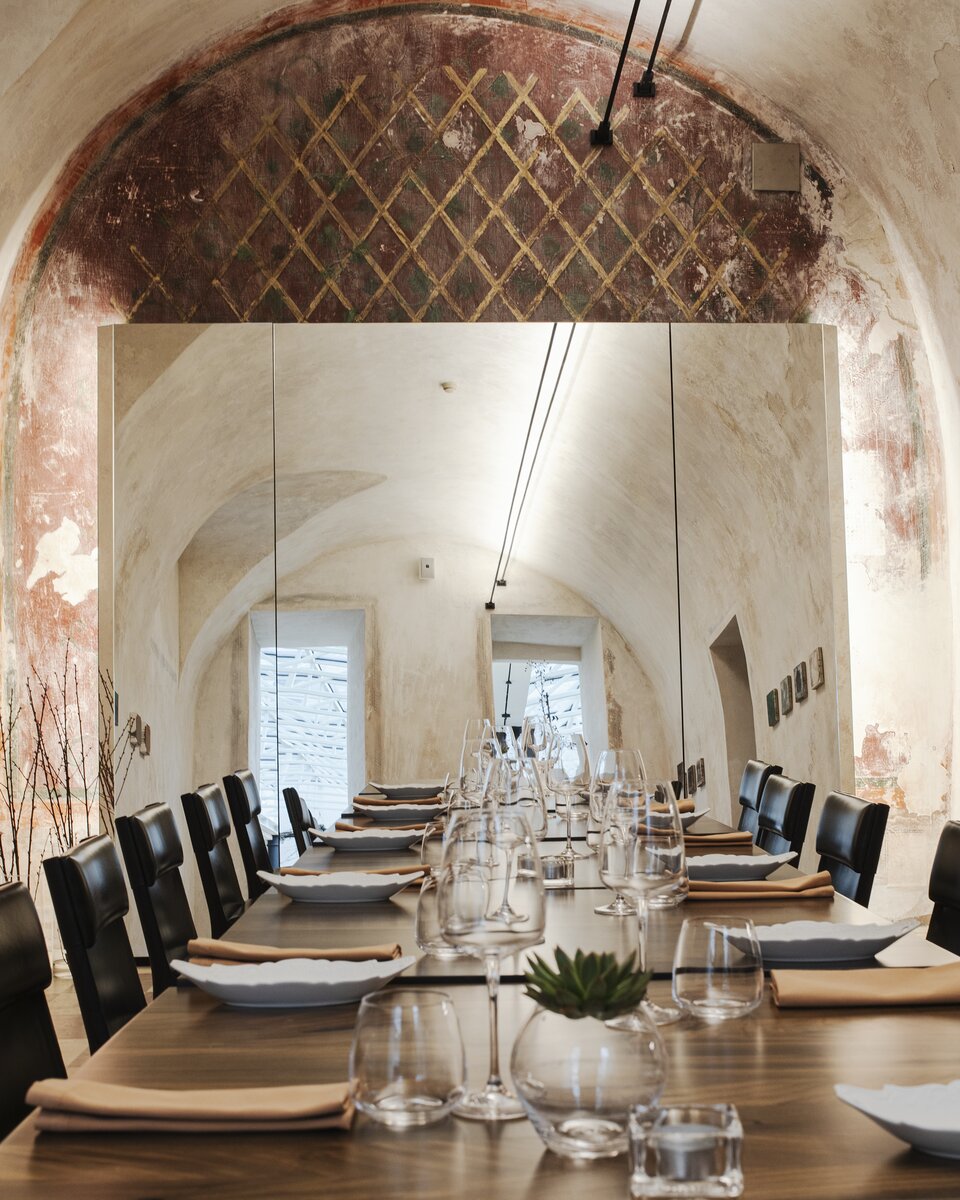

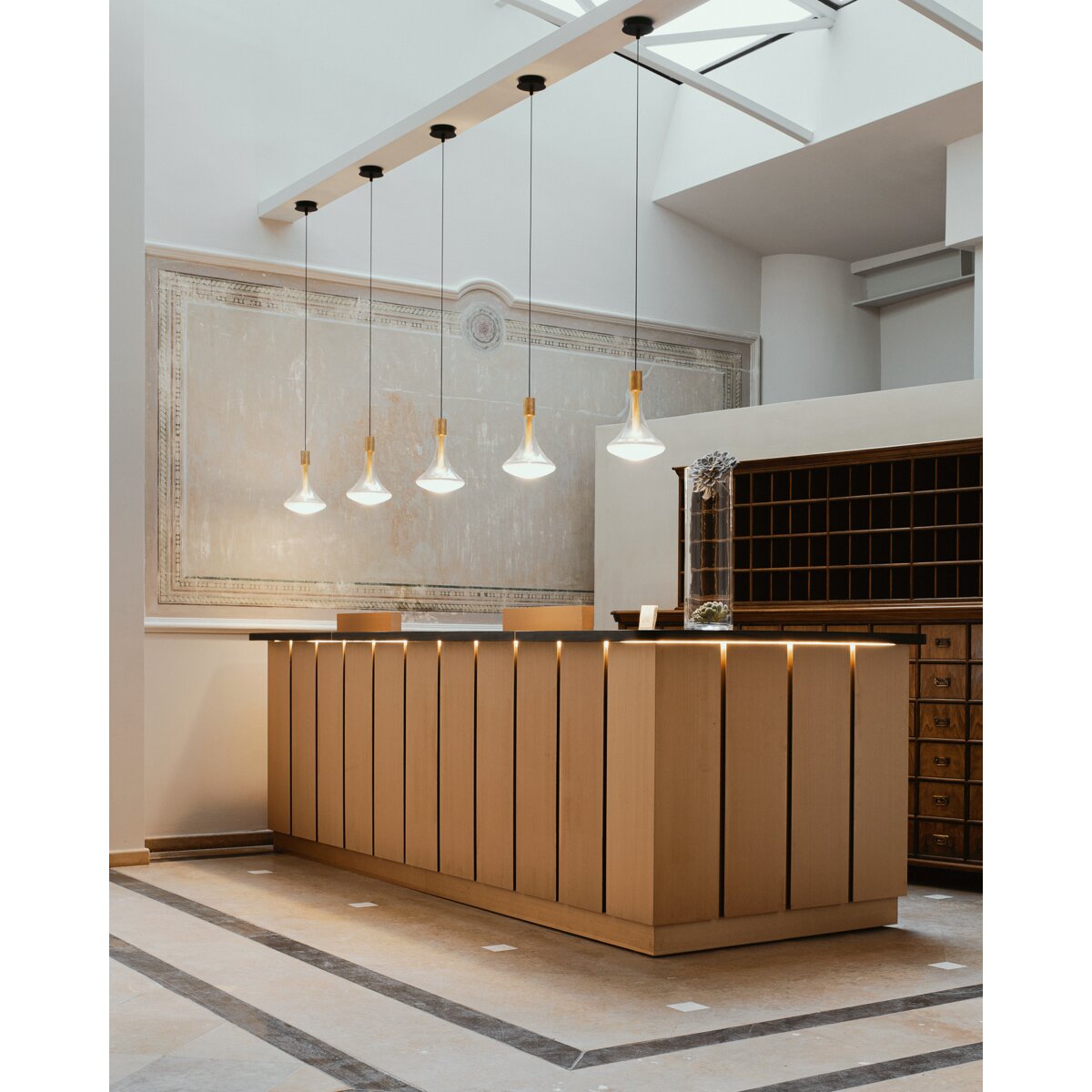

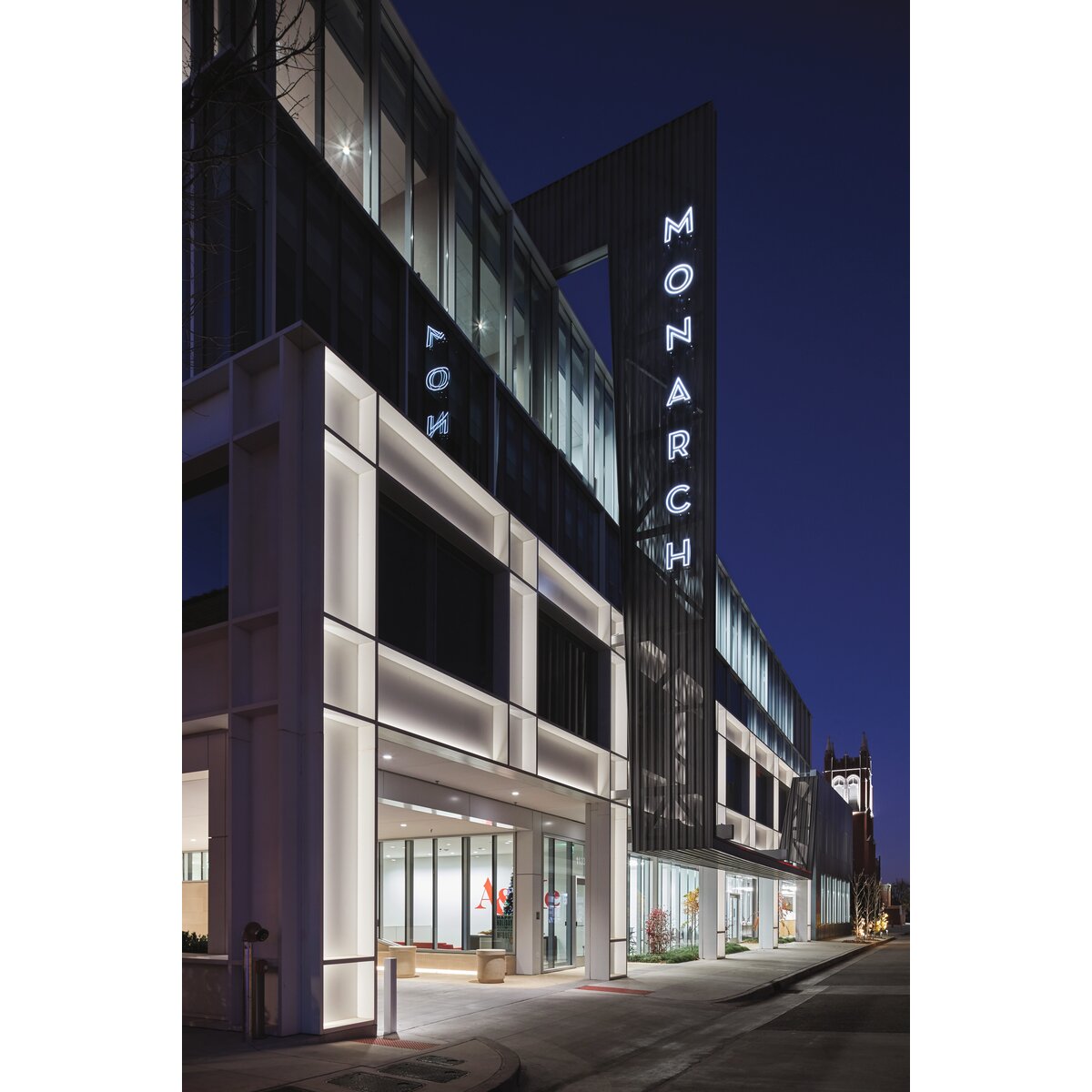

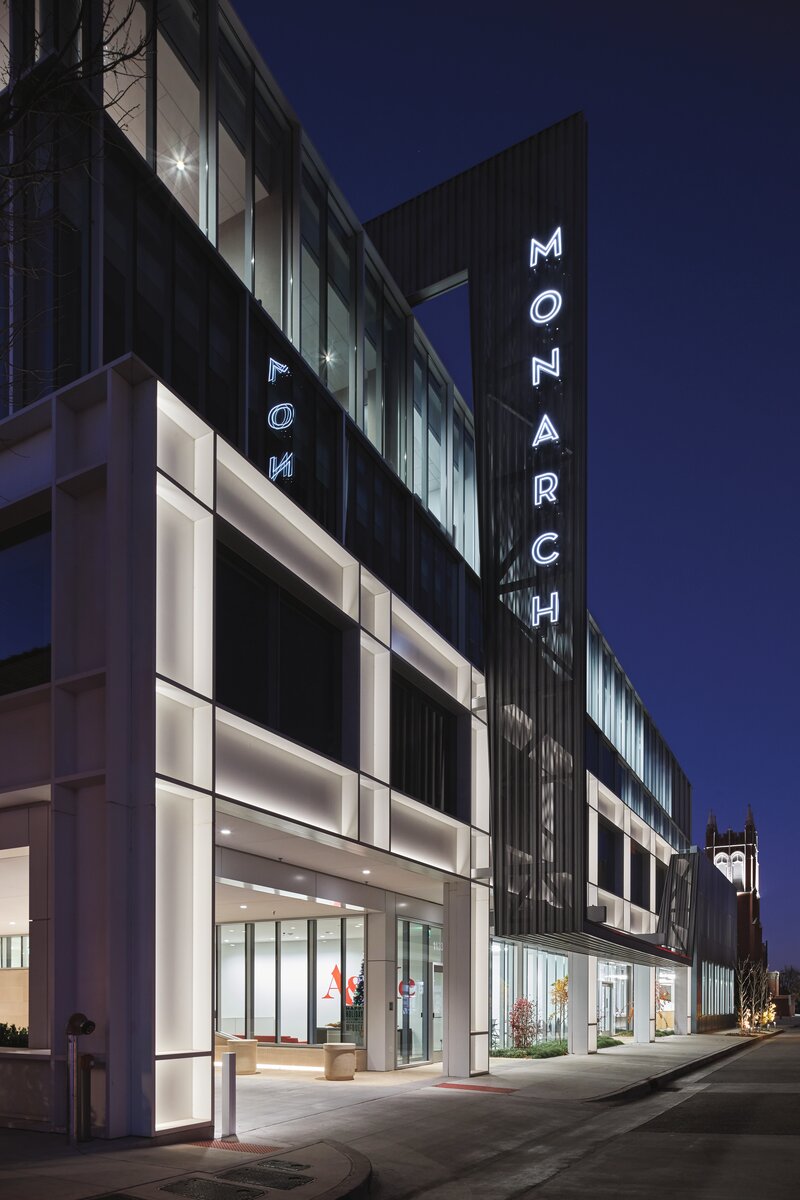

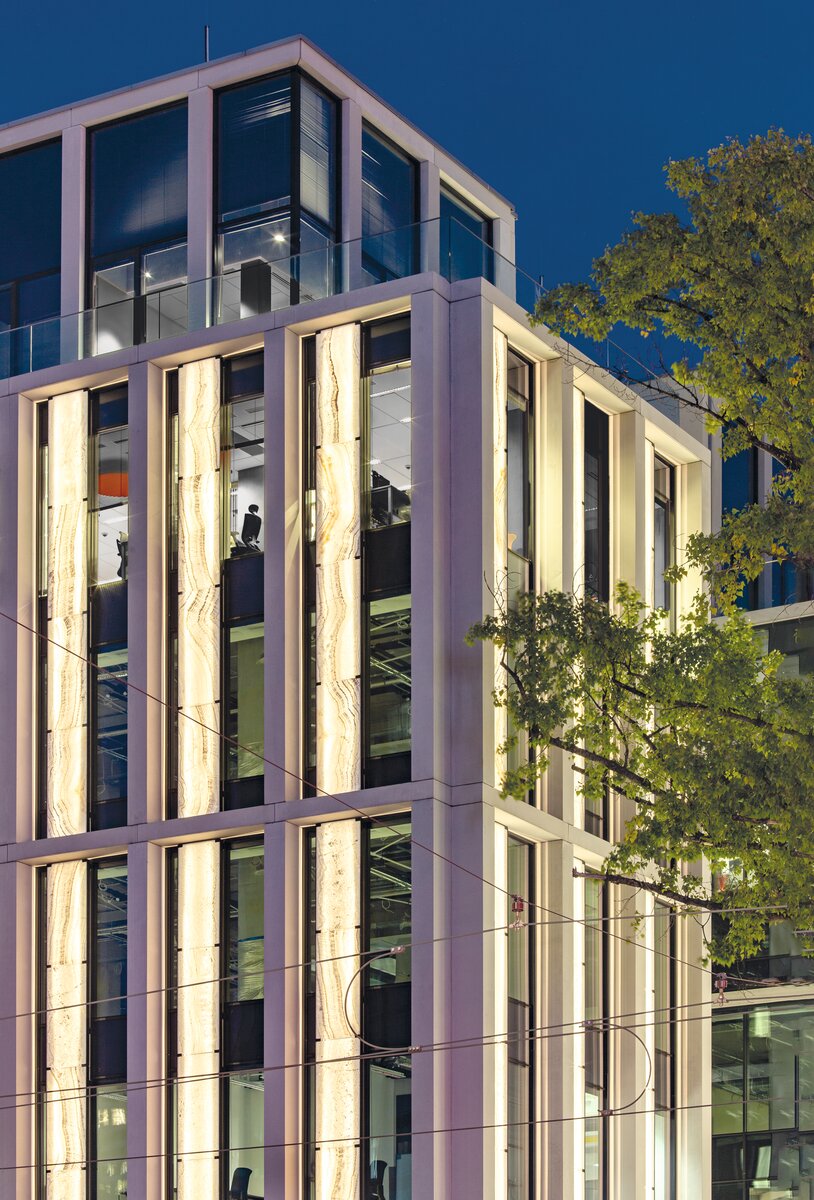

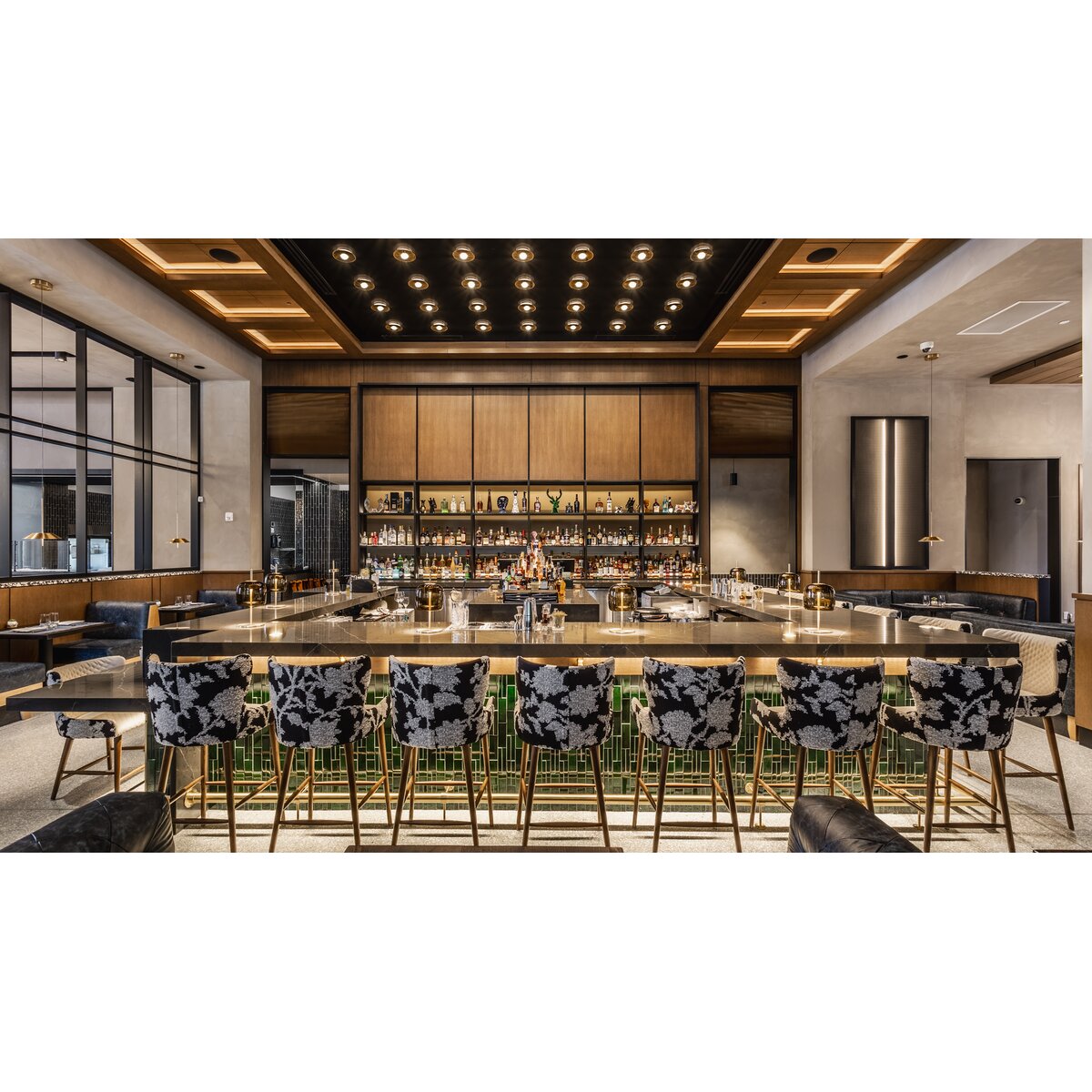

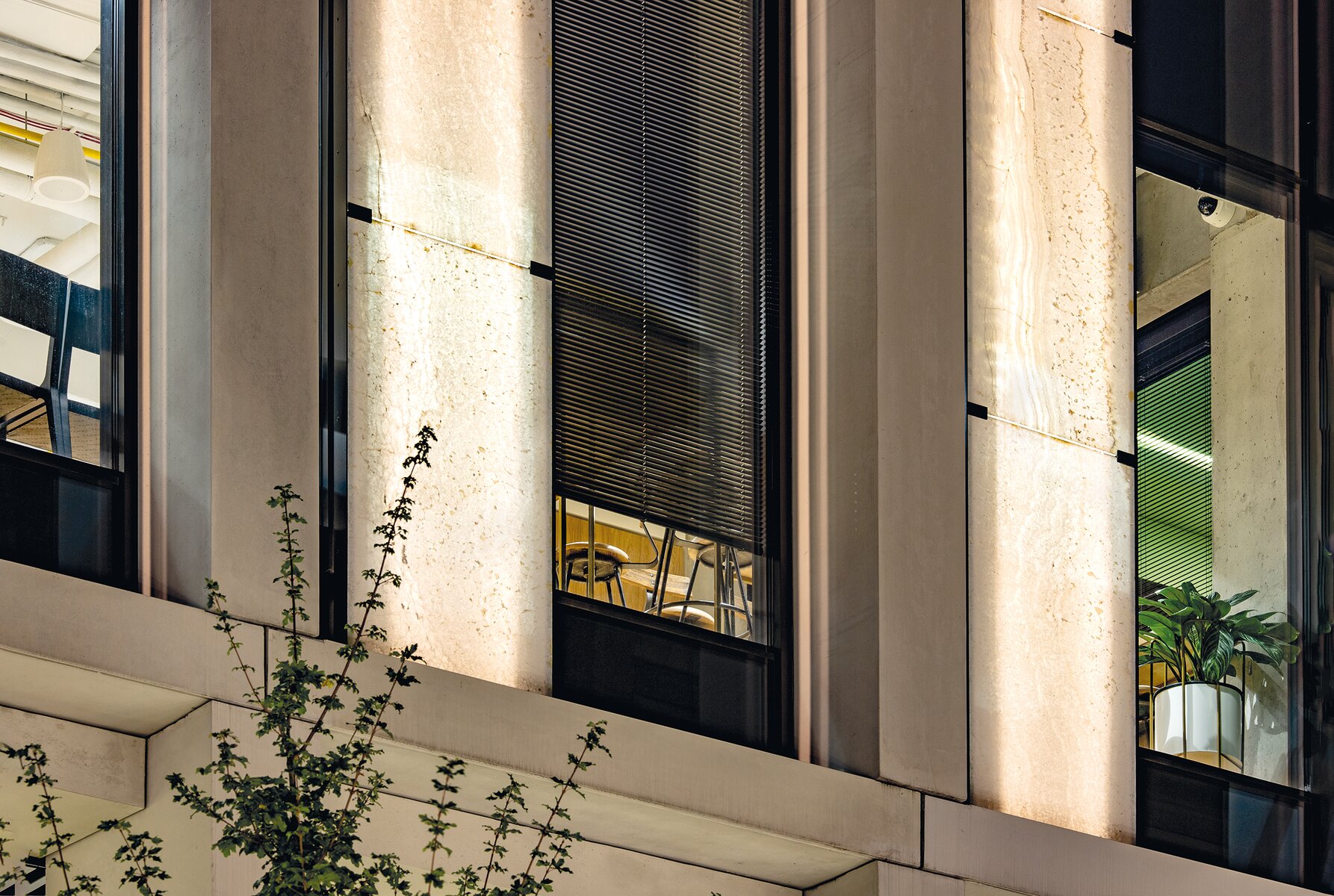

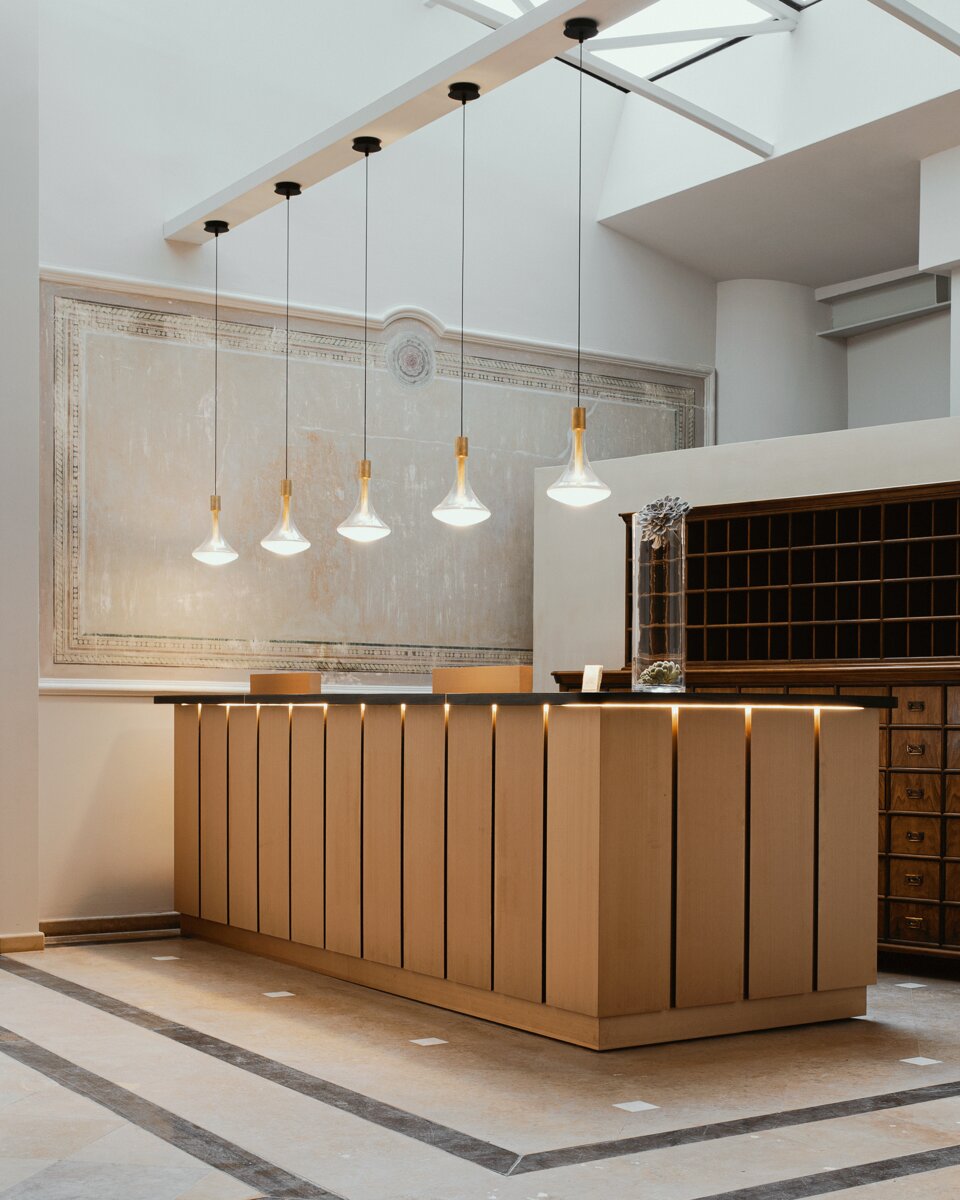

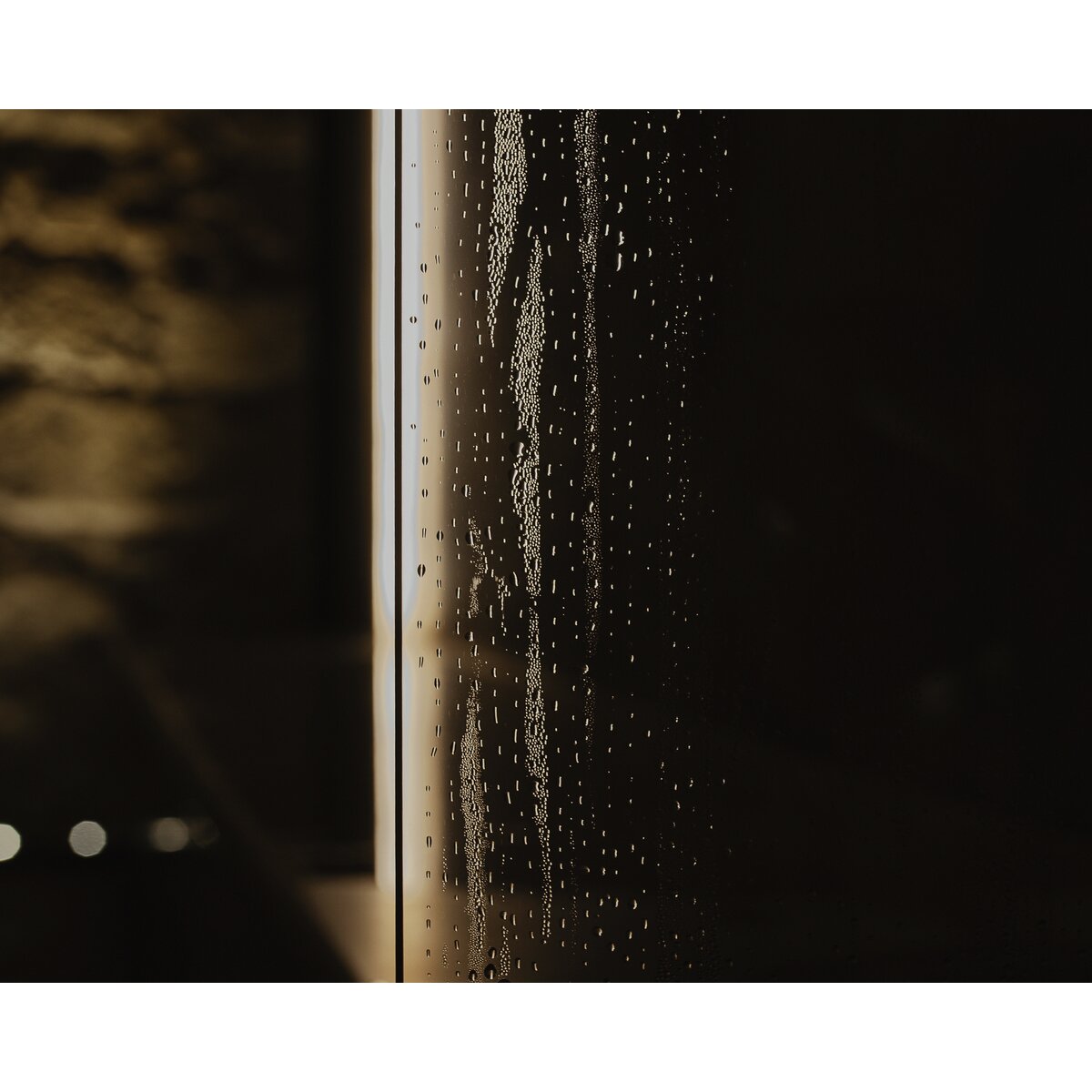

Usage examples

Description
download

Application

- main, functional, furniture and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- cover length equal to the extrusion length only with the use of a dedicated PDS-4-PLUS end cap
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- NCS Premium paint option - minimum order quantity 30pcs - available immediately

Declaration of Conformity UKCA

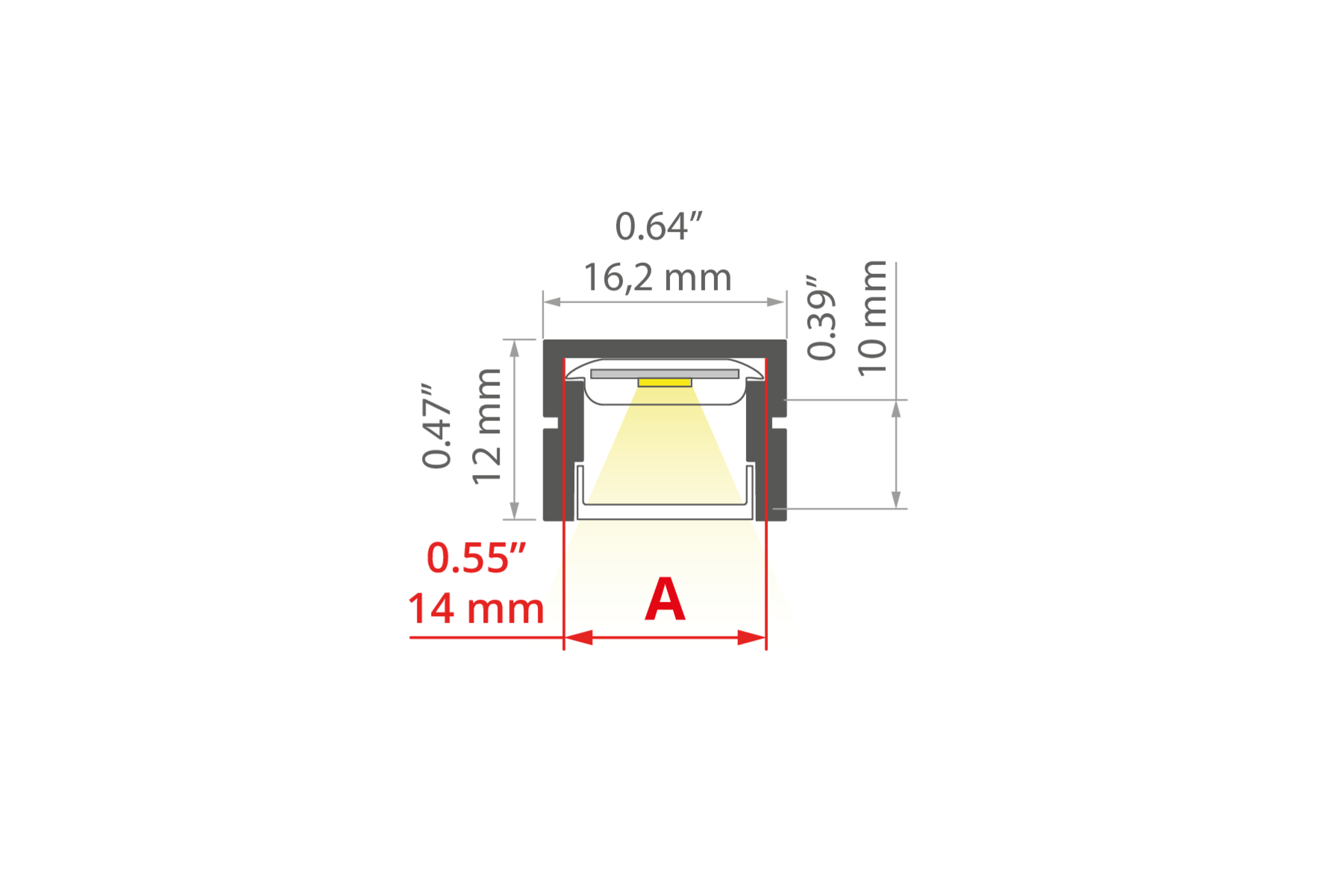

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 67

Possible fixture shapes

linear, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.6" (16.2 mm)

Height

0.5" (12 mm)

LED gluing width A

0.6" (14 mm)

Max. number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Closet Rated

Yes

Possibility of obtaining a line of light

Yes

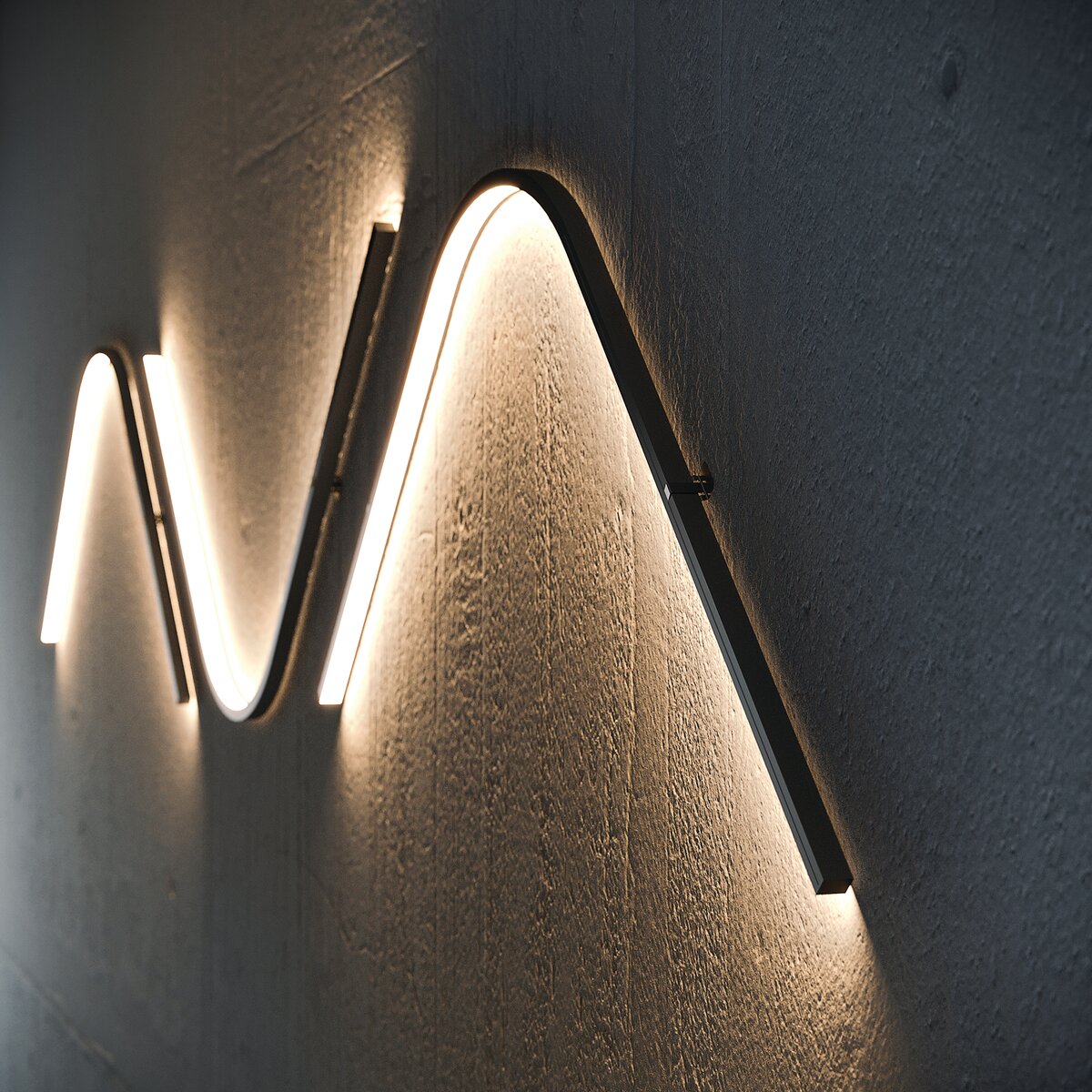

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

180 mm

Outward

200 mm

Downward

500 mm

Building type

Commercial, Hotel / Restaurant, Retail, Residential, Entertainment/ Arts, Outdoor

Facility zone

office, kitchen, bathroom, cove / perimeter, fascade lighting, stairs / hallways, under-cabinet / furniture, outdoor spaces, fitness / spa, media rooms / av

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A01263A_1 A01263A_2 A01263A_3
white lacquered	78.9" (2005 mm)	A01263L10OD_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A01263A07_1 A01263A07_2 A01263A07_3

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-11 Cover satin	HS-11 Cover frosted	LENSO-11 30°DEG Focusing cover semi-transparent	LIGER-11 Cover black
Bendable tape	K-BT-0910-24	(1)	(1)		(1)
Adjustable White / Dim to Warm	K-30/18-1770-010V-24V	(1)	(1)		(1)
Adjustable White / Dim to Warm	K-30/18-1770-24V	(1)	(1)		(1)
High Efficacy	K-HEHD-0960-24	(1)	(1)
	K-HEHD-1440-24	(1)	(1)
	K-HEHD-1920-24	(1)	(1)
	K-HEHD-0480-24	(1)	(1)
	K-HEHD-0320-24	(1)	(1)
CRI 95+	K-CRHD-1820-24	(1)	(1)		(1)
	K-CRHD-1910-24	(1)	(1)		(1)
	K-CRHD-0530-24	(1)	(1)		(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(1)	(1)
Single diode cuttable	K-SD-1440-24	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

Reference shapes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
LENSO-11 30°DEG Focusing cover	PC	- indoor use - focusing	80 %	semi-transparent	B17112T
Cover -11 BENCO	silicon	- For indoor and outdoor applications - UV resistant	50 %	frosted	B17215F
HS-11 Cover	PC	- For indoor and outdoor applications - UV resistant - hight durability	59 % 88 %	frosted clear	B17208F B17208C
KA-11 Cover	PC	- maximum brightness - indoor use - basic - universal	67 % 89 %	frosted clear	B17064F B17064C
LIGER-11 Cover	PC	- hight light quality - Ease of obtaining a line of light - perfectly diffusing - For indoor and outdoor applications	59 % 21 %	satin black	B17037S B17037B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2700K	- CRI over 95	K-CR22-1210-24 K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1275-24 K-CR25-1275-24 K-CR27-1275-24 K-CR30-1275-24 K-CR35-1275-24 K-CR40-1275-24 K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,	20	-	5.6 W/ft	2700K	- CRI over 95 - high LED density	K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,	20	-	2.8 W/ft	2700K 3500K 4000K	- CRI over 95 - high LED density	K-CRHD27-1910-24 K-CRHD35-1910-24 K-CRHD40-1910-24
KWP-CR-1220-24 LED tape, 151-227 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1220-24 KWP-CR25-1220-24 KWP-CR27-1220-24 KWP-CR30-1220-24 KWP-CR35-1220-24 KWP-CR40-1220-24 KWP-CR50-1220-24
KWP-CR-1275-24 LED tape, 381-464 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	KWP-CR22-1275-24 KWP-CR25-1275-24 KWP-CR27-1275-24 KWP-CR30-1275-24 KWP-CR35-1275-24 KWP-CR40-1275-24 KWP-CR50-1275-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,	20	-	1.6 W/ft	3500K	- CRI over 95	K-CRHD35-0530-24
KWP-8KCR-1210-24 LED tape, 74-93 lm/ft, IP65,	65	silicon sleeve	1.5 W/ft	2200K 2700K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1210-24 KWP-8K-CR27-1210-24
KWP-8KCR-1220-24 LED tape, 151-240 lm/ft, IP65,	65	silicon sleeve	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1220-24 KWP-8K-CR25-1220-24 8K-KWP-CR27-1220-24 8K-KWP-CR30-1220-24 KWP-8K-CR35-1220-24 KWP-8K-CR40-1220-24 KWP-8K-CR50-1220-24
KWP-8KCR-1275-24 LED tape, 381-480 lm/ft, IP65,	65	silicon sleeve	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- universal for basic applications - easy snap-in installation - CRI over 95	KWP-8K-CR22-1275-24 KWP-8K-CR25-1275-24 KWP-8K-CR27-1275-24 KWP-8K-CR30-1275-24 KWP-8K-CR35-1275-24 KWP-8K-CR40-1275-24 KWP-8K-CR50-1275-24

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20	20	-	7.3 W/ft	2700K 3000K 3500K 4000K 5000K	- high power	K-27-2400-24 K-30-2400-24 K-35-2400-24 K-40-2400-24 K-50-2400-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20	20	-	3.7 W/ft	RGB 2700K	- RGB+Tunable White	K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65	65	silicon sleeve	5.9 W/ft	RGB	- RGB	KWP-RGB-1920-24
K-RGB-0700-120-24 LED tape, 126 lm/ft, 2.1 W/ft, IP20	20	-	2.1 W/ft	RGB	- RGB	K-RGB-0700-120-24
K-RGB-1200-120-24 LED tape, 182 lm/ft, 3.7 W/ft, IP20,	20	-	3.7 W/ft	RGB	- RGB	K-RGB-1200-120-24
KWP-8KRGB-0700-120-24 LED tape, 12 lm/ft, 2.1 W/ft, IP65	65	silicon sleeve	2.1 W/ft	RGB		KWP-8KRGB-0700-120-24
KWP-8KRGB-1200-120-24 LED tape, 23 lm/ft, 3.7 W/ft, IP65	65	silicon sleeve	3.7 W/ft	RGB		KWP-8KRGB-1200-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20	20	-	3.5 W/ft	1800K		K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65	65	silicon sleeve	3.5 W/ft	1800K		KWP-30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65	65	gel cover	5.3 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

LED tapes
Bendable tape

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,	20	-	2.2 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-VBT27-0720-24 K-VBT30-0720-24 K-VBT35-0720-24 K-VBT40-0720-24 K-VBT50-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,	20	-	2.8 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-BT27-0910-24 K-BT30-0910-24 K-BT35-0910-24 K-BT40-0910-24 K-BT50-0910-24

Accessories
End caps
End caps with holes

Product name	Material	Color	Ref No
PDS-4-PLUS-OTW	ABS	gray white black	C24337C02TW C24337C10TW C24337C07TW

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
PDS-4-PLUS End cap	ABS	gray silver white black	C24337C02 C24337L01 C24337C10 C24337C07

Accessories
Mounting accessories
Surface springs

Product name	Key features	Material	Color	Ref No
Spring PDS		stainless steel	silver	C24501N00

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
PDS Mounting bracket	- For indoor and outdoor applications	stainless steel	white black	C24223C10 C24189C07
Mounting bracket PDS-STN	- For indoor and outdoor applications	stainless steel	silver	C24190N00
Mounting bracket PL-PDM	- Aesthetic installation of linear fixtures	PP	gray	C24041C02
Mounting bracket REG-PD	- Mounting with angle adjustment function	ASA	gray	C28055C02
PDS-STN-90G Mounting bracket	- Angular mount for indoor and outdoor applications	stainless steel	silver	C24370N00
PDS-STN-90D Mounting bracket	- Angular mount for indoor and outdoor applications	stainless steel	silver	C24367N00

Accessories
Suspension accessories
Conductive fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
Head BZP-ZZ		stainless steel	gray	42215
Head ZZ		stainless steel	silver	42218
FI-8-LIN-MR Fastener	- Power supply cable - mounting in thin walls (from 1mm)		silver black	C28172N00 C28172L07
PUSZ-LIN-MR Fastener	- Power supply cable - mounting in thin walls (from 1mm)	stainless steel, brass, nylon	silver white black	C28163N00 C28163L10 C28163L07

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Material	Color	Ref No
Head BZP	stainless steel	silver	C28113N00
Head ST	stainless steel	silver	C28114N00
Fastener DP-MOC	stainless steel	silver	00645

Accessories
Suspension accessories
Suspension and mounting sets

Product name	Key features	Material	Color	Ref No
RG-1 Fastener set	- Cable adjustment at the ceiling, cable included	brass	silver black	C28230P00 C28230L07

Accessories
Suspension accessories
Canopies

Product name	Key features	Material	Color	Ref No
Fi-60mm Canopy	- Convenient cable length adjustment, in the ZM system	steel	gray white black	C24540L01 C24540L10 C24540L07

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
Switch MICRO 96W IP20	20	- push button switch - factory pre-soldered wires	1576
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579

Accessories
Accessories for connecting and securing lighting fixtures
Connectors

Product name	Material	Color	Ref No
Connector PD-MICRO	stainless steel	silver	C42150N00

Accessories
Masking covers and inserts
Technical and protective Inserts

Product name	Material	Color	Ref No
Base MW 11x5	aluminum	silver	C24511A

Accessories
Additional items

Product name	Material	Color	Ref No
Gland 6x1,2			C24517C07
Gland M8x1			C42265N00
Adapter LENSO	PC	transparent	E62146
Gland 8x1,6			C42290C07
