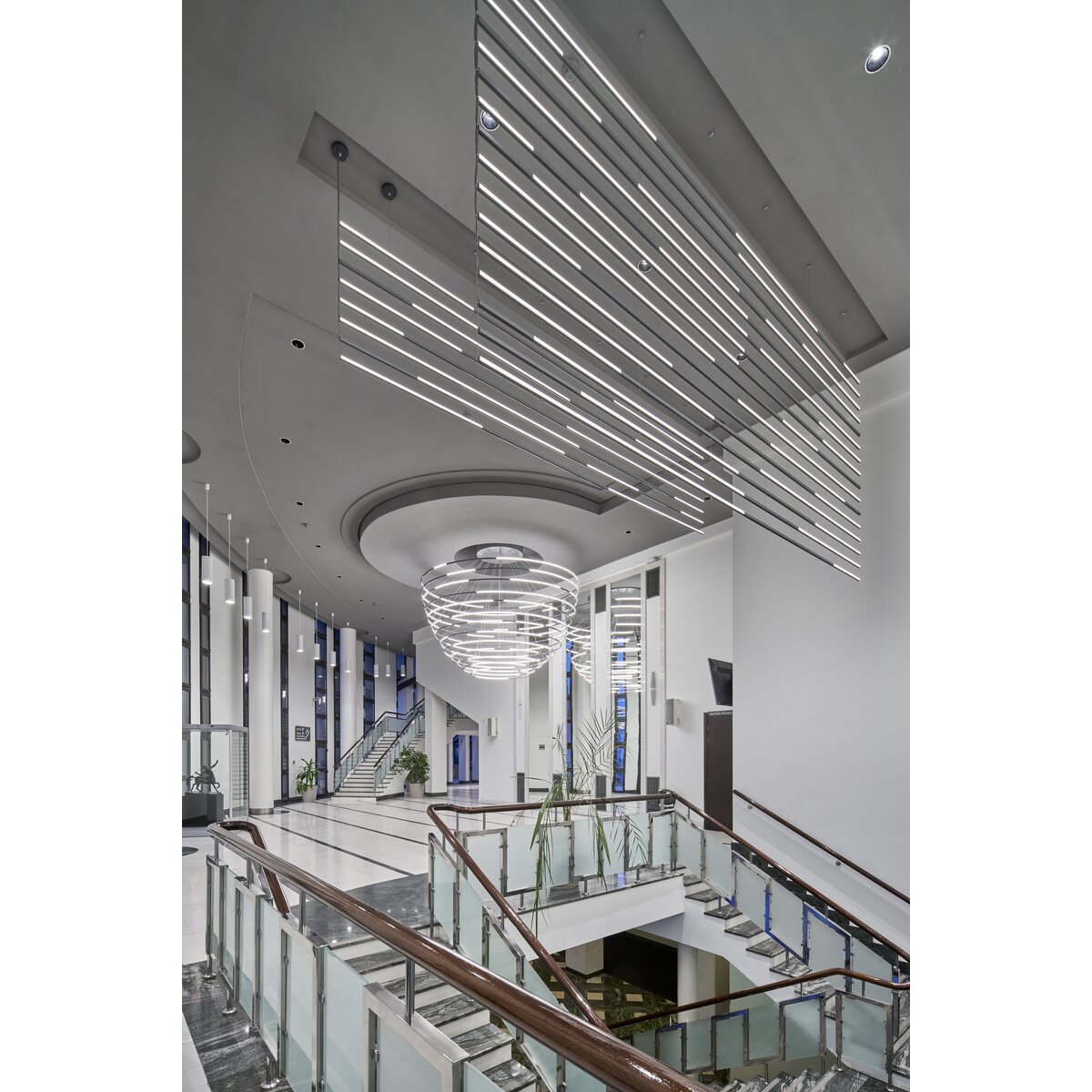

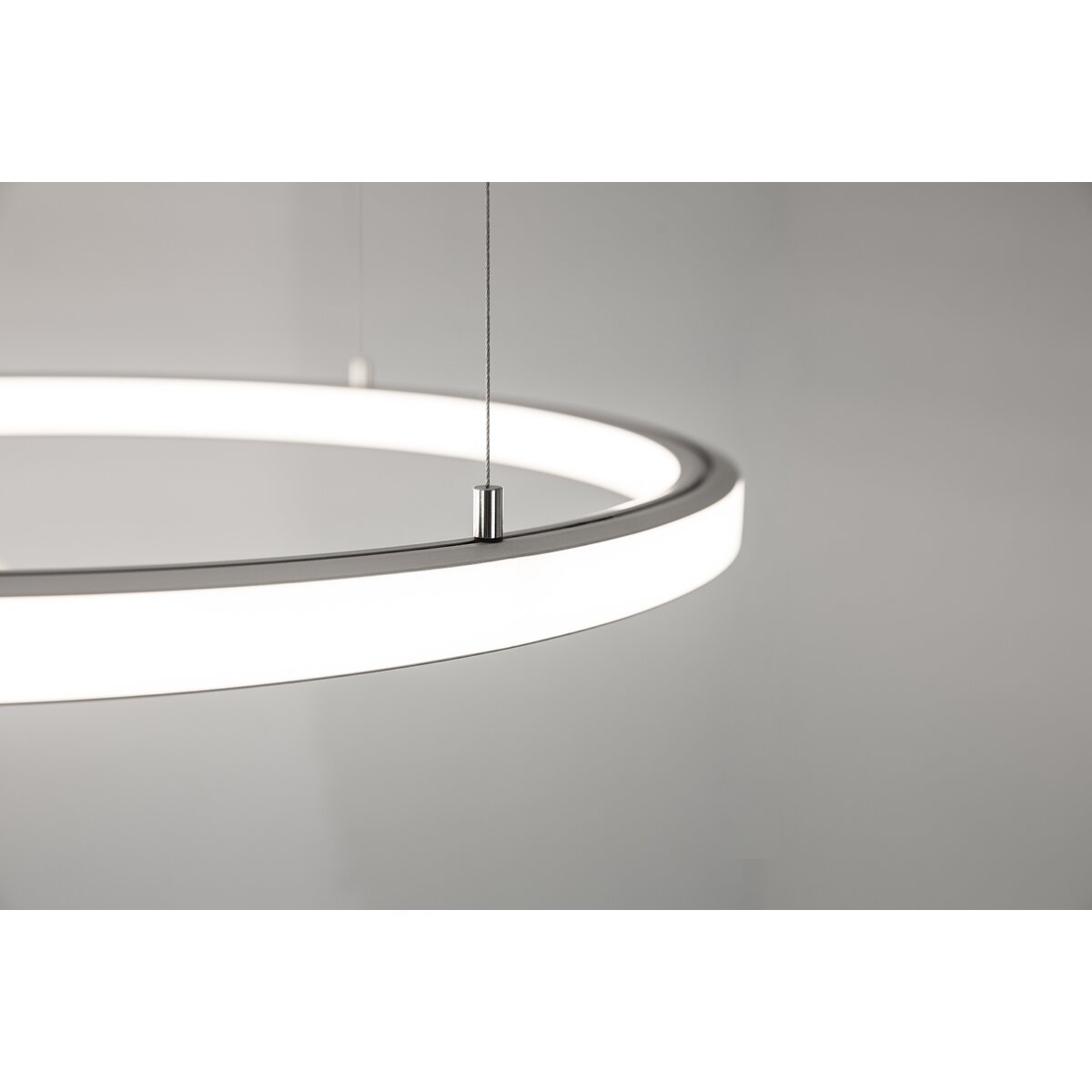

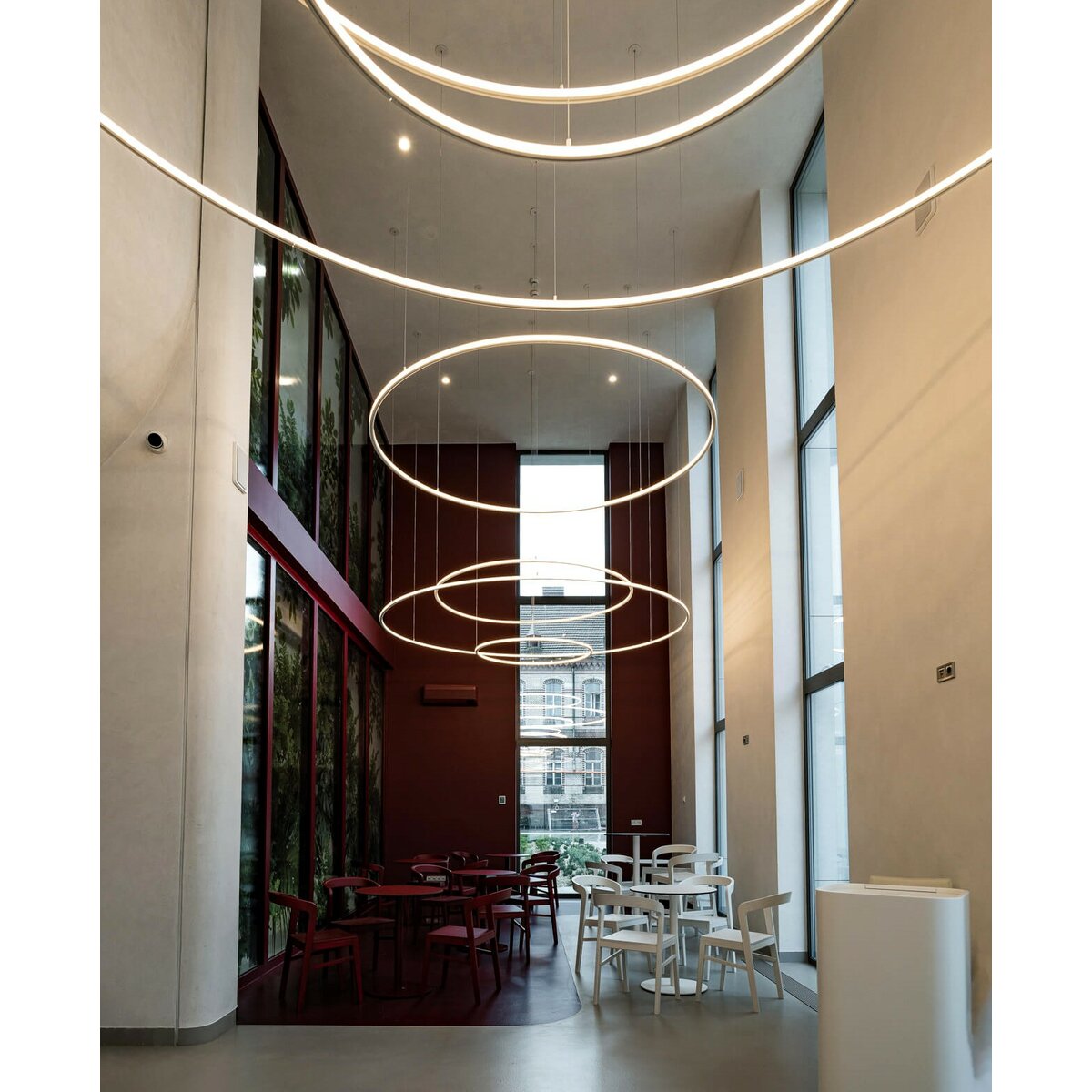

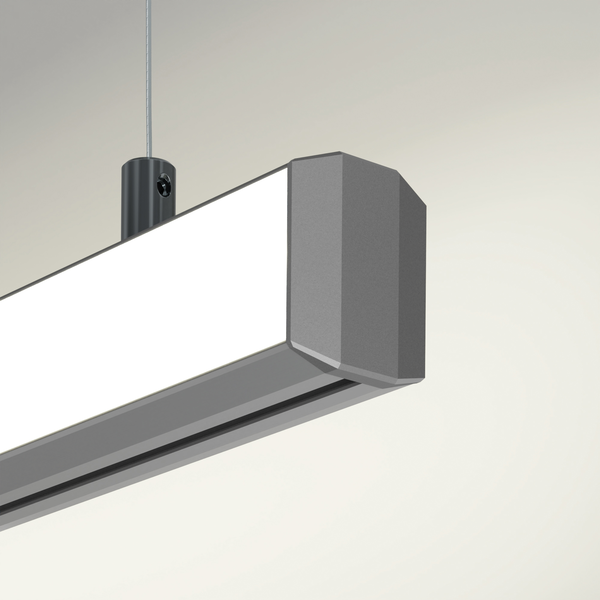

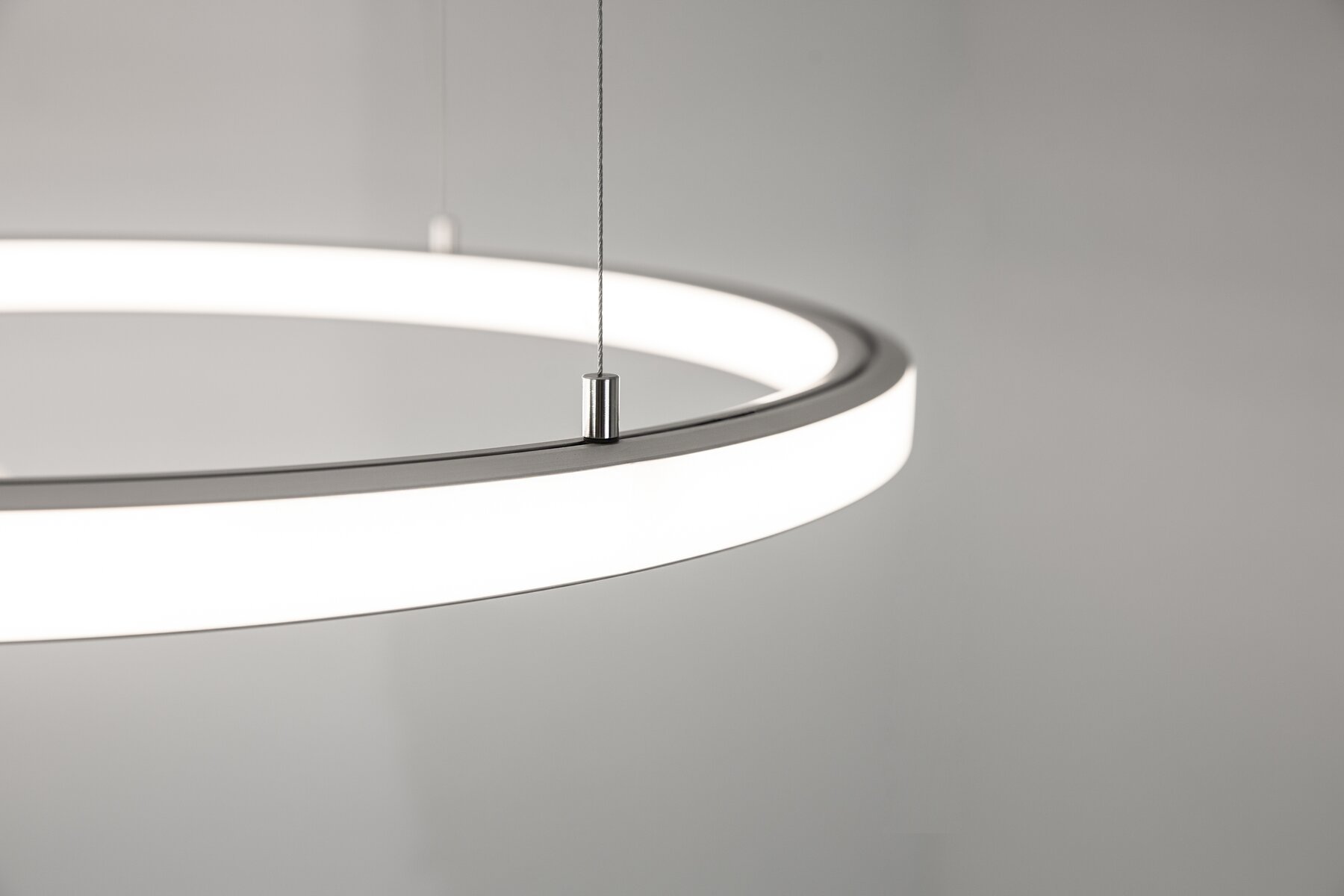

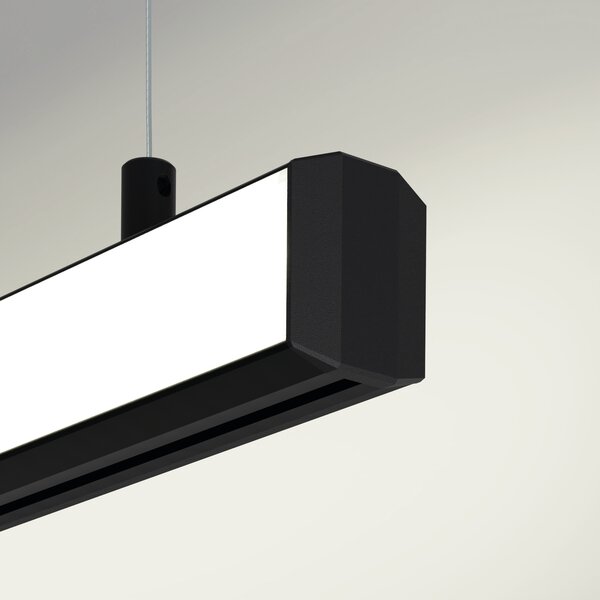

GIZA-DUO-LL Extrusion (A02162)

Compare

Compared

Ease of creating geometric figures
Up/down lighting
Small bending radius
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Ease of creating geometric figures
Up/down lighting
Small bending radius
Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

Application

- decorative lighting i główne

Mounting

- suspended, using dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

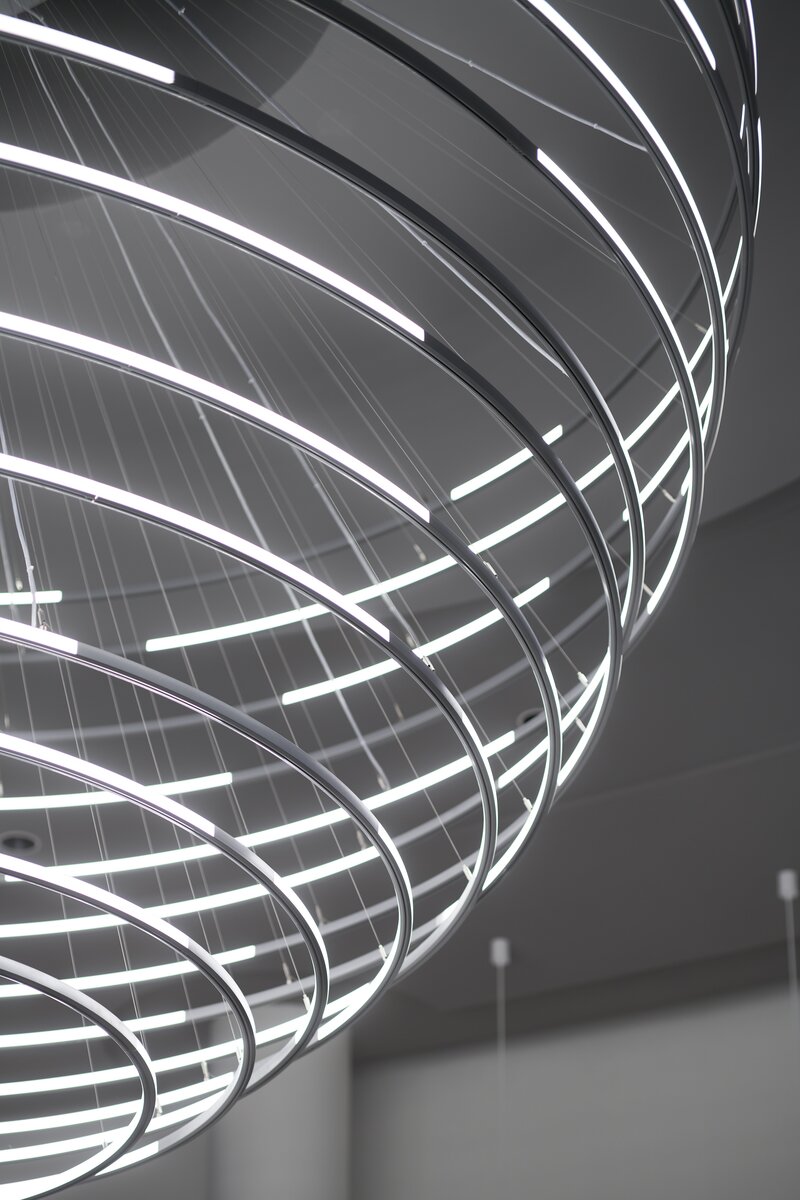

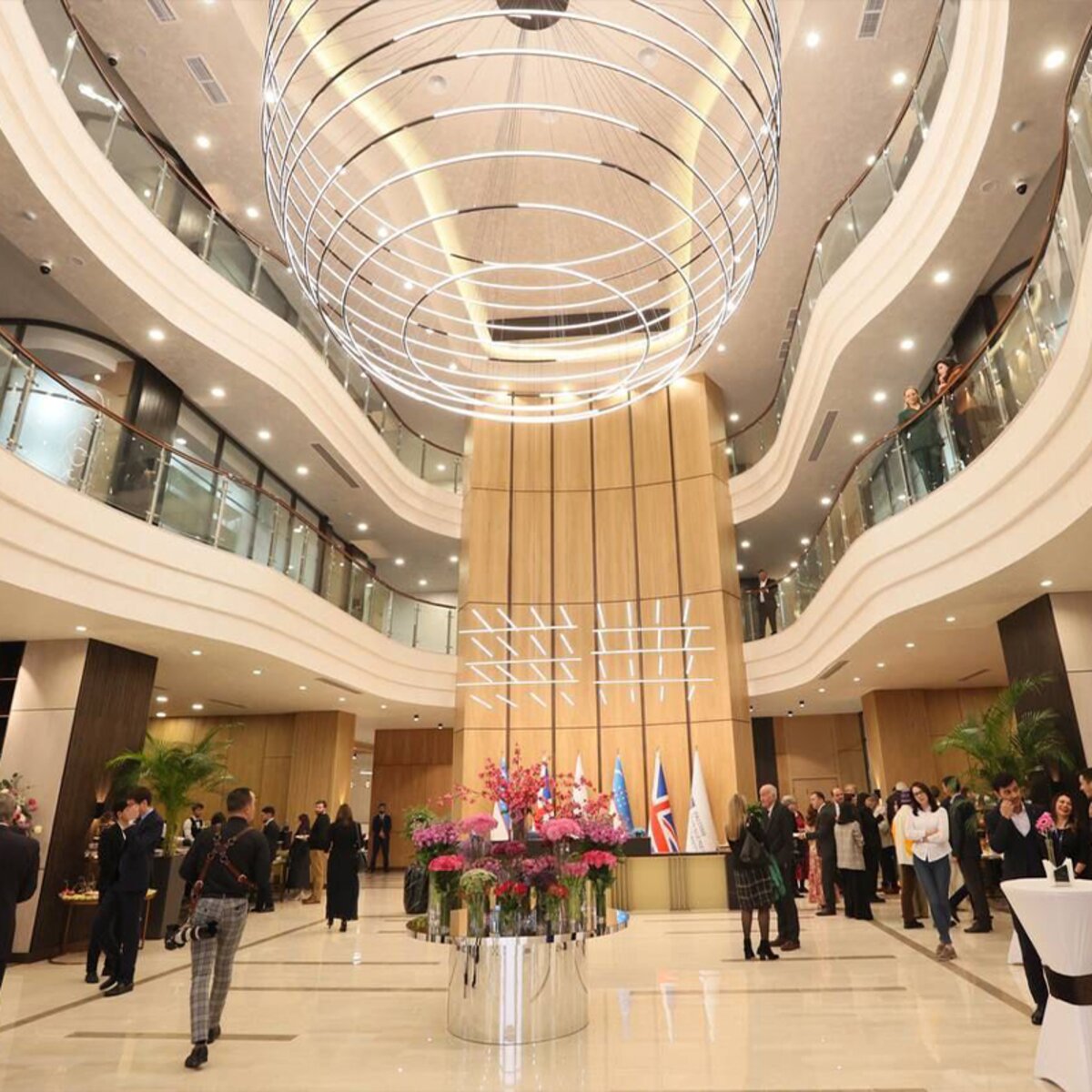

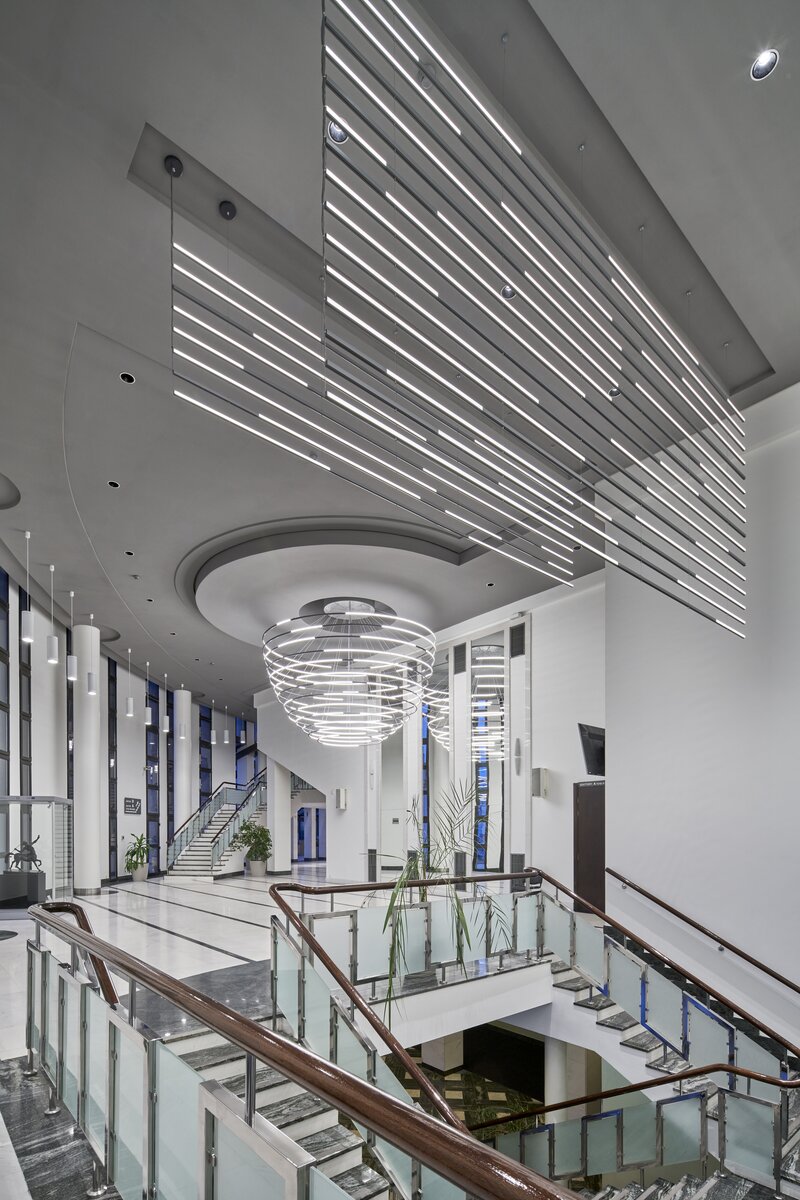

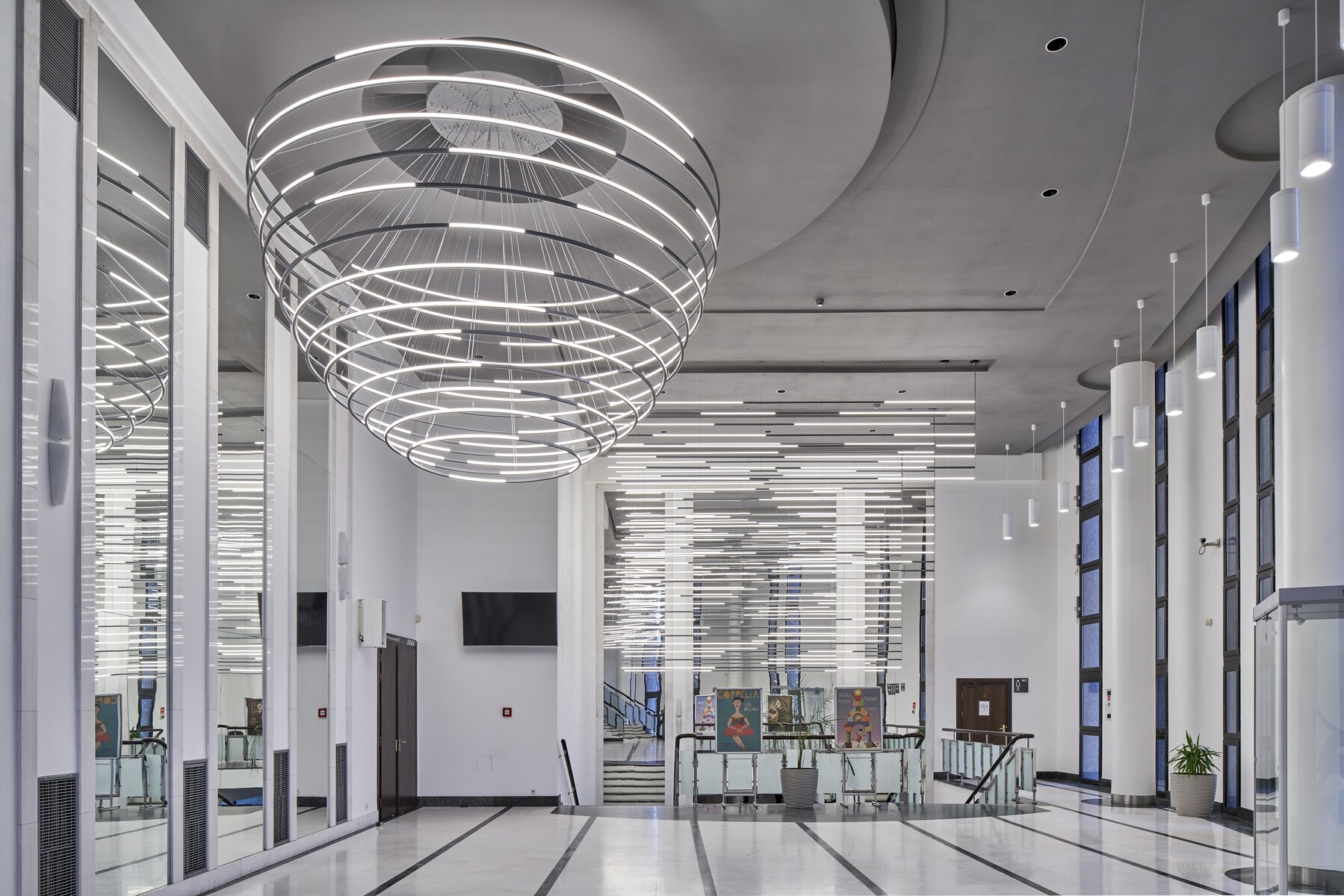

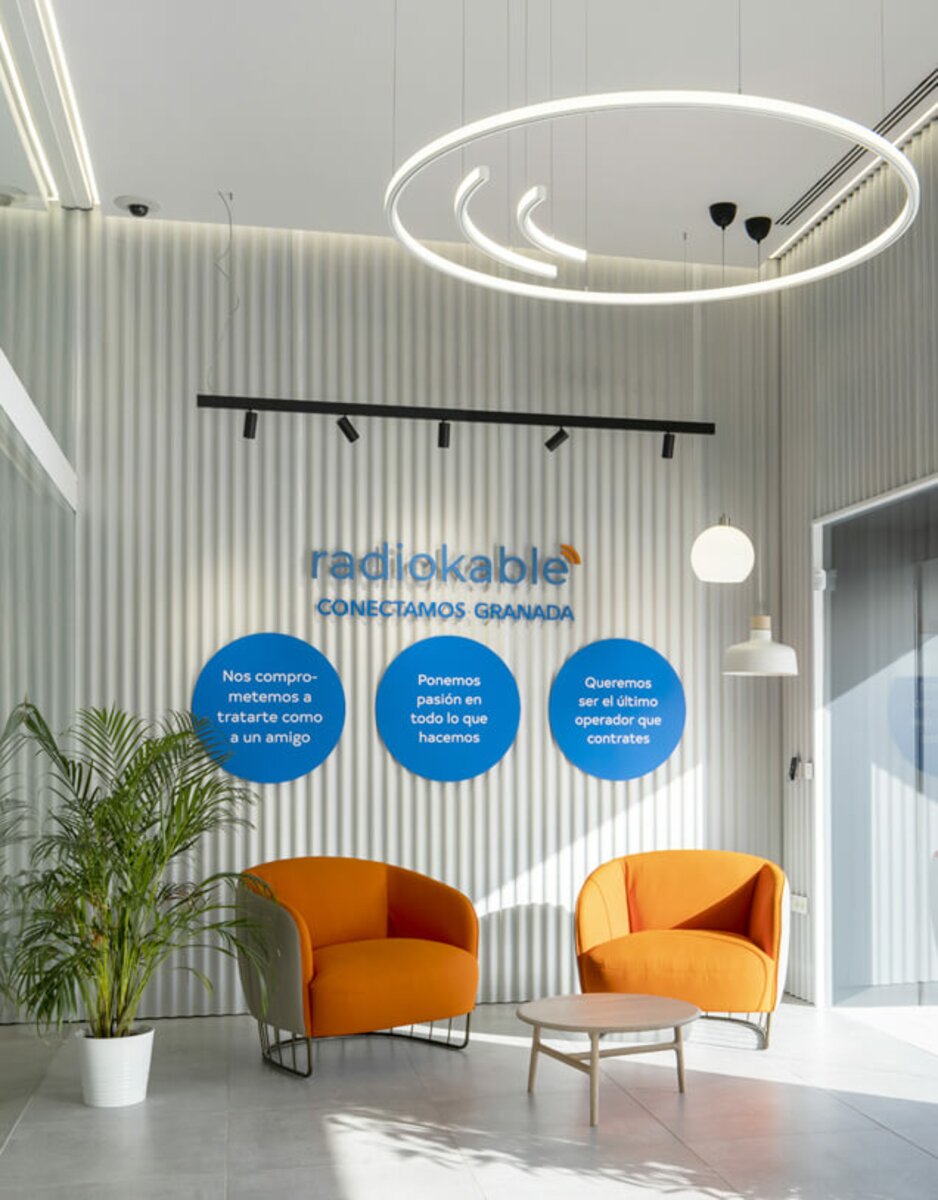

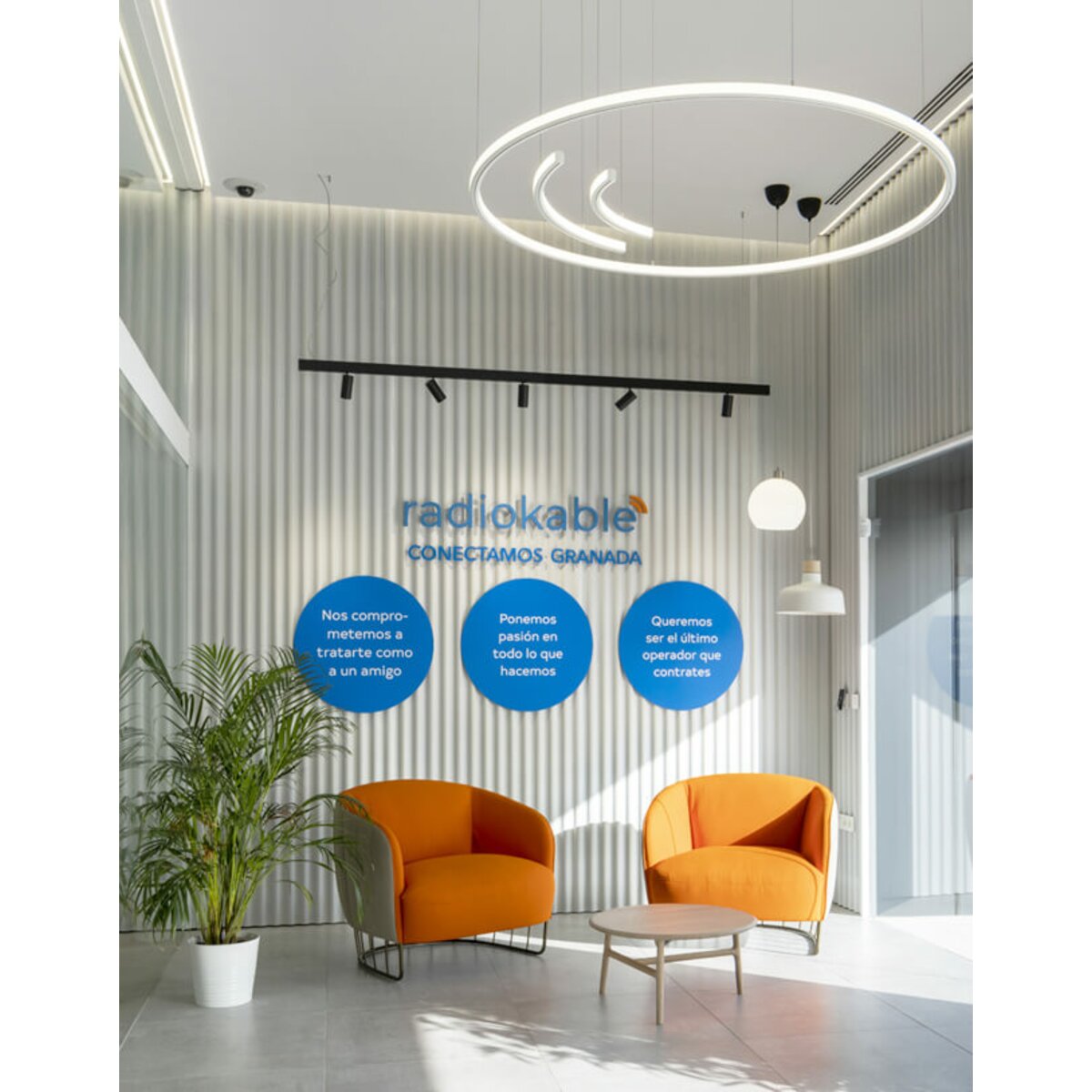

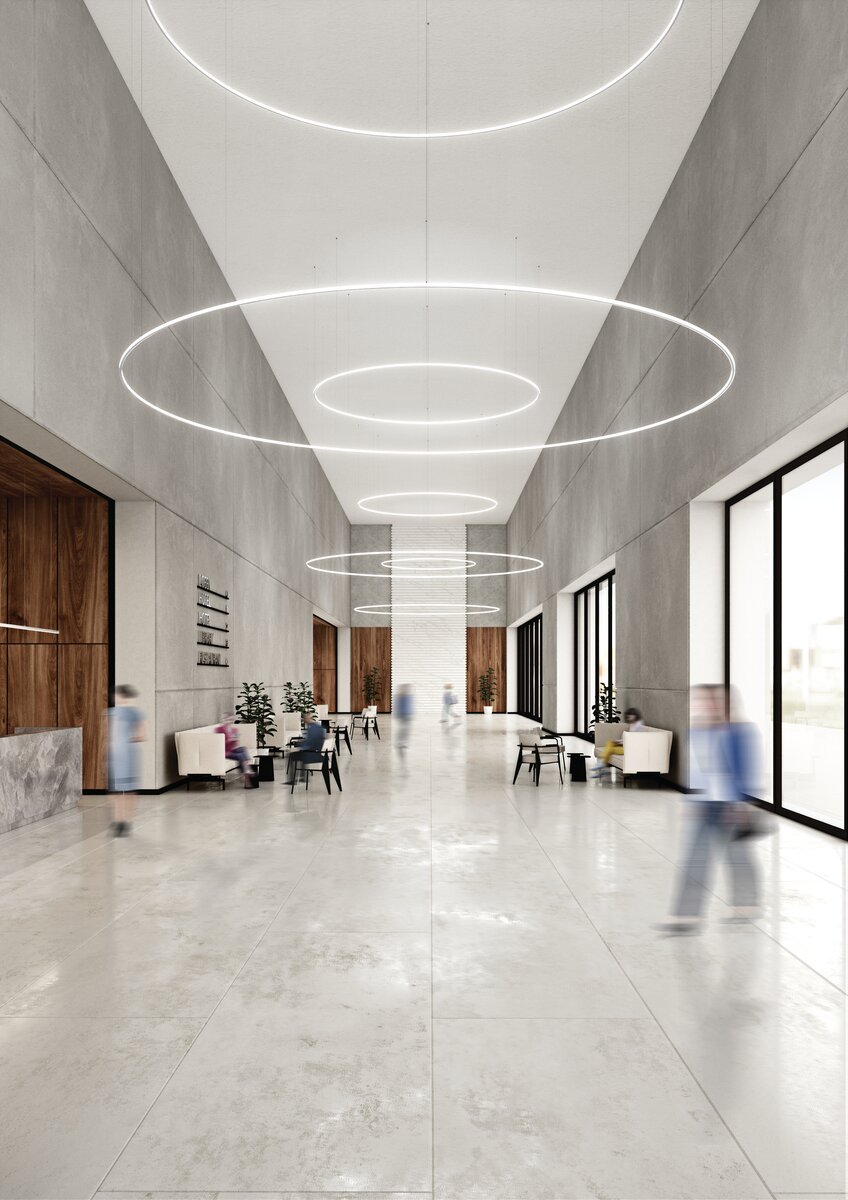

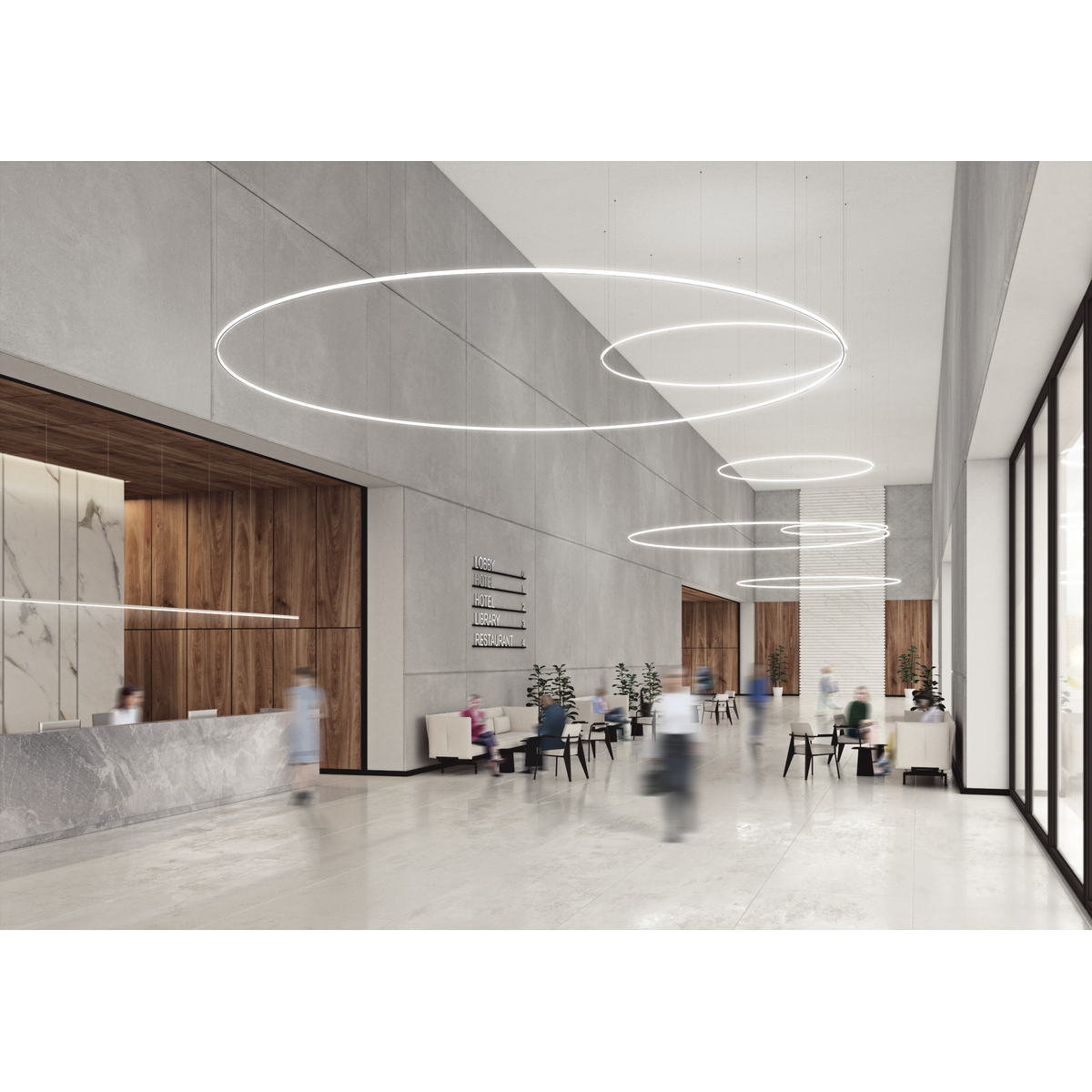

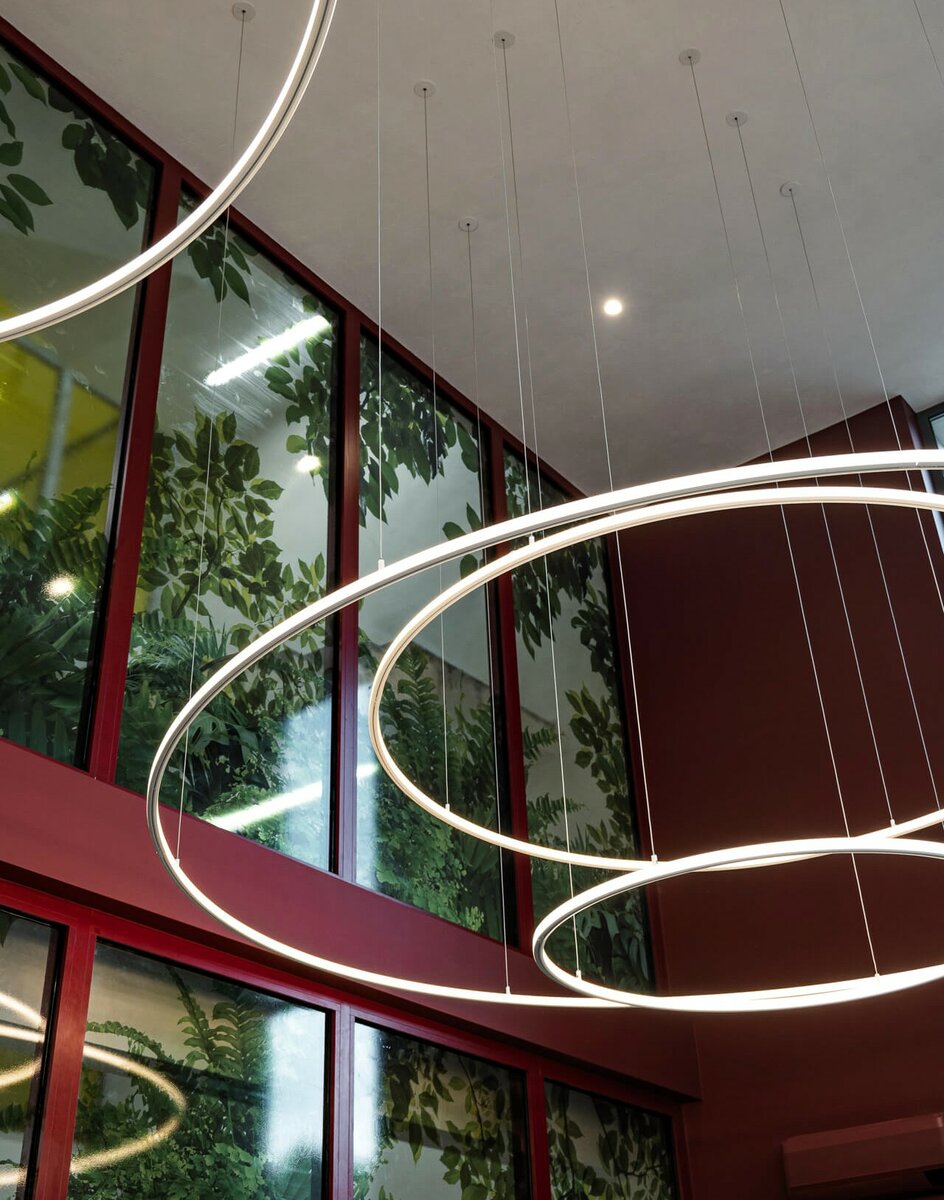

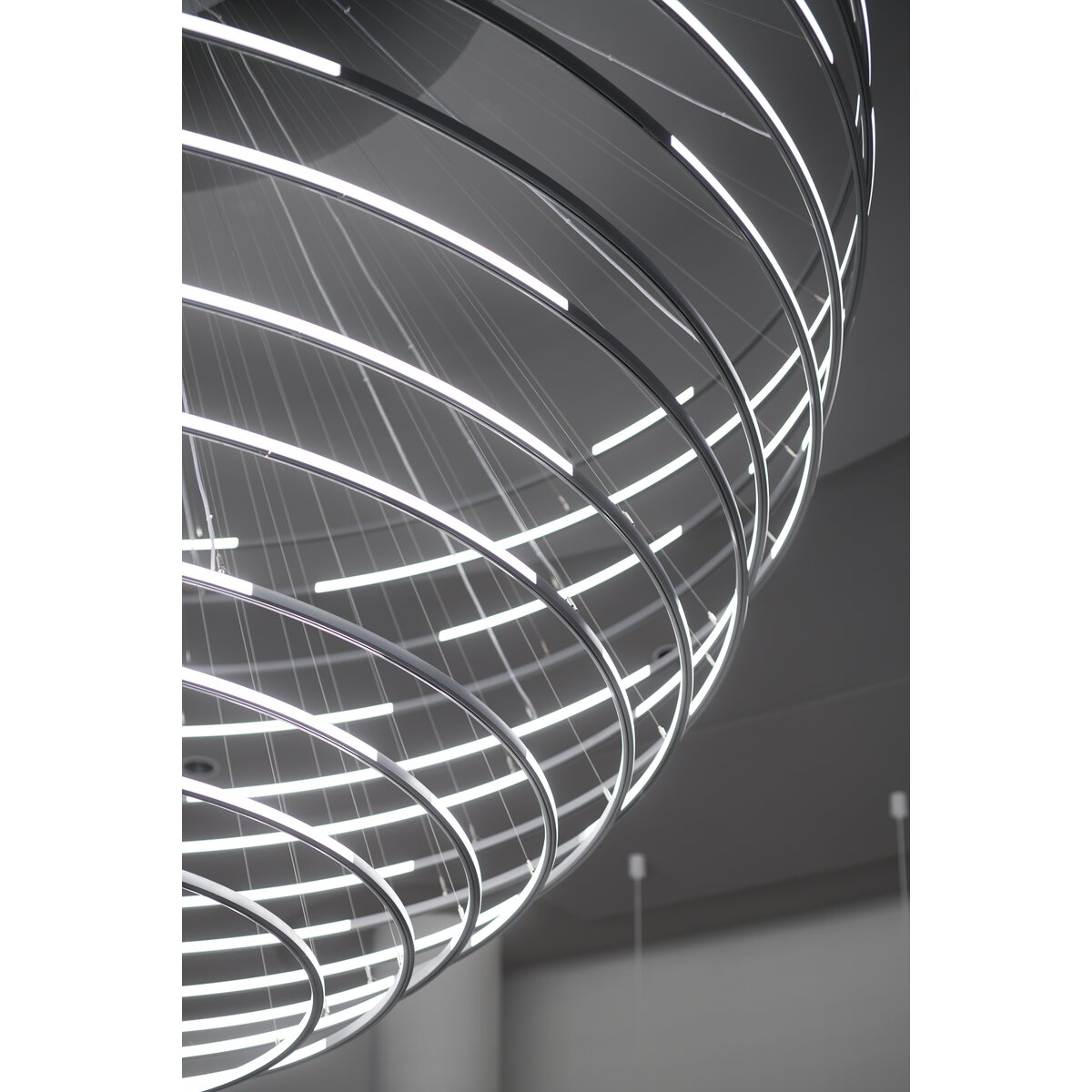

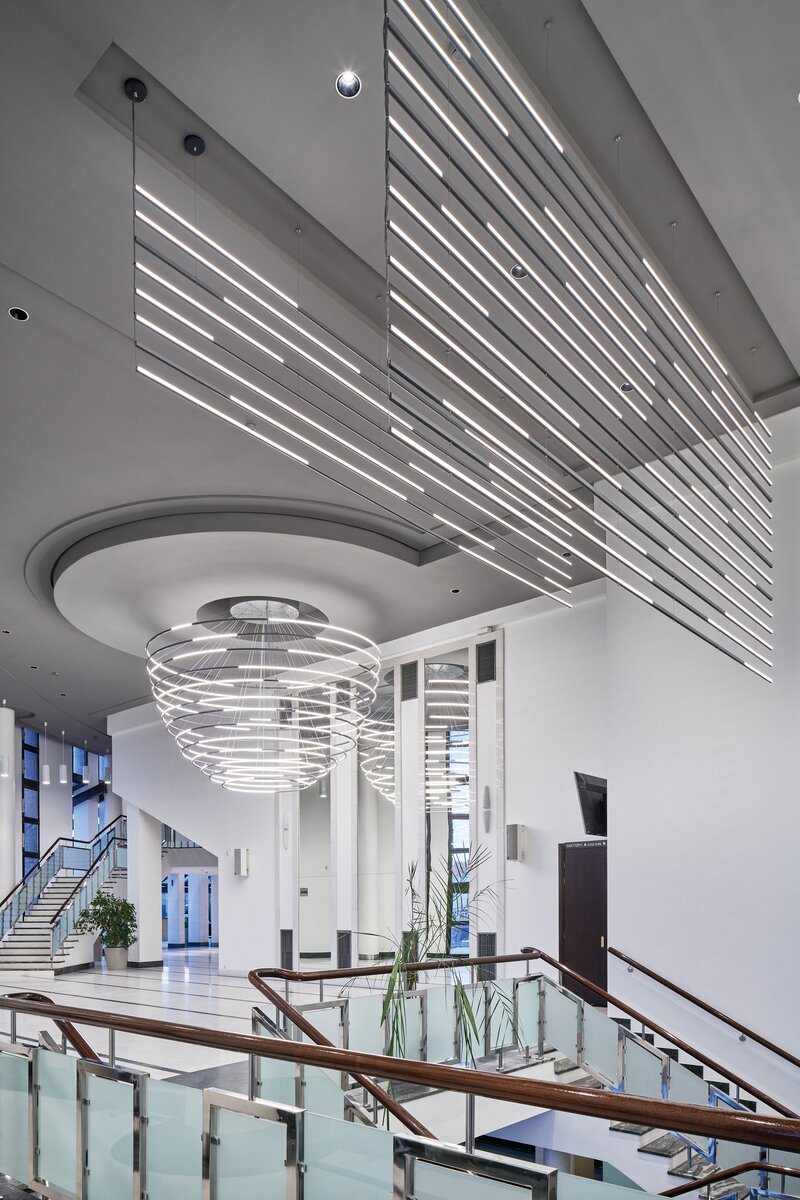

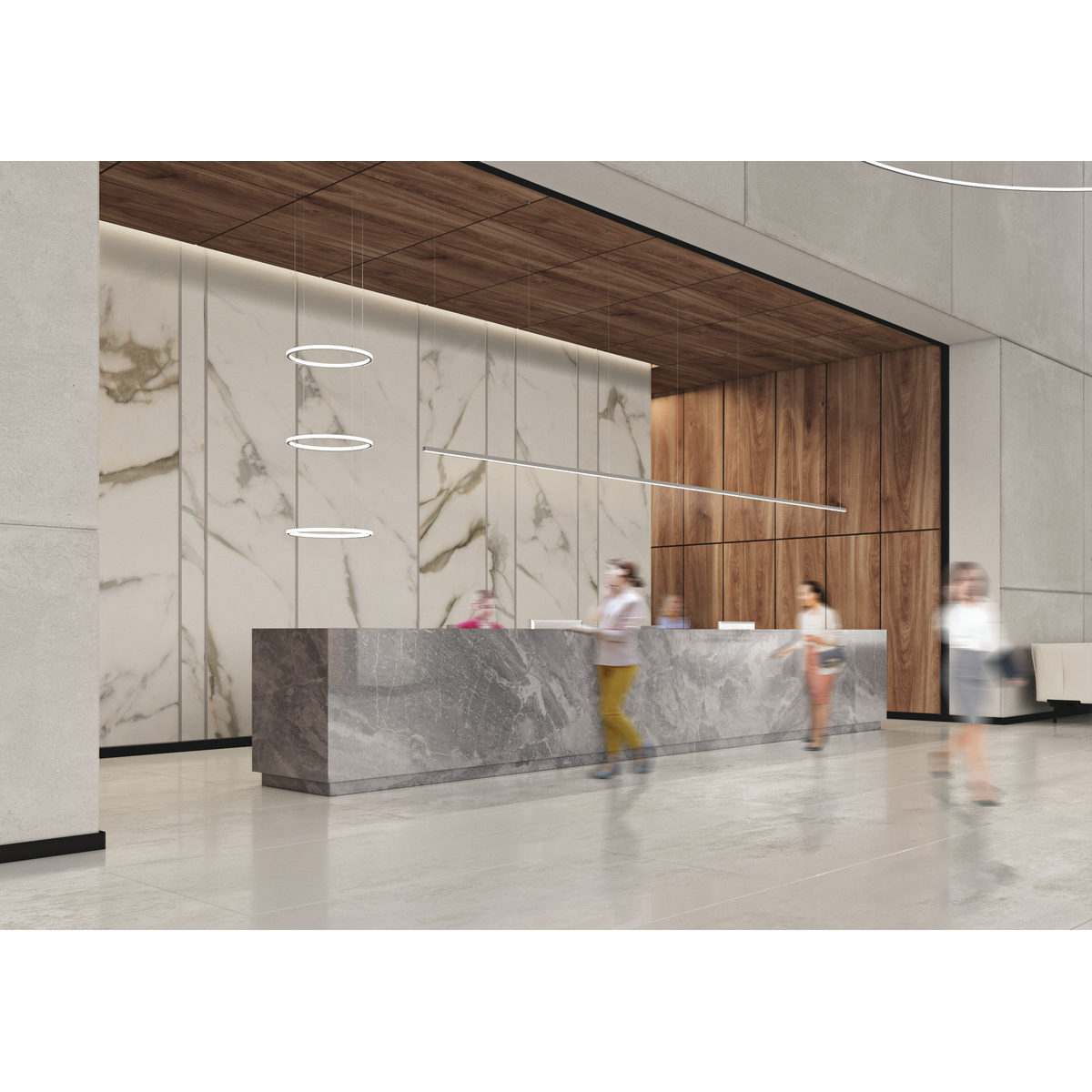

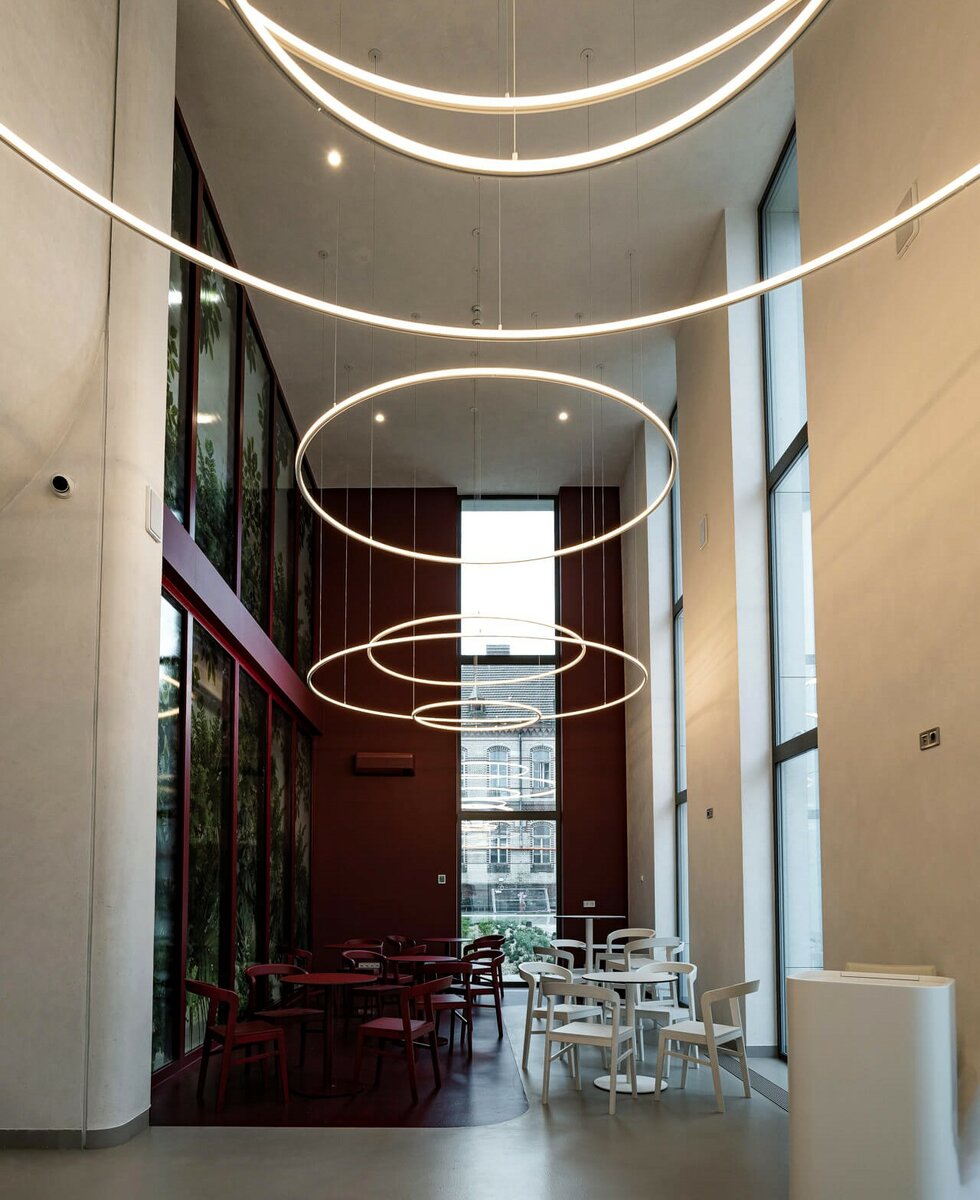

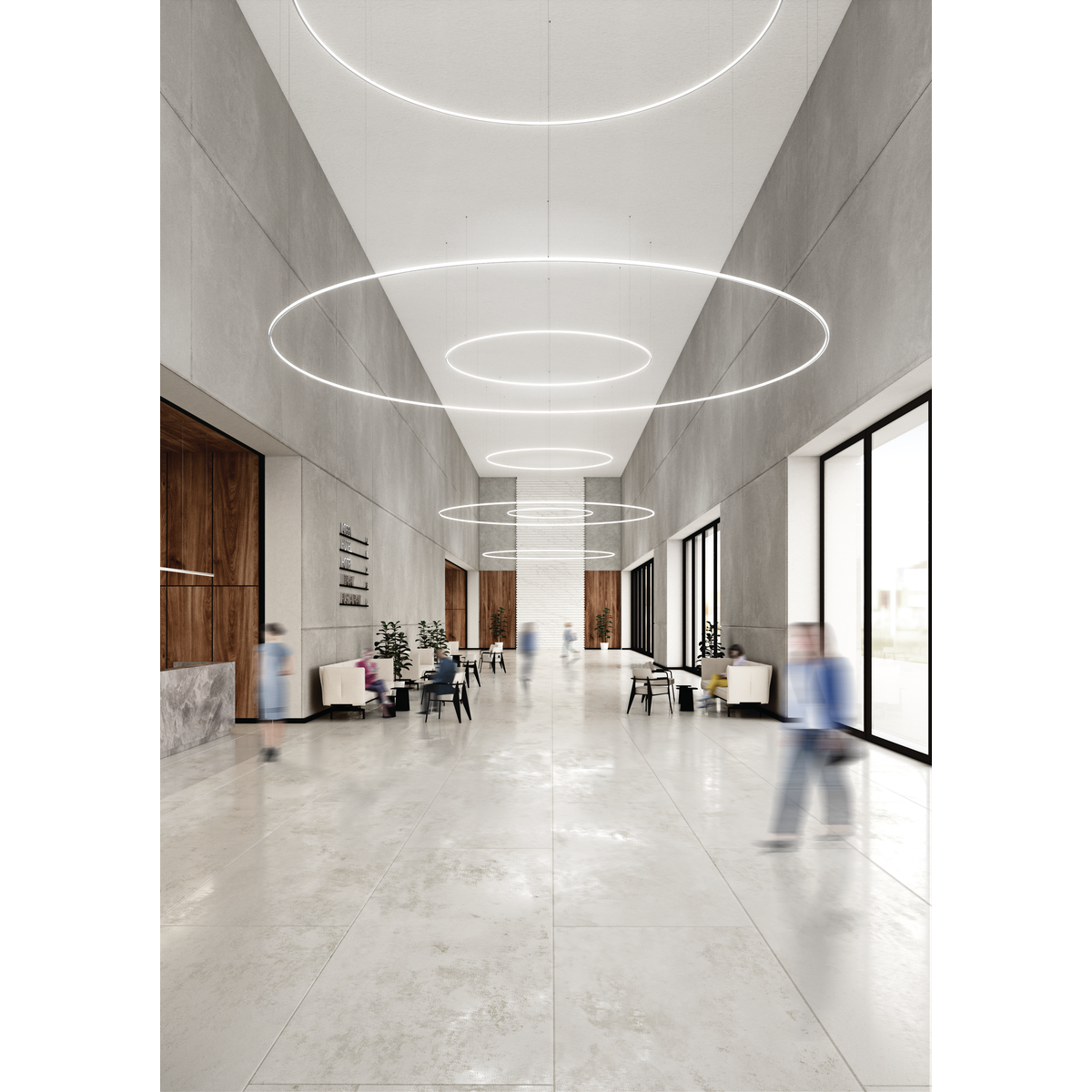

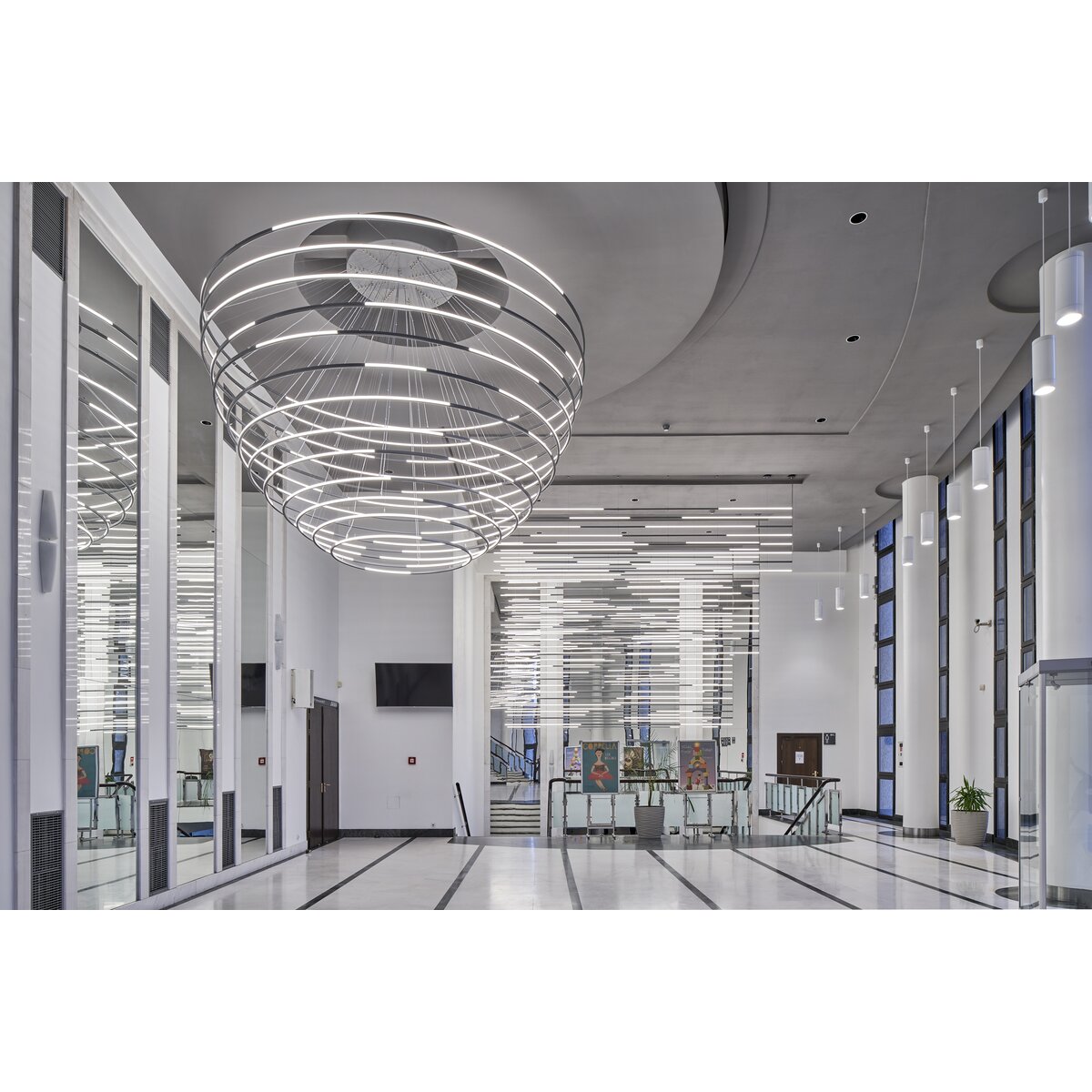

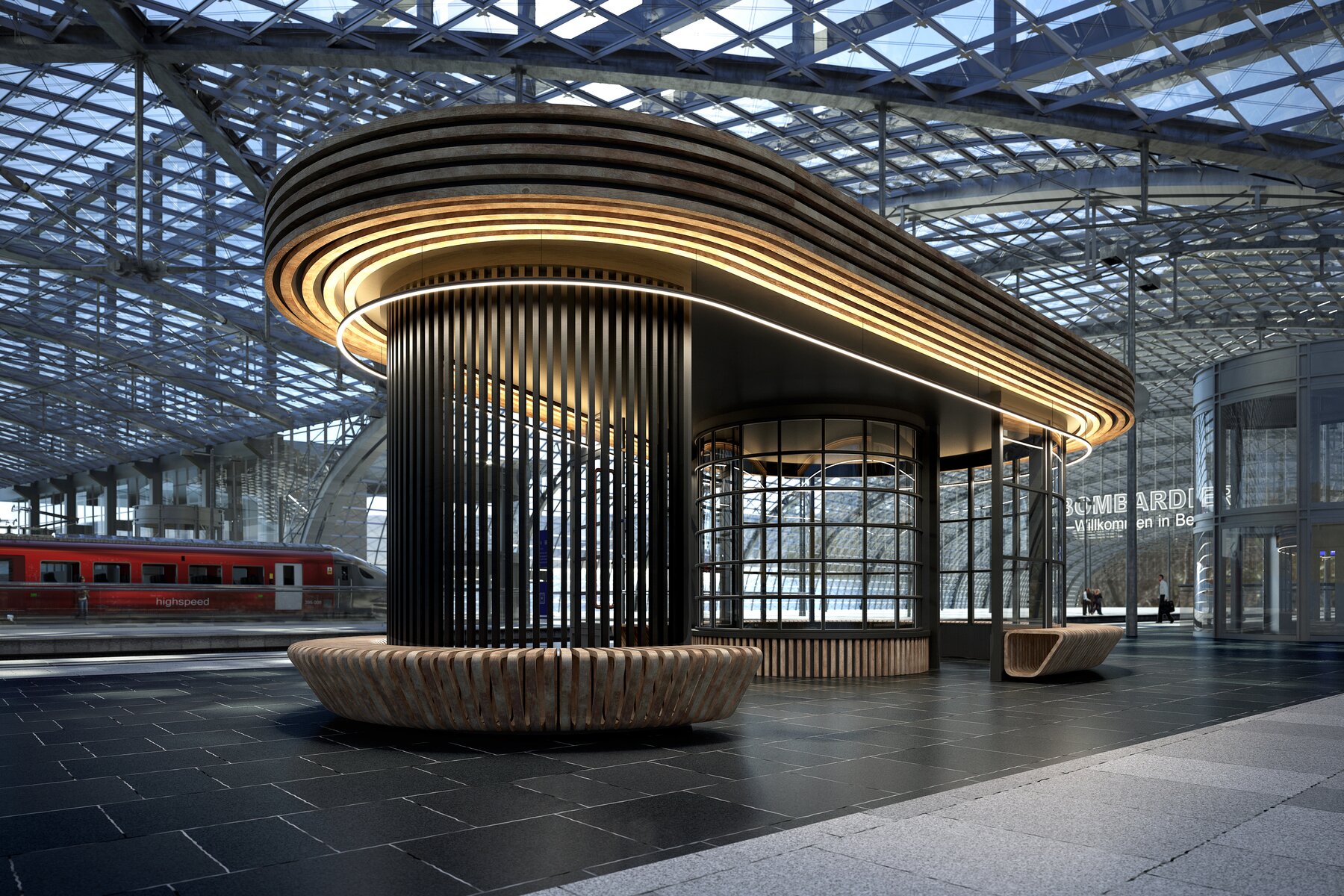

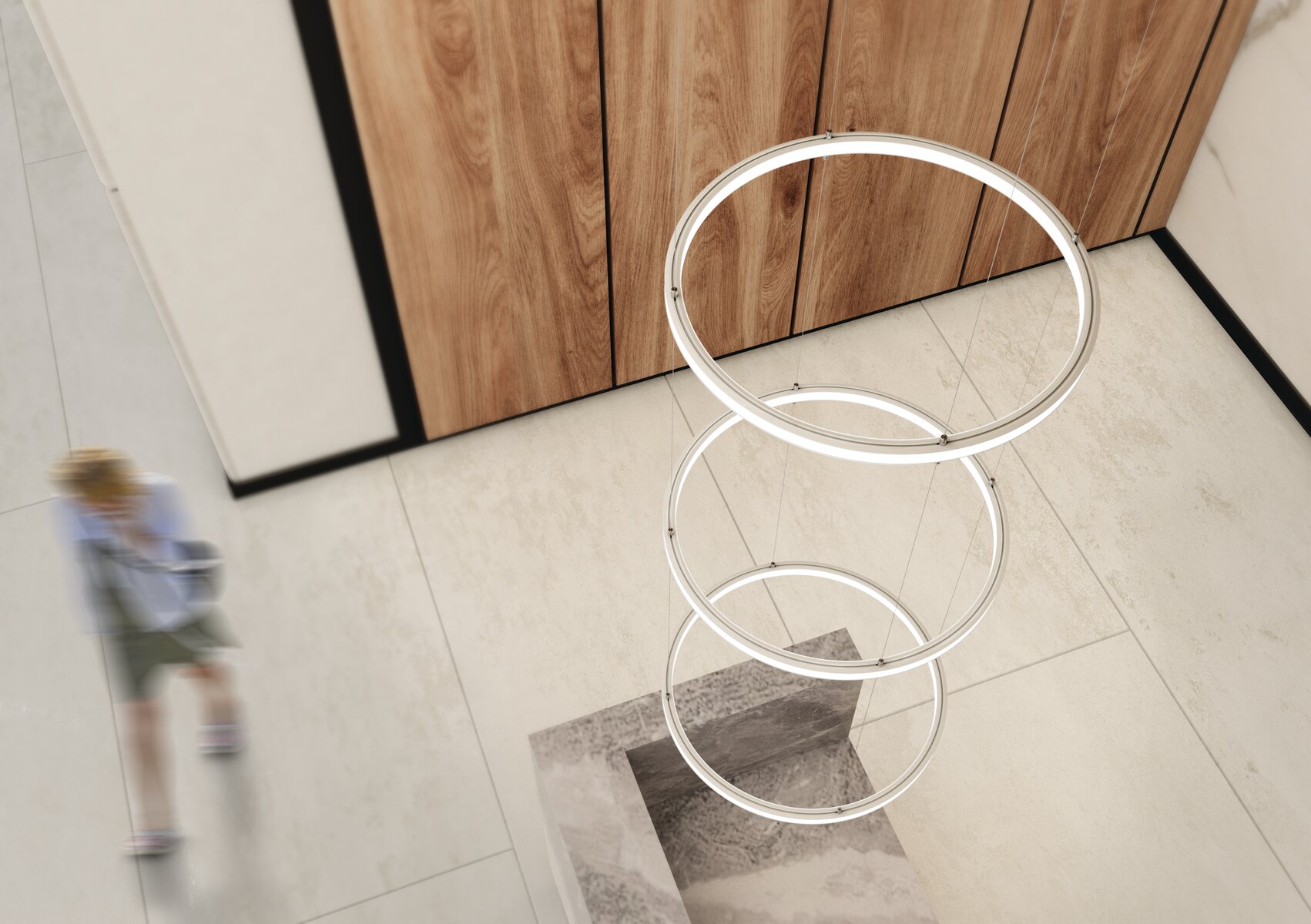

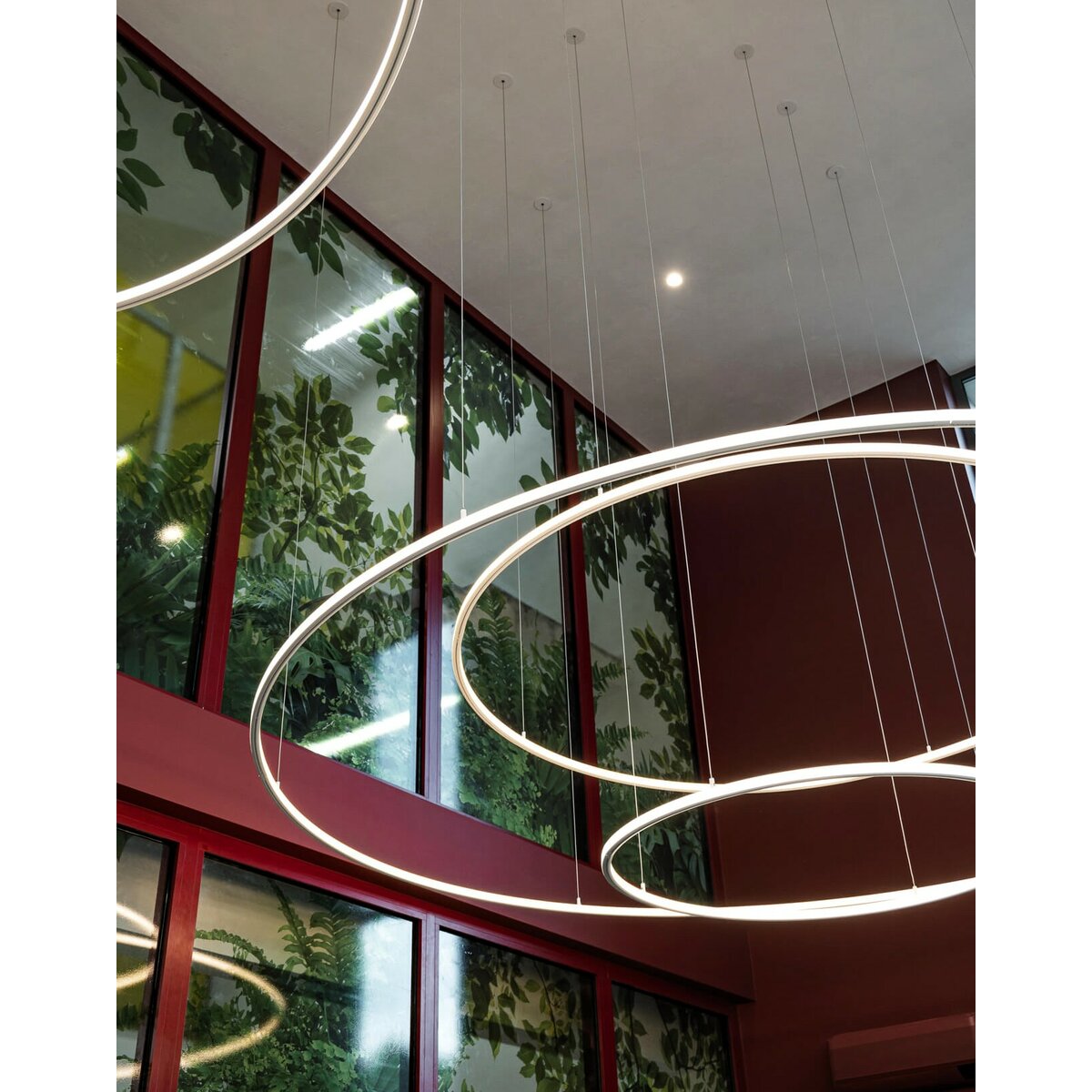

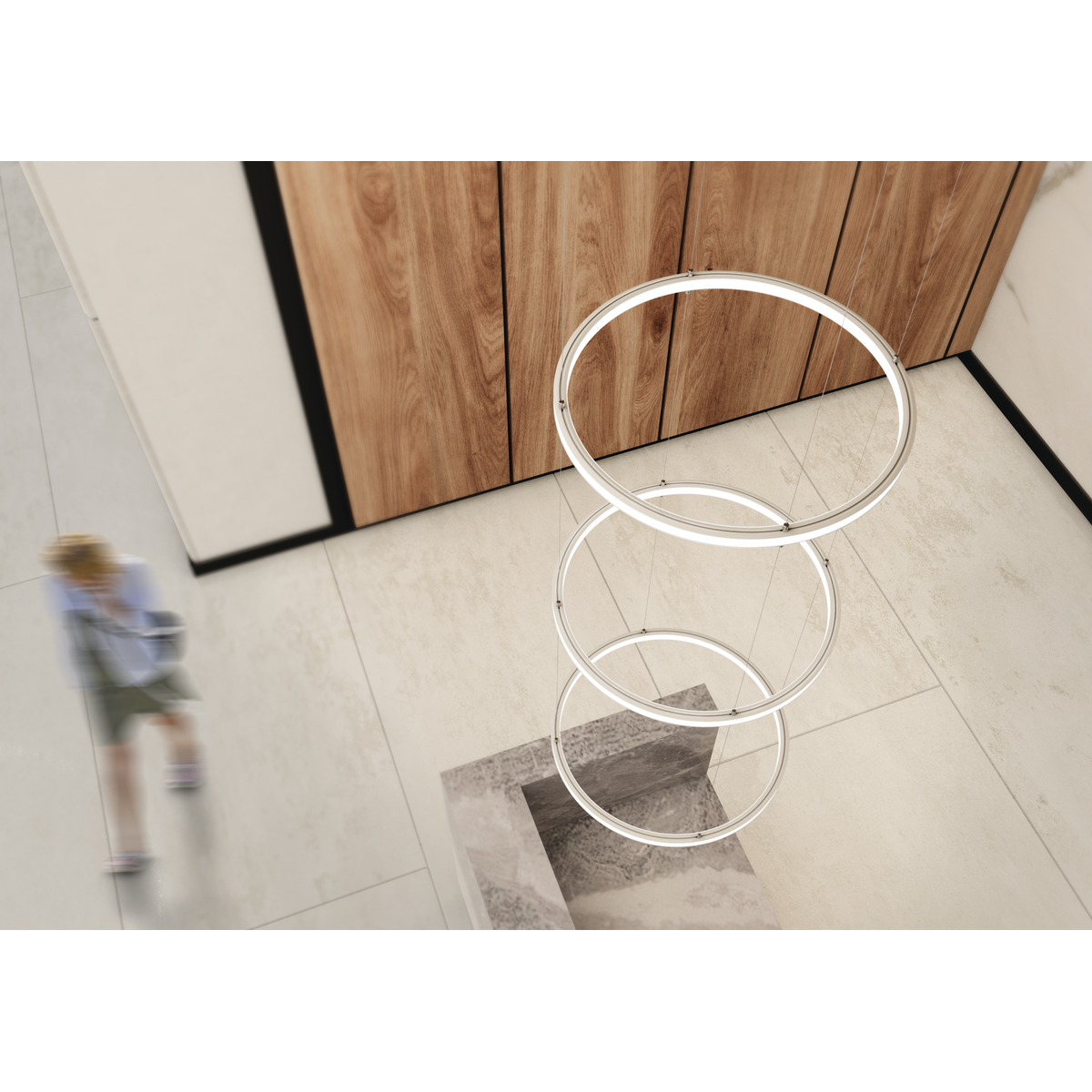

Usage examples

Description
download

Application

- decorative lighting i główne

Mounting

- suspended, using dedicated accessories

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

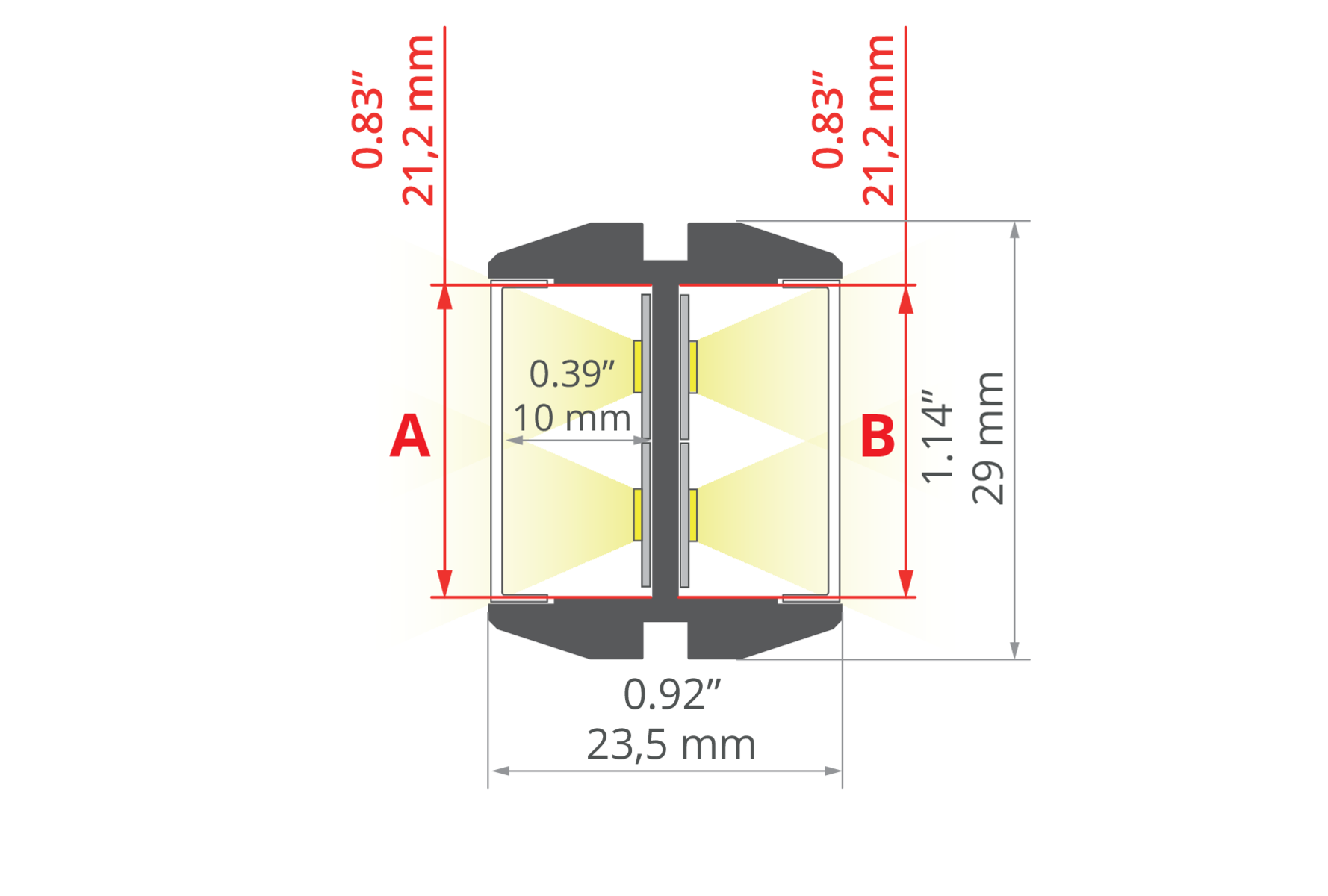

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear, polygonal, round

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

0.9" (23.5 mm)

Height

1.1" (29 mm)

LED gluing width A

0.8" (21.2 mm)

LED mounting width B [inch]

0.8" (21.2 mm)

Max. number of LED strips A (0.31" wide)

Max. number of LED strips B (0.31" wide)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Wire out back of extrusion

Yes

Possibility of twisting

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

240 mm

Outward

240 mm

Downward

1000 mm

Building type

Entertainment/ Arts, Hotel / Restaurant, Commercial, Retail

Facility zone

office, lobby / foyer, decorative, fitness / spa, media rooms / av

Color	Length	Ref No
silver anodized	78.9" (2005 mm) 118.5" (3010 mm)	A02162A_2 A02162A_3
white lacquered	78.9" (2005 mm)	A02162L10OD_2
black anodized	78.9" (2005 mm) 118.5" (3010 mm)	A02162A07_2 A02162A07_3

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	LIGER-22 Cover satin	HS-22 Cover frosted	G-22S Cover satin	G-22R Cover satin
High Efficacy	K-HEHD-0480-24	(2)	(2)	(1)	(1)
	K-HEHD-0960-24	(2)	(2)	(1)	(1)
	K-HEHD-1440-24	(2)	(2)	(1)	(1)
	K-HEHD-1920-24	(2)	(2)	(1)	(1)
	K-HEHD-0320-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1820-24	(2)	(2)	(1)	(1)
CRI 95+	K-CRHD-1910-24	(2)	(2)	(1)	(1)
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24	(2)	(2)	(1)	(1)
Single diode cuttable	K-SD-1440-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	K-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)
Adjustable White / Dim to Warm	KWP-SDCR-22T50-1530-24	(2)	(2)	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
