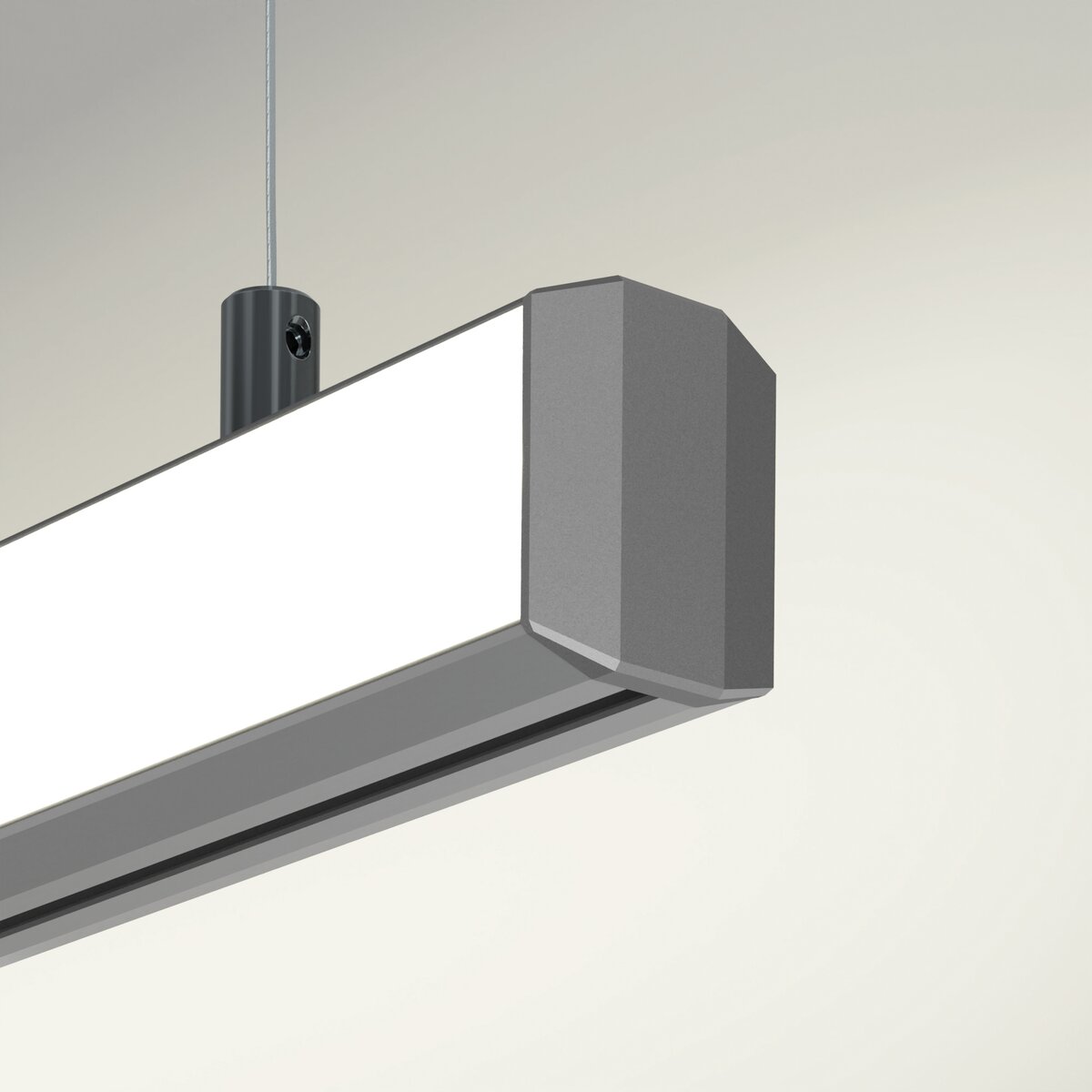

GIZA-DUO-LL Extrusion

Ref No: A02162
GIZA-DUO-LL Extrusion
GIZA-DUO-LL Extrusion
GIZA-DUO-LL Extrusion
GIZA-DUO-LL Extrusion
GIZA-DUO-LL Extrusion
GIZA-DUO-LL Extrusion
  • Ease of creating geometric figures
  • Up/down lighting
  • Small bending radius
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.

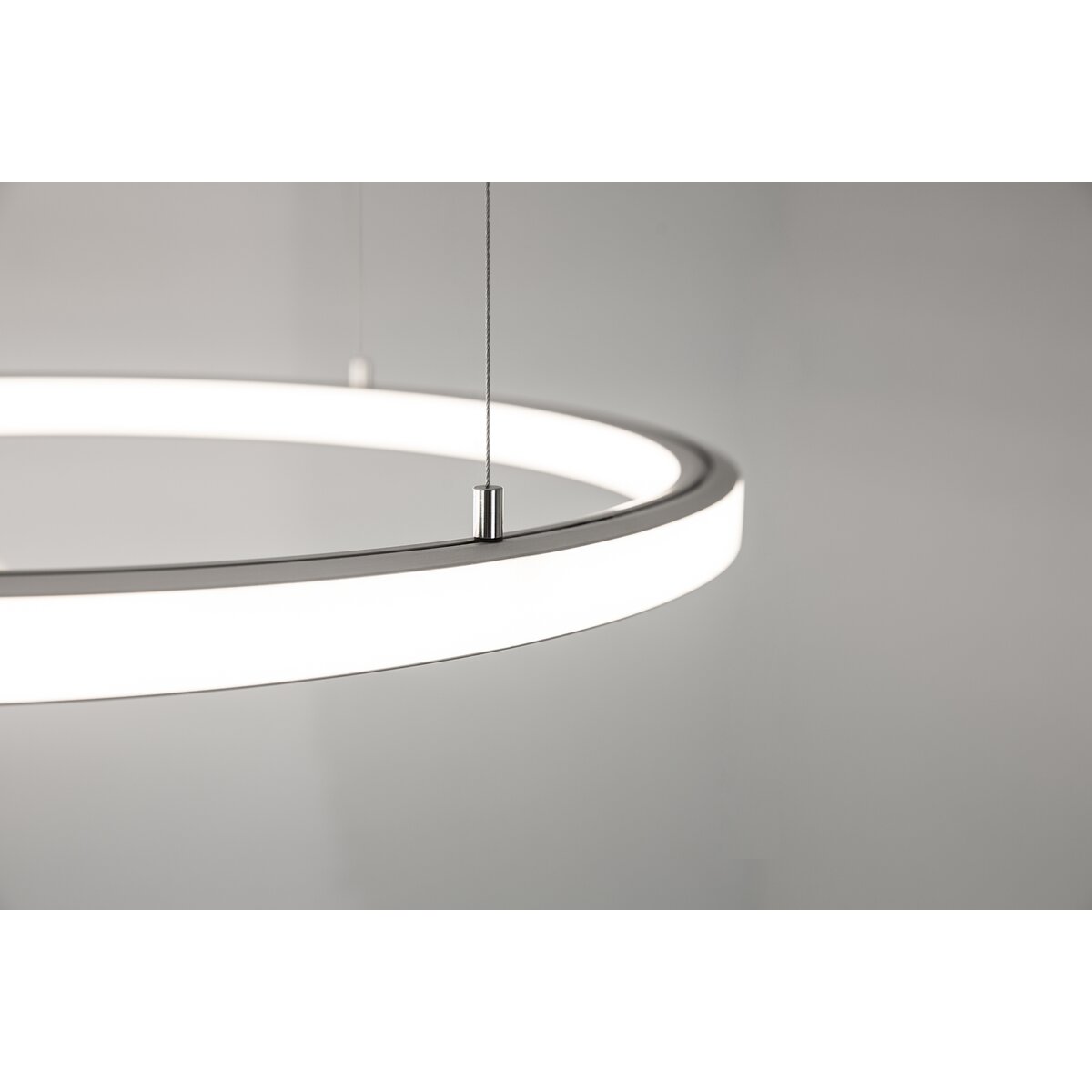

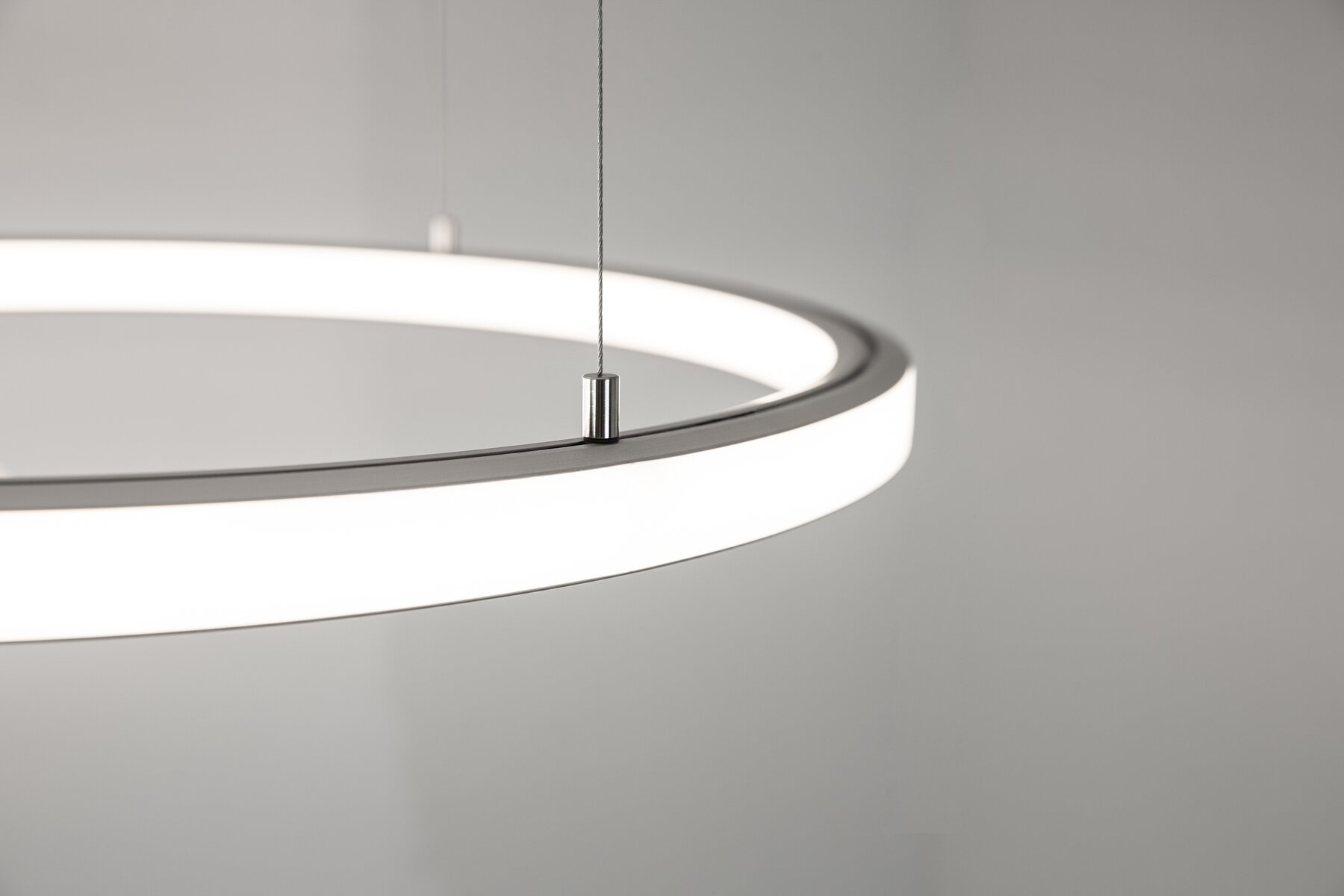

Suspended
Two directional lighting for suspended fixtures
Possibility of twisting
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
Color
silver white black
  • Ease of creating geometric figures
  • Up/down lighting
  • Small bending radius
  • Possibility to use current modules with efficiency up to 190lm/W and CRI>90. Available upon request.
Application
  • - decorative lighting i główne
Mounting
  • - suspended, using dedicated accessories
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

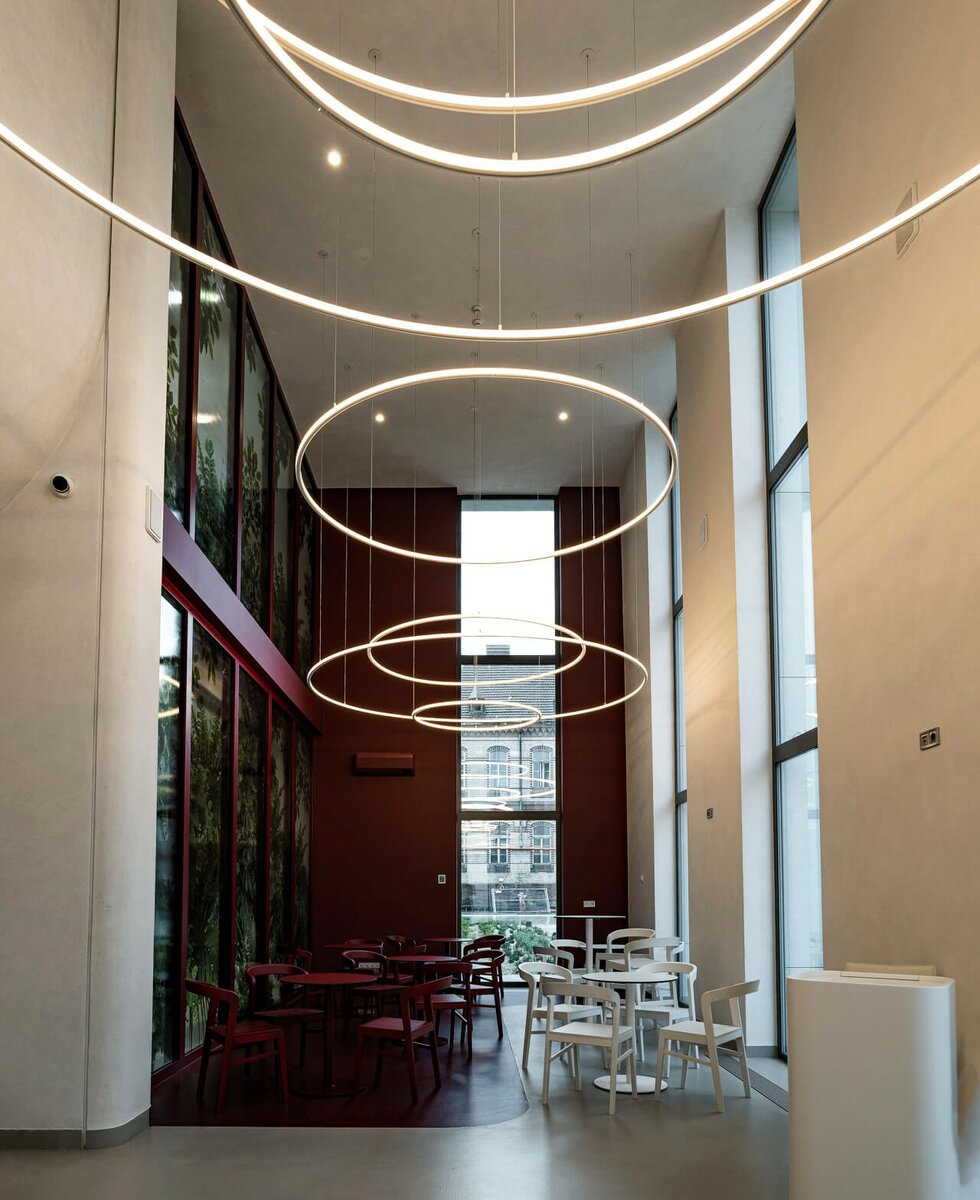

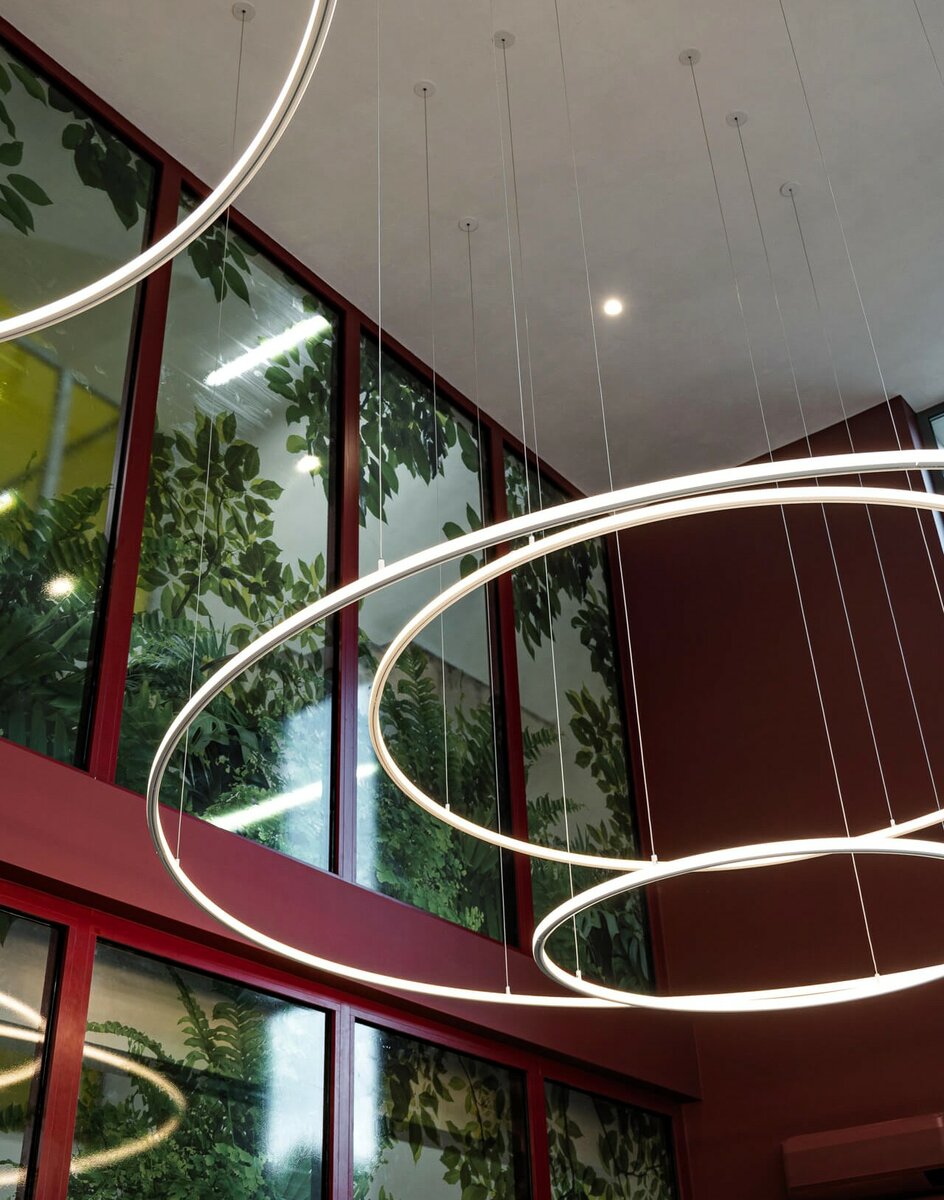

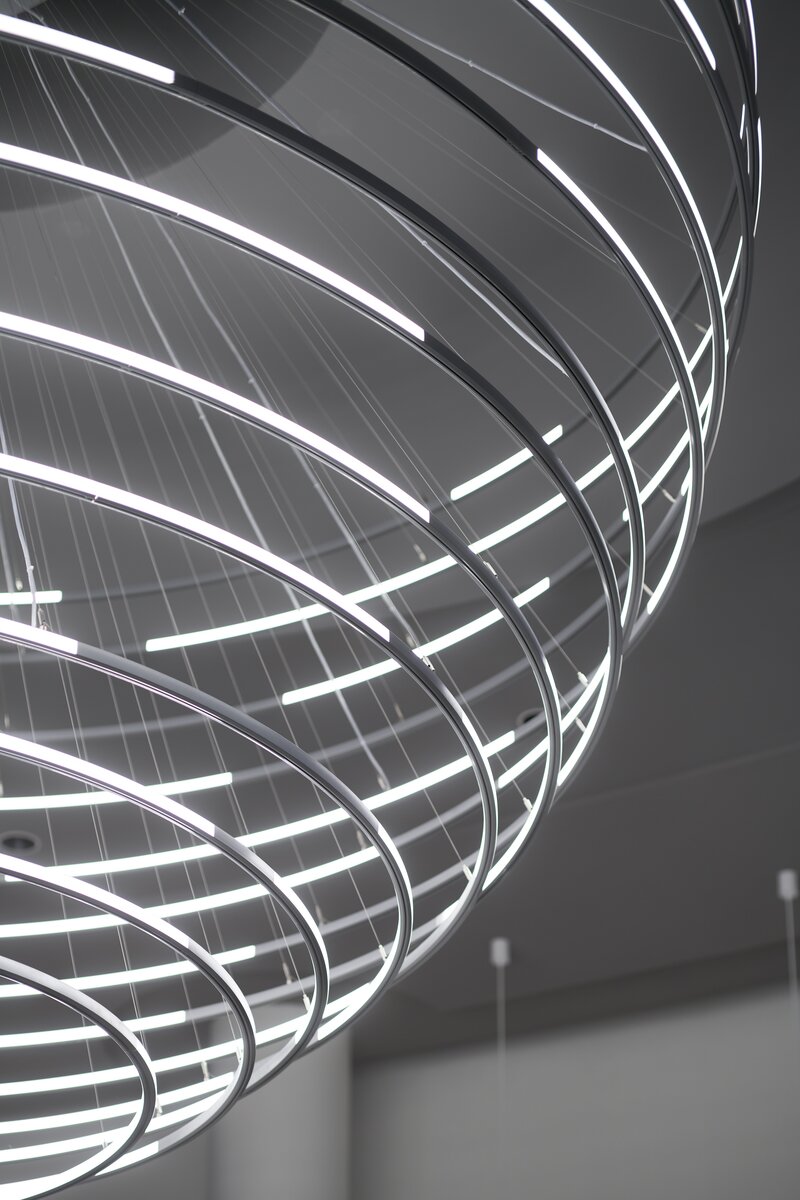

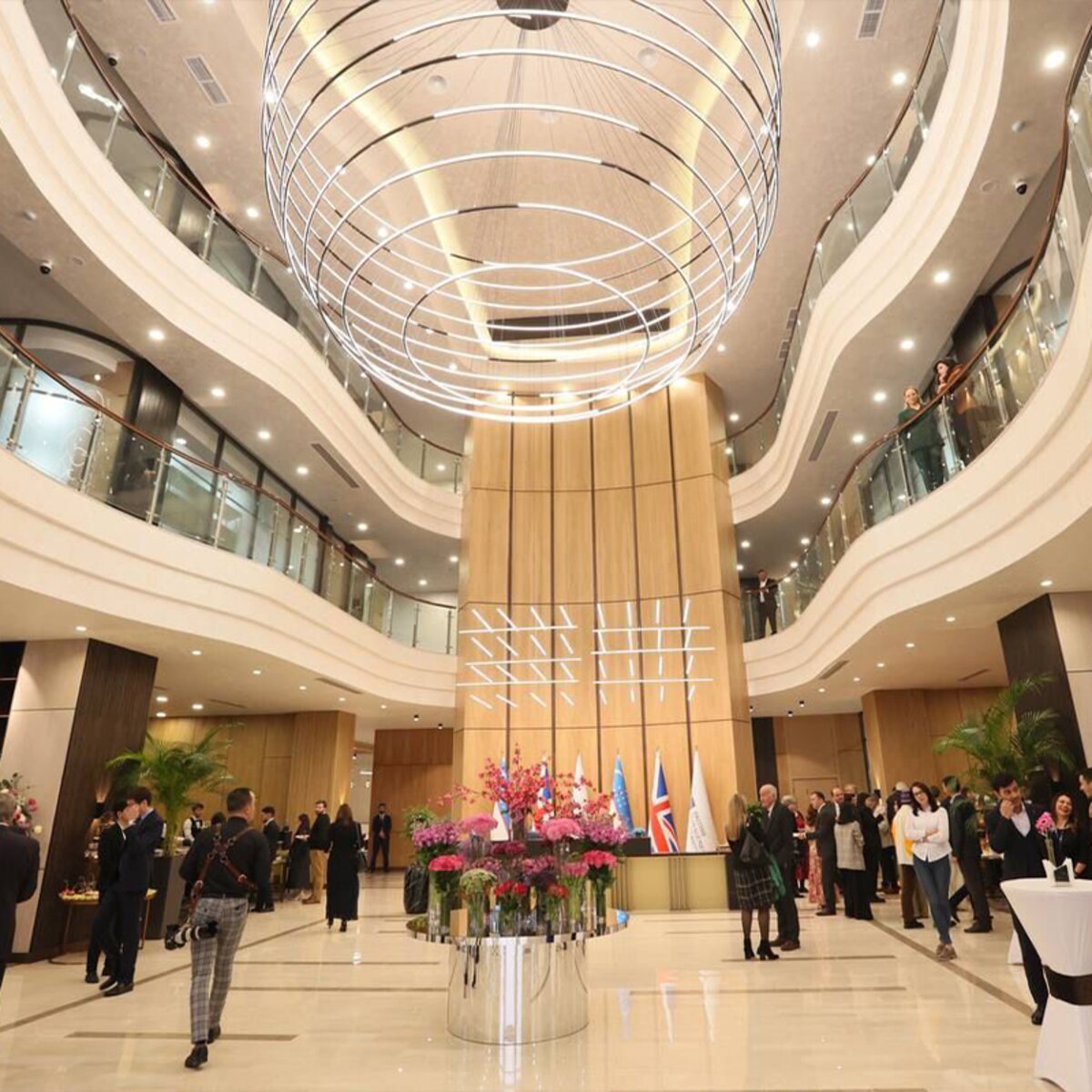

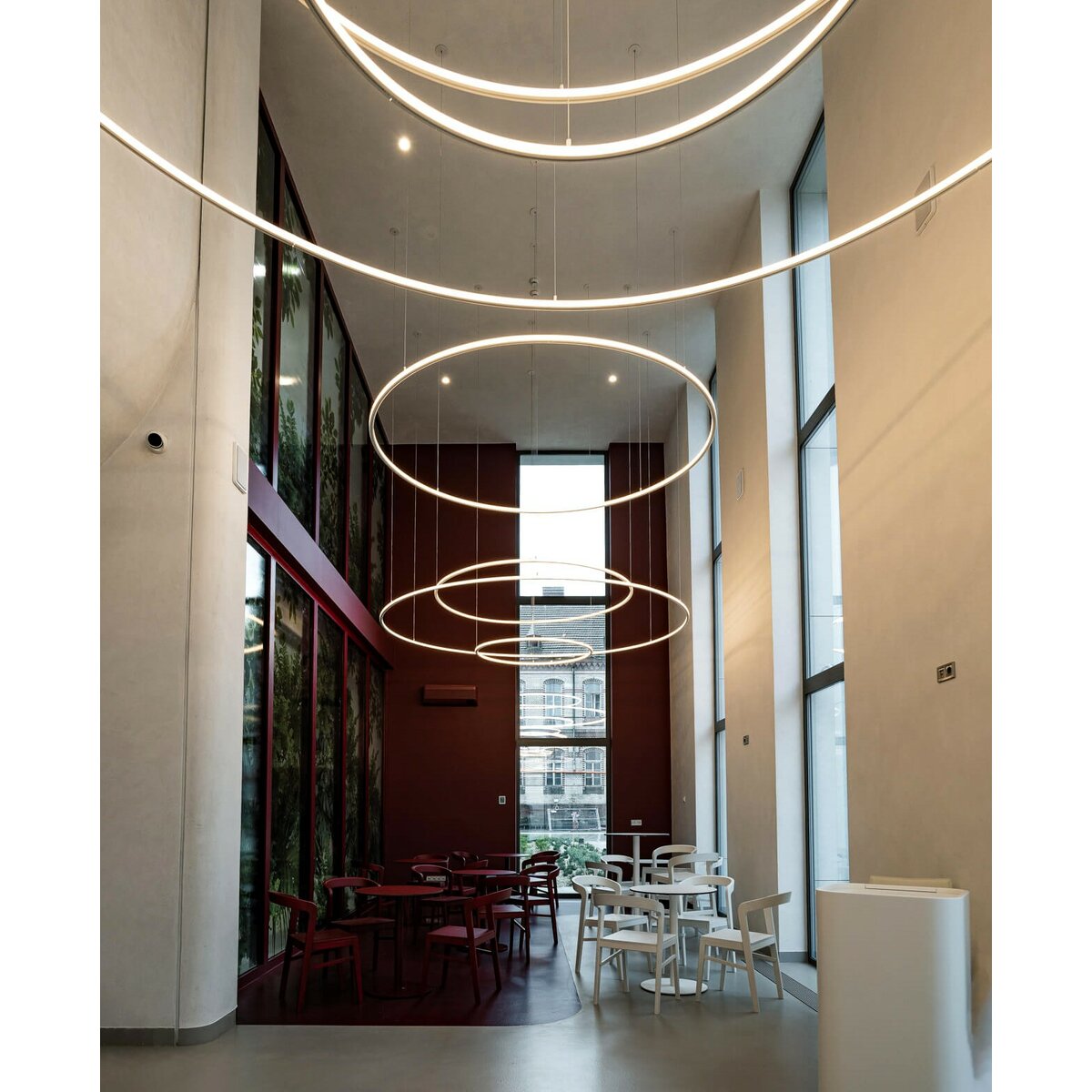

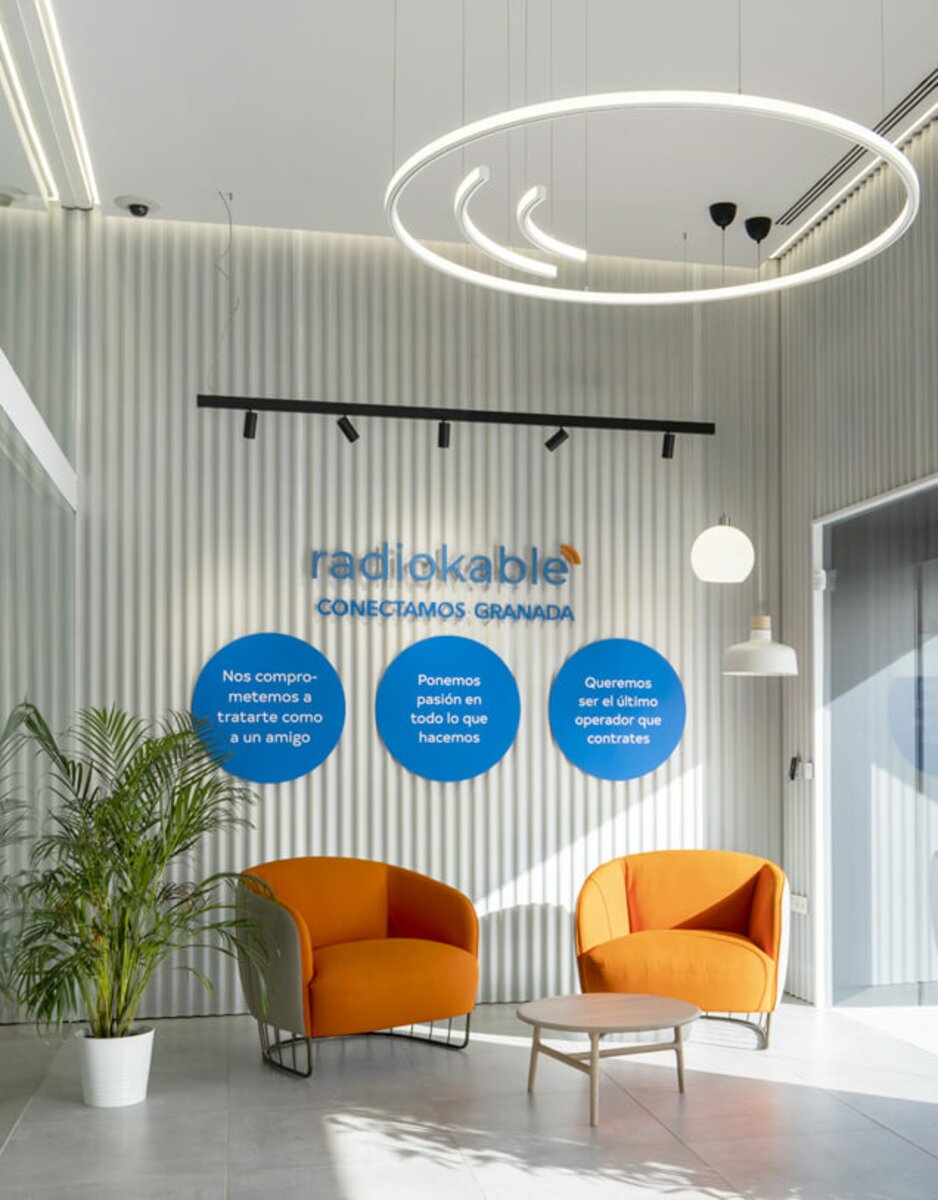

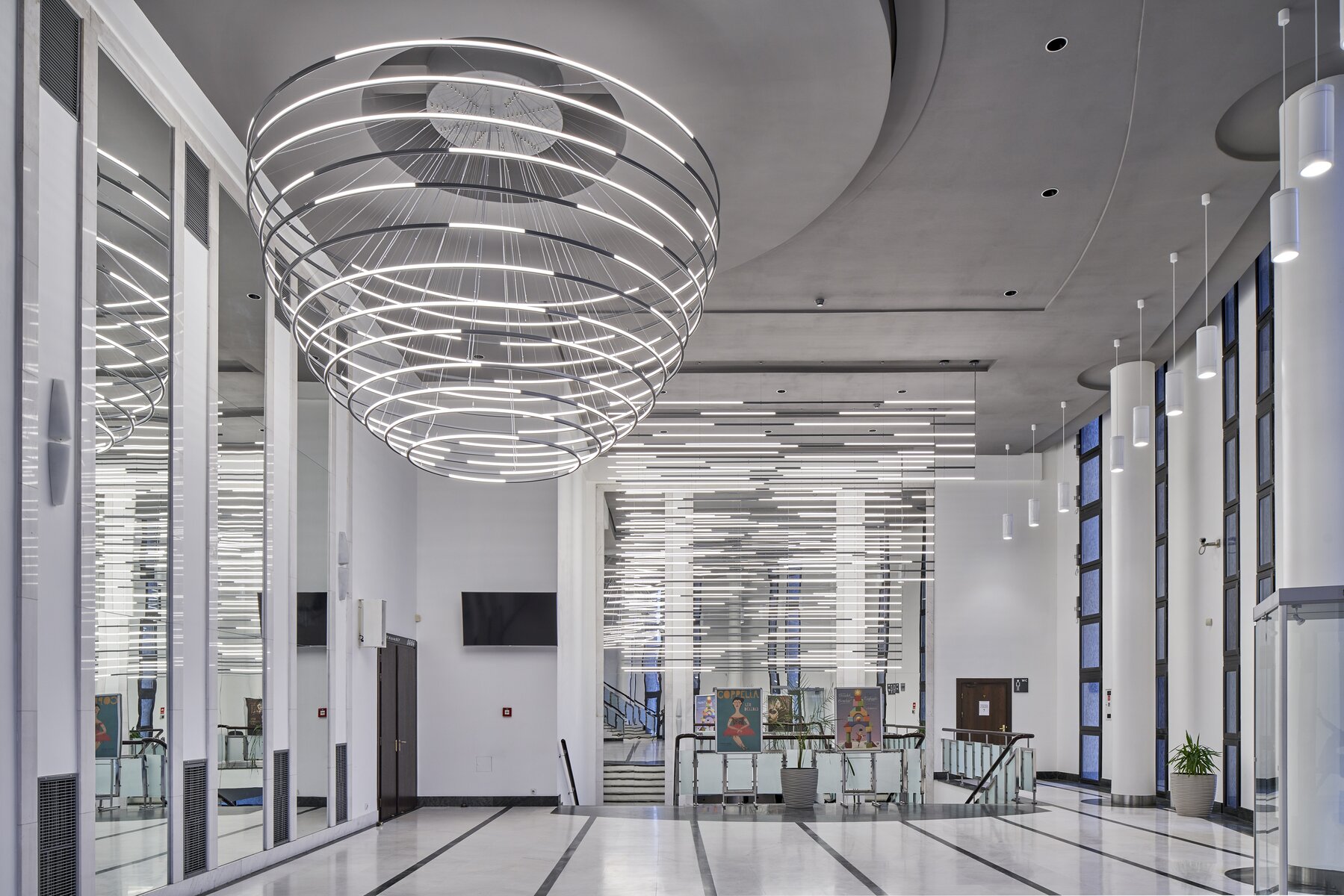

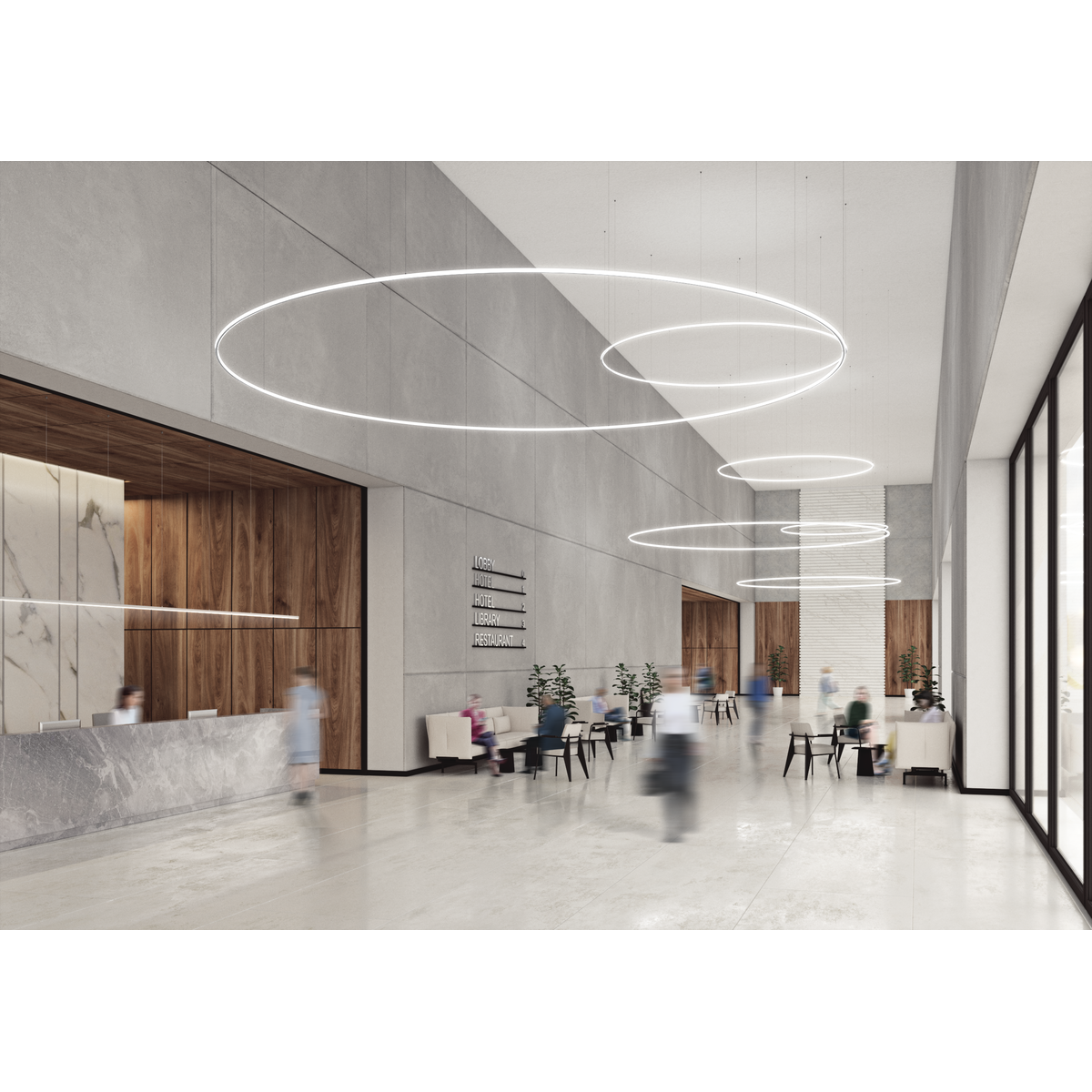

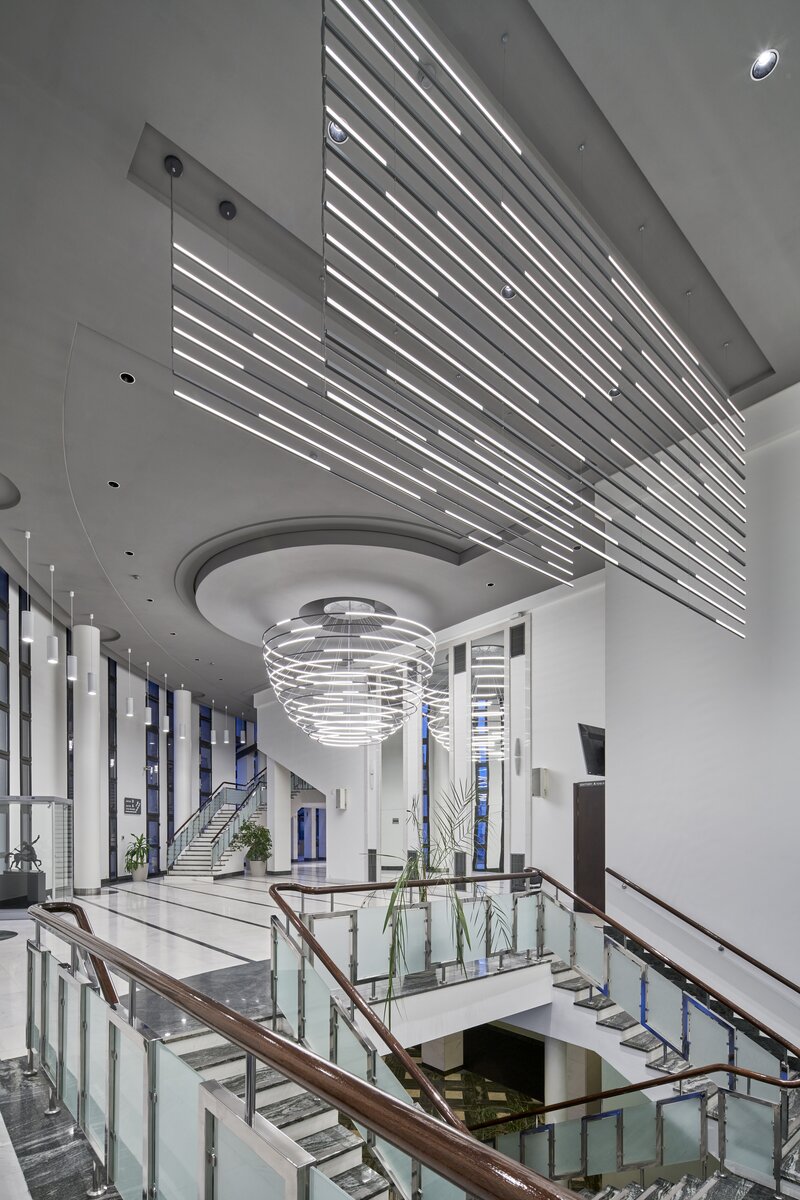

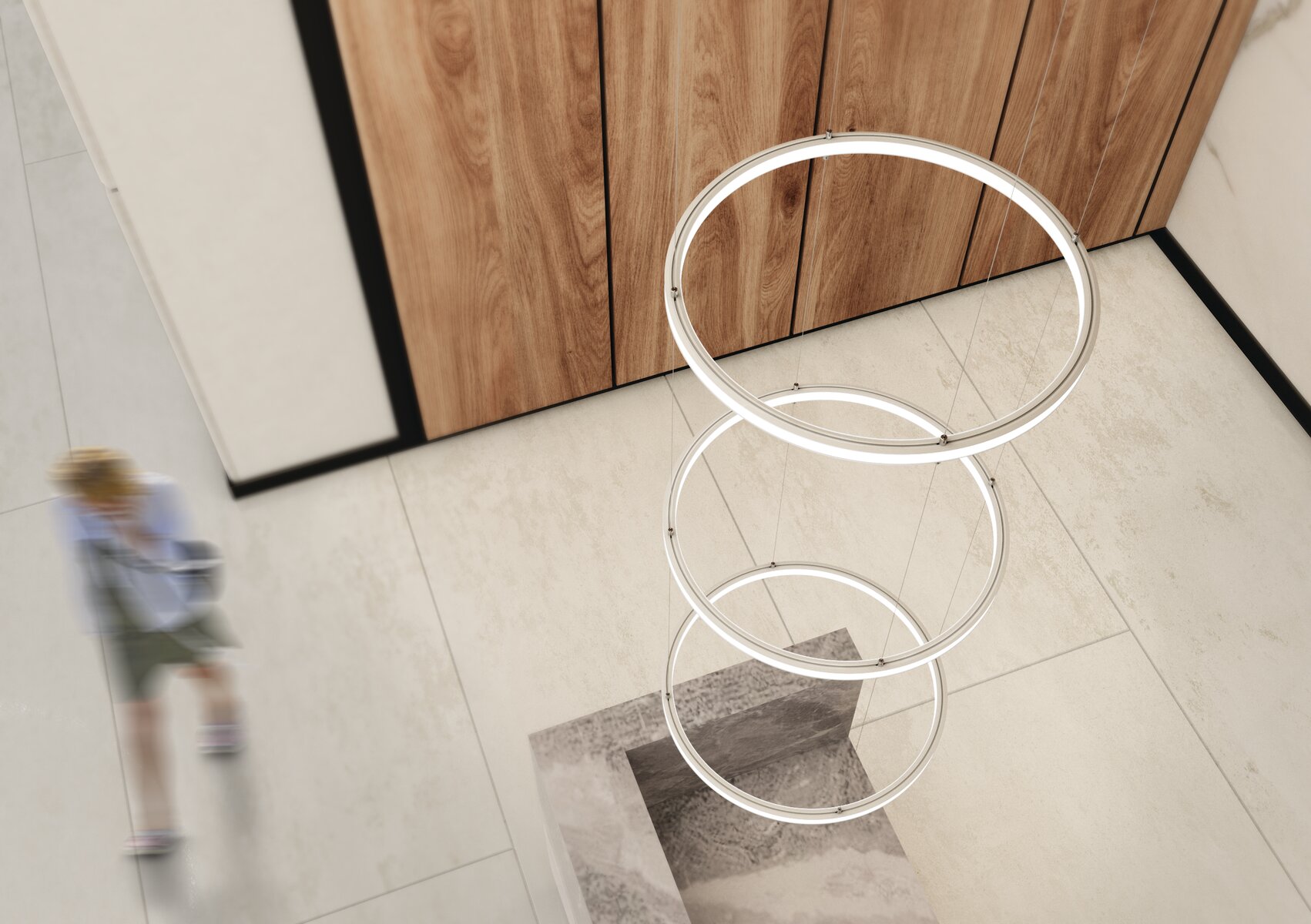

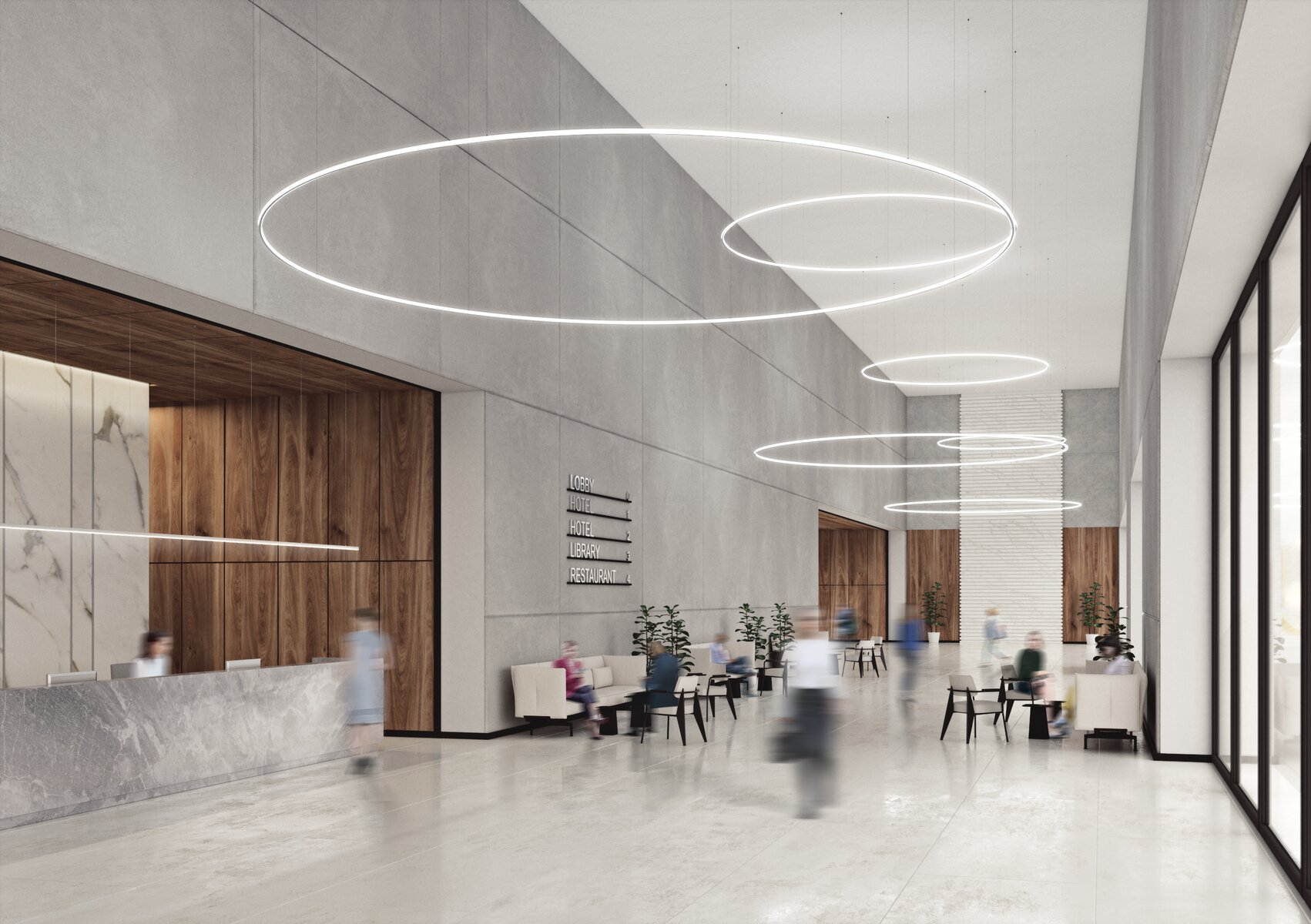

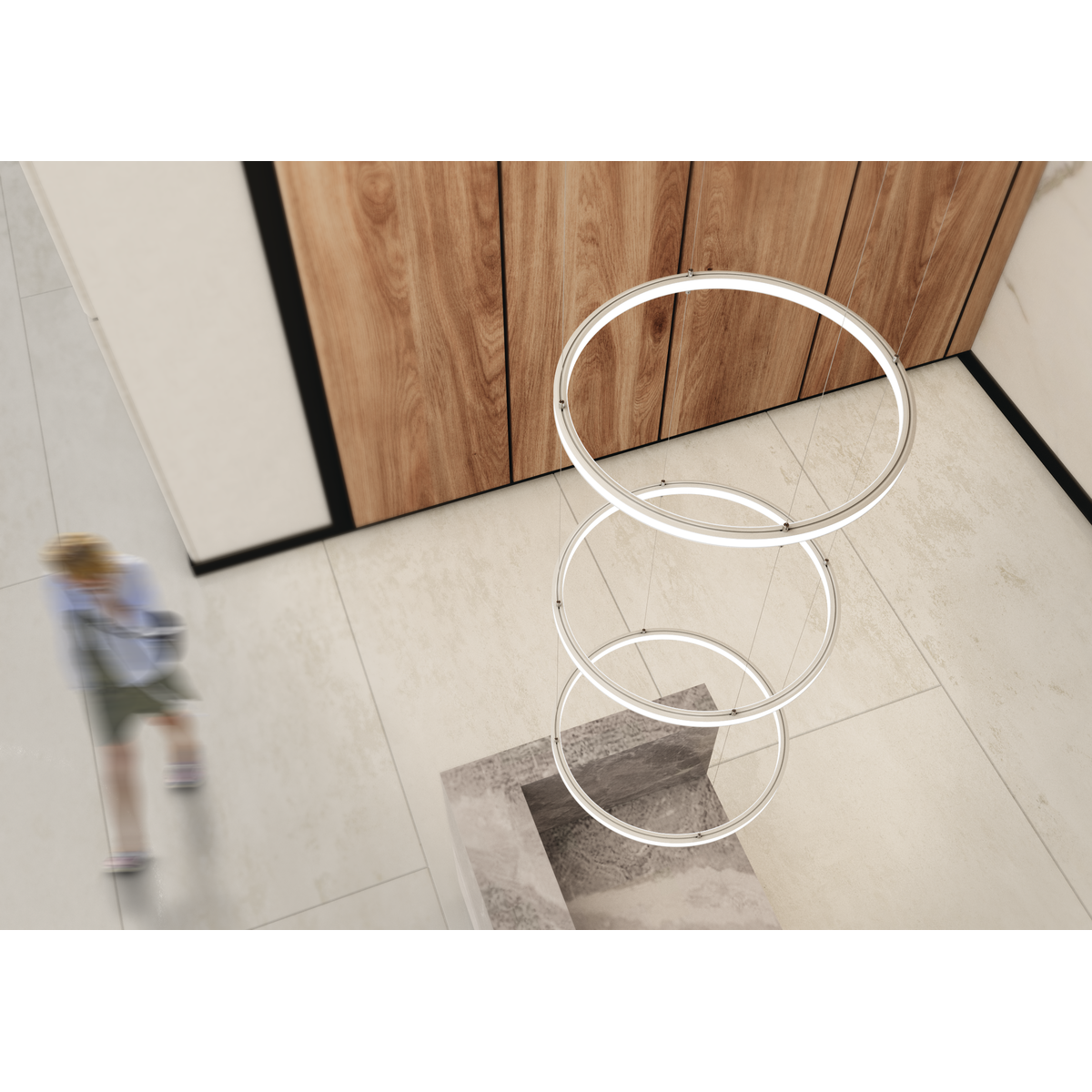

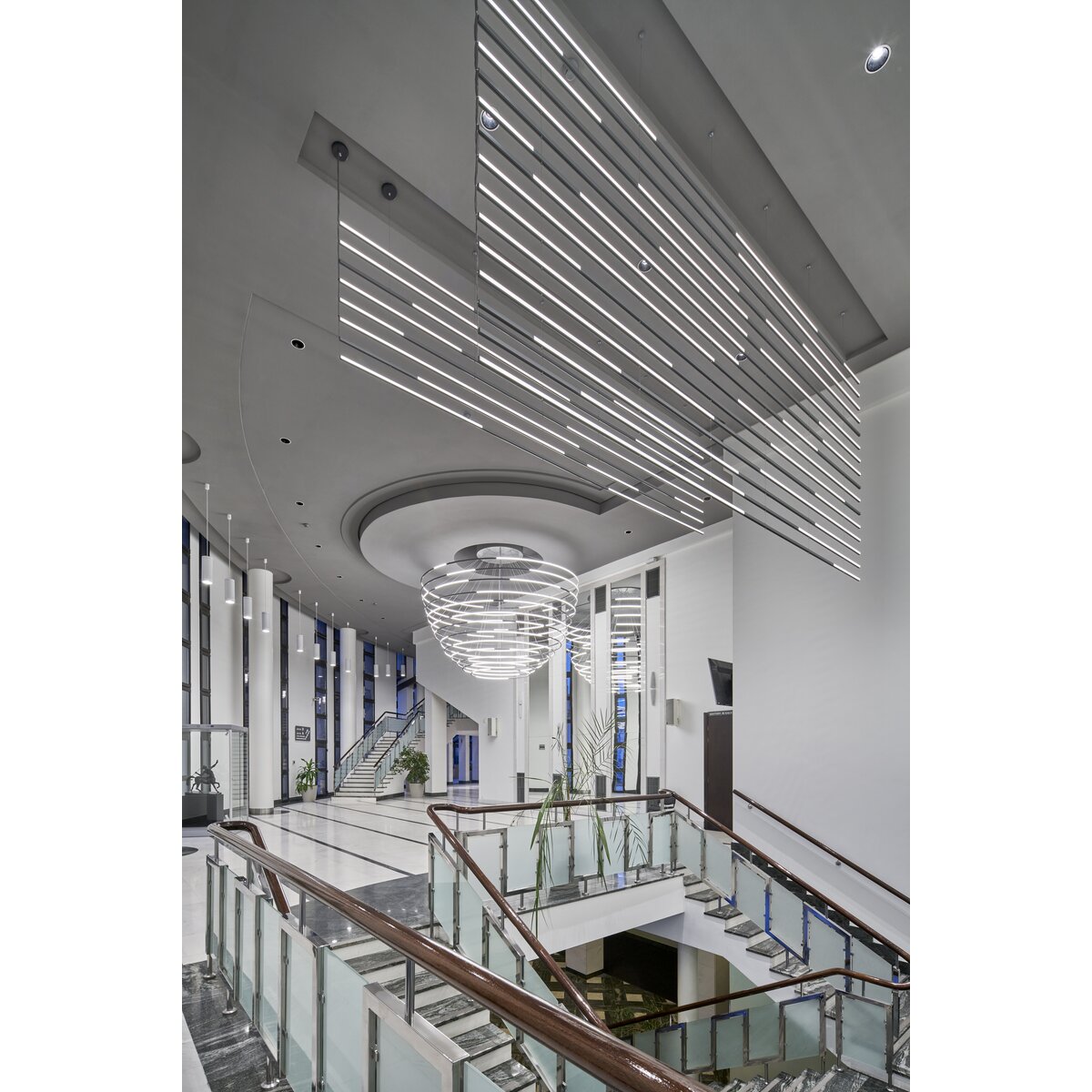

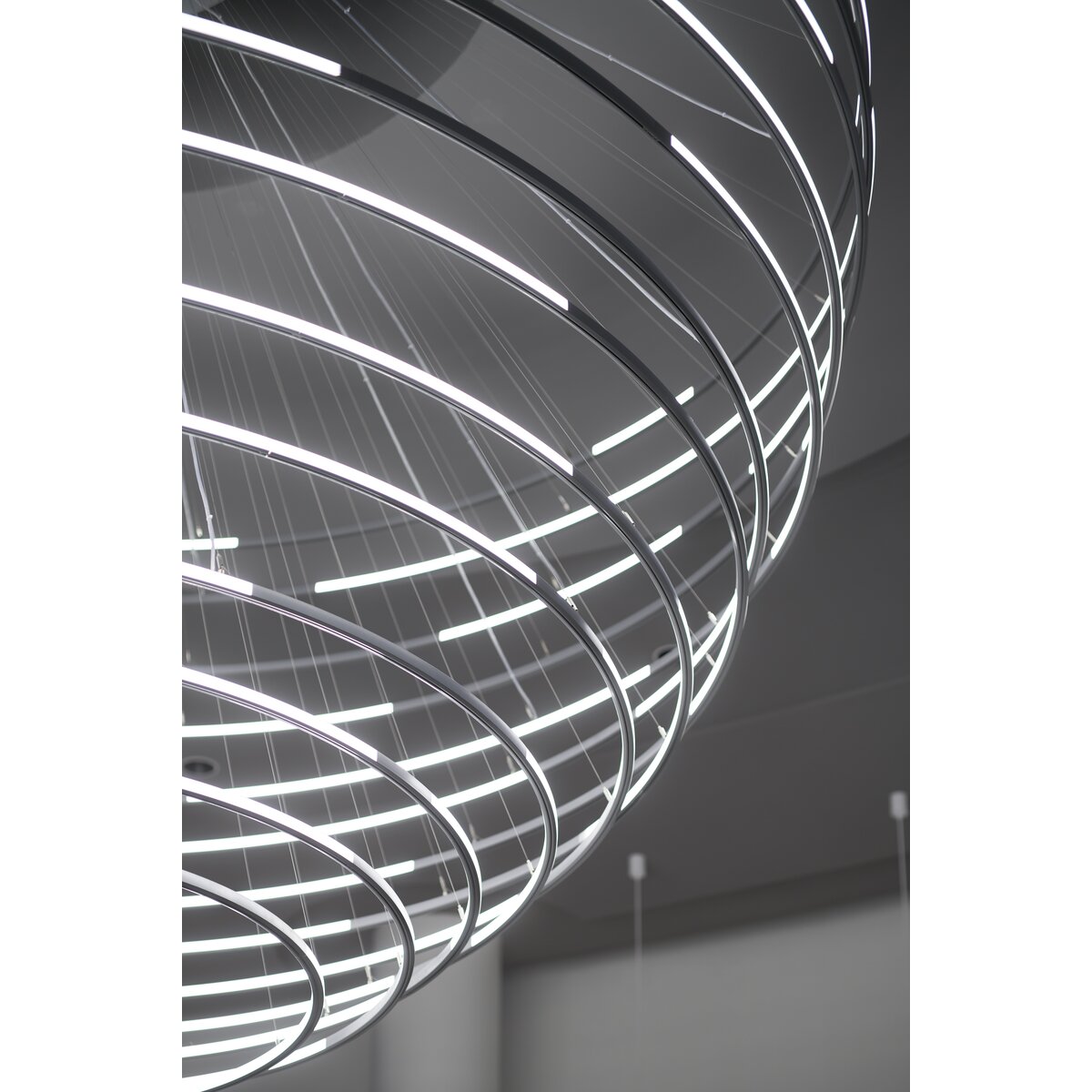

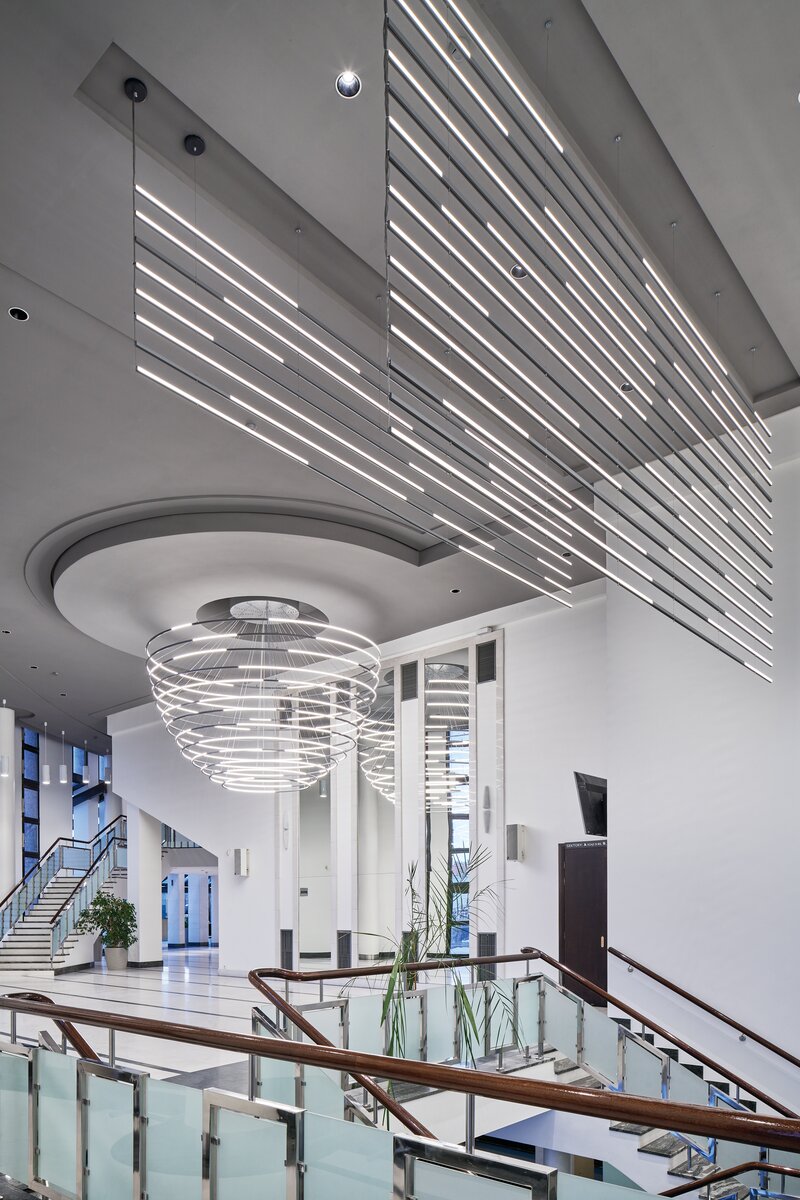

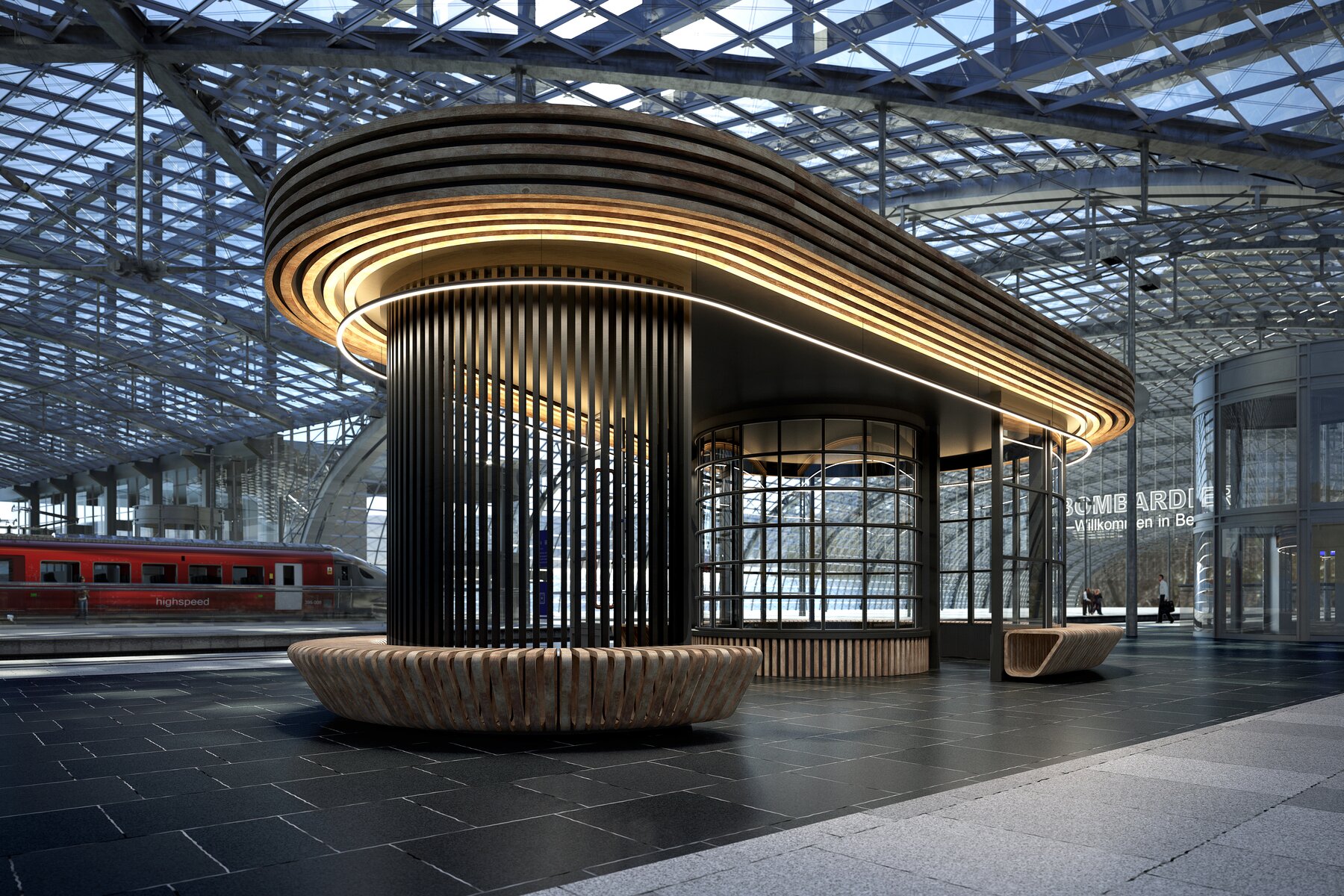

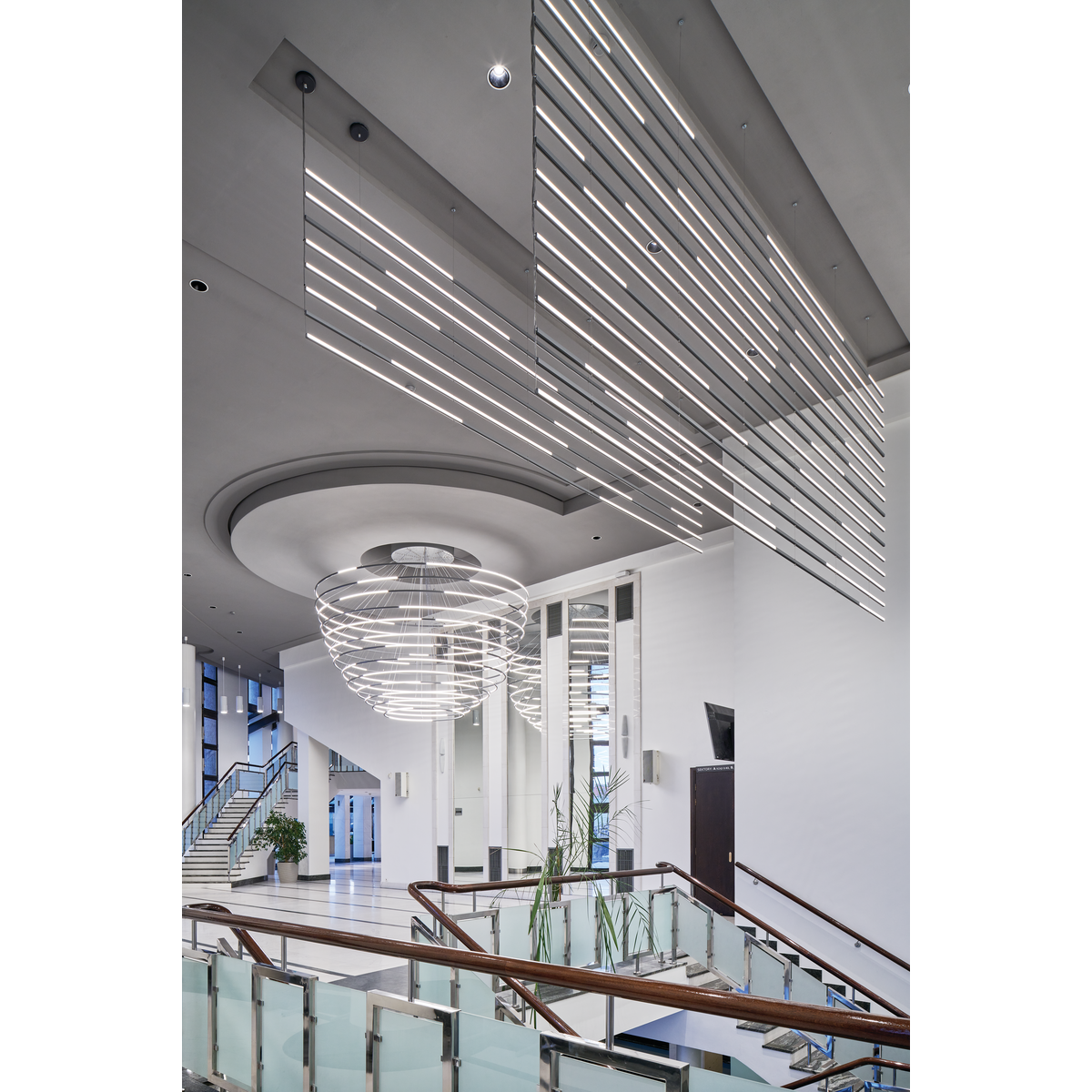

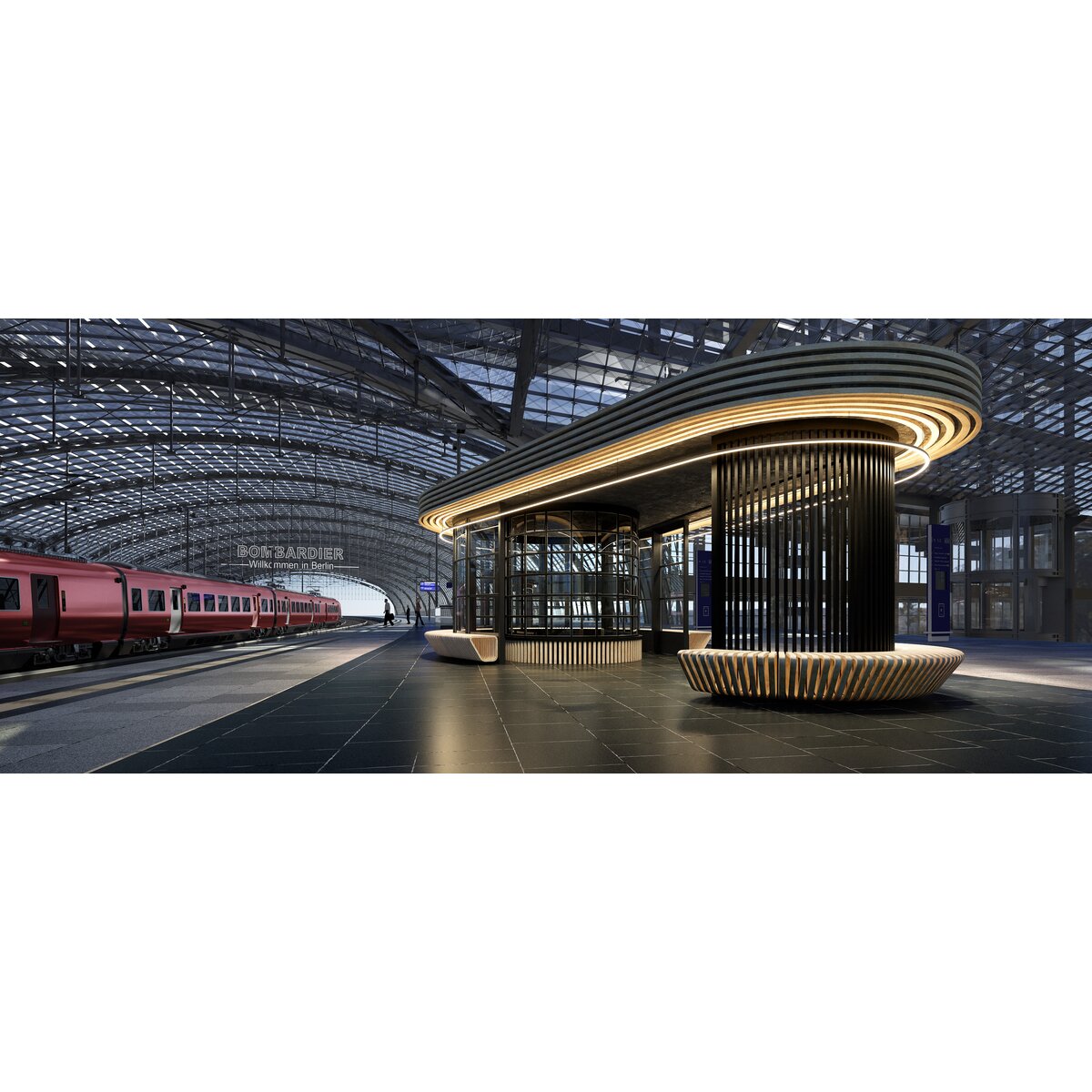

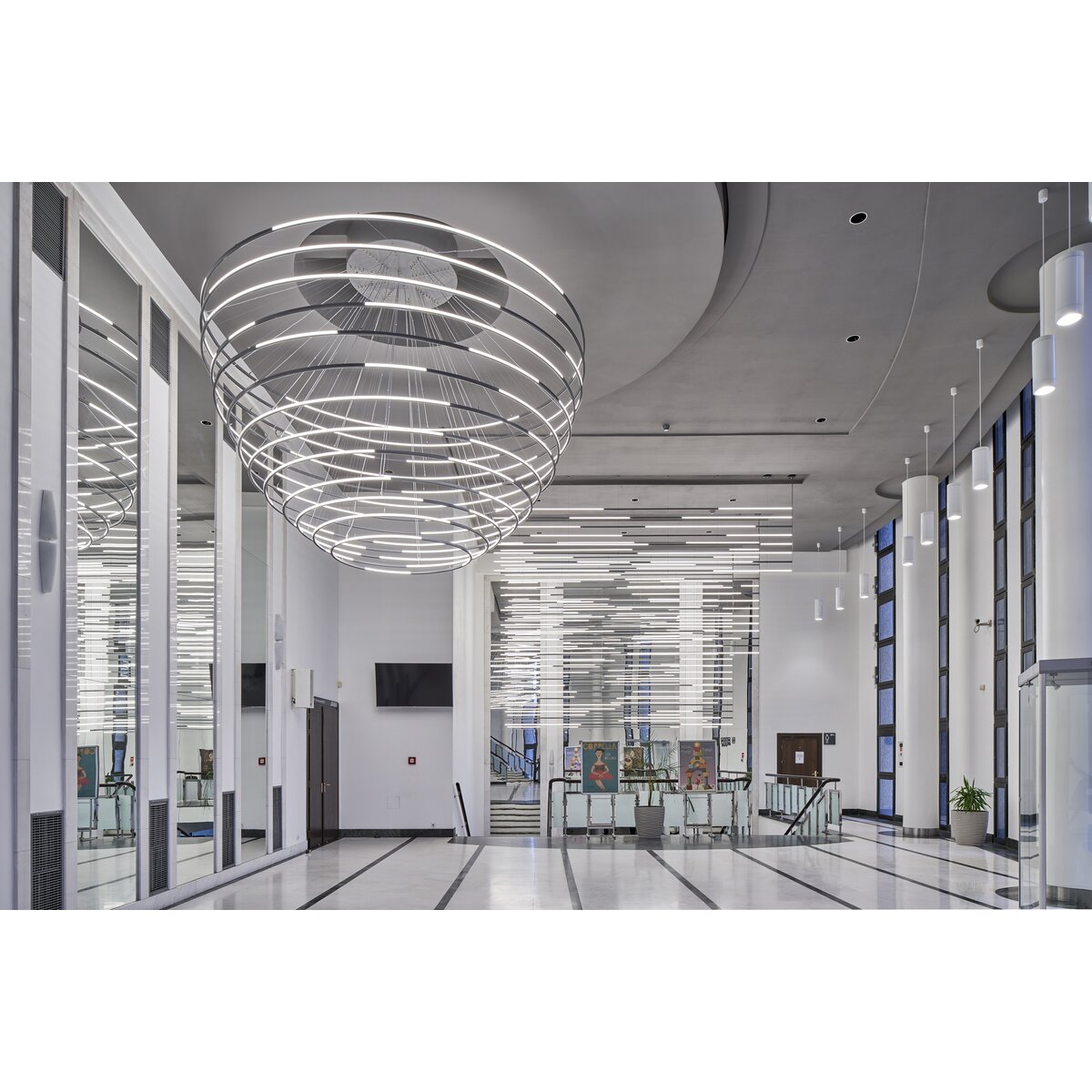

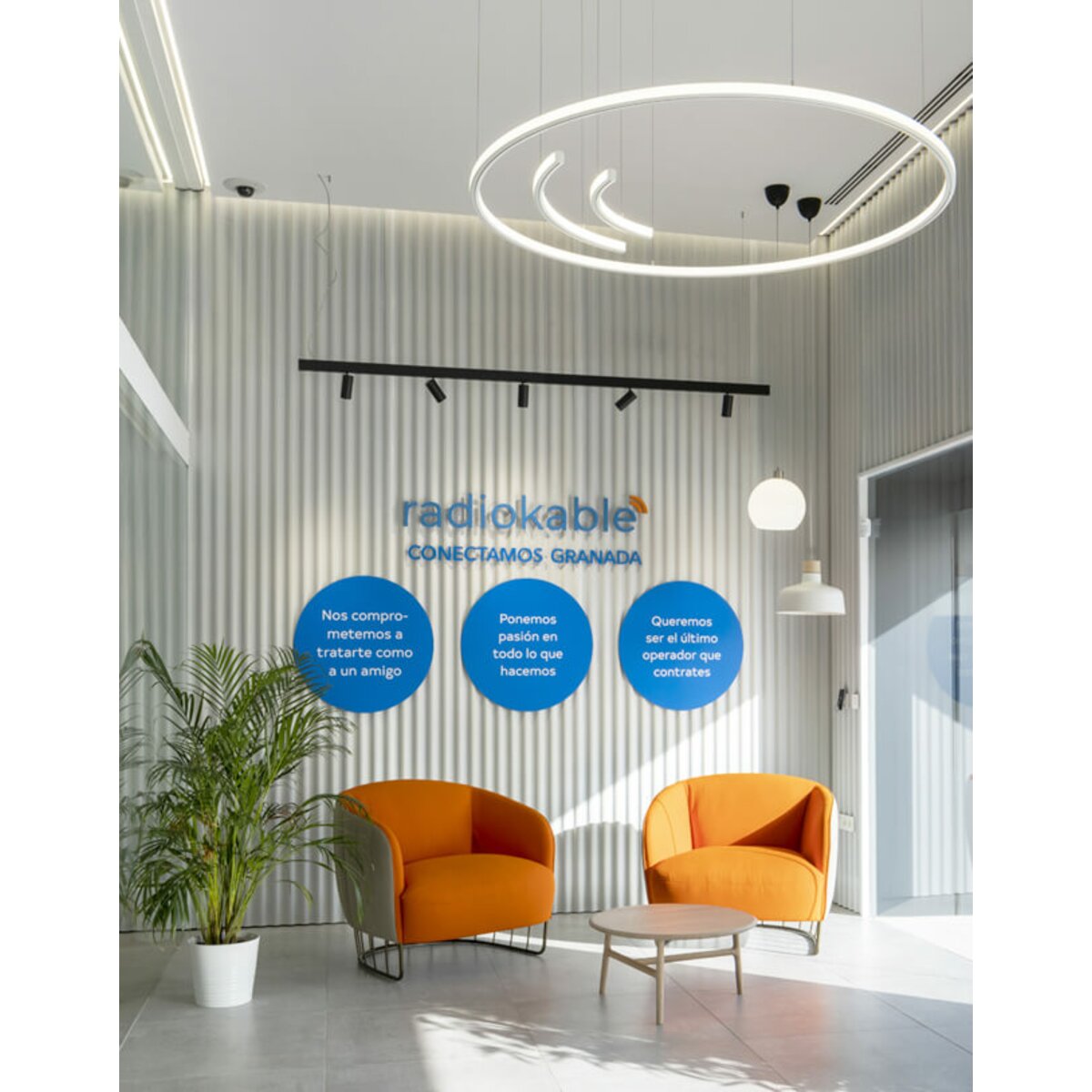

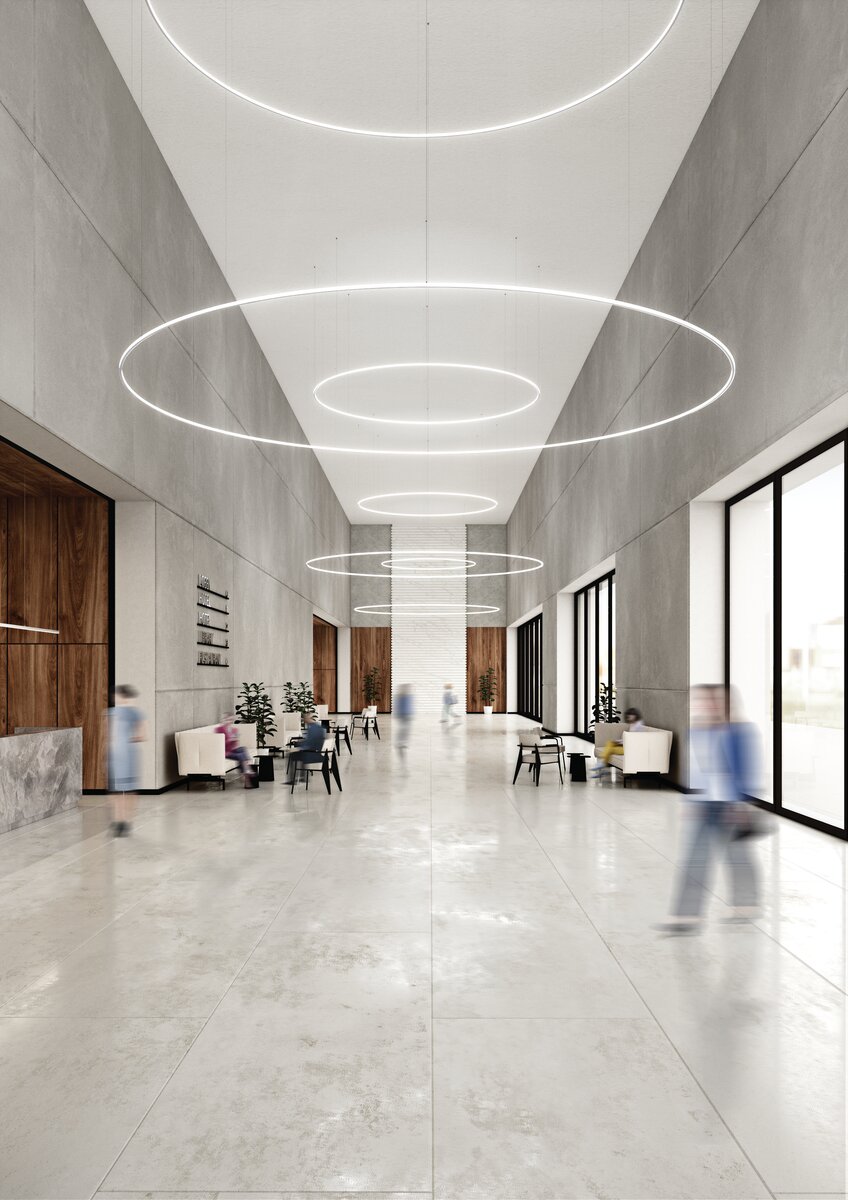

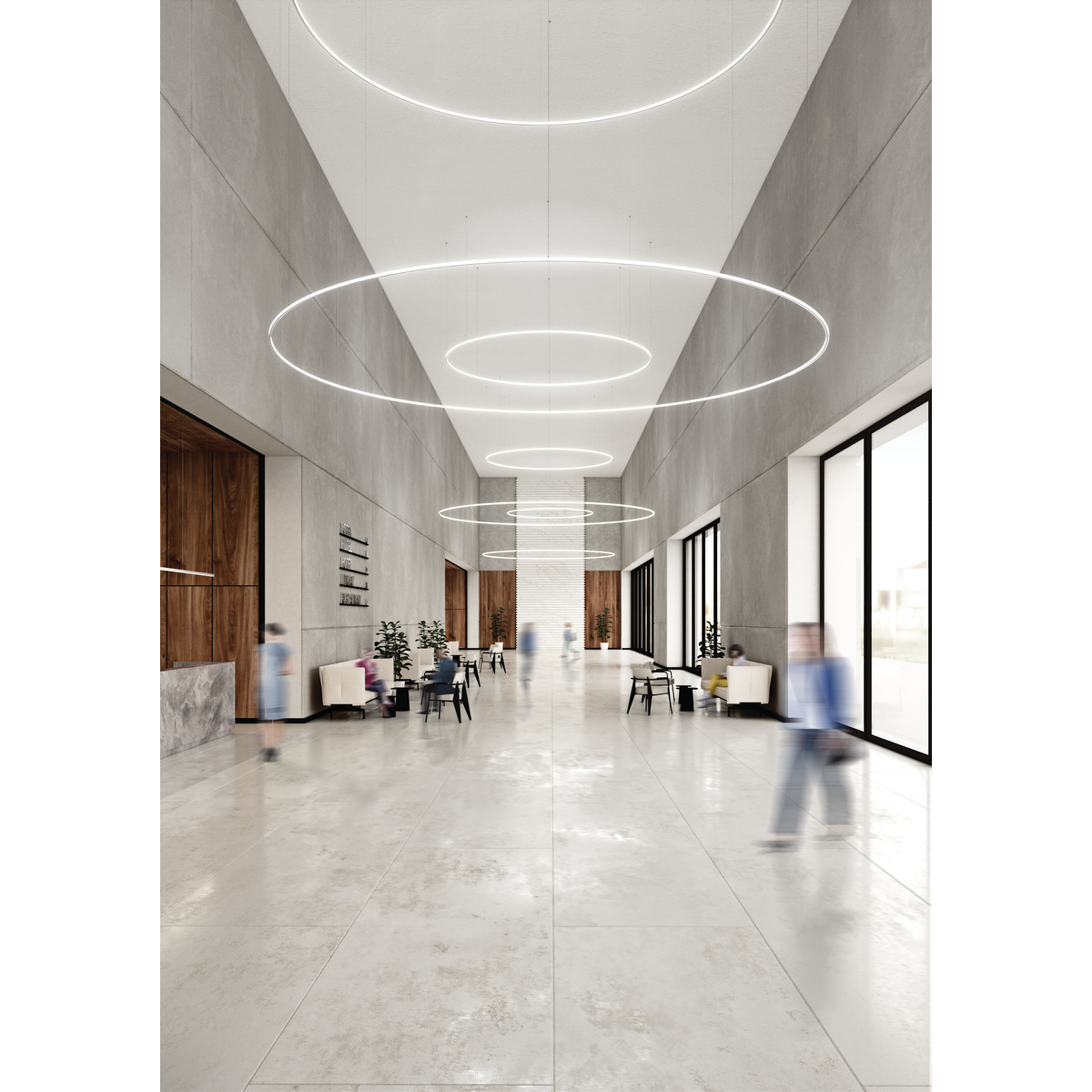

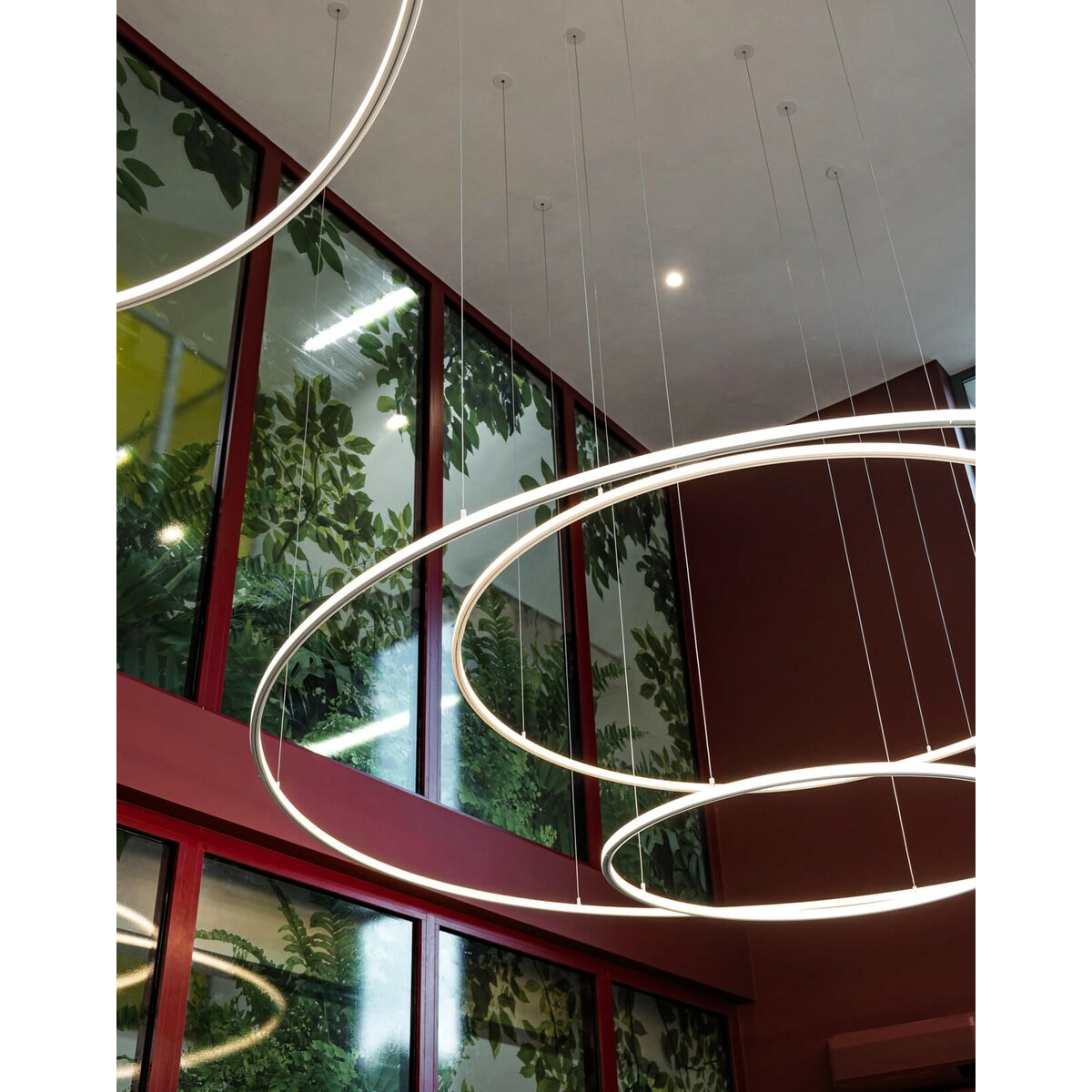

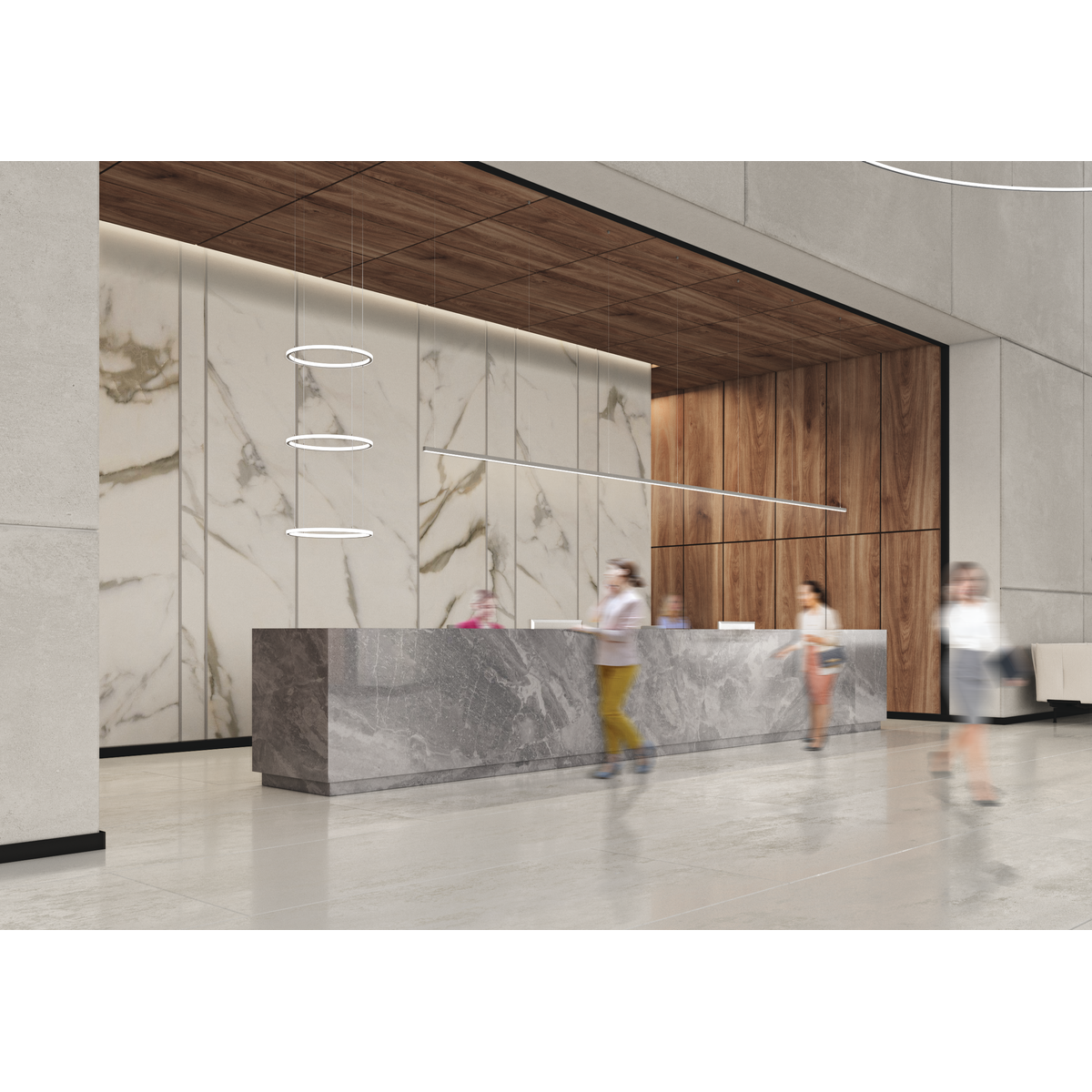

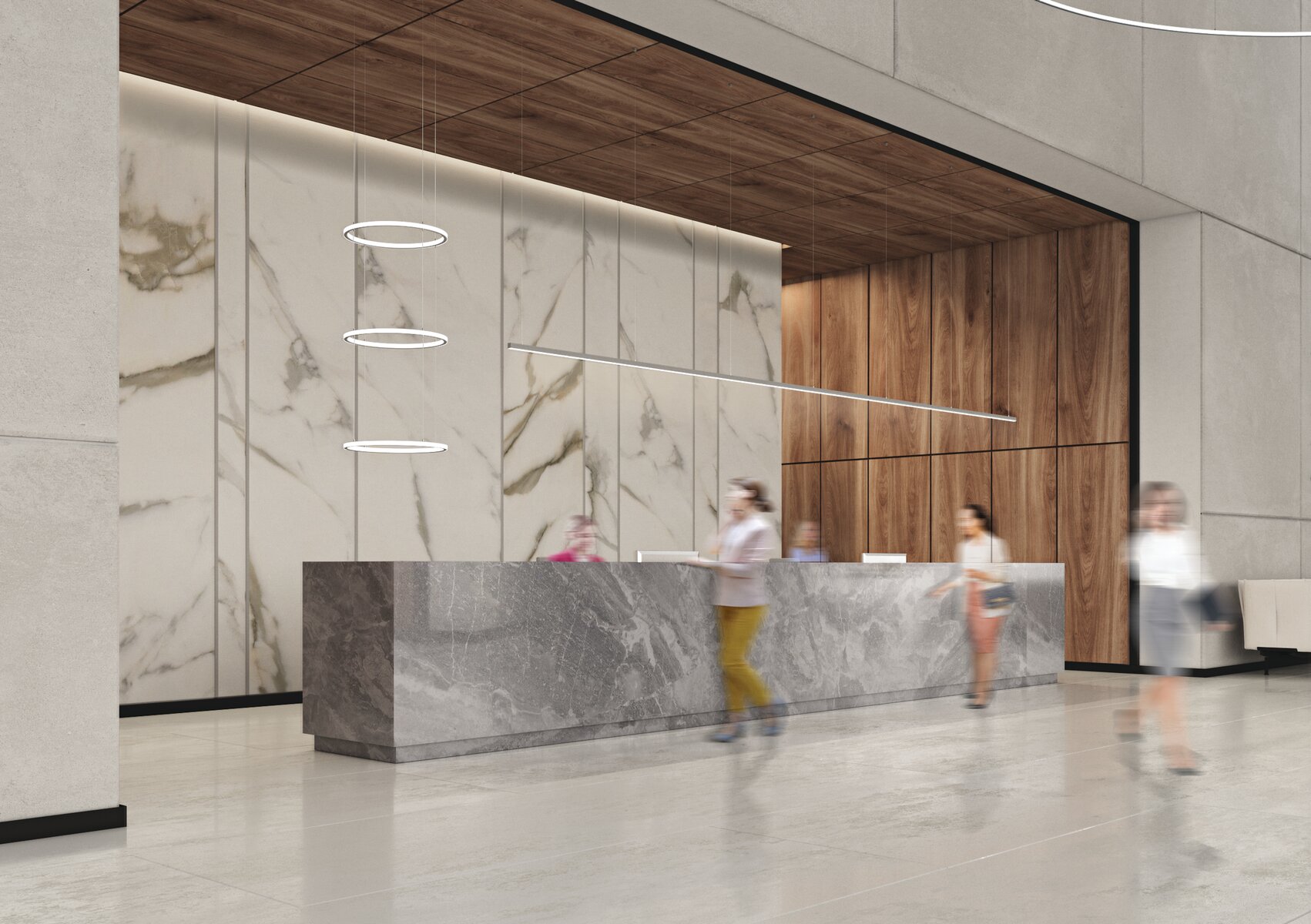

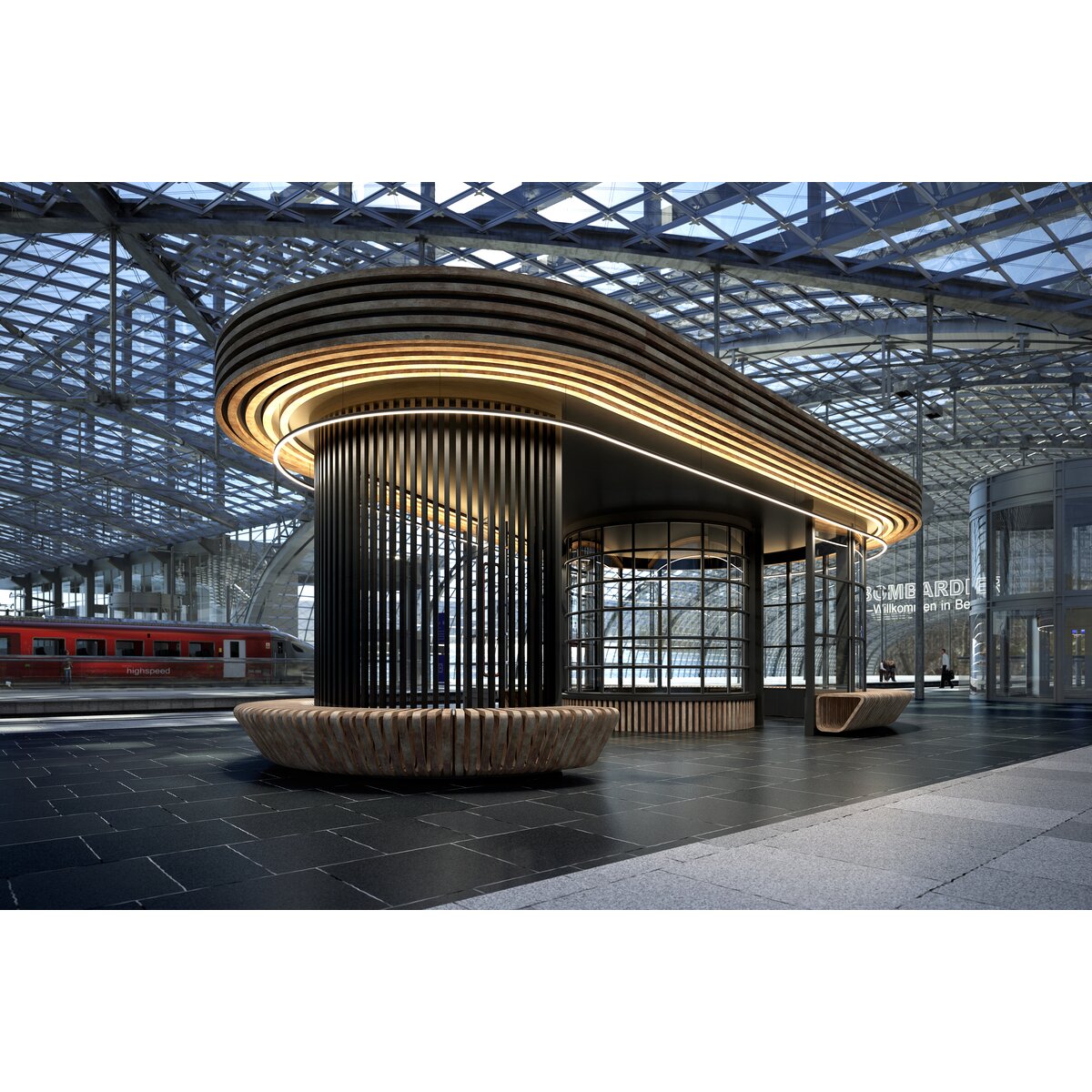

Usage examples

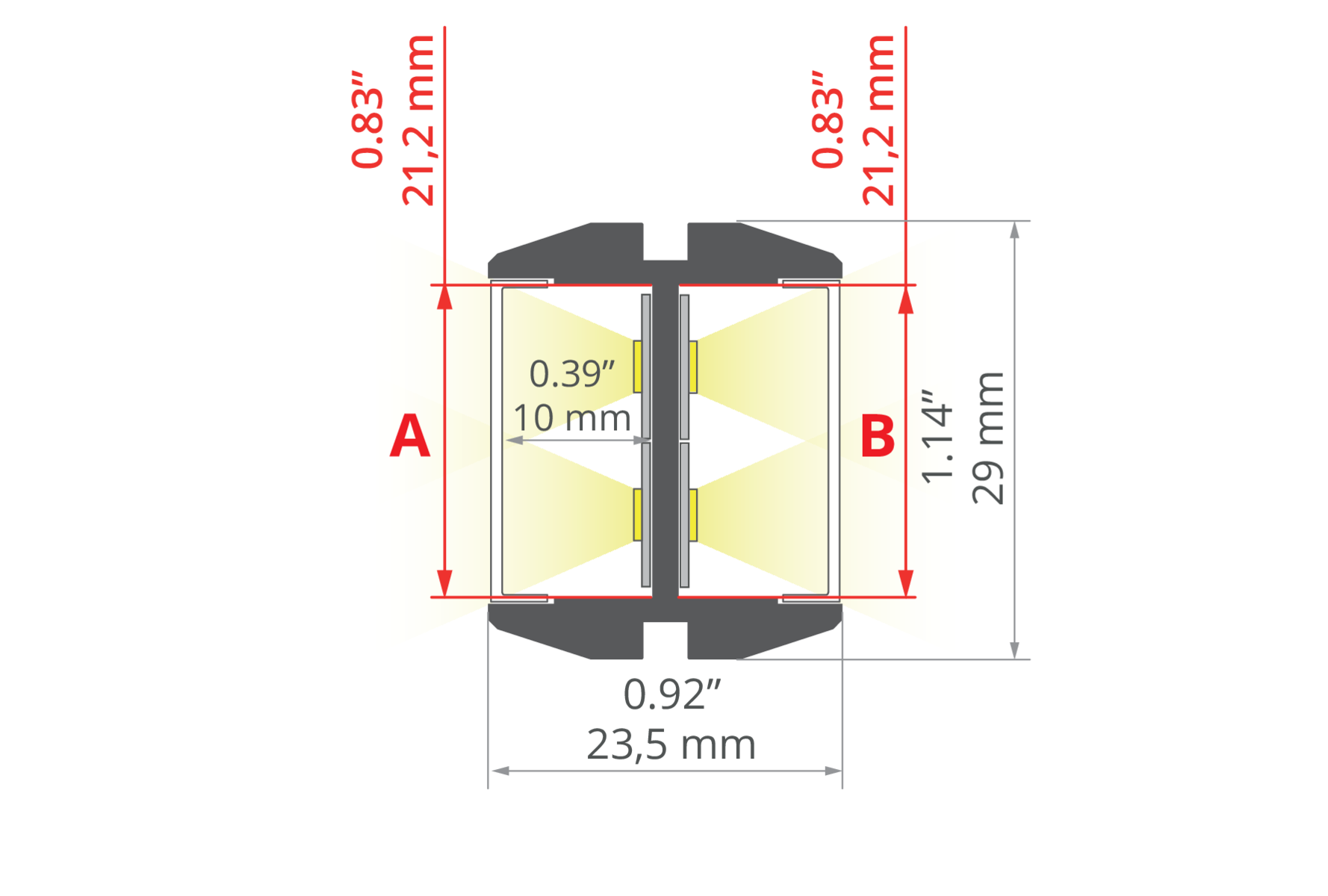

Technical drawing
GIZA-DUO-LL Extrusion aluminum Technical drawing - A02162
Technical specification
Material
aluminum
Possible fixture IP
20, 65
Possible fixture shapes
linear, polygonal, round
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
0.9" (23.5 mm)
Height
1.1" (29 mm)
LED gluing width A
0.8" (21.2 mm)
LED mounting width B [inch]
0.8" (21.2 mm)
Max. number of LED strips A (0.31" wide)
2
Max. number of LED strips B (0.31" wide)
2
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Wire out back of extrusion
Yes
Possibility of twisting
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
240 mm
Outward
240 mm
Downward
1000 mm
Building type
Entertainment/ Arts, Hotel / Restaurant, Commercial, Retail
Facility zone
office, lobby / foyer, decorative, fitness / spa, media rooms / av
Color Length Ref No
silver anodized
78.9" (2005 mm)
118.5" (3010 mm)
A02162A_2
A02162A_3
white lacquered
78.9" (2005 mm)
A02162L10OD_2
black anodized
78.9" (2005 mm)
118.5" (3010 mm)
A02162A07_2
A02162A07_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type LIGER-22 Cover satin HS-22 Cover frosted G-22S Cover satin G-22R Cover satin
High Efficacy K-HEHD-0480-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0960-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1440-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-1920-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-HEHD-0320-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
CRI 95+ K-CRHD-1820-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
K-CRHD-1910-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT K-RGBW-1920-160-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Single diode cuttable K-SD-1440-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
KWP-SDCR-22T50-1530-24 Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (2) Line of Light for a number (X) of rows (1) Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Reference shapes
similar profiles
Suspended
GIZA-LL-ZMG
Ref No: A04501
Suspended
Surface mounted
T-grid
GIZA
Ref No: A05556
Suspended
Surface mounted
T-grid
GIZA-LL
Ref No: A00758
Trimless
GIZA-LL-T
Ref No: A02479
Trimless
GIZA-LL-UST
Ref No: A02724
Trimless
KOZUS
Ref No: A07823
Trimless
KOZUS-CR
Ref No: A00600
Related products
Product name Material Key features Light transmittance [%] Color Ref No
BENCO-22 Cover
silicon - For indoor and outdoor applications
- UV resistant
62 %
frosted
B17209F
HS-22 Cover
PC - For indoor and outdoor applications
- UV resistant
65 %
88 %
90.5 %
frosted
clear
microprism
B17011F
B17011C
B17011M
LIGER-22 Cover
PC - hight light quality
- For indoor and outdoor applications
- Ease of obtaining a line of light
- perfectly diffusing
70 %
22 %
satin
black
B17032S
B17032B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0480-24
K-HEHD25-0480-24
K-HEHD27-0480-24
K-HEHD30-0480-24
K-HEHD35-0480-24
K-HEHD40-0480-24
K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-0960-24
K-HEHD25-0960-24
K-HEHD27-0960-24
K-HEHD30-0960-24
K-HEHD35-0960-24
K-HEHD40-0960-24
K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1440-24
K-HEHD25-1440-24
K-HEHD27-1440-24
K-HEHD30-1440-24
K-HEHD35-1440-24
K-HEHD40-1440-24
K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,
20 - 5.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
- High Efficacy
K-HEHD22-1920-24
K-HEHD25-1920-24
K-HEHD27-1920-24
K-HEHD30-1920-24
K-HEHD35-1920-24
K-HEHD40-1920-24
K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,
20 - 1 W/ft
2700K
3000K
3500K
4000K
- CRI over 95
- High Efficacy
K-HEHD27-0320-24
K-HEHD30-0320-24
K-HEHD35-0320-24
K-HEHD40-0320-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-CR-1210-24 LED tape, 74-93 lm/ft, IP20,
20 - 1.5 W/ft
2200K
2700K
- CRI over 95
K-CR22-1210-24
K-CR27-1210-24
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1220-24
K-CR25-1220-24
K-CR27-1220-24
K-CR30-1220-24
K-CR35-1220-24
K-CR40-1220-24
K-CR50-1220-24
K-CR-1275-24 LED tape, 381-480 lm/ft, IP20,
20 - 4.4 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- CRI over 95
K-CR22-1275-24
K-CR25-1275-24
K-CR27-1275-24
K-CR30-1275-24
K-CR35-1275-24
K-CR40-1275-24
K-CR50-1275-24
K-CRHD-1820-24 LED tape, 381-487 lm/ft, IP20,
20 - 5.6 W/ft
2700K
- CRI over 95
- high LED density
K-CRHD27-1820-24
K-CRHD-1910-24 LED tape, 211-272lm/ft, IP20,
20 - 2.8 W/ft
2700K
3500K
4000K
- CRI over 95
- high LED density
K-CRHD27-1910-24
K-CRHD35-1910-24
K-CRHD40-1910-24
K-CRHD-0530-24 LED tape, 105-140 lm/ft, IP20,
20 - 1.6 W/ft
3500K
- CRI over 95
K-CRHD35-0530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-2400-24 LED tape, 1032-1149 lm/ft, IP20
20 - 7.3 W/ft
2700K
3000K
3500K
4000K
5000K
- high power
K-27-2400-24
K-30-2400-24
K-35-2400-24
K-40-2400-24
K-50-2400-24
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,
65 gel cover 5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- high LED density
KWP-GHD22-1640-24
KWP-GHD25-1640-24
KWP-GHD27-1640-24
KWP-GHD30-1640-24
KWP-GHD35-1640-24
KWP-GHD40-1640-24
KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,
65 gel cover 2.8 W/ft
2200K
2700K
3000K
3500K
4000K
- high LED density
KWP-GHD22-1910-24
KWP-GHD27-1910-24
KWP-GHD30-1910-24
KWP-GHD35-1910-24
KWP-GHD40-1910-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB27T65-1200-24 LED tape, 2700K, 122 lm/ft, 3.7 W/ft, IP20
20 - 3.7 W/ft
RGB
2700K
- RGB+Tunable White
K-RGB27T65-1200-24
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
KWP-RGB-1920-24 LED tape, 187 lm/ft, 5.9 W/ft, IP65
65 silicon sleeve 5.9 W/ft
RGB
- RGB
KWP-RGB-1920-24
K-RGB-0700-120-24 LED tape, 126 lm/ft, 2.1 W/ft, IP20
20 - 2.1 W/ft
RGB
- RGB
K-RGB-0700-120-24
K-RGB-1200-120-24 LED tape, 182 lm/ft, 3.7 W/ft, IP20,
20 - 3.7 W/ft
RGB
- RGB
K-RGB-1200-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-27/65-1920-24V LED tape, 2700K, 500 lm/ft, 5.9 W/ft, IP20
20 - 5.9 W/ft
2700K
- Tuneable white 2600K-6500K
K-27/65-1920-24
K-30/18-1770-24V LED tape, 1800K, 279 lm/ft, 3.5 W/ft, IP20
20 - 3.5 W/ft
1800K
K-30/18-1770-24
KWP-30/18-1770-24 LED tape, 3000K, 279 lm/ft, 3.5 W/ft, IP65
65 silicon sleeve 3.5 W/ft
3000K
KWP-30/18-1770-24
K-30/18-1770-010V-24V LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP20
20 - 3.5 W/ft
1800K
K-30/18-1770-010V-24V
KWP-30/18-1770-010-24 LED tape, 1800K, 292 lm/ft, 3.5 W/ft, IP65
65 silicon sleeve 3.5 W/ft
1800K
KWP-30/18-1770-010-24
KWP-G22/50-1728-24 LED tape, 2200K, 467 lm/ft, 5.3 W/ft, IP65
65 gel cover 5.3 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-G22/50-1728-24
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20
20 - 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65
65 silicon sleeve 4.7 W/ft
2200K
- Tuneable white 2200K-5000K
KWP-SDCR-22T50-1530-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,
20 - 4.4 W/ft
2700K
3000K
3500K
4000K
K-SD27-1440-24
K-SD30-1440-24
K-SD35-1440-24
K-SD40-1440-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-VBT-0720-24 LED tape, 323-338 lm/ft, IP20,
20 - 2.2 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-VBT27-0720-24
K-VBT30-0720-24
K-VBT35-0720-24
K-VBT40-0720-24
K-VBT50-0720-24
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,
20 - 2.8 W/ft
2700K
3000K
3500K
4000K
5000K
- LED tape for bent profiles
K-BT27-0910-24
K-BT30-0910-24
K-BT35-0910-24
K-BT40-0910-24
K-BT50-0910-24
No results found for the selected filters.
Product name Material Color Ref No

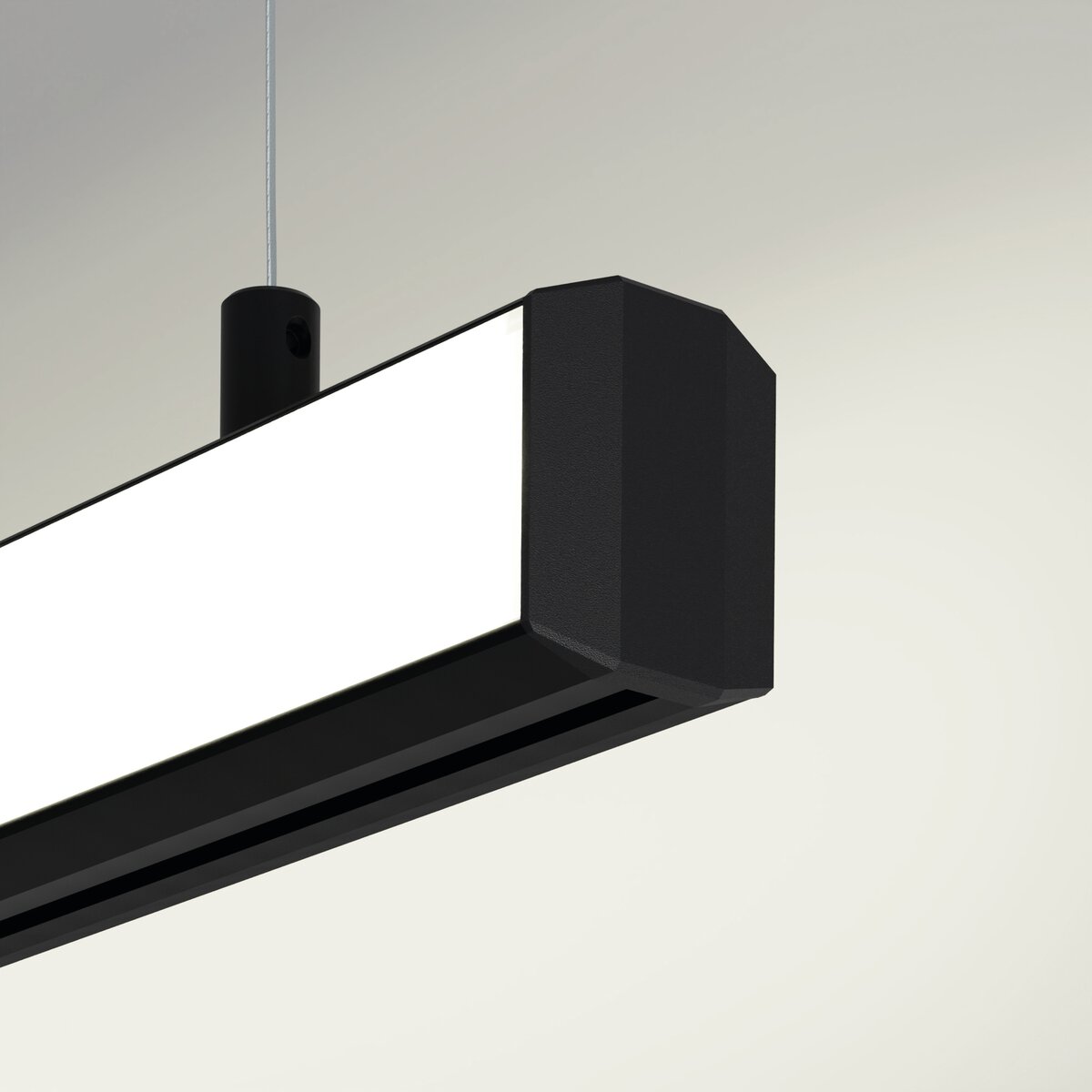

GIZA-DUO-LL End cap
ABS
gray
silver
white
black
C24372C02
C24372L01
C24372L10
C24372C07
No results found for the selected filters.
Product name Key features Material Color Ref No
RD-1 Fastener set
- Smooth cable adjustment, cable included
brass
silver
white
black
C28231P00
C28231P01
C28231L10
C28231L07
RG-1 Fastener set
- Cable adjustment at the ceiling, cable included
brass
silver
black
C28230P00
C28230L07
FI-8-ZM-2 Fastener set
- Convenient cable length adjustment, in the ZM system
stainless steel, aluminum
silver
white
black
C28135N00
C28135L10
C28135L07
Product name Key features Material Color Ref No
Head BZP-ZZ
stainless steel
gray
42215
FI-8-LIN-ZMZ Fastener
- Power supply - mounting in the ZM system
stainless steel, aluminum, rubber, PCV
silver
white
black
C28171N00
C28171L10
C28171L07
PUSZ-PRET-ZM Fastener
- Power supply cable - mounting in the ZM system
stainless steel, brass, nylon, aluminum
silver
white
black
C28161N00
C28161L10
C28161L07
OS22-LIN-Z Fastener
- Power supply cable
stainless steel, PA
white
black
C28184L10
C28184L07
OS22-PRET-Z Fastener
- Power supply rod
PA, stainless steel
white
black
C28186L10
C28186L07
OS22-DUO-LIN-Z Fastener
- Power supply cable, two poles
stainless steel, PA
white
black
C28183L10
C28183L07
OS22-DUO-PRET-Z Fastener
- Power supply cable, two poles
stainless steel, PA
white
black
C28185L10
C28185L07
Product name Key features Material Color Ref No
Head BZP
stainless steel
silver
C28113N00
FI-10-ZM-P Fastener
- Cross mounting
stainless steel
silver
C28117N00
FI-10-ZM-W Fastener
stainless steel
silver
C28116N00
FI-8-LIN-ZM Fastener
- Installation in the ZM system
stainless steel, PA
silver
black
C28170N00
C28170L07
FI-8-PRET-ZM Fastener
- Installation in the ZM system
silver
white
black
C28189N00
C28189L10
C28189L07
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
MP-22 Masking cover
PC
gray
white
black
C28261L01
C28261L10
C28261L07
Product name Material Color Ref No
Block ZM
silicon
gray
C28194N00
Product name Material Color Ref No
Gland 19x1,6
C24519C07
Gland 6x1,2
C24517C07
Gland 6,4x3
C42264C07
Gland M8x1
C42265N00
Adapter DILENSO
PC
transparent
E62145
Gland 8x1,6
C42290C07
No results found for the selected filters.

Compare products

Compare
KLUS, LLC
3755 9th St. Southwest
Vero Beach, FL 32968
Copyright 2026 Kluś. All right reserved..
