STEKO-PLUS Extrusion

Ref No: A06888
STEKO-PLUS Extrusion
STEKO-PLUS Extrusion
  • For installation on the steps
  • Non-slip elements
  • Space provided for an electrical connector
  • Colorful covers, including fluorescent
  • Possibility of continuing the light line in the corner
Surface mounted
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
CE Certificate
UKCA Certificate
RoHS Certificate
Configure
Color
silver black
  • For installation on the steps
  • Non-slip elements
  • Space provided for an electrical connector
  • Colorful covers, including fluorescent
  • Possibility of continuing the light line in the corner
Application
  • - warning lighting and anti-slip protection on the steps
Mounting
  • - to a step, using properly selected screws
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
Usage examples

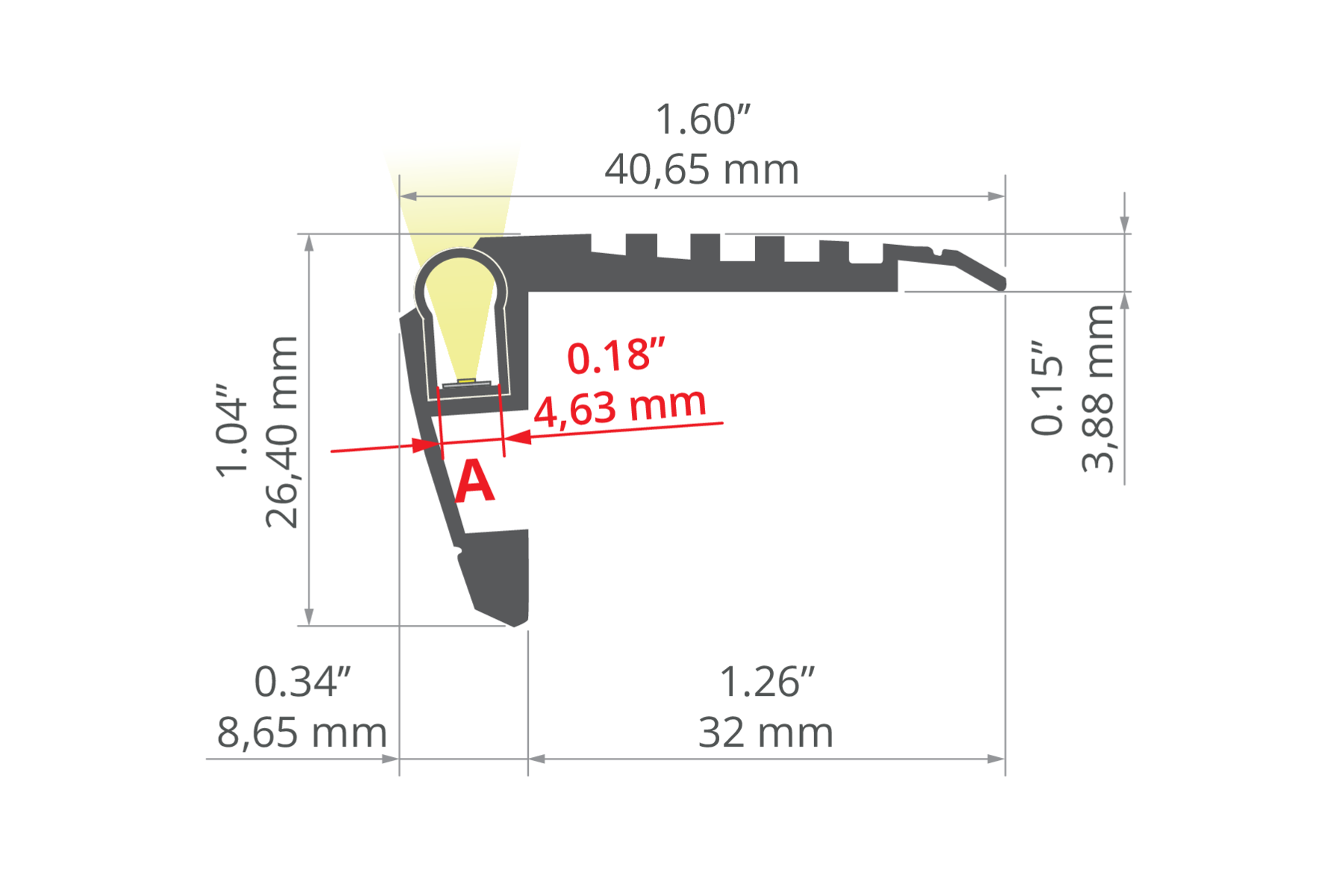

Technical drawing
STEKO-PLUS Extrusion aluminum Technical drawing - A06888
Technical specification
Finish
anodized
Material
aluminum
Possible fixture IP
20, 65
Possible fixture shapes
linear, rectangular
Max power of a single KLUŚ LED strip
1.5 W/ft
Width
1.6" (40.6 mm)
Height
1" (26.1 mm)
LED gluing width A
0.2" (4 mm)
Can be easily connected into runs
Yes
Warning lighting
Yes
Wire out back of extrusion
Yes
Building type
Commercial, Hotel / Restaurant, Retail, Entertainment/ Arts, Outdoor
Facility zone
stairs / hallways, media rooms / av
Color Length Ref No
silver anodized
78.9" (2005 mm)
A06888A_2
black anodized
78.9" (2005 mm)
A06888A07_2
similar profiles
Step
STEP
Ref No: A18042
Surface mounted
STEPUS
Ref No: A18038
Related products
Product name Material Key features Light transmittance [%] Color Ref No
Cover BENCO-5
silicon - warning function
- creates a line of light
- indoor use
phosphorescent
orange
light grey
B17002N
B17002R
B17002Y
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
KWP-3SL-0480-24 LED tape, 31-137 lm/ft, IP65
65 silicon sleeve 1.5 W/ft
phosphorescent
4000K
orange
gray
- For the ROGER and STEKO-PLUS profile
KWP-3NSL40-0480-24
KWP-3RSL40-0480-24
KWP-3YSL40-0480-24
No results found for the selected filters.
Product name Material Color Ref No
STEKO-PLUS-90 End cap
ABS
gray
black
C28281C02
C28281C07
STEKO-PLUS-L End cap
ABS
gray
black
C24543C02
C24543C07
STEKO-PLUS-R End cap
ABS
gray
black
C24544C02
C24544C07
No results found for the selected filters.
Product name Material Color Ref No
Gland 6x1,2
C24517C07
No results found for the selected filters.
