PIKO-KW Extrusion (A00035)

Compare

Compared

Aesthetic decoration of internal corners with a thin line of light
The profile flange masks the edges of slabs and tiles
Installation on slabs and tiles with a maximum thickness of 13mm
Wide range of accessories
Possibility of installing sealed 5K series LED strips

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Color

Description

Aesthetic decoration of internal corners with a thin line of light
The profile flange masks the edges of slabs and tiles
Installation on slabs and tiles with a maximum thickness of 13mm
Wide range of accessories
Possibility of installing sealed 5K series LED strips

Application

- decorative lighting for internal corners

Mounting

- in drywall, with mounting adhesive

download

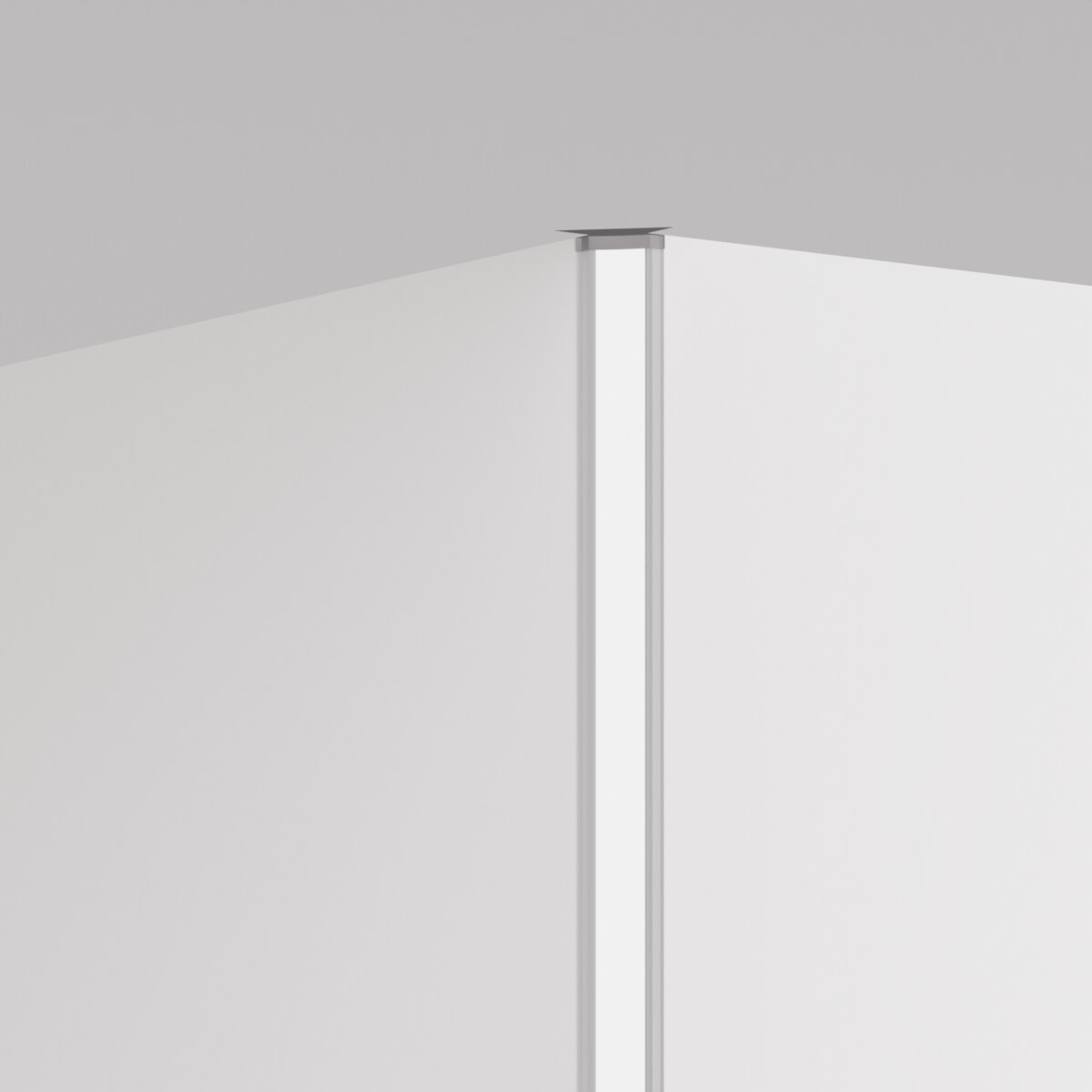

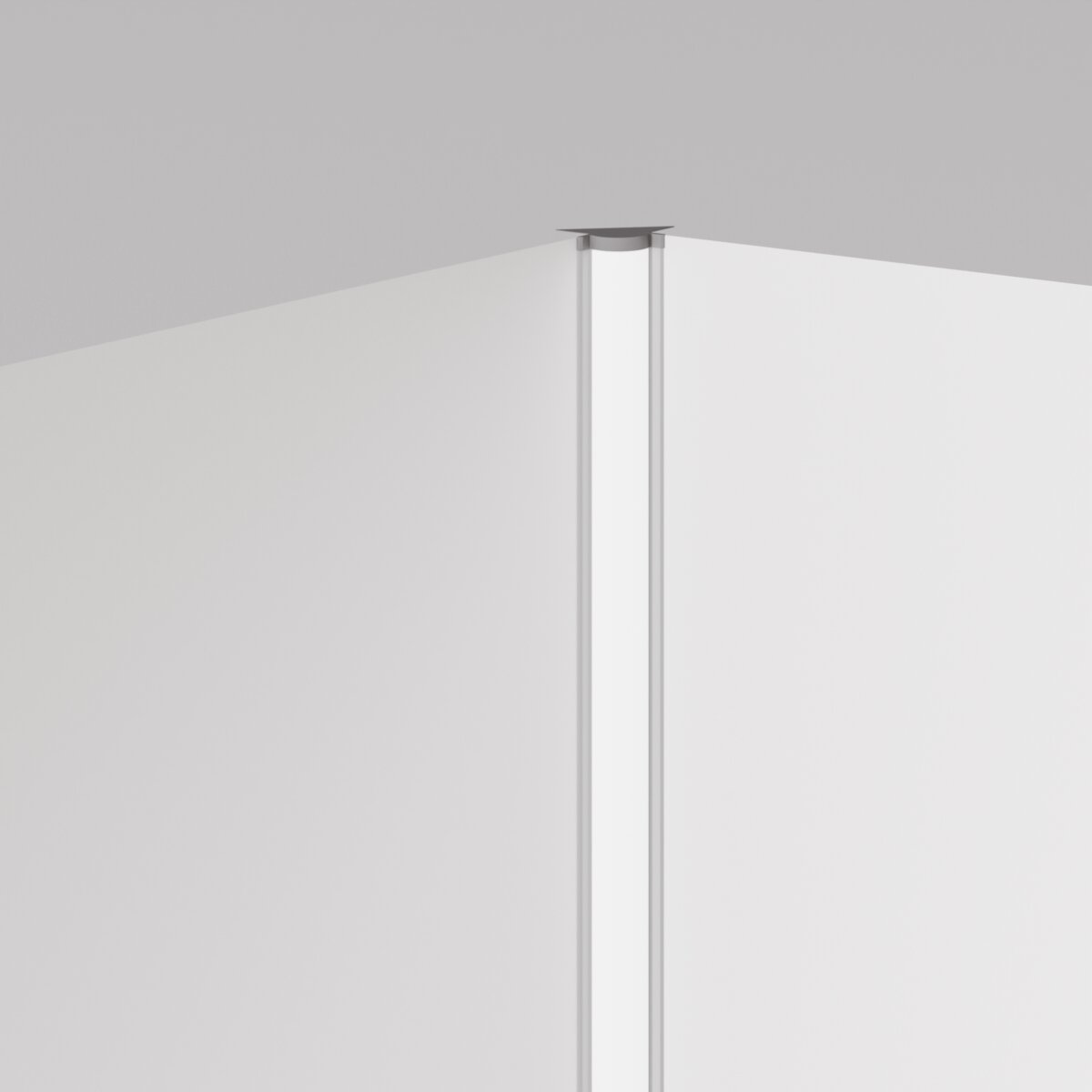

Usage examples

Description
download

Application

- decorative lighting for internal corners

Mounting

- in drywall, with mounting adhesive

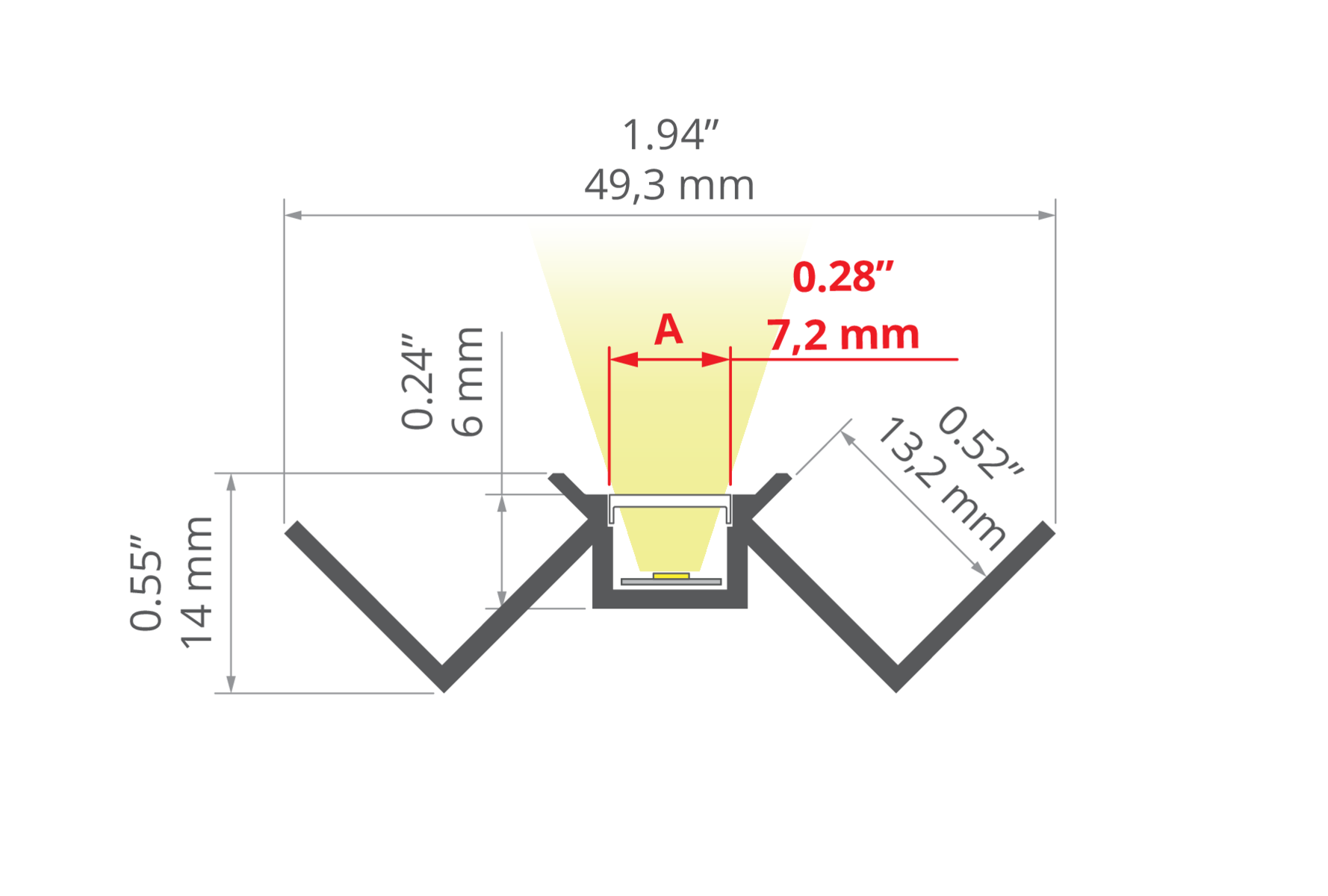

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear

Profile cross-section

angled

Max power of a single KLUŚ LED strip

2.9 W/ft

Width

1.9" (49.3 mm)

Height

0.5" (12.7 mm)

LED gluing width A

0.3" (7.2 mm)

The cover is cut to the length of the profile

Yes

Decorative lighting

Yes

Mounting to drywall

Yes

Building type

Residential, Hotel / Restaurant, Entertainment/ Arts

Facility zone

communication routes and corridors, decorative, bathroom, cove / perimeter, edge lighting

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00035A_1 A00035A_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00035A07_1 A00035A07_2
white lacquered	39.4" (1000 mm) 78.9" (2005 mm)	A00035L10_1 A00035L10_2

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
PIKO-7R Cover	PMMA	- indoor use - perfectly diffusing - Thin line of light	52 % 24 %	satin black	B17164S B17164B
PIKO-7 Cover	PMMA	- For indoor and outdoor applications - perfectly diffusing - UV resistant - Thin line of light	43 % 17 %	satin black	B17001S B17001B

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- ideal for use with black covers - high LED density	K-SHD22-0960-24 K-SHD25-0960-24 K-SHD27-0960-24 K-SHD30-0960-24 K-SHD35-0960-24 K-SHD40-0960-24 K-SHD50-0960-24

LED tapes
Bendable tape

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-BT-0910-24 LED tape, 237-282 lm/ft, IP20,	20	-	2.8 W/ft	2700K 3000K 3500K 4000K 5000K	- LED tape for bent profiles	K-BT27-0910-24 K-BT30-0910-24 K-BT35-0910-24 K-BT40-0910-24 K-BT50-0910-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
PIKO-KW End cap	ASA	gray black white	C24780C02 C24780C07 C24780C10
PIKO-KW-R End cap	ASA	gray black white	C24781C02 C24781C07 C24781C10
