Illuminated skirting board
Masking the expansion joints between the wall and the floor
Masking gaps on uneven surfaces
Space for cable management
Easy assembly

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Configure

WATCH INSTRUCTIONAL VIDEO

Color

Description

Illuminated skirting board
Masking the expansion joints between the wall and the floor
Masking gaps on uneven surfaces
Space for cable management
Easy assembly

Application

- warning and decorative lighting
- function of a standard skirting board

Mounting

- to the surface, using mounting adhesives

Additional information

- masking the gaps between the extrusion and the mounting surface is possible thanks to the use of a dedicated seal
- the use of a dedicated connection strip C24009C10 at the back of the extrusion is suggested to prevent slits between individual sections of the extrusion when connecting runs and facilitates the routing of cables
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- the visible part of the profile is a natural effect resulting from the production process and is not a product defect

download

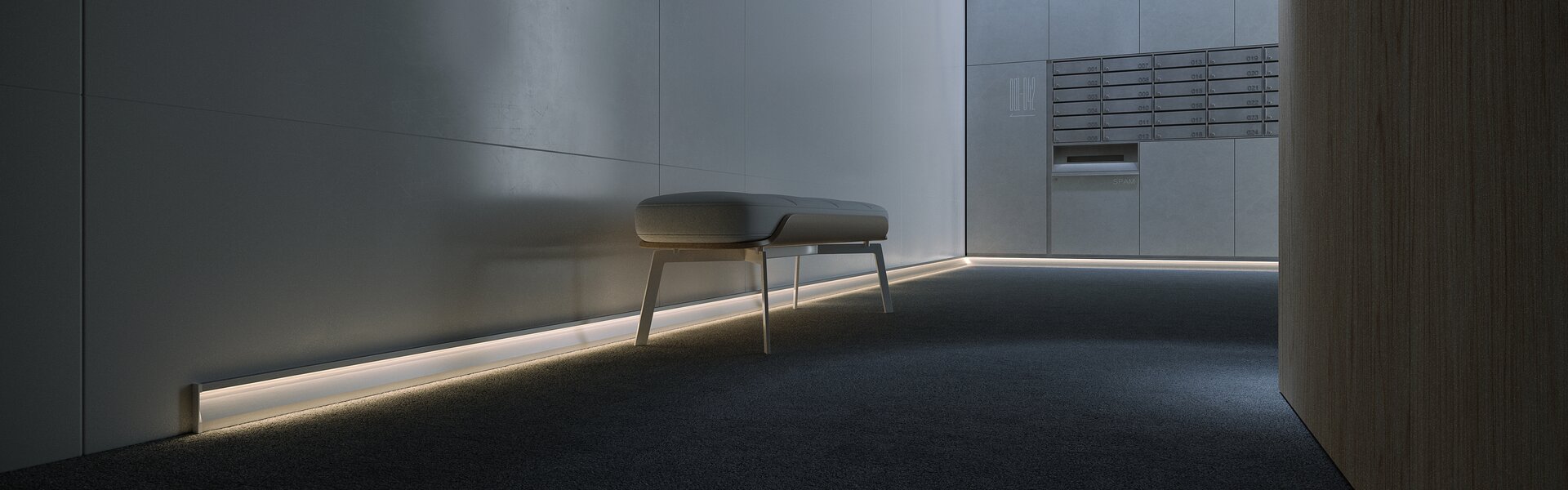

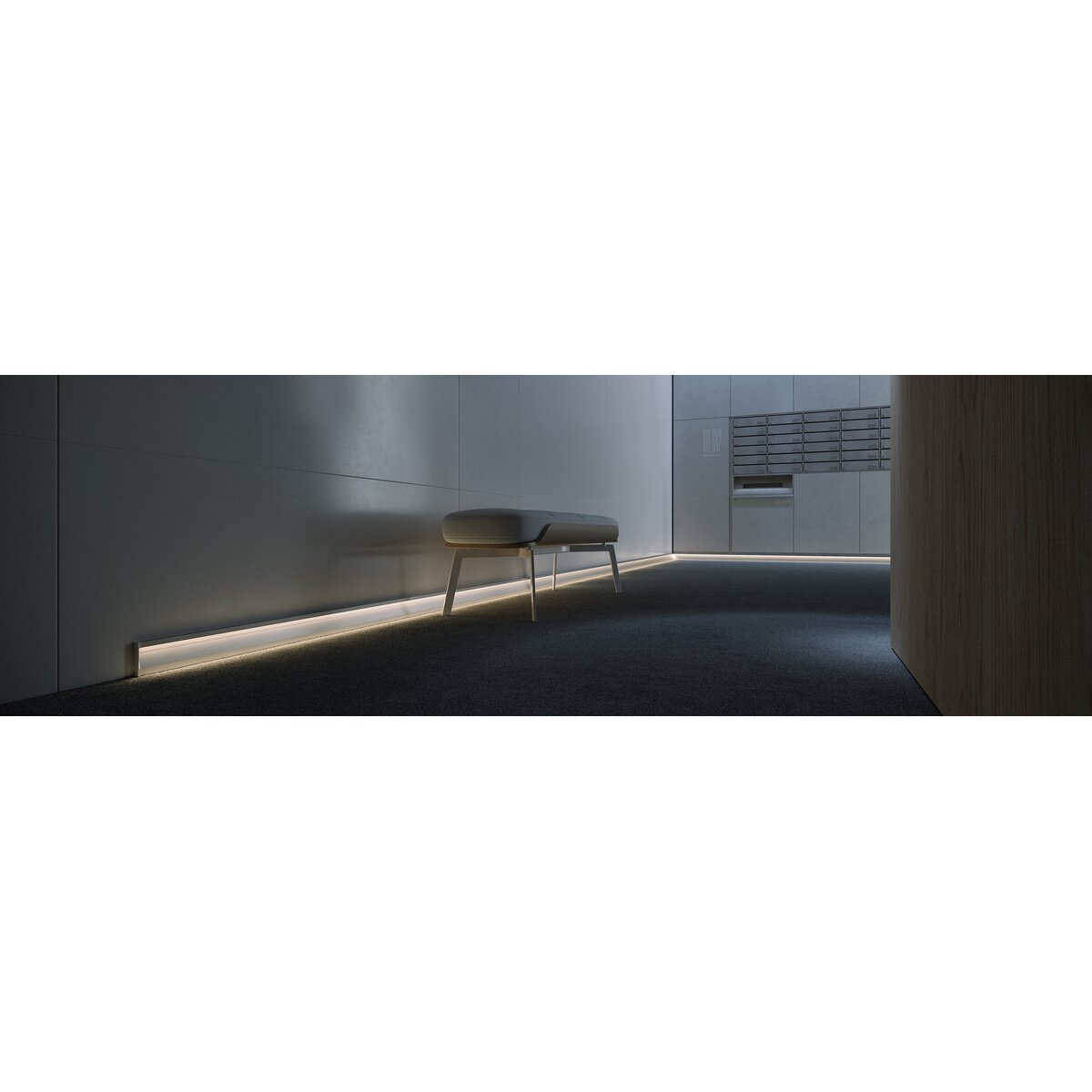

Usage examples

Description
download

Application

- warning and decorative lighting
- function of a standard skirting board

Mounting

- to the surface, using mounting adhesives

Additional information

- masking the gaps between the extrusion and the mounting surface is possible thanks to the use of a dedicated seal
- the use of a dedicated connection strip C24009C10 at the back of the extrusion is suggested to prevent slits between individual sections of the extrusion when connecting runs and facilitates the routing of cables
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
- the visible part of the profile is a natural effect resulting from the production process and is not a product defect

Declaration of Conformity UKCA

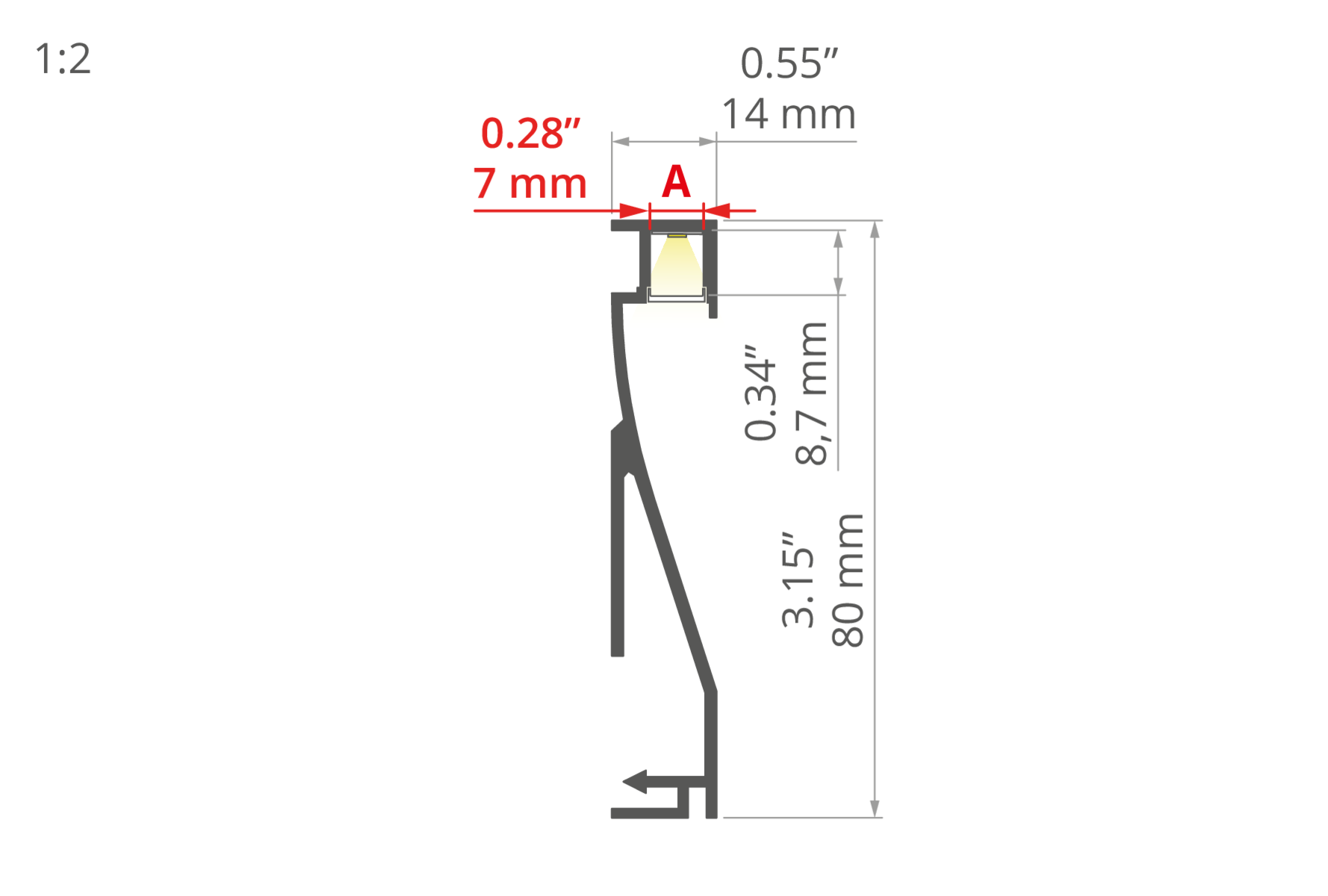

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear, polygonal

Max power of a single KLUŚ LED strip

2.9 W/ft

Width

0.6" (14 mm)

Height

3.1" (80 mm)

LED gluing width A

0.3" (7 mm)

The cover is cut to the length of the profile

Yes

Can be easily connected into runs

Yes

Functional lighting

Yes

Wire out back of extrusion

Yes

Building type

Residential, Hotel / Restaurant, Commercial

Facility zone

communication routes and corridors, office, lobby / foyer, media rooms / av, conference room, stairs / hallways

Color	Length	Ref No

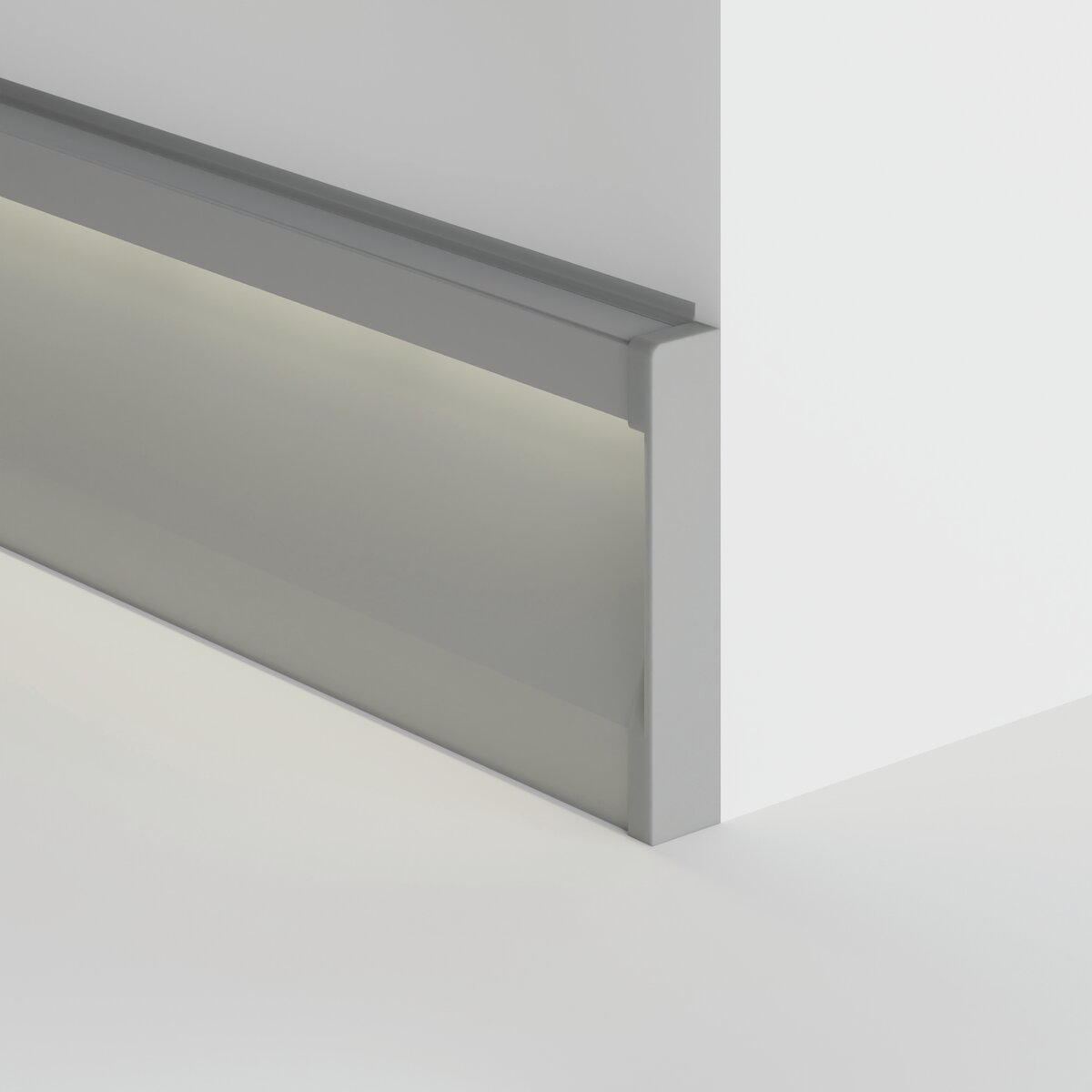

silver anodized	78.9" (2005 mm) 118.5" (3010 mm)	A18003A_2 A18003A_3

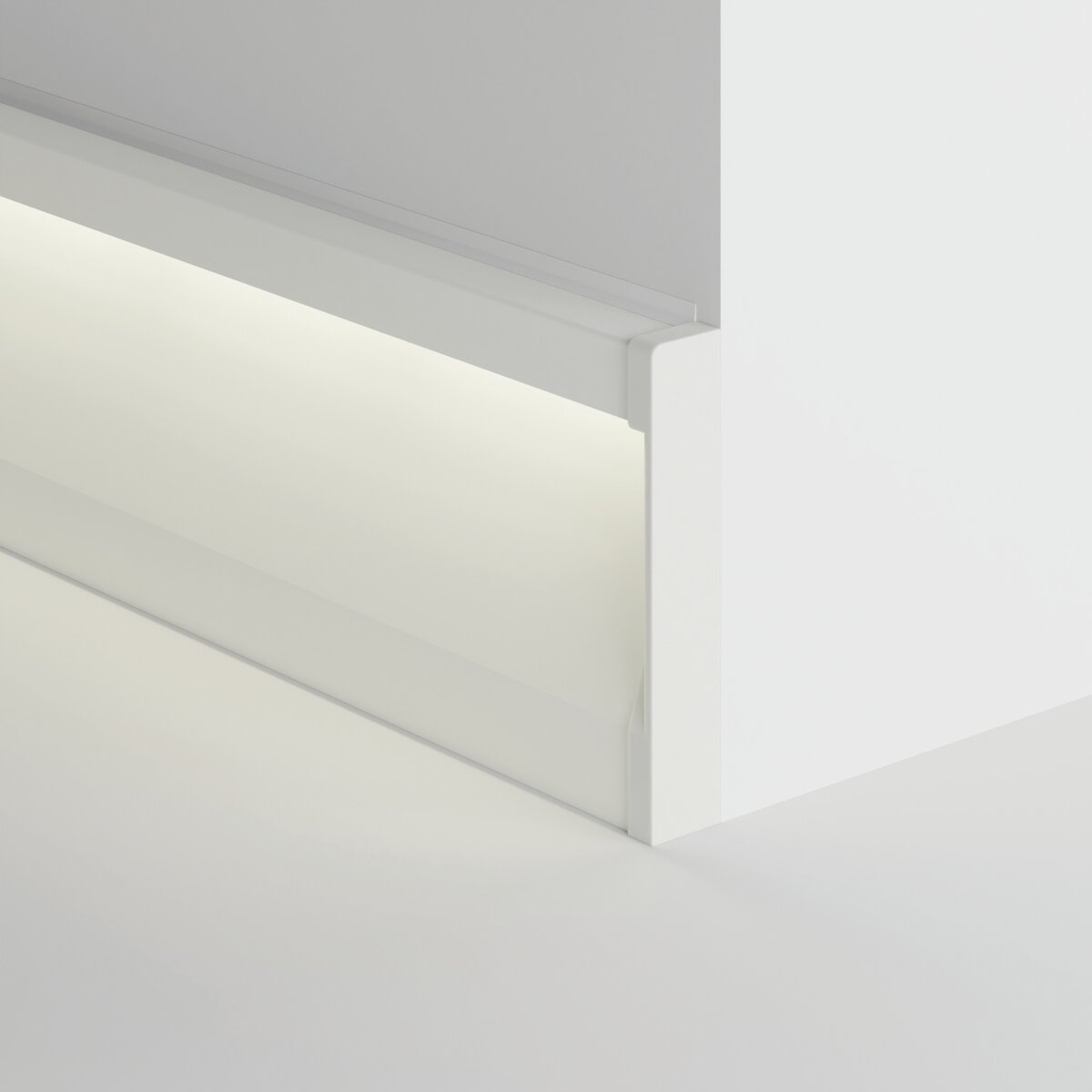

white lacquered	78.9" (2005 mm)	A18003L10_2

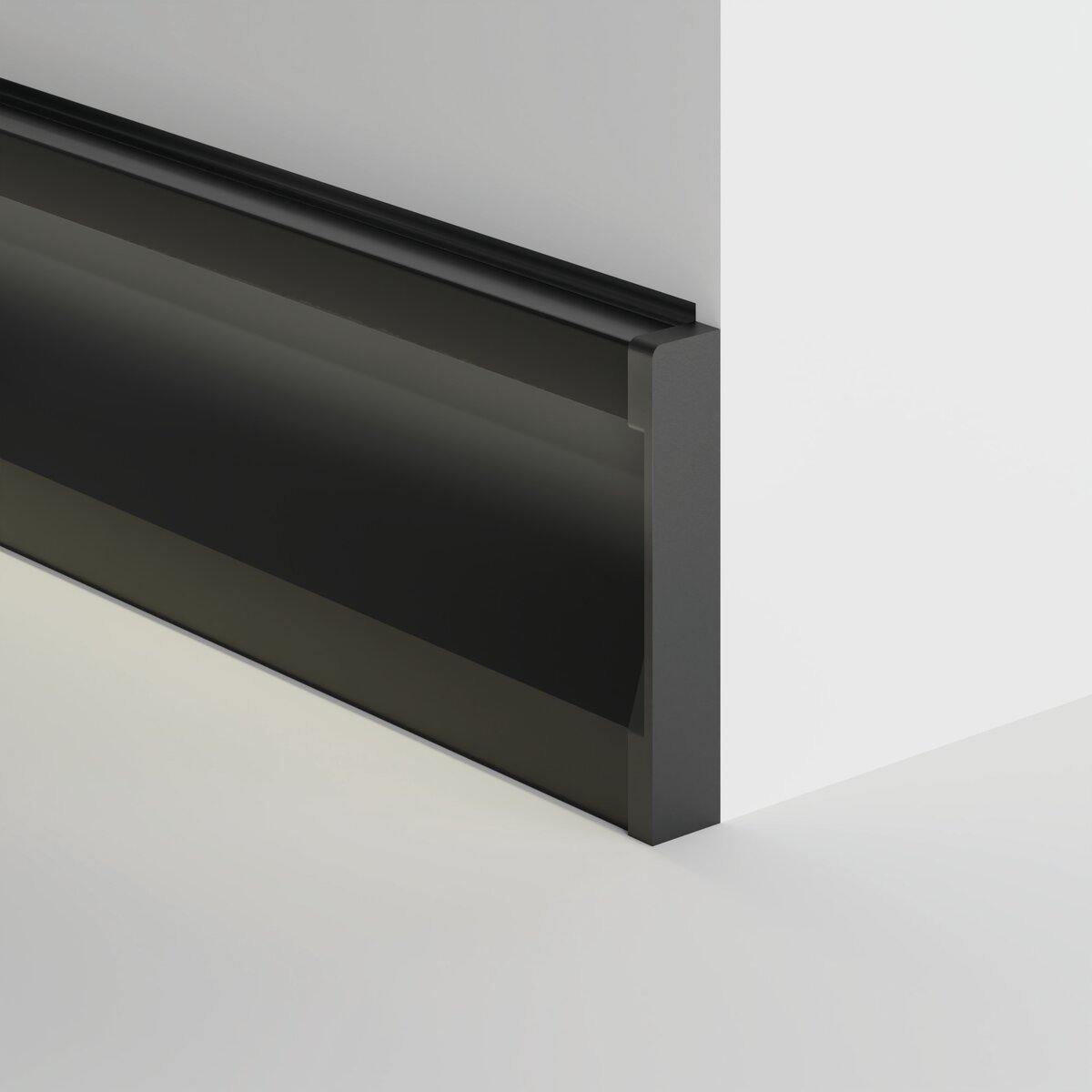

black anodized	78.9" (2005 mm) 118.5" (3010 mm)	A18003A07_2 A18003A07_3

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
PIKO-7 Cover	PMMA	- For indoor and outdoor applications - perfectly diffusing - UV resistant - Thin line of light	43 % 17 %	satin black	B17001S B17001B
BENCO-7 Cover	silicon	- indoor use - perfect for bent extrusions	53 %	frosted	B17069F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- ideal for use with black covers - high LED density	K-SHD22-0960-24 K-SHD25-0960-24 K-SHD27-0960-24 K-SHD30-0960-24 K-SHD35-0960-24 K-SHD40-0960-24 K-SHD50-0960-24
KWP-5KSHD-0960-24 LED tape	65	silicon sleeve	2.9 W/ft	2700K 3000K 3500K 4000K 5000K	- easy snap-in installation - high LED density - ideal for use with black covers	KWP-5KSHD27-0960-24 KWP-5KSHD30-0960-24 KWP-5KSHD35-0960-24 KWP-5KSHD40-0960-24 KWP-5KSHD50-0960-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
OLIS-90Z End cap	ABS	gray white black	C24478C02 C24478L10 C24478L07
OLIS-90W End cap	ABS	gray white black	C24477C02 C24477L10 C24477L07
OLIS-L End cap	ABS	gray white black	C24480C02 C24480L10 C24480L07
OLIS-P End cap	ABS	gray white black	C24481C02 C24481L10 C24481L07

Accessories
Additional items

Product name	Material	Color	Ref No
OS Connecting Strip	PCV	white	C24009C10
Gland 6x1,2			C24517C07
