K-1091-24 LED tape, 211-282 lm/ft, IP20, (K-1091-24)

Compare

Compared

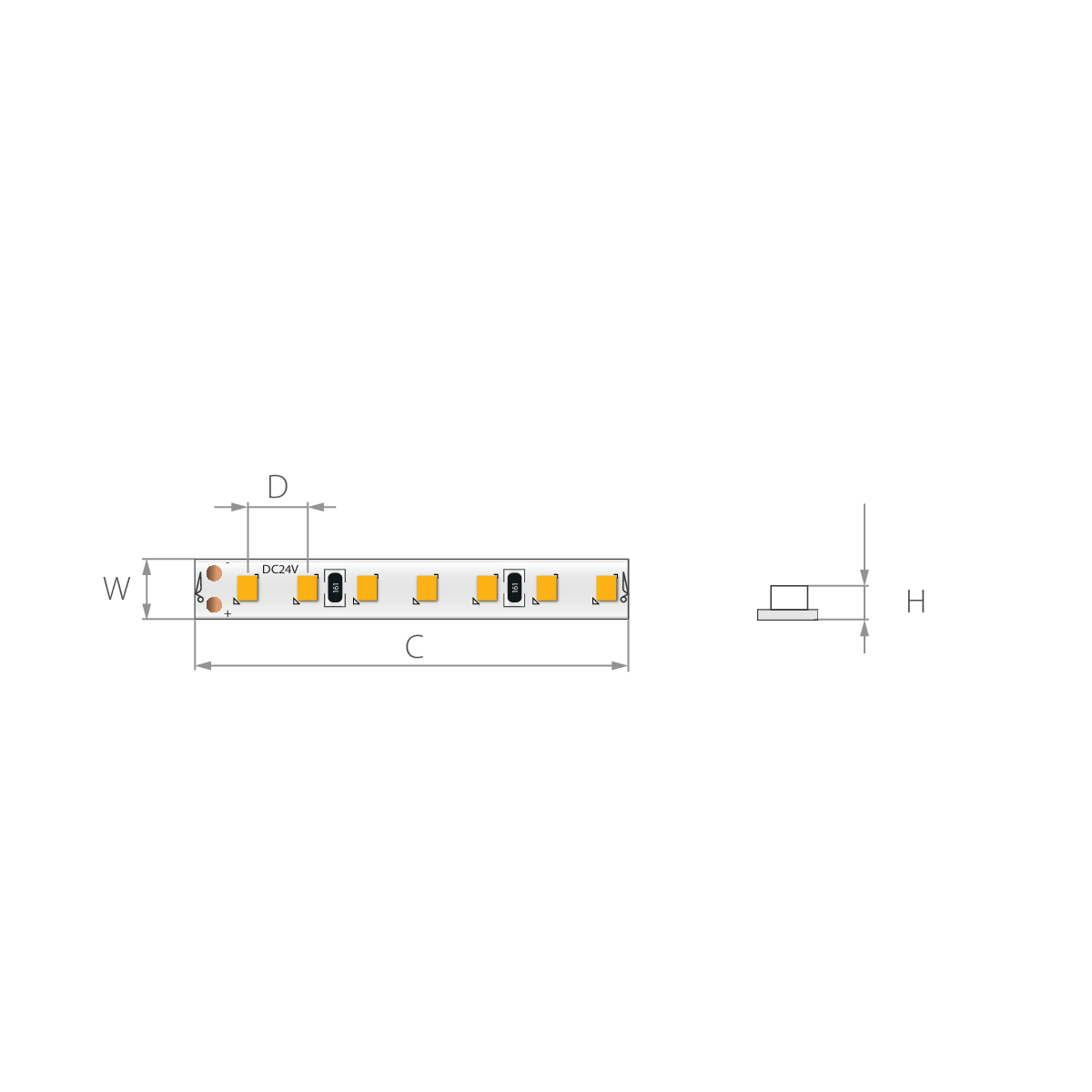

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.1" (1.5 mm)

Max run length [L]: 118.1" (3 m)

Cut every [C]: 1.4" (35.7 mm)

LED spacing: 0.2" (5.1 mm)

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.1" (1.5 mm)

Max run length [L]: 118.1" (3 m)

Cut every [C]: 1.4" (35.7 mm)

LED spacing: 0.2" (5.1 mm)

UL Listed
90+ CRI
3-Step MacAdam’s ellipse, single binning
Suitable for Installation in the Storage Area of a Clothes Closet

download

download

Technical specification

IP protection rating

CRI

LxBy

L70B50

Lifetime

60000 h

Input voltage

24 V DC

Power consumption

2.8 W/ft

Beam angle

120°

MacAdam’s ellipse

3 SDCM

Height [H]

0.1" (1.5 mm)

Width [W]

0.2" (5 mm)

Cut every [C]

1.4" (35.7 mm)

LED spacing

0.2" (5.1 mm)

Number of LEDs per 1 ft

Number of LEDs per cut section

6 pcs

Max run length [L]

118.1" (3 m)

Closet Rated

Yes

JA8 / TITLE24 Compliant

Yes

Dimmable

Yes

Working temperature

-22°F - 140°F

LED color	LED output	Efficiency	Ref No
2200K	211 lm/ft	76 lm/W	K-22-1091-24
2500K	237 lm/ft	85 lm/W	K-25-1091-24
2700K	237 lm/ft	85 lm/W	K-27-1091-24
3000K	243 lm/ft	88 lm/W	K-30-1091-24
3500K	269 lm/ft	97 lm/W	K-35-1091-24
4000K	282 lm/ft	102 lm/W	K-40-1091-24
5000K	282 lm/ft	102 lm/W	K-50-1091-24
